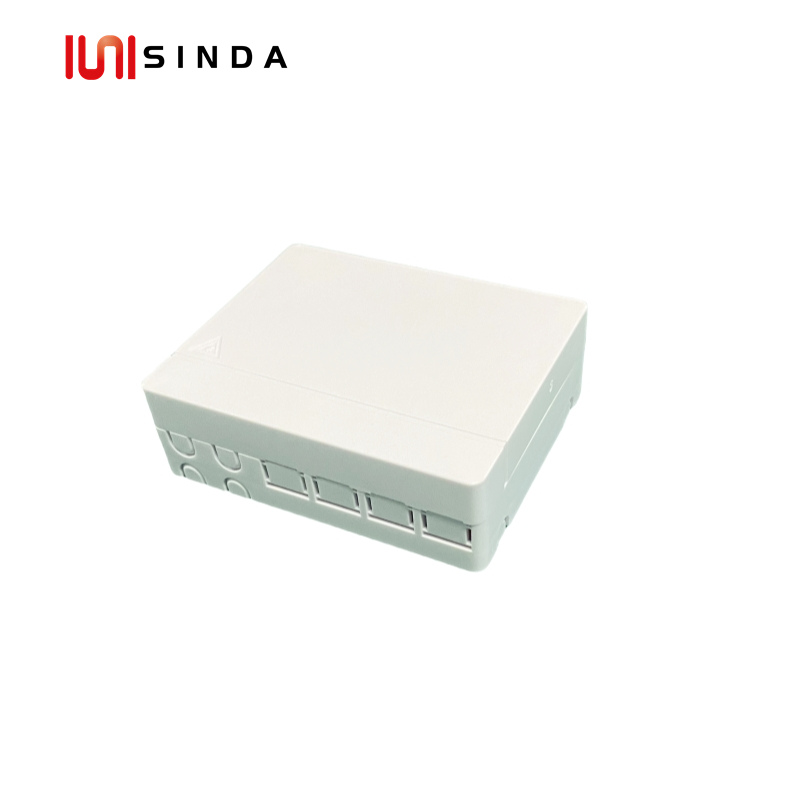

SDFRB-4A Optical Terminal box

SDFRB-4A Optical Terminal box,Provided by the front cover, and the optical fiber optical fiber panel drawing, fixed space and equipment, installationsite connector and provide adapter interface and optical fiber connectors protection at the bottomof the box.



facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

SDFRB-4A Optical Terminal box

* Optical fiber panel with the introduction of cable fixed device and optical fiber fixed, protection deviceinthefirstplace.

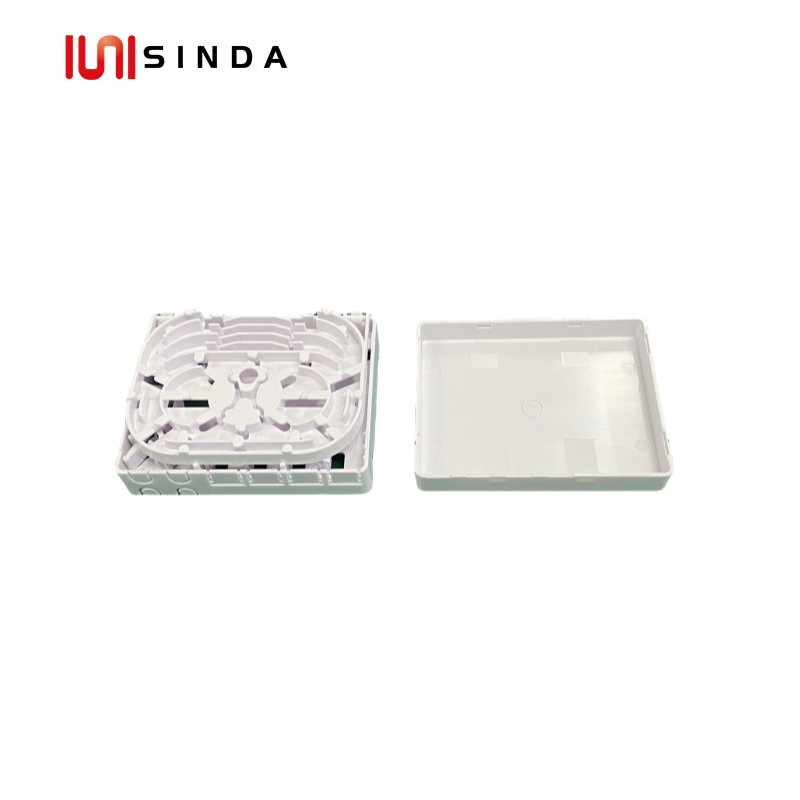

* Optical fiber panel cover and bottom box is made of high quality ABS (flame retardant polycarbonate)plasticmaterial.

* Optical fiber panel adapter socket without jumping fiber insertion should be dustproof device.

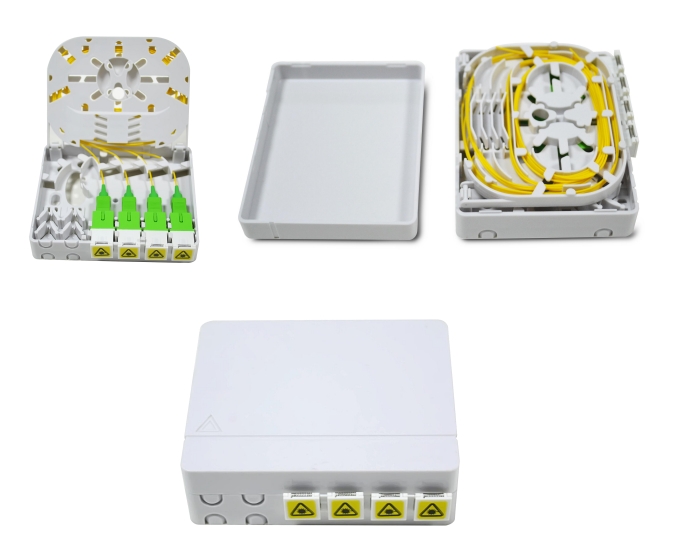

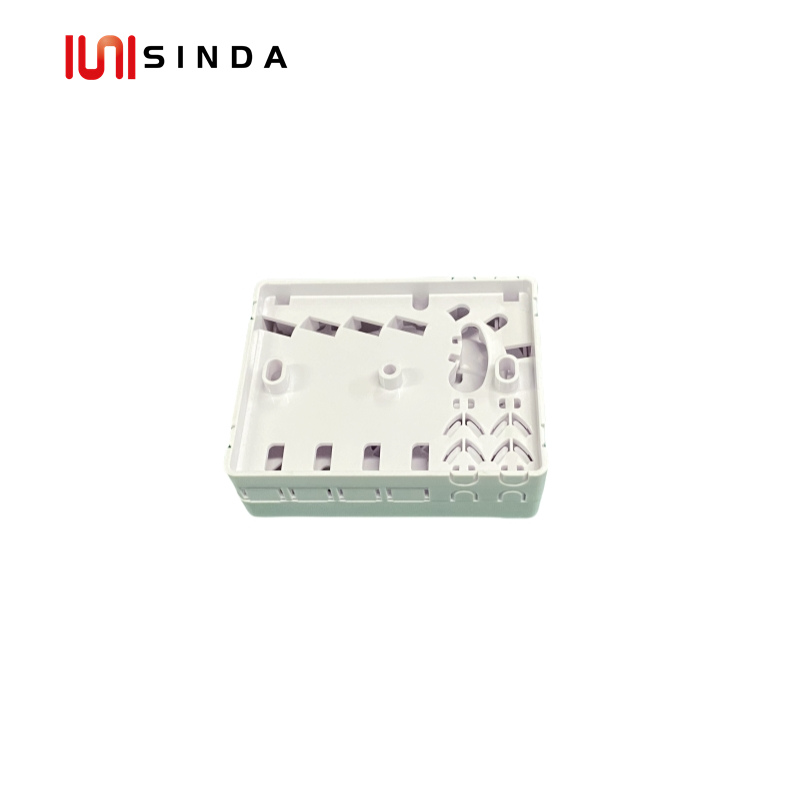

* There is a plate and convex platform in the bottom of the box to facilitate the storage of optical cable or redundant opticalcable.The design of optical path can meet the requirements of the optical fiber bending radius and the small amountofredundant optical fiber, and provide the safety guarantee for the access to the optical fiber





Product Features


(1).Insertion loss:≤0.3 dB ,Return loss:≥50dB.

(2).Tensile strength:> 50 N

(3).Job stress: 70 kpa to 106 kpa;

(4).Using the temperature:- 40 ~ + 75 ℃

(5).Relative humidity: ≤85% (+ 30 ℃).

(6). Protection grade: IP65

(7).Provide 2 SC single+2 LC duplex adapter interface, realizing FTTH.

(8).Internal inventory redundant optical fiber, convenient in operation and maintenance.

(9).Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of multi-storeyandhigh-rise tenants,easy to install, easy to install







Specifications


Parameter Value Remark
Model SDFRB-4A
Outside Dimension(mm) 100 mm * 83 mm*32mm
Material Plastic
Color White
Splice capacity 4~8 F
Splice Method Fusion Splice 45mm sleeve
Adapter type and count 4SC/8LC









Accessories


Products Name Specifications Qty
Box SDFRB-4A 1pc
Optical fiber heat shrinkable casing Ф1.5×40mm 4pcs
Nylon cable tie 3X100mm 4pcs
Expansion bolt M8 X 40mm 2sets
