SDFRB-2B2 FTTH Box

SDFRB-2B2 FTTH Box

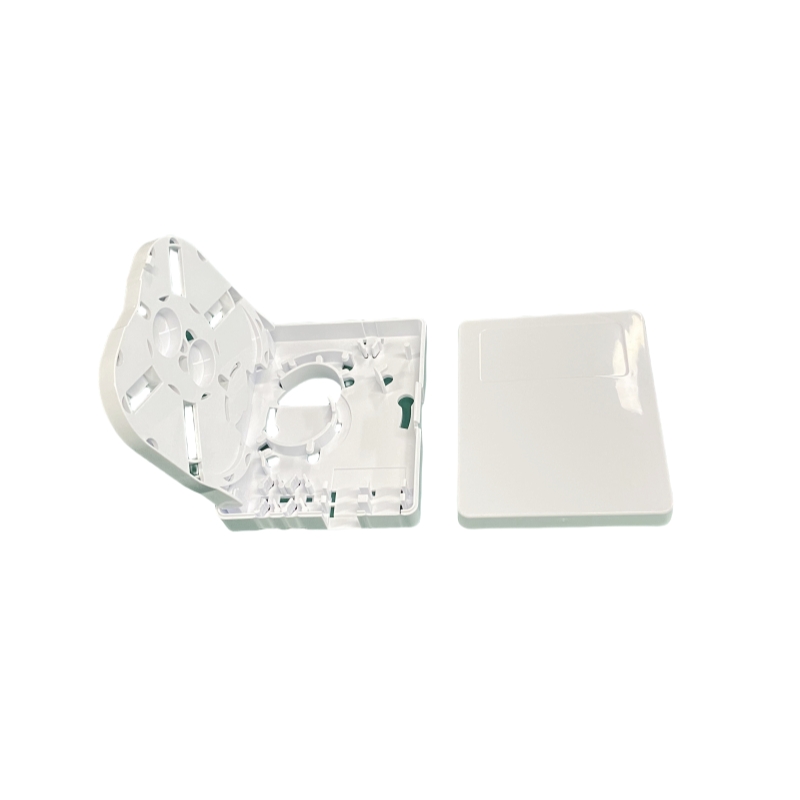

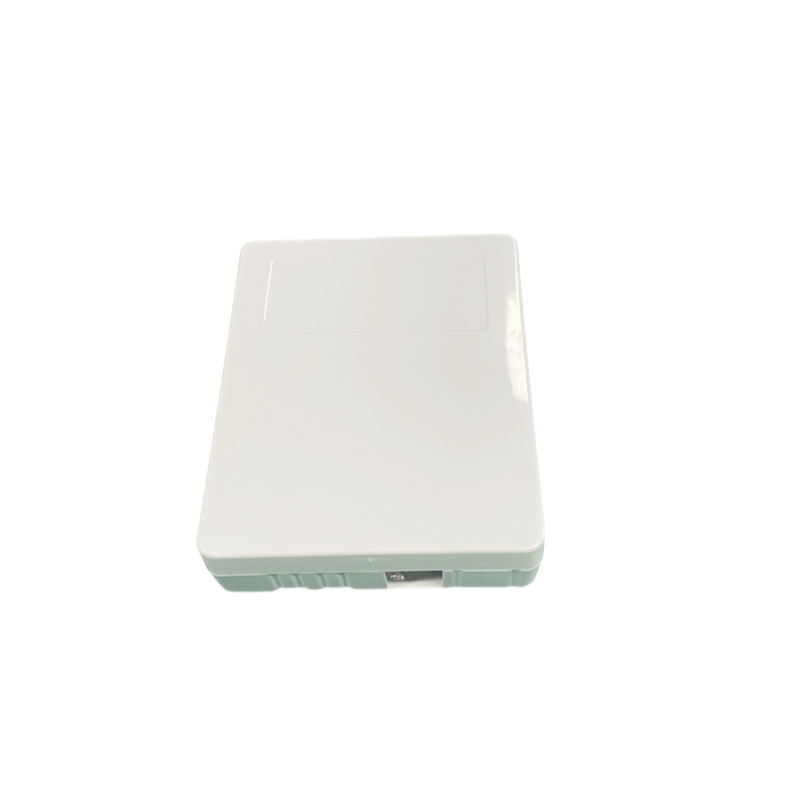

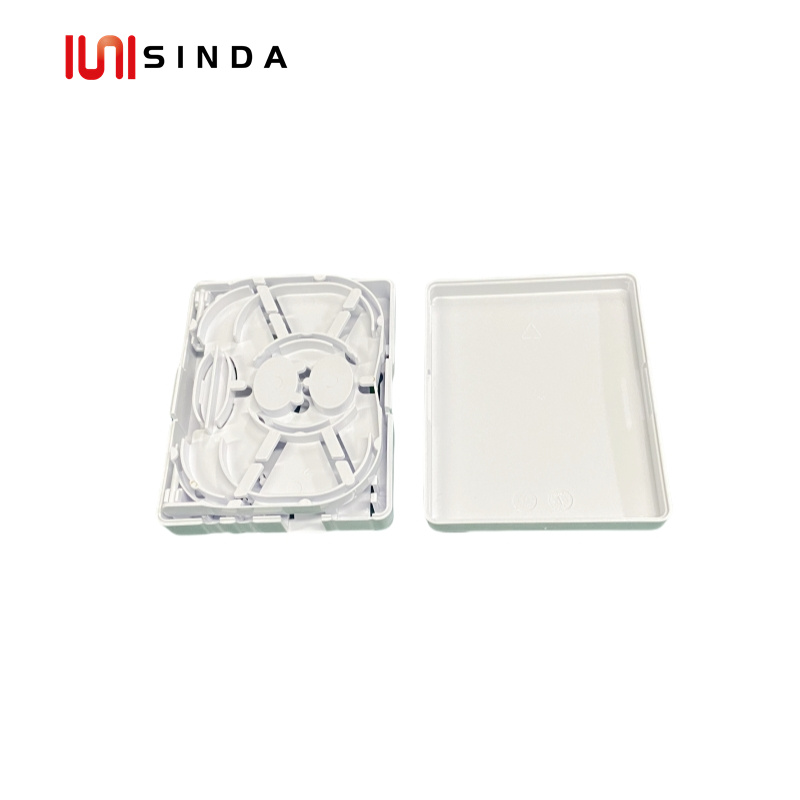

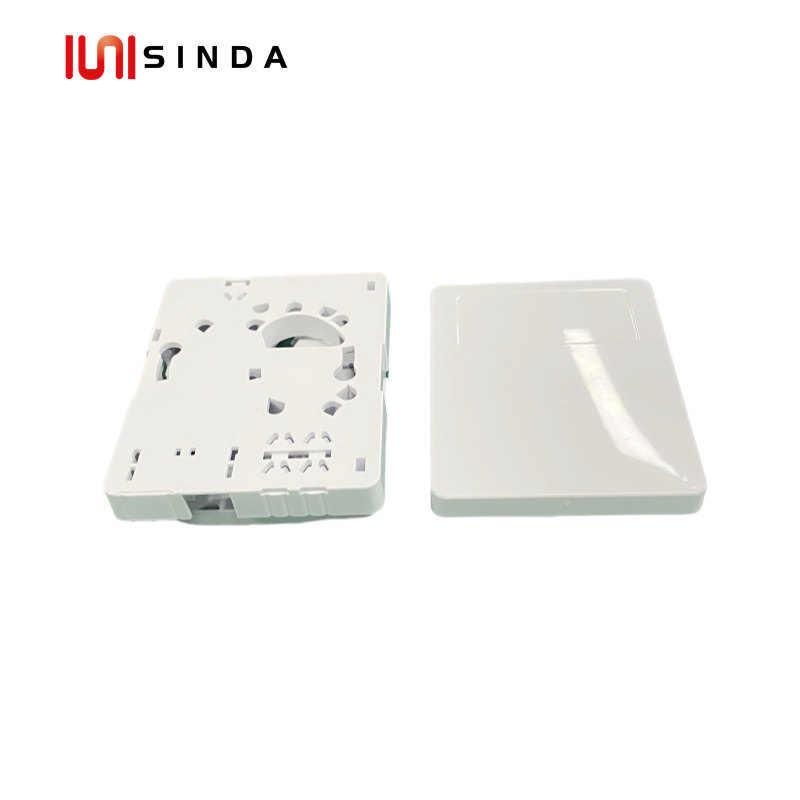

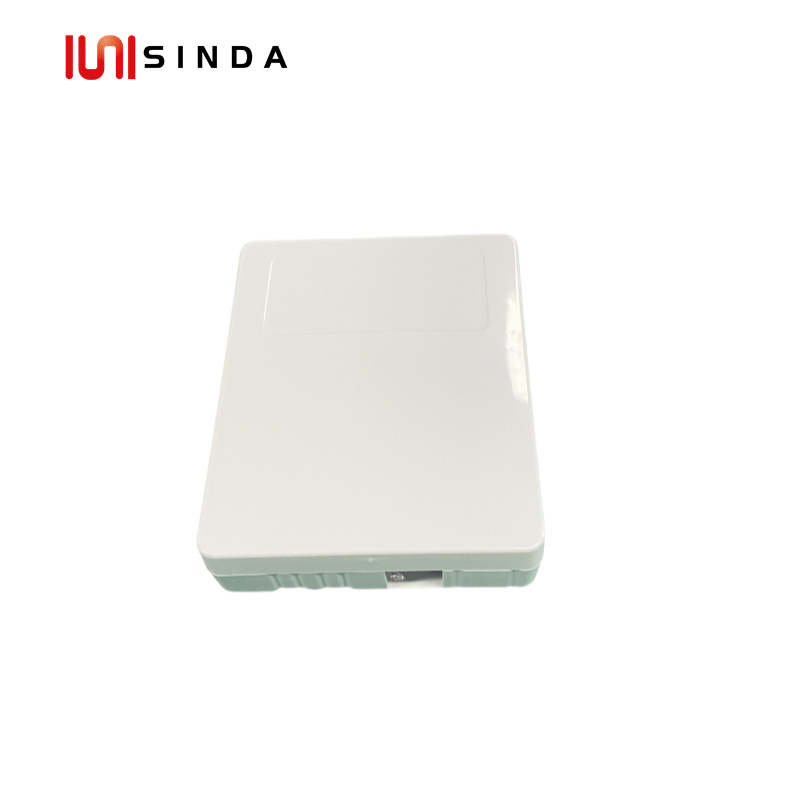

SDFRB-2B2 FTTH Box,The SDFRB-2B2 is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.

Chat Now

Description

SDFRB-2B2 FTTH Box

The SDFRB-2B2 is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.

Features

Support termination, splicing and storage for fiber optic cable systems

Suitable for two adapters SC or two adapters LC configuration

Compact structure and perfect fiber management

Engineered fiber routing protect bend radius through the unit to ensure signal integrity Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.

Specifications

Parameter	Value	Remark
Model	SDFRB-2B2
Outside Dimension(mm)	8010023
Material	ABS
Color	White
Splice capacity	2F/4F
Splice Method	Fusion Splice	1.0*40mm sleeve
Adapter type and count	2 SC/SX or 2 LC/DX
Input cable	3mm or figure 8(2*3mm)	From side or bottom

Accessories

No.	Name	Qty
1	Fiber splice protection sleeve	2pcs
2	Expansion bolts for the outlet wall-mounted	2 set

Packing Informations

Model	Dimension of Carton(cm)	Number of boxes packed	Gross weight(kg)	NET weight of products(kg)
SDFRB-2B2	523035	200	15	0.7

Quality Certification

Hot Tags : SDFRB-2B2 FTTH Box 2c fiber desk box Fiber optical box 2c ftth box 2c 86 box Fiber FTTH box
