SDFRB-2A FTTH Box

 SDFRB-2A FTTH Box,SDFRB-2A fiber rosette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application.


facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

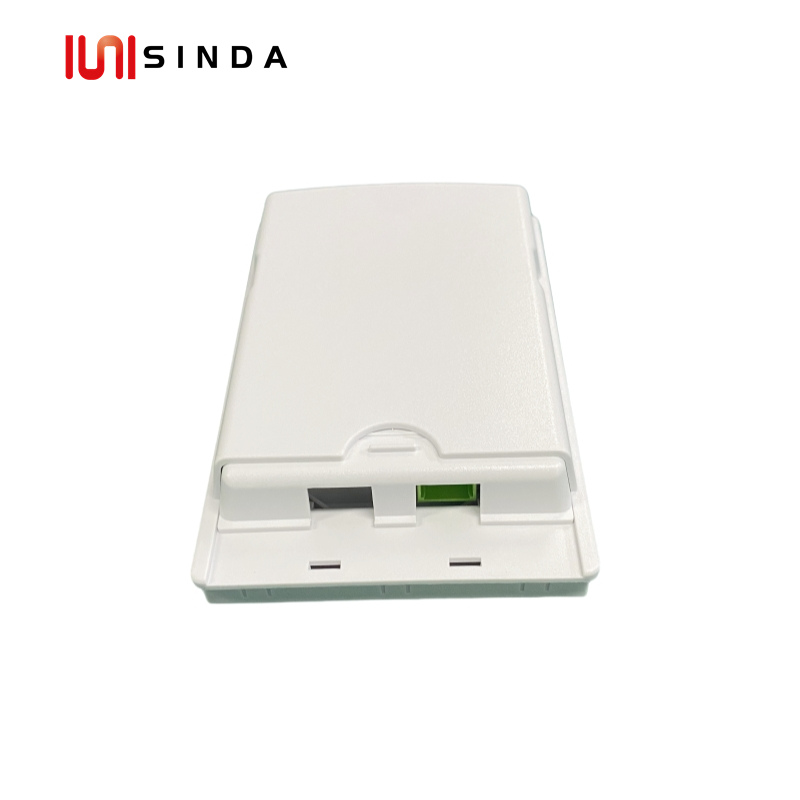

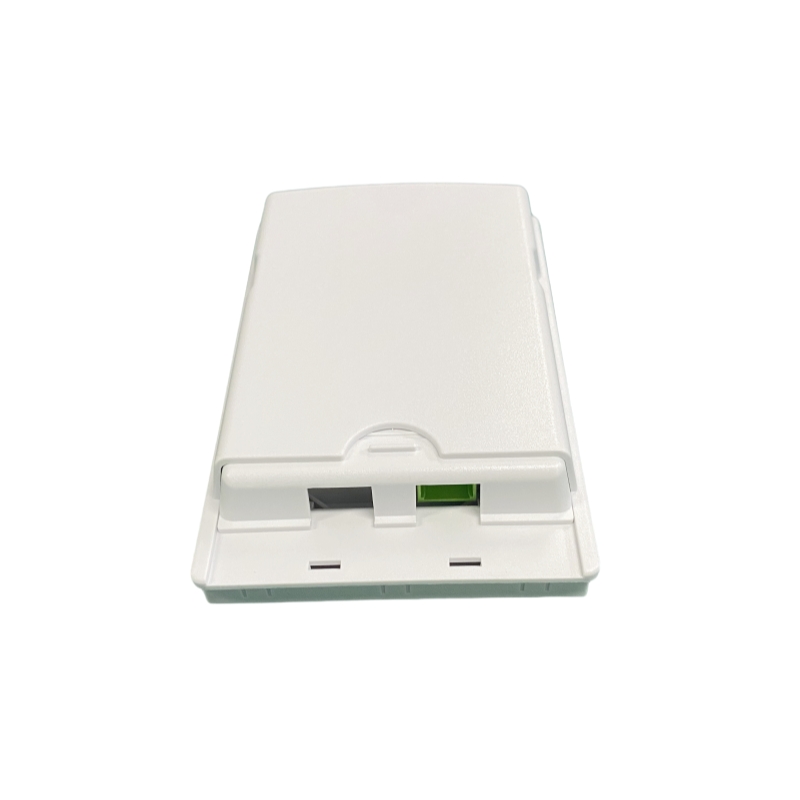

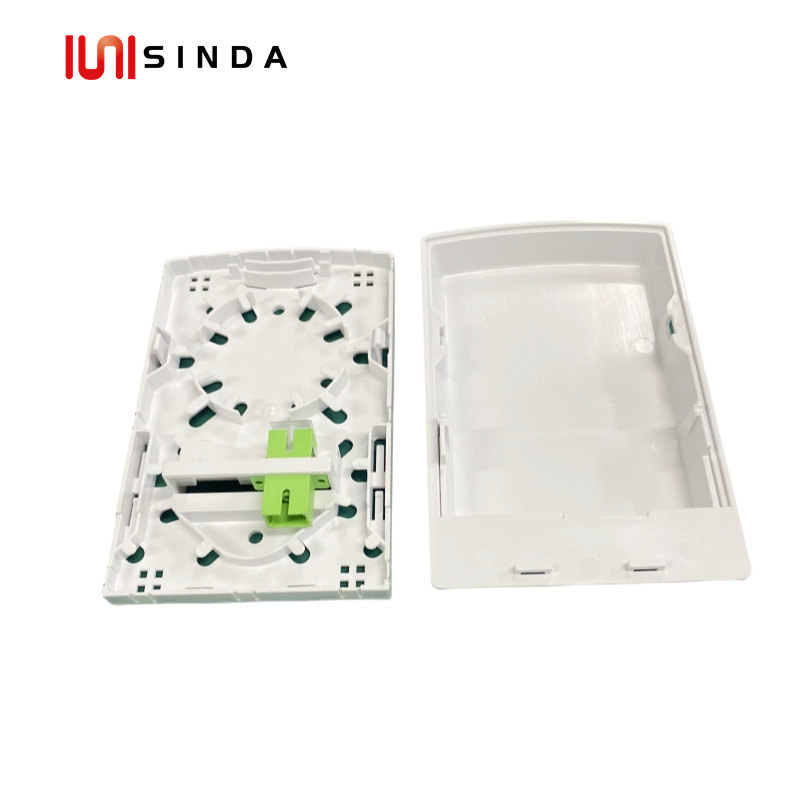

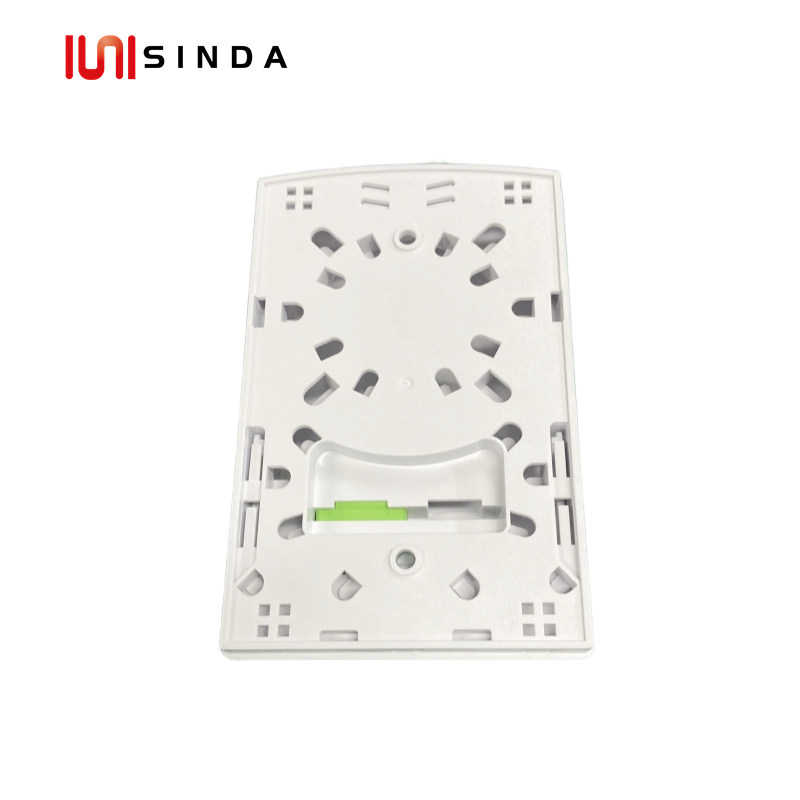

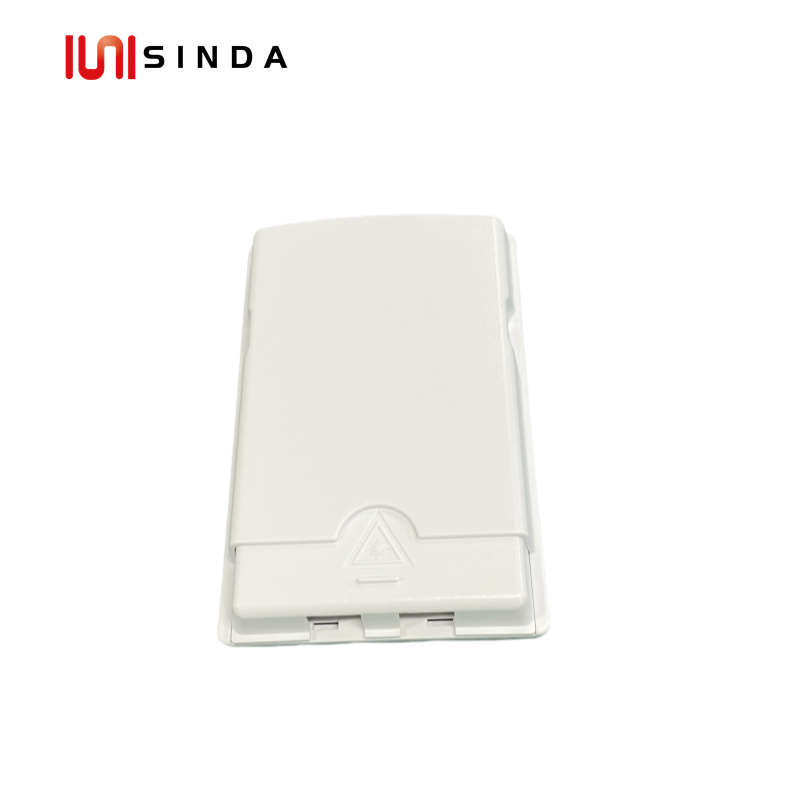

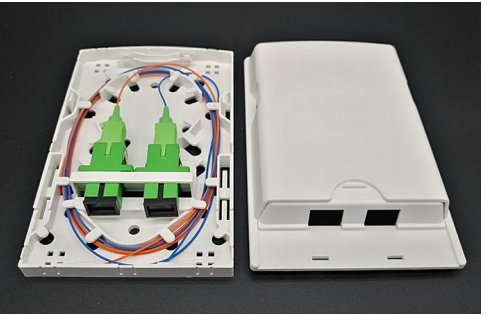

SDFRB-2A FTTH Box
It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.





Features
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice.
Embedded type surface, easy for installation and removal.
2 ports cable entrance for patch cable.





Specifications
Parameter Value Remark
Model SDFRB-2A
Outside Dimension(mm) 130*84*24
Material ABS+PC
Color White
Splice capacity 2F
Splice Method Fusion Splice 45mm sleeve
Adapter type and count 2 SC/SX or 2 LC/DX
Input cable 3mm or figure 8(2*3mm) From side or bottom









Accessories


No. Name Qty
1 Fiber splice protection sleeve 2pcs
2 Expansion bolts for the outlet wall-mounted 2 set











Quality Certification
