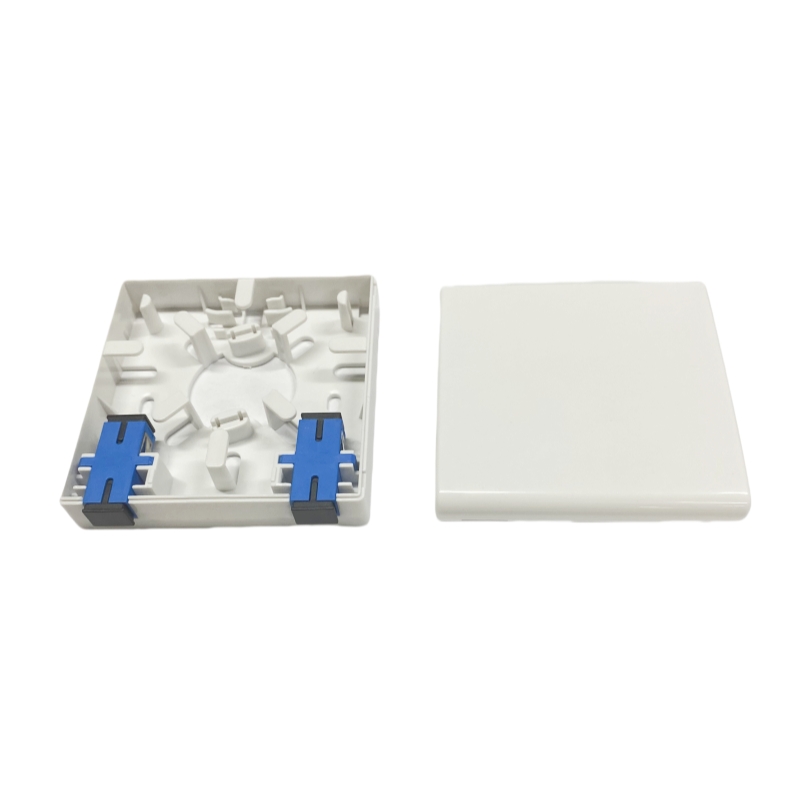

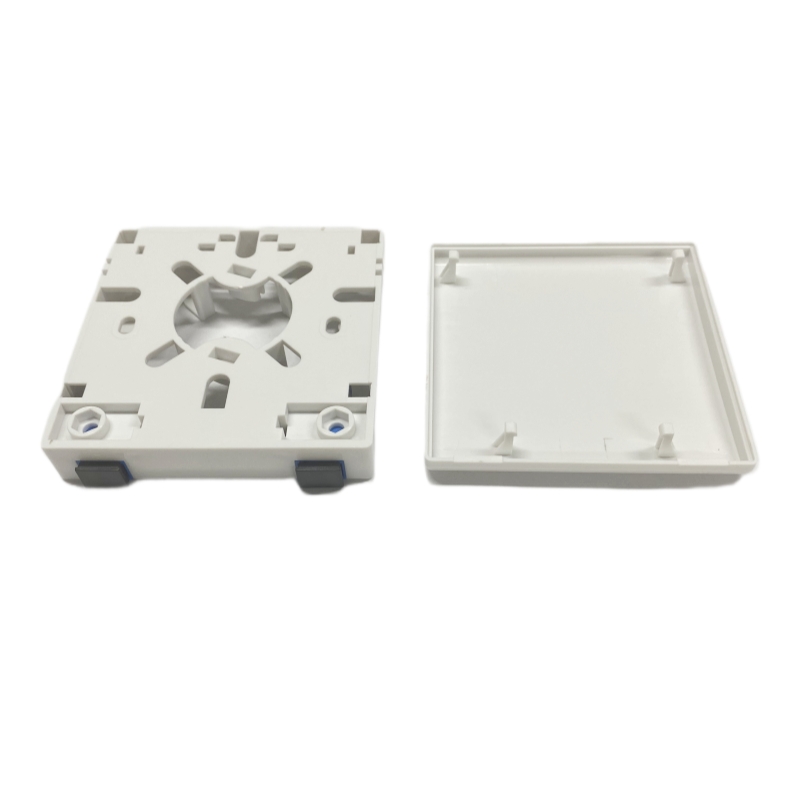

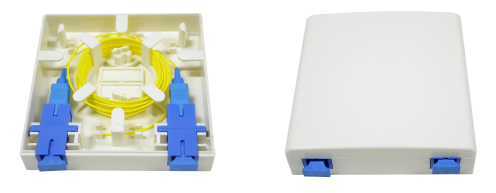

SDFRB-2C Optical Fiber Panel

SDFRB-2C Optical Fiber Panel,The SDFRB-2C is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion,fiber cables and pigtails.

Chat Now

Description

SDFRB-2C Optical Fiber Panel

The SDFRB-2C is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion,fiber cables and pigtails.

Features

1.Support termination, splicing and storage for fiber optic cable systems.

2.Compact structure and perfect fiber management.

3.Engineered fiber routing protect bend radius through the unit to ensure signal integrity.

4.Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.

5.Working Temperature: -25℃～+60℃; Atmospheric

6.Pressure:70kPa～106kPa;

7.Relative Humidity: ≤ 85%（+30℃）;

8.Connector Repeatability: >1000;

9. Connector Specification: IL: ≤0.2dB; RL: ≥50dB;

Specifications

Parameter	Value	Remark
Model	SDFRB-2C
Outside Dimension(mm)	868625
Material	ABS
Color	White
Splice capacity	2F
Splice Method	Fusion Splice	45mm sleeve
Adapter type and count	2 SC/SX or 2 LC/DX
Input cable	3mm or figure 8(2*3mm)	From side or bottom

Accessories

No.	Name	Qty
1	Fiber splice protection sleeve	2pcs
2	Expansion bolts for the outlet wall-mounted	2 set
