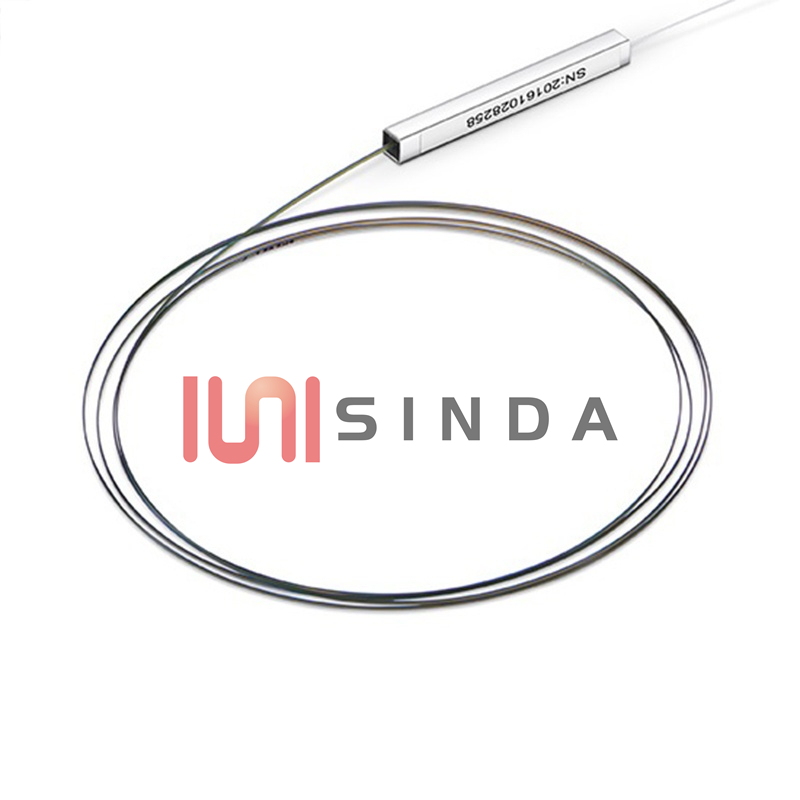

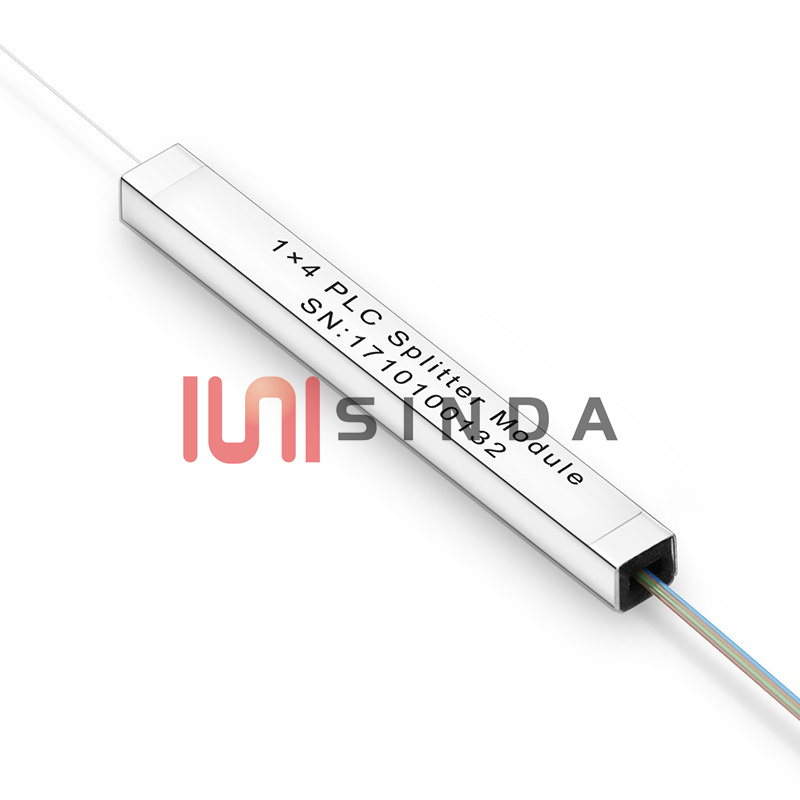

1 x 4 PLC Fiber Splitter, Mini Blockless, Bare Fiber 250μm, Singlemode, SINDA Bare Fiber PLC splitters is a kind of ODN product suitable for Fiber To The X (FTTx, x=Home, Office, Buliding etc.) networks, adhering to ITU.T PON standards like GPON and XGS-PON etc, which are packaged in a compact housing with options for 250 um leads and 900 um leads.
1 x 4 PLC Fiber Splitter, Mini Blockless, Bare Fiber 250μm, Singlemode
These splitters offer low insertion loss and low polarization sensitivity. Available in 2, 4, 8, 16, and 32-channel configurations, they have bend-insensitive cables and minimal deformation during use, ensuring optical performance specifications and high reliability With bare fibers exposed at all ends, these PLC splitters are best suited for fixed installations, such as cable connector boxes, pigtail cassette, test instrument and WDM.
Features
Split Input Signal Evenly into 4 Output Ports with High Uniformity
≤7.1dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss
Compact Housing Fits Splice Trays, Wall-mounted Boxes, Optical Distribution Boxes, etc.
1260~1650nm Broad Operating Wavelengths
G.657A1 Bend Insensitive Fibers for Low Bending Loss
Housing, Split Ratio, and Connector Options can be Customized
Specifications
Package Style | Steel Tube, Bare Fiber | Configuration Type | 1x 4 |
Fiber Type | G.657A1 | Operating Wavelength | 1260~1650nm |
Tube Type | 250um Ribbon Fiber | Split Ratio | Symmetrical |
Input/Output Fiber Diameter | 250μm | Input/Output Fiber Length | 1.5m |
Insertion Loss | ≤ 7.1dB | Insertion Loss Uniformity | ≤ 0.6dB |
Return Loss | ≥ 55dB | Directivity | ≥ 55dB |
Polarization Dependent Loss (PDL) | ≤ 0.2dB | Fiber Mode | Singlemode |
Wavelength Dependent Loss (WDL) | ≤ 0.5dB | Temperature Dependent Loss | ≤ 0.5dB |
Temperature | Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
Steel Tube Dimensions (HxWxD) | 0.16"x1.57"x0.16" (4x40x4mm) |
1×N PLC Splitter
Parameters | 1x2 Port | 1x4 Port | 1x8 Port | 1x16 Port | 1x32 Port | 1x64 Port |
Operating Wavelength(nm) | 1260~1650 | |||||
Fiber Type | G652D/G657A1/G657A2 | |||||
Insertion Loss(dB) | 4.1 | 7.4 | 10.8 | 14.3 | 17.3 | 21 |
Uniformity(dB) | 1 | 1.5 | 1.5 | 2 | 2 | 2.5 |
Return Loss(dB) | 55 | 55 | 55 | 55 | 55 | 55 |
PDL(dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Temperature Stability(-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature (℃) | -25~70 | |||||
Storage Temperature (℃) | -25~70 | |||||
Mini Module Dimension (LxWxH) | 60x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 |
ABS Box Dimension (LxWxH) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 140x115x18 |
Bare Fiber Dimension (LxWxH) | 40x4x4 | 40x4x4 | 40x4x4 | 50x7x4 | 50x7x4 | 60x12x4 |
Note: Add an additional 0.3dB loss per connector. |
2×N PLC Splitter
Parameters | 2x2 Port | 2x4 Port | 2x8 Port | 2x16 Port | 2x32 Port | 2x64 Port |
Operating Wavelength(nm) | 1260~1650 | |||||
Fiber Type | G652D/G657A1/G657A2 | |||||
Insertion Loss(dB) | 3.8 | 7.1 | 10.2 | 13.5 | 16.8 | 20.5 |
Uniformity(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
Return Loss(dB) | 55 | 55 | 55 | 55 | 55 | 55 |
PDL(dB) | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.35 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Temperature Stability(-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature (℃) | -25~70 | |||||
Storage Temperature (℃) | -25~70 | |||||
Mini Module Dimension (LxWxH) | 60x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 |
ABS Box Dimension (LxWxH) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 140x115x18 |
Bare Fiber Dimension (LxWxH) | 40x4x4 | 40x4x4 | 40x4x4 | 50x7x4 | 50x7x4 | 60x12x4 |
Note: Add an additional 0.3dB loss per connector. |
