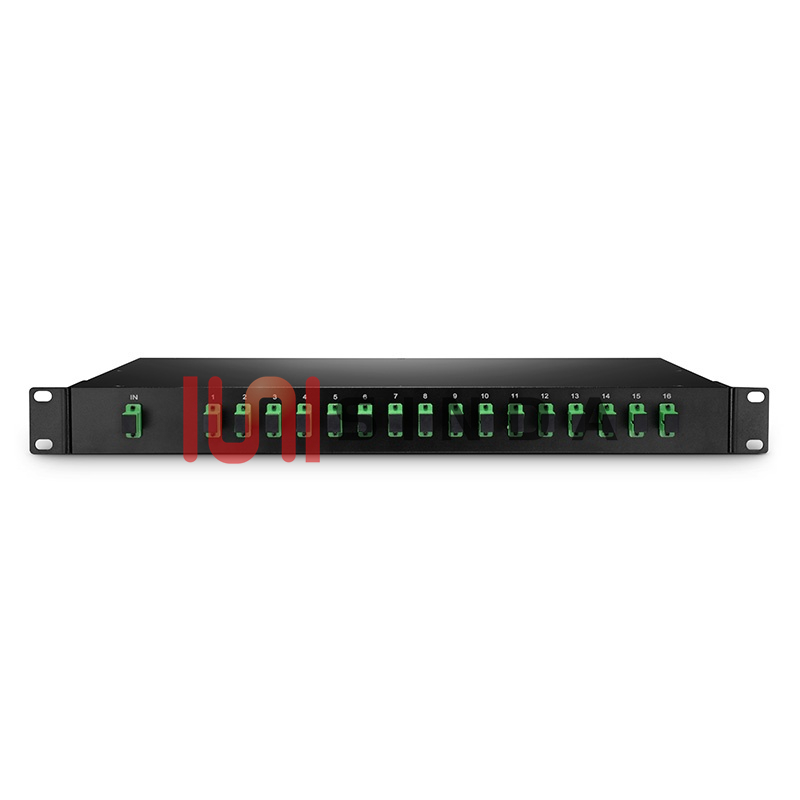

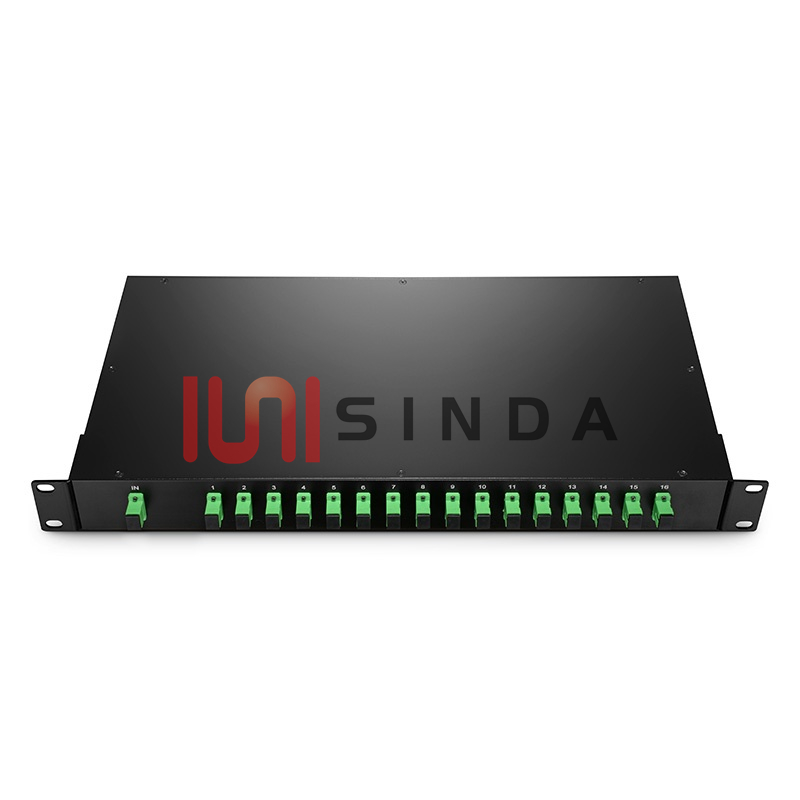

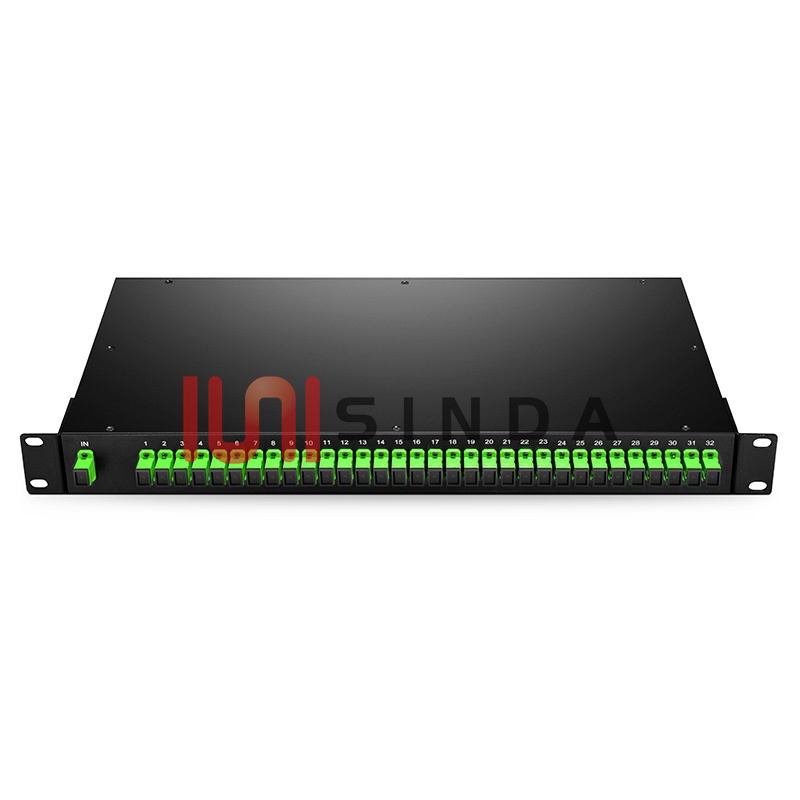

1x16(1x32) 1U 19" ,Rack Mount PLC Fiber Splitter, SC/APC, Singlemode

PLC Fiber Splitter,1x16(1x32) 1U 19" Rack Mount, SC/APC, Singlemode,1×16 Planar Lightwave Circuit (PLC) Rack Mount Splitter is designed to meet the requirements for high density cabling in data centers or server rooms.  Fits in 19″ standard integrated distribution cabinet or network cabinet.  Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.



facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

PLC Fiber Splitter,1x16(1x32) 1U 19" Rack Mount, SC/APC, Singlemode

Can be easily mounted in cabinet connecting the Central Office (CO) and terminal apparatus for uniform optical signal distribution in fiber to the point (FTTx) deployments and other passive optical networks (e.g., EPON, GPON, BPON).







Features


Fits 19″ standard integrated distribution cabinet or network cabinet

Designed for high density cabling environment

Silk screened port number for easy identification















Specifications


Package Style Rack Mount Configuration Type 1x 32 (1x16)
Fiber Type G.657A1 Operating Wavelength 1260-1650nm
Connector Type SC/APC Split Ratio Symmetrical
Insertion Loss ≤ 16.9dB Insertion Loss Uniformity ≤ 1.5dB
Return Loss ≥ 55dB Directivity ≥ 55dB
Polarization Dependent Loss ≤ 0.3dB Fiber Mode Singlemode
Wavelength Dependent Loss ≤ 0.5dB Temperature Dependent Loss≤0.5dB
Dimensions (HxWxD) 1.73"x19.00"x9.84" (44x482.6x250mm) Temperature Operating -40 to 85°C (-40 to 185°F)







Applications


Widely Used in FTTX Projects and Data Communication Centers,Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
