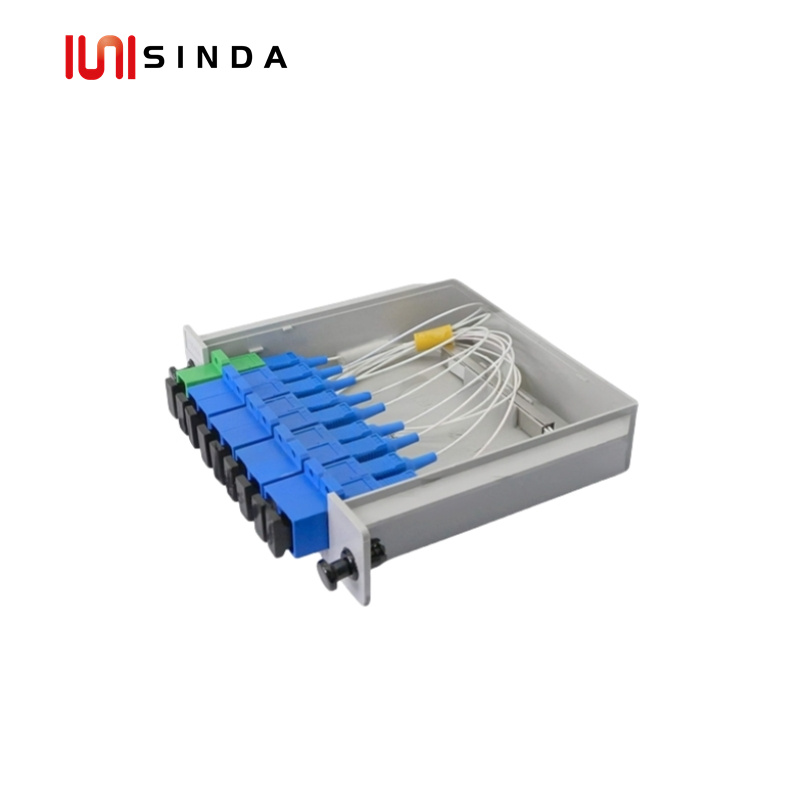

1×8 SC LGX Box PLC Splitter, 1×8 Planar Lightwave Circuit (PLC) Splitter in Standard LGX Cassette with SC/APC termination.
1×8 SC LGX Box PLC Splitter
Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low-cost light distribution solution with small form factor and high reliability.
Features
Telcordia GR-1209 & GR-1221 compliant;
Telcordia GR-326 compliant
Jacketing material rated for -40 to +85 °C operating temperature;
Bend insensitive fiber;
Low Insertion loss and PDL;
High reliability and stability;
Available in zero and low water peak fiber.
Specification
Operating Wavelength(nm) | 1260 ~ 1650 |
Type | 1×4; 1×8; 1×16 ; 2×4 ; 2×8; 2×16; 1×32; 2×32; 1×64. |
Insertion Loss (dB) Max. | <7.3 ;<10.5 ; <13.5 ; <7.6 ; <11.2; <14.5 ; <16.2 ; <18.2; <20.5. |
Uniformity (dB) Max. | <0.8; <1.0; <1.5 ; <1.0 ; <1.5 ; <2.0; <2.0; <2.5; <2.5. |
PDL(dB)Max.* | <0.2 ;<0.2 ; <0.3 ; <0.3; <0.3 ; <0.4 ; <0.3; <0.4 ; <0.3. |
Directivity (dB) | ≥55 |
Return Loss (dB) | UPC ≥55 APC ≥60 |
Operating Temperature (°C) | -5~ +75 |
Storage Temperature (°C) | -40 ~ +85 |
Fiber length | 1m or custom length |
Connector Type | Custom specified |
Power Handling (mW) | 300 |
Applications
Access Network;
Telecom/CATV;
Local Area Networks (LANS);
Outside Plant;
Data processing network;
Wide Area Networks (WANS);
FTTX PON.
