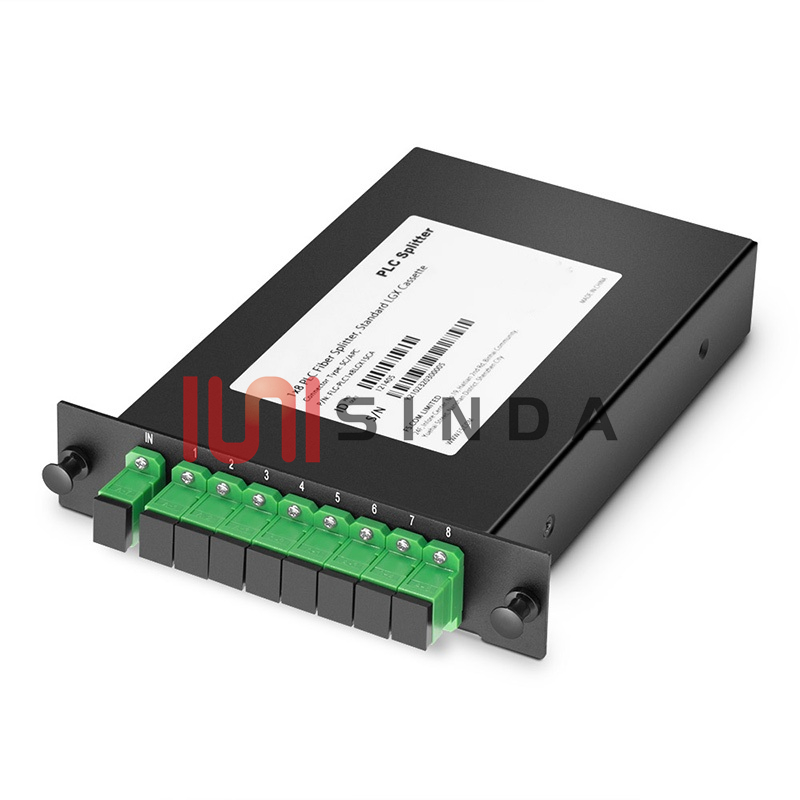

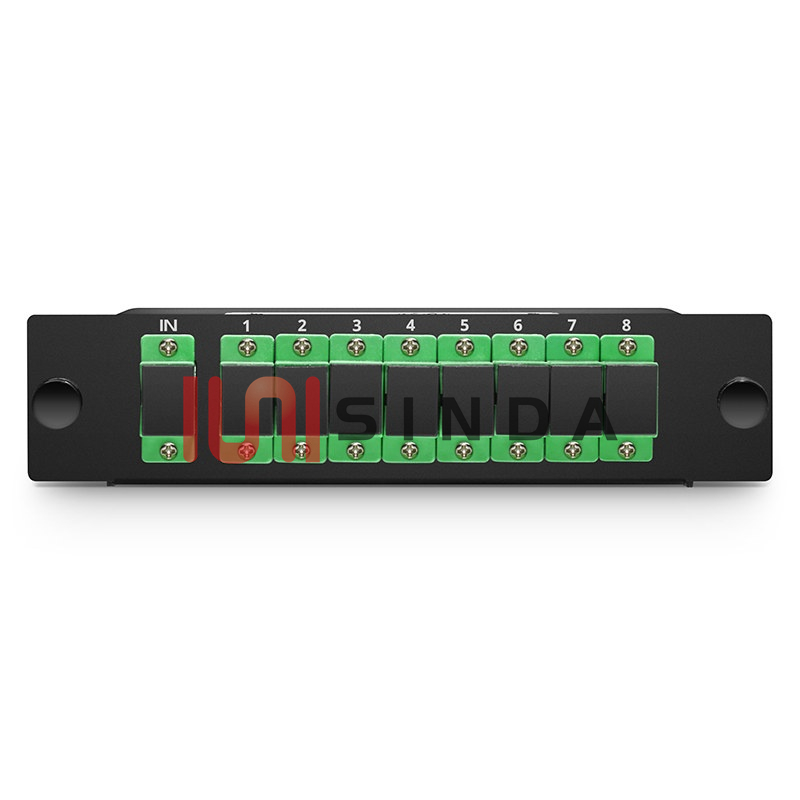

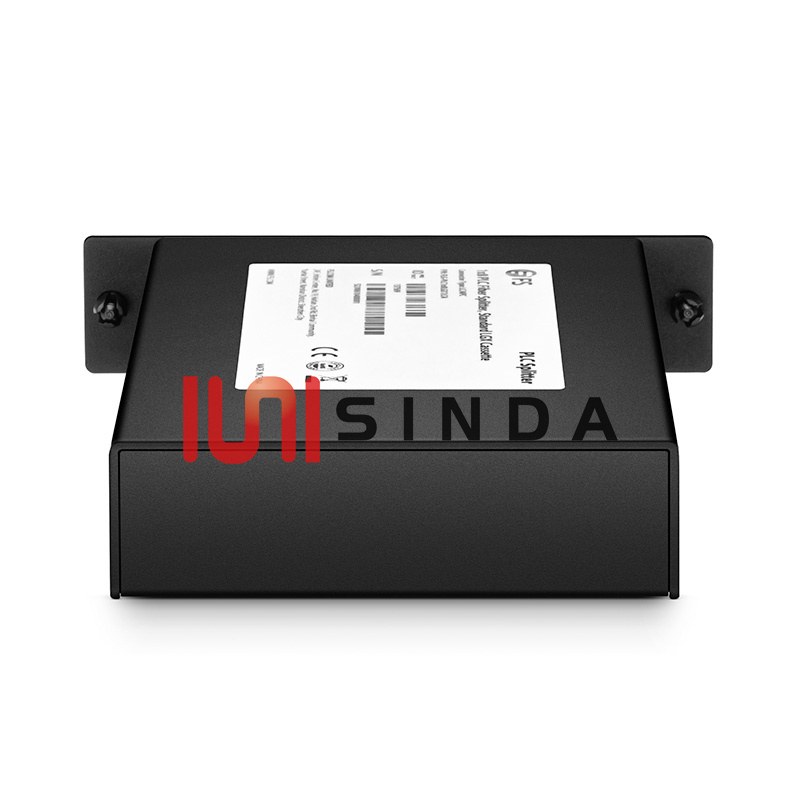

1 x 8 PLC Fiber Splitter, LGX Cassette, SC/APC, Singlemode

1 x 8 PLC Fiber Splitter, LGX Cassette, SC/APC, Singlemode.1 x 8 PLC Fiber Splitter LGX Cassette, LC/APC, Singlemode. Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

1 x 8 PLC Fiber Splitter, LGX Cassette, SC/APC, Singlemode

LGX Box PLC Splitter is packaged in an international standard-size module, and installed in a rack-mount LGX Chassis. LGX Box PLC Splitters are widely used for FTTH Passive Optical Network as passive optical splitters, including EPON (as EPON Splitter) and GPON (as GPON Splitter) in the central office of FTTH network.

PLC Splitters are available in a variety of port configurations, including a 2-way splitter, a 4-way splitter, an 8-way splitter, a 16-way splitter, a 32-way splitter, a 64-way splitter, etc.







Features


Split 1260nm to 1650nm Signals Evenly Into Eight Output Ports

≤10.5dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss

Compact Housing Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.

G.657A1 Bend Insensitive Fibers for Low Bending Loss

Housing, Split Ratio, and Connector Options can be Customized









Specifications


Package Style LGX Box Configuration Type 1x 8
Fiber Type G.657A1 Operating Wavelength 1260~1650nm
Connector Type SC/APC Split Ratio Symmetrical
Insertion Loss ≤ 10.5dB Insertion Loss Uniformit ≤ 0.8dB
Return Loss ≥ 55dB Directivity ≥ 55dB
Polarization Dependent Loss ≤ 0.2dB Temperature Dependent Loss ≤ 0.5dB
Wavelength Dependent Loss ≤ 0.3dB Fiber Mode Singlemode
Dimensions (HxWxD) 1.14"x5.12"x5.00" (29x130x127mm) Temperature Operating -40 to 85°C (-40 to 185°F)



Table 1: Performance for 1×N PLC Splitter

Note: All measurements are done at room temperature without connectors.







Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Typ. 3.6 6.8 10.0 13.0 16.0 19.5
Max. 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) Typ. 0.4 0.5 0.5 1.0 1.0 1.5
Max. 0.6 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) 55 55 55 55 55 55
PDL (dB) Typ. 0.1 0.1 0.1 0.1 0.2 0.2
Max. 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55
Fiber Length (m) 1.0 or customized
Fiber Type Corning SMF-28e or customized
Wavelength Dependent Loss (dB) Typ. 0.2 0.2 0.2 0.3 0.3 0.3
Max. 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability (-40~+85°C) (dB) Typ. 0.3 0.3 0.3 0.4 0.4 0.4
Max. 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~+85°C
Storage Temperature (°C) -40~+85°C







Table 2: Performance for 1×N PLC Splitter

Note: All measurements are done at room temperature with connectors.



Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Typ. 4.0 7.0 10.3 13.5 16.5 20.0
Max. 4.5 7.7 11.0 14.2 17.5 21.5
Loss Uniformity (dB) Typ. 0.4 0.5 0.5 1.0 1.0 1.5
Max. 0.6 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) 55 55 55 55 55 55
PDL (dB) Typ. 0.1 0.1 0.1 0.1 0.2 0.2
Max. 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55
Fiber Length (m) 1.0 or customized
Fiber Type Corning SMF-28e or customized
Wavelength Dependent Loss (dB) Typ. 0.2 0.2 0.2 0.3 0.3 0.3
Max. 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability (-40~+85°C) (dB) Typ. 0.3 0.3 0.3 0.4 0.4 0.4
Max. 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~+85°C
Storage Temperature (°C) -40~+85°C





Table 3: Performance for 2×N PLC Splitter

Note: All measurements are done at room temperature without connectors.





Port Configuration 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) 4.0 7.6 11.0 14.5 17.5 21.0
Loss Uniformity (dB) 0.8 1.5 1.5 2.0 2.5 2.5
Return Loss (dB) 55 55 55 55 55 55
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Fiber Length (m) 1.0 or customized
Fiber Type Corning SMF-28e or customized
Wavelength Dependent Loss (dB) 0.5 0.5 0.5 0.5 0.5 0.5
Temperature Stability (-40~+85°C) (dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~+85°C
Storage Temperature (°C) -40~+85°C





Table 4: Performance for 2×N PLC Splitter

Note: All measurements are done at room temperature with connectors.



Port Configuration 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) 4.5 8.1 11.6 15.0 18.0 21.5
Loss Uniformity (dB) 0.8 1.5 1.5 2.0 2.5 2.5
Return Loss (dB) 55 55 55 55 55 55
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Fiber Length (m) 1.0 or customized
Fiber Type Corning SMF-28e or customized
Wavelength Dependent Loss (dB) 0.5 0.5 0.5 0.5 0.5 0.5
Temperature Stability (-40~+85°C) (dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~+85°C
Storage Temperature (°C) -40~+85°C













Applications


Telecommunication networks

PON (Passive Optical Network)

FTTX, FTTH (Fiber to the Home)
