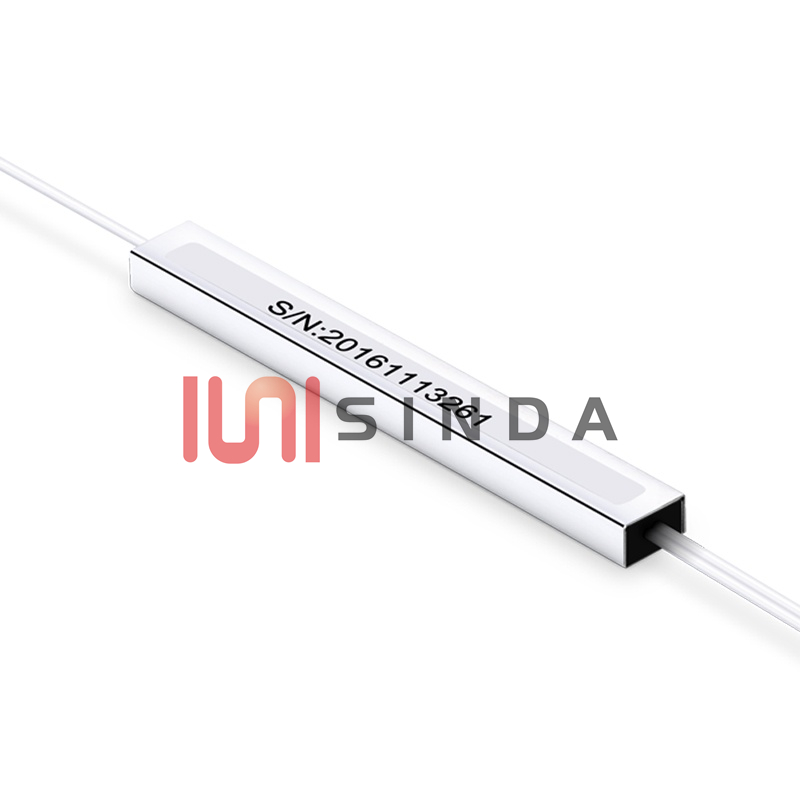

PLC Fiber Splitter 1 x 2, Mini Module,900μm, SC/APC, Singlemode

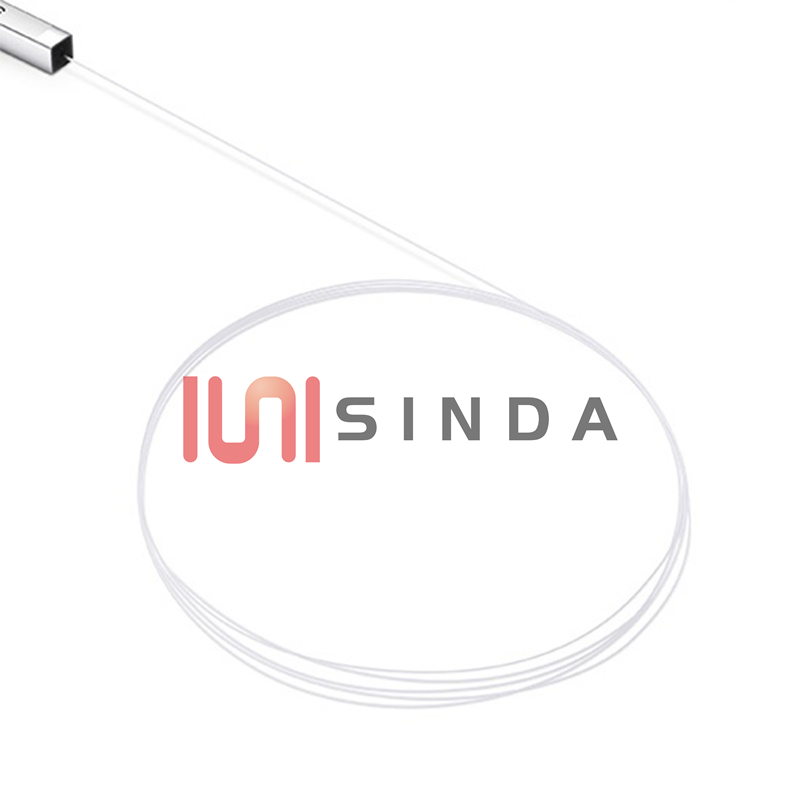

PLC Fiber Splitter 1 x 2,  Mini Module,900μm, SC/APC, Singlemode, Fibre optic splitter is a network component that distributes incoming light (one or two input fibers) in equal parts towards multiple output fibers (2-64). Splitters are available with 250 µm bare fibers, 900µm buffered fibers and 2.0 mm cords. Input and output cords and fibers can have various lengths and can be terminated by optical connectors. SINDA fibre optic splitters can be integrated inside several products and/or applications in combination with keen fibre or cable management systems.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

PLC Fiber Splitter 1 x 2,  Mini Module,900μm, SC/APC, Singlemode

All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment. Among the many miniature parts which makes up a passive optical PLC splitter, there are three main components which are the fiber array for the input and output, and the chip. The design and assembly of these three component is the key to produce a high quality PLC splitter.

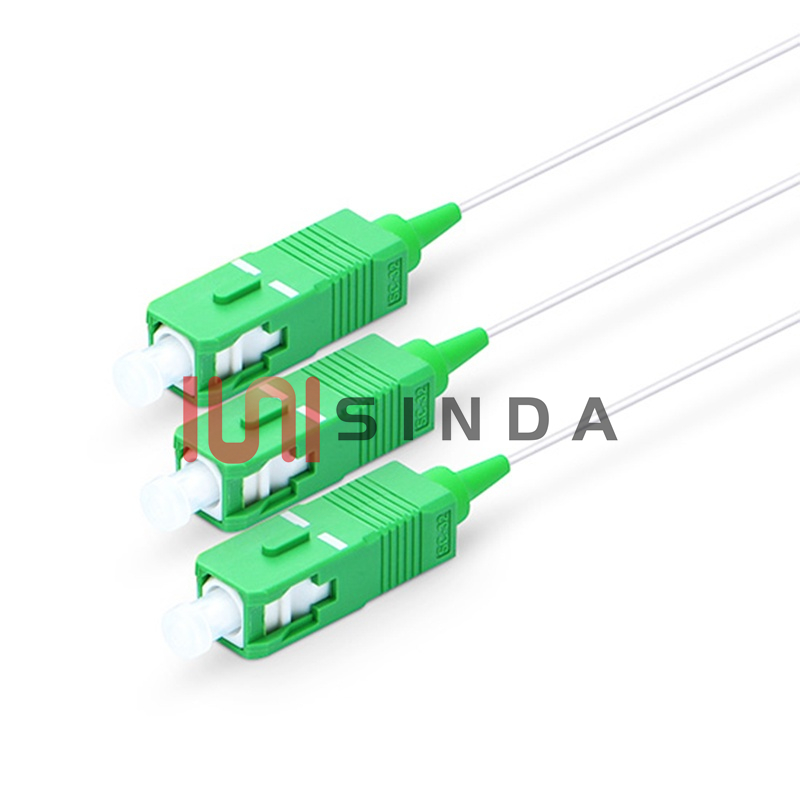

Connector type and color can be customized









Features


■ Wide Operating wavelength From 1260-1650nm
■ Low excess loss & High performance
■ Good uniformity & Low PDL
■ Small package size
■ Various connector type & Package Size available







Our PLC splitter module has excellent performance parameters






■ A temperature chamber - allows to make the programmable tests from
- 4 0 t o 8 5 ° C however other tests are also available




Applications






■ FTTH and FTTx
■ Test Equipment
■ Telecommunication Networks
■ Analog/Digital Passive Optical Networks
■ Data Processing Networks
■ Premise Installations
■ LAN, WAN and Metro Networks
■ Other applications in fiber optic systems
■ Industrial, Medical & Military
■ CATV system
■ Active Device Termination
■ Fiber optic sensors

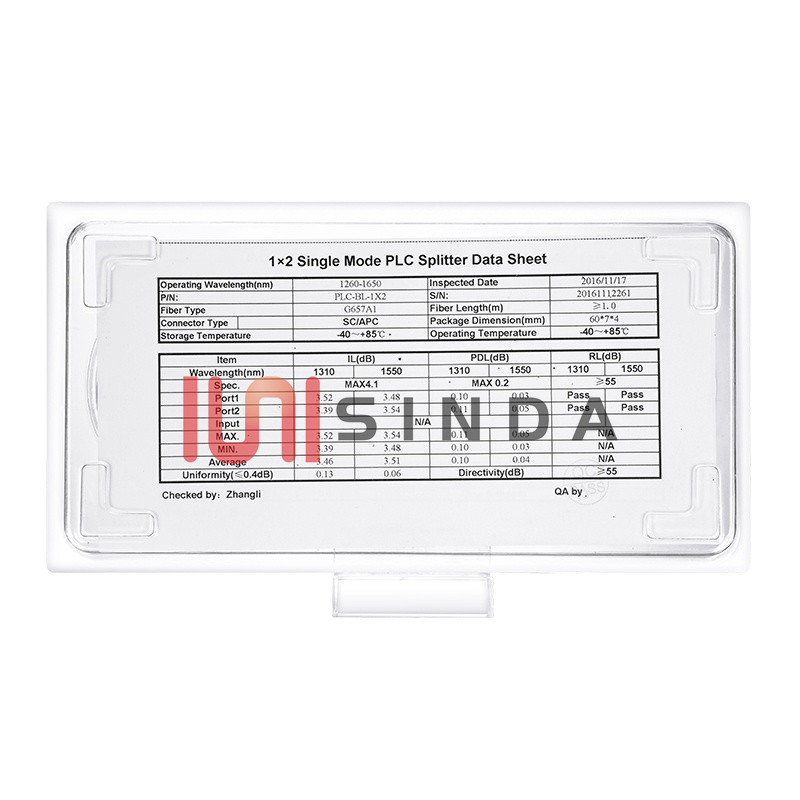

1×N PLC Splitter



Parameters 1x2 Port 1x4 Port 1x8 Port 1x16 Port 1x32 Port 1x64 Port
Operating Wavelength(nm) 1260~1650
Fiber Type G652D/G657A1/G657A2
Insertion Loss(dB) 4.1 7.4 10.8 14.3 17.3 21
Uniformity(dB) 1 1.5 1.5 2 2 2.5
Return Loss(dB) 55 55 55 55 55 55
PDL(dB) 0.3 0.3 0.3 0.3 0.3 0.5
Directivity (dB) 55 55 55 55 55 55
Temperature Stability(-40~85 ℃)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (℃) -25~70
Storage Temperature (℃) -25~70
Mini Module Dimension (LxWxH) 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6
ABS Box Dimension (LxWxH) 100x80x10 100x80x10 100x80x10 120x80x18 120x80x18 140x115x18
Bare Fiber Dimension (LxWxH) 40x4x4 40x4x4 40x4x4 50x7x4 50x7x4 60x12x4
Note: Add an additional 0.3dB loss per connector.







2×N PLC Splitter


Parameters 2x2 Port 2x4 Port 2x8 Port 2x16 Port 2x32 Port 2x64 Port
Operating Wavelength(nm) 1260~1650
Fiber Type G652D/G657A1/G657A2
Insertion Loss(dB) 3.8 7.1 10.2 13.5 16.8 20.5
Uniformity(dB) 0.4 0.6 0.8 1.2 1.5 2
Return Loss(dB) 55 55 55 55 55 55
PDL(dB) 0.2 0.2 0.2 0.3 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Temperature Stability(-40~85 ℃)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (℃) -25~70
Storage Temperature (℃) -25~70
Mini Module Dimension (LxWxH) 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 100x40x6
ABS Box Dimension (LxWxH) 100x80x10 100x80x10 100x80x10 120x80x18 120x80x18 140x115x18
Bare Fiber Dimension (LxWxH) 40x4x4 40x4x4 40x4x4 50x7x4 50x7x4 60x12x4
Note: Add an additional 0.3dB loss per connector.
