Customized 1 x 5 Unbalanced PLC Fiber Splitter, Singlemode

1 x 5 Unbalanced PLC Fiber Splitter price

Customized 1 x 5 Unbalanced PLC Fiber Splitter, Singlemode

Customized 1 x 5 Unbalanced PLC Fiber Splitter, Singlemode,Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Chat Now

Description

Customized 1 x 5 Unbalanced PLC Fiber Splitter, Singlemode

All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment. Among the many miniature parts which makes up a passive optical PLC splitter, there are three main components which are the fiber array for the input and output, and the chip. The design and assembly of these three component is the key to produce a high quality PLC splitter.

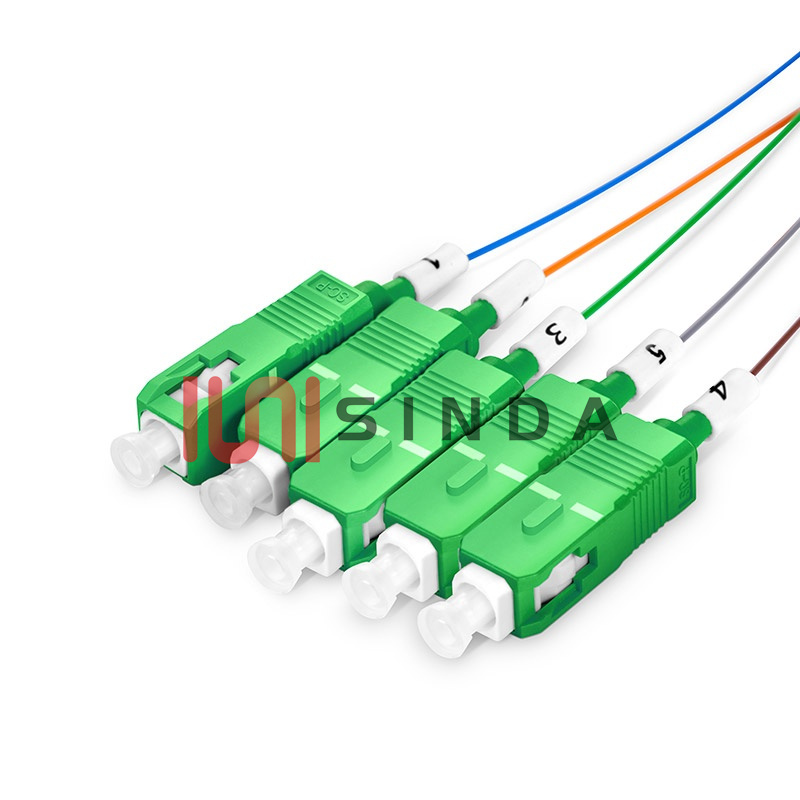

Connector type and color can be customized

Features

■ Wide Operating wavelength From 1260-1650nm
■ Low excess loss & High performance
■ Good uniformity & Low PDL
■ Small package size
■ Various connector type & Package Size available

Specifications

Package Style	Mini Module/ABS	Configuration Type	1x 5
Fiber Grade	G.657A1	Fiber Mode	Singlemode
Operating Bandwidth	1260~1650nm	Split Ratio (CH1)	20%/33%/50%/75%/95%

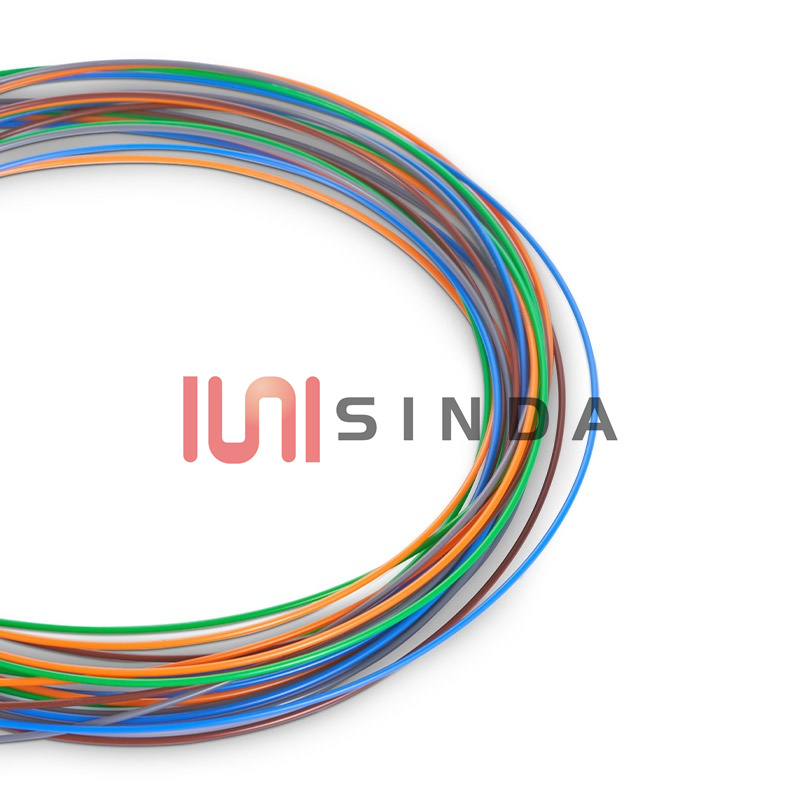

Input/Output Fiber Diameter	250μm/900μm/2.0mm	Input/Output Fiber Length	0.5m/1.0m/1.5m
Connector Type	LC/UPC, LC/APC SC/UPC, SC/APC FC/UPC, FC/APC	Insertion Loss	20% (CH1) ≤ 8.5dB 33% (CH1) ≤ 7.4dB 50% (CH1) ≤ 4.2dB 75% (CH1) ≤ 2.4dB 95% (CH1) ≤ 1.8dB
Return Loss	APC≥ 55dB, UPC≥ 50dB	Loss Uniformity	≤ 0.8dB
Directivity	≥ 55dB	Polarization Dependent Loss	≤ 0.3dB
Temperature Dependent Loss	≤ 0.5dB	Wavelength Dependent Loss	≤ 0.3dB
Mini Module Dimensions (HxWxD)	0.16"x2.36"x0.28" (4x60x7mm)	ABS Dimensions (HxWxD)	0.39"x3.94"x3.15" (10x100x80mm)
Operating Temperature	-40 to 85°C (-40 to 185°F)	Storage Temperature	-40 to 85°C (-40 to 185°F)

Our PLC splitter module has excellent performance parameters

■ A temperature chamber - allows to make the programmable tests from
- 4 0 t o 8 5 ° C however other tests are also available

Applications

■ FTTH and FTTx
■ Test Equipment
■ Telecommunication Networks
■ Analog/Digital Passive Optical Networks

■ Data Processing Networks
■ Premise Installations
■ LAN, WAN and Metro Networks
■ Other applications in fiber optic systems

■ Industrial, Medical & Military
■ CATV system
■ Active Device Termination
■ Fiber optic sensors

1×N PLC Splitter

Parameters	1x2 Port	1x4 Port	1x8 Port	1x16 Port	1x32 Port	1x64 Port
Operating Wavelength(nm)	1260～1650
Fiber Type	G652D/G657A1/G657A2
Insertion Loss(dB)	4.1	7.4	10.8	14.3	17.3	21
Uniformity(dB)	1	1.5	1.5	2	2	2.5
Return Loss(dB)	55	55	55	55	55	55
PDL(dB)	0.3	0.3	0.3	0.3	0.3	0.5
Directivity (dB)	55	55	55	55	55	55
Temperature Stability(-40～85 ℃)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-25～70
Storage Temperature (℃)	-25～70
Mini Module Dimension (LxWxH)	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	100x40x6
ABS Box Dimension (LxWxH)	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	140x115x18
Bare Fiber Dimension (LxWxH)	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4
Note: Add an additional 0.3dB loss per connector.

2×N PLC Splitter

Parameters	2x2 Port	2x4 Port	2x8 Port	2x16 Port	2x32 Port	2x64 Port
Operating Wavelength(nm)	1260～1650
Fiber Type	G652D/G657A1/G657A2
Insertion Loss(dB)	3.8	7.1	10.2	13.5	16.8	20.5
Uniformity(dB)	0.4	0.6	0.8	1.2	1.5	2
Return Loss(dB)	55	55	55	55	55	55
PDL(dB)	0.2	0.2	0.2	0.3	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Temperature Stability(-40～85 ℃)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-25～70
Storage Temperature (℃)	-25～70
Mini Module Dimension (LxWxH)	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	100x40x6
ABS Box Dimension (LxWxH)	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	140x115x18
Bare Fiber Dimension (LxWxH)	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4
Note: Add an additional 0.3dB loss per connector.
