1~4U 576fo MPO Fiber Optic Patch Panel

1~4U 576fo MPO Fiber Optic Patch Panel

1~4U 576fo MPO Fiber Optic Patch Panel, The 4U 576fo MPO Fiber Optic Patch Panel is a versatile and efficient solution for managing large-scale fiber optic connections, providing a streamlined approach to connectivity and facilitating quick and reliable data transmission.

Chat Now

Description

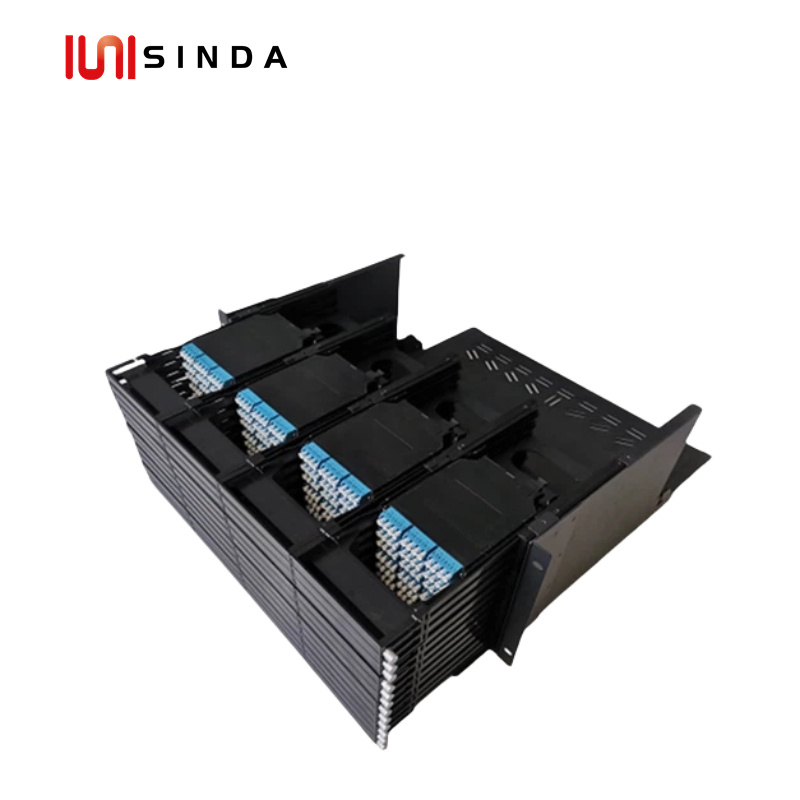

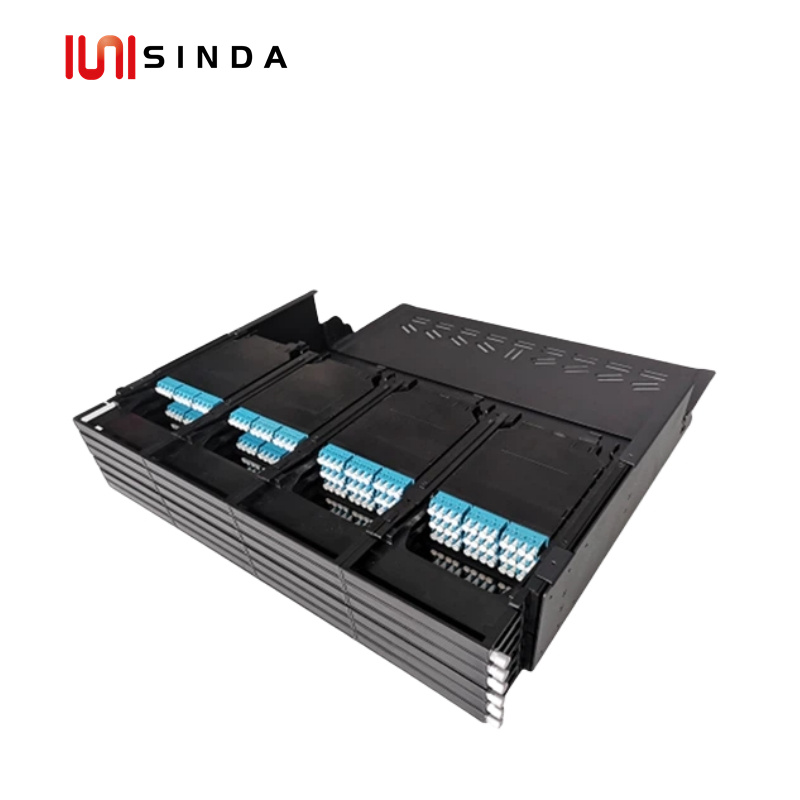

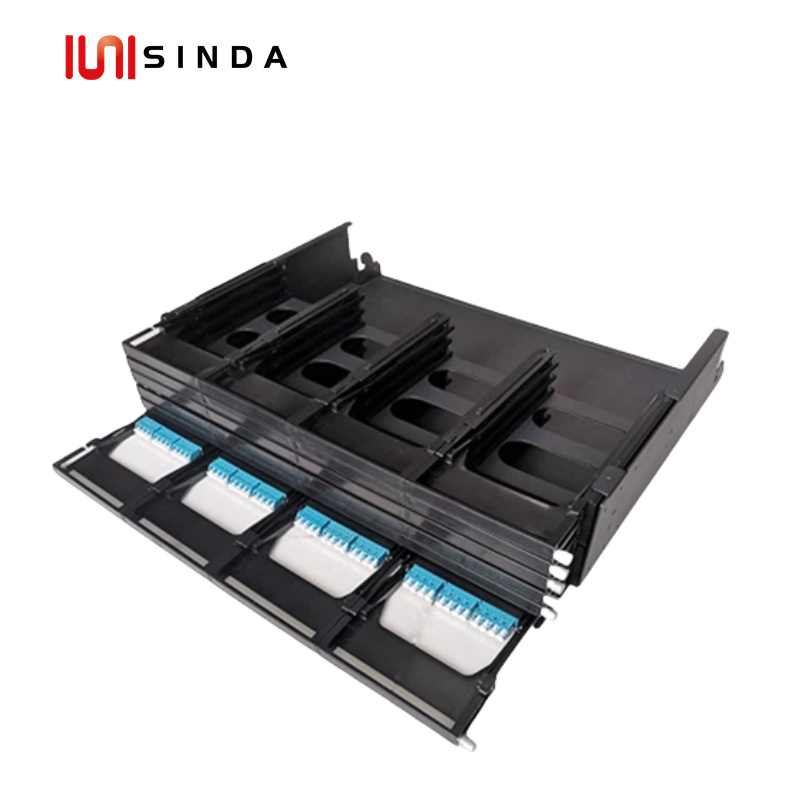

1~4U 576fo MPO Fiber Optic Patch Panel

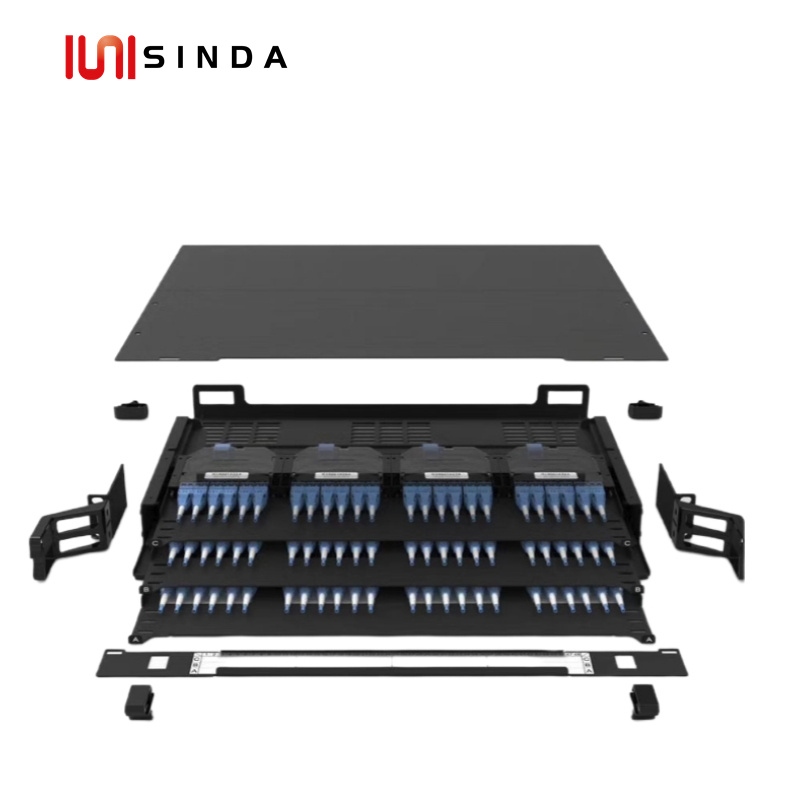

With a capacity of 576 fibers, this patch panel provides a solution for managing a large number of fiber connections in data centers and telecommunications environments. The patch panel features a modular design, allowing for easy installation and maintenance. It consists of removable cassettes or modules that house MPO connectors and associated fibers.

Features

High-density wiring application condition Standard

19” High-density, 1U 144 fibers, 2U 288 fibers and 4U 576 fibers, easily installed
Can be loaded ABS MPO module box or LC/SC/FC/ST adapters Sprayed surface treatment process
Customizable color and LOGO

Application

Computer center and computer room;
High-density data center and the base station;
Cabling construction; Telecommunications subscriber loop;
Fiber to the home (FTTH); LAN/WAN CATV

Specifications

ITEM	1U 19inch	2U 19inch	4U 19inch
Dimension（mm）	482.645544	482.645588.1	482.6455177
Max. cores	144	288	576
Adapter type	LC	LC	LC
Weight（kg）	2	4	6
MPO Cassette	12 pcs	12 pcs	12 pcs
Max Cores Per Cassette	12 cores	12 cores	12 cores

Accessories

	1U	2U	4U
Cable ties	5*150mm 12 pcs	5*150mm 12 pcs	5*150mm 24 pcs
Magic stick strip	12*100mm	12*100mm	24*100mm
φ4 winding tube	6*100mm	12*100mm	24*100mm

Quality Certification

Hot Tags : 1~4U 576fo MPO Fiber Optic Patch Panel 576c high density rack mount box 4u high density metal box 576f MPO patch panel 576F high density patch panel 576cores patch panel
