Plastic Terminal Box

Home Plastic Terminal Box

Double buckle waterproof box 8/12/16 Cores

Double buckle waterproof box 8/12/16 Cores

Double buckle waterproof box 8/12/16 Cores,This type of double buckle waterproof box have different capactiry for 8/12/16 Cores with different size. it is used as a termination point for the feeder cable to connect with drop cable in FTTX Network system, It intergrates fiber splicing, splitting, distribution, storage and cable connection in one solid protextion box.

Chat Now

Description

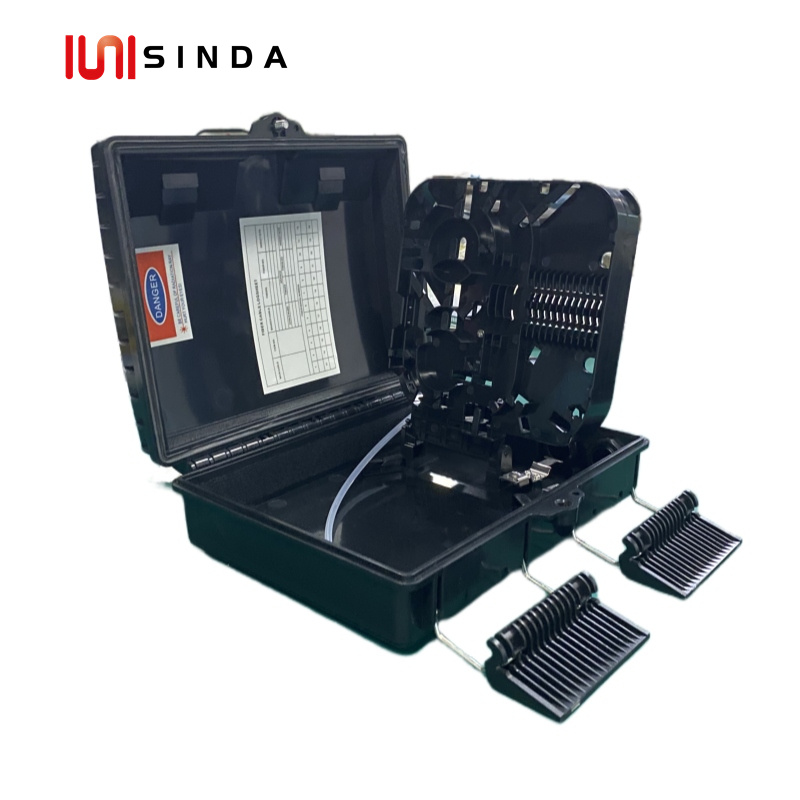

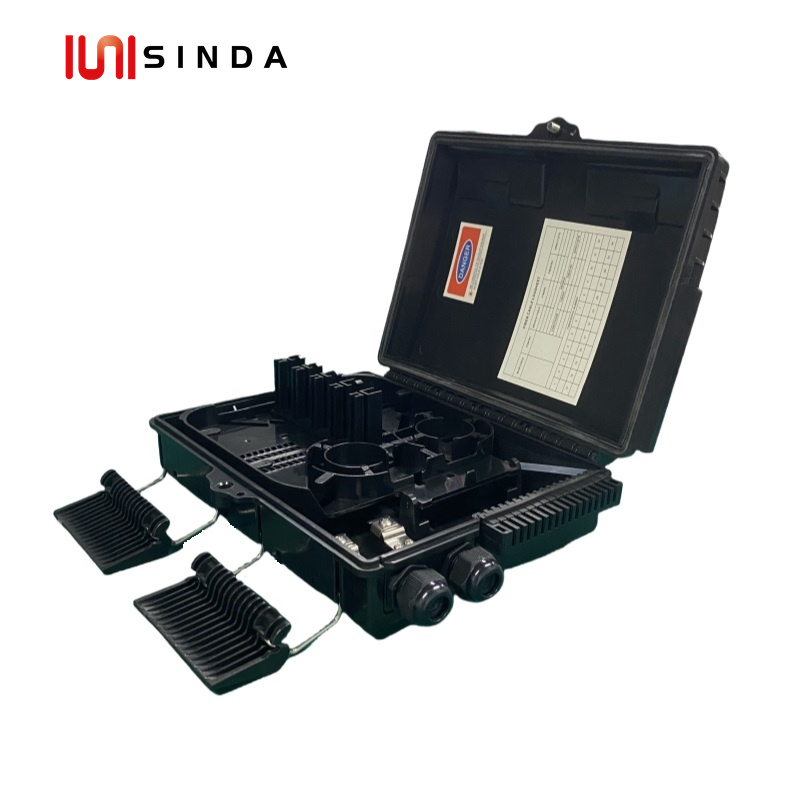

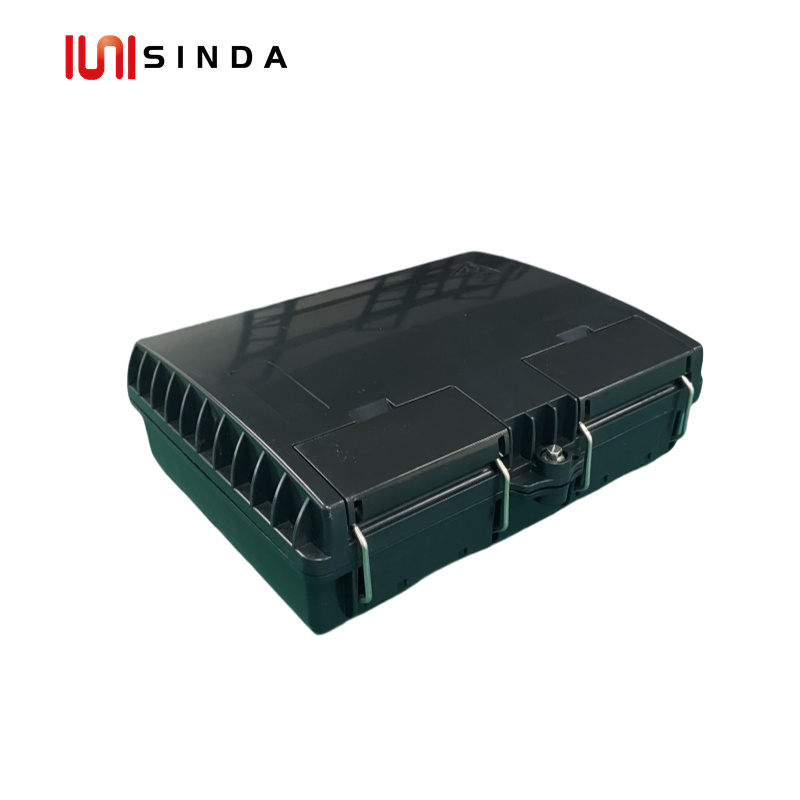

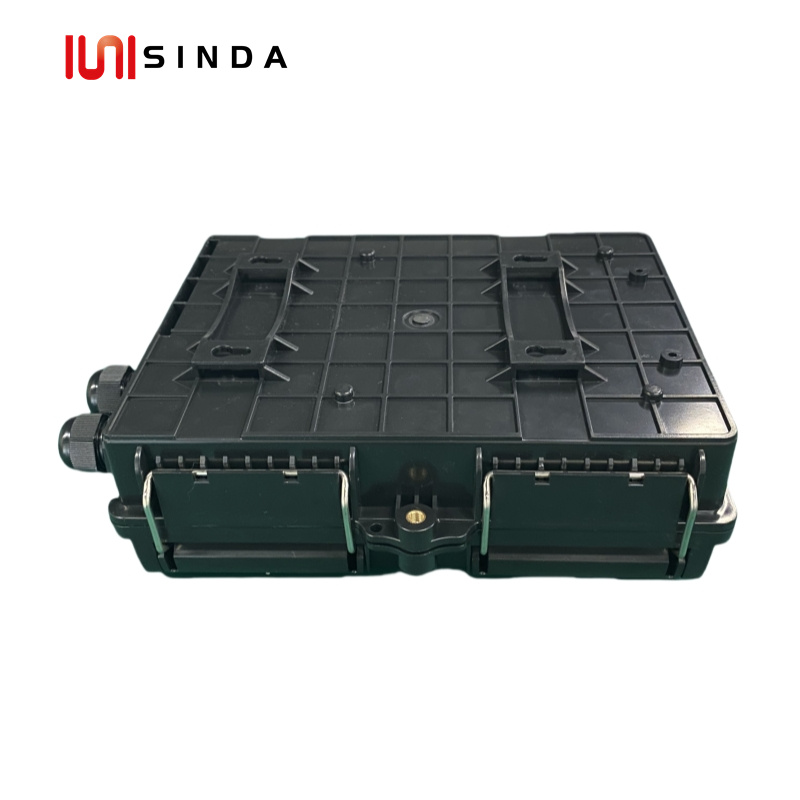

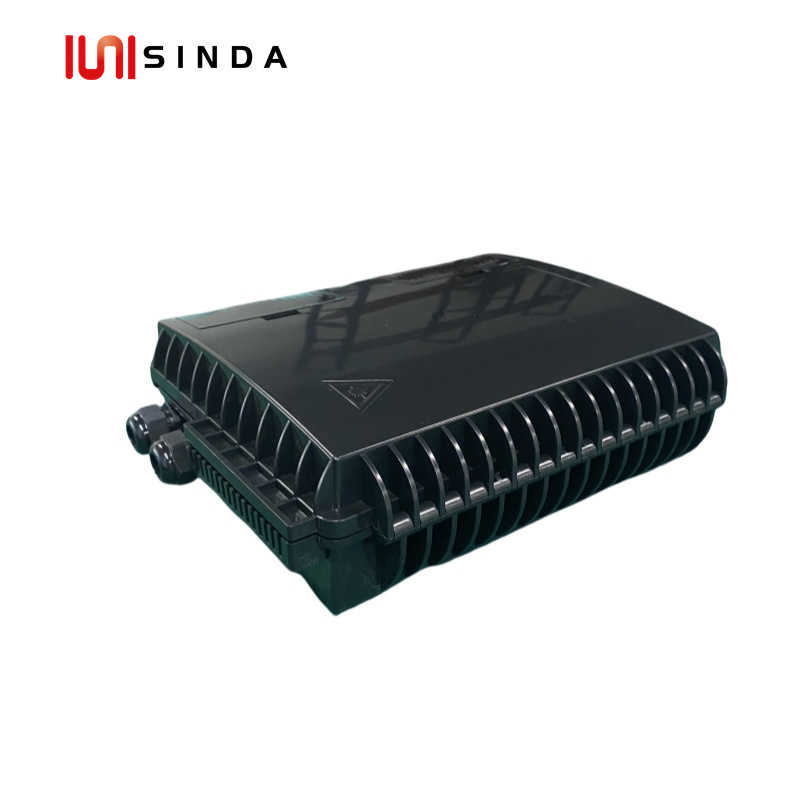

Double buckle waterproof box 8/12/16 Cores

This type of double buckle waterproof box have different capactiry for 8/12/16 Cores with different size. it is used as a termination point for the feeder cable to connect with drop cable in FTTX Network system, It intergrates fiber splicing, splitting, distribution, storage and cable connection in one solid protextion box.

Features

Water-proof design with IP-65 Protection level

Integrated with splice cassette and cable management rods

Manage fibers in a reasonable fiber radius condition

Easy to maintain and extend the capacity

Fiber bend radius contaol more than 40mm

Suitable for the fusion splice or mechanical splice

1*16 Splitter can be installed as an option

Efficient cable management

16Ports cable entrance for Drop cable

Specifications

Model	Material	Size(mm)	Capacity(SC)	Weight(kg)	Color	Installation	Protection Level
SDFAT-TB08	PC,ABS,Customized	272210105	8SC/16LC	0.95	White/Black/Gery	Wall Mounted, Holding Pole	IP65
SDFAT-12B-I	PC,ABS,Customized	25020072	12SC/24LC	1.18	White/Black/Gery	Wall Mounted, Holding Pole	IP65
SDFAT-16B-I	PC,ABS,Customized	29522085	16SC/32LC	1.68	White/Black/Gery	Wall Mounted, Holding Pole	IP65

Packing informations

Model	Dimension of Carton(cm)	Number of boxes packed	Gross weight(kg)	NET weight of products(kg)
SDFAT-TB08	65.554.528.5	15	16	15.5
SDFAT-12B-I	575246	20	23.5	23
SDFAT-16B-I	593351	10	16.8	16

Application

Fiber to the home(FTTH)

Fiber to the building(FTTB)

Local area networks

Wide area networks

Quality Certification

Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber products is 100% optically inspected and tested before you receive it.

High Quality Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!

Hot Tags : Waterproof box 8/12/16 Cores IP65 Fiber terminal box IP65 fiber box Waterpoof fiber box 12c Outdoor fiber box IP65 IP65 FTTH box
