Plastic Terminal Box

Home Plastic Terminal Box

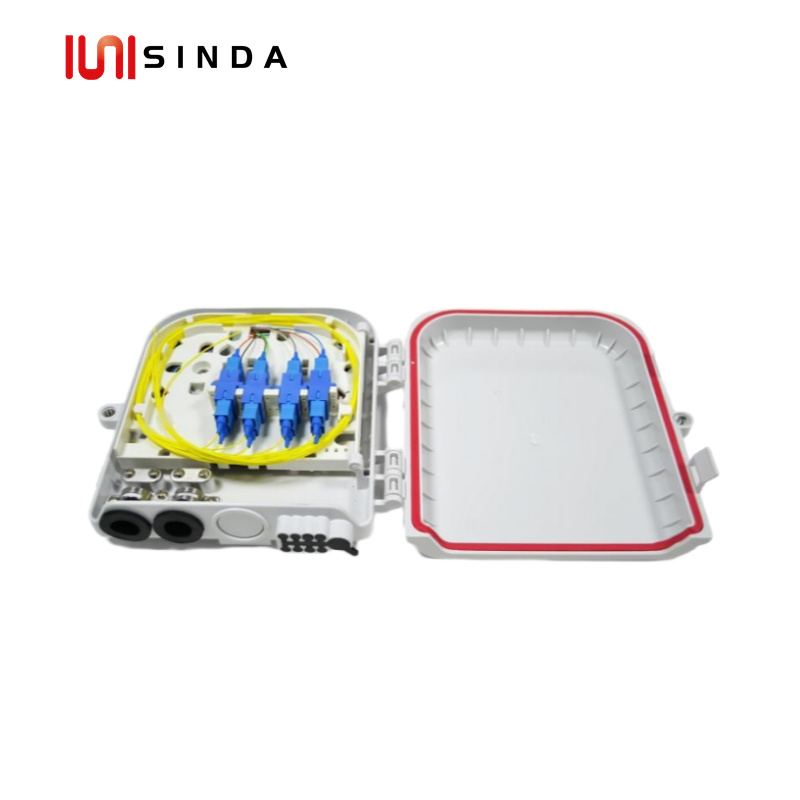

SDFAT-8B 4C/8C Terminal box

SDFAT-8B 4C/8C Terminal box

SDFAT-8B 4C/8C Terminal box, SDFAT-8B fiber access termination box is able to hold up to 4 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Chat Now

Description

SDFAT-8B 4C/8C Terminal box

SDFAT-8B fiber access termination box is able to hold up to 4 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Industry Standard User Interface, be made of high impact plastic.

Can accommodate 1x4 & 1X8 PLC splitter.

Anti-UV, Ultra violet resistant and rainfall resistant.

Up to 8 FTTH drops.

Wall and pole mountable.

2 inlet ports, 8 outlet ports.

Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.

Job stress: 70 kpa to 108 kpa;

Using the temperature:- 40 ~ + 60 ℃

Relative humidity: ≤95% (+ 40 ℃).

Protection grade: IP55.

Specifications

Material	Size	Capacity	Weight	Color
PC+ABS	ABC(mm)	SC	0.8kg	white
PC+ABS	22522055MM	8 Ports	0.8kg	white

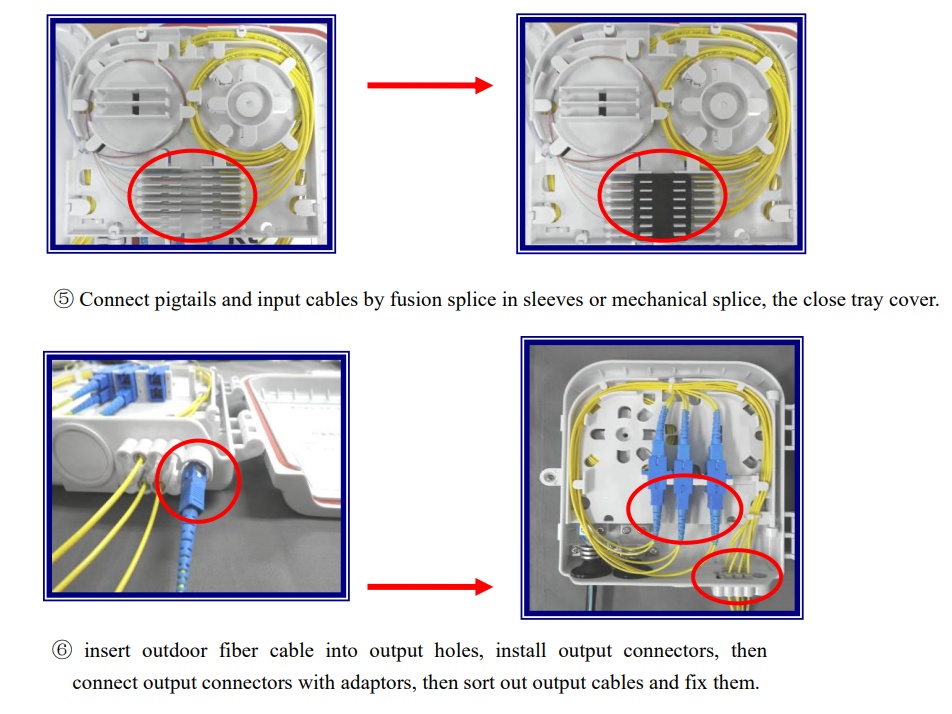

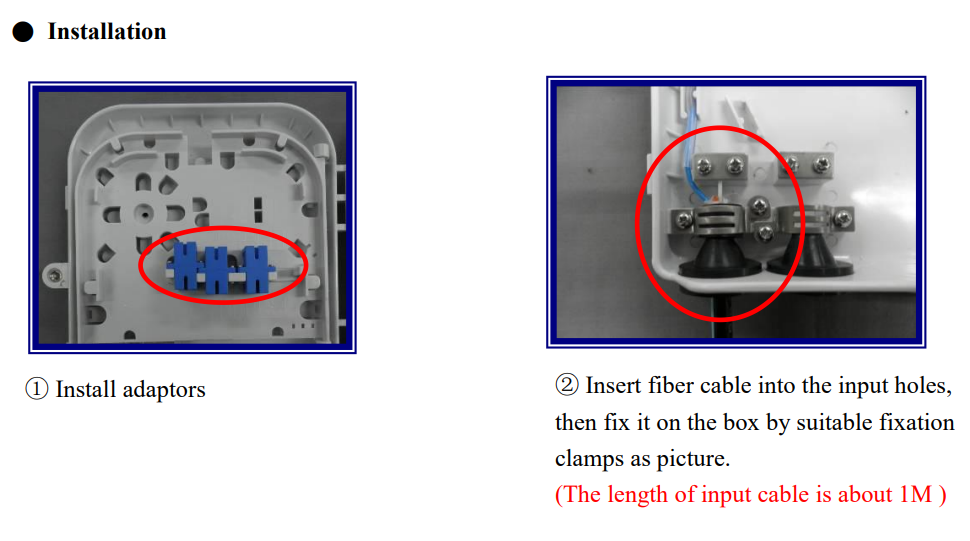

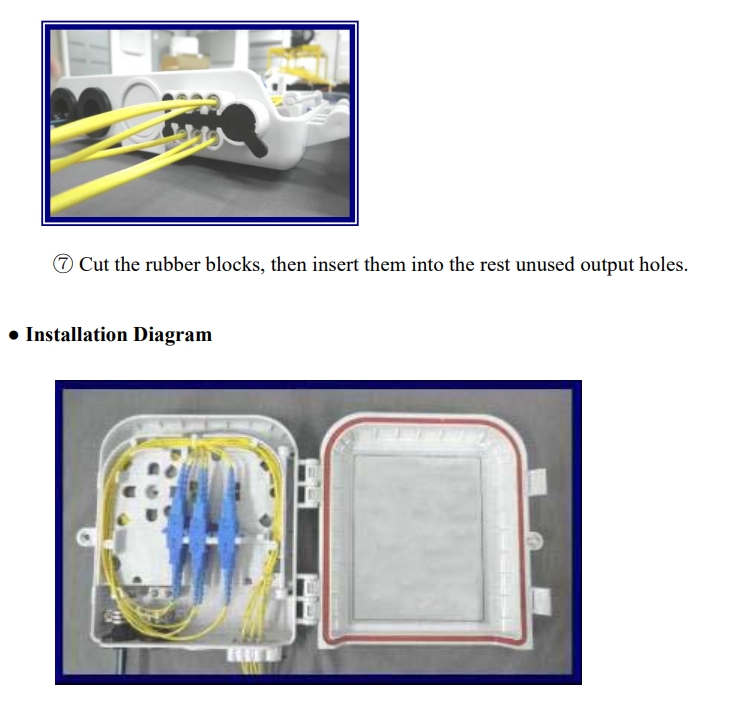

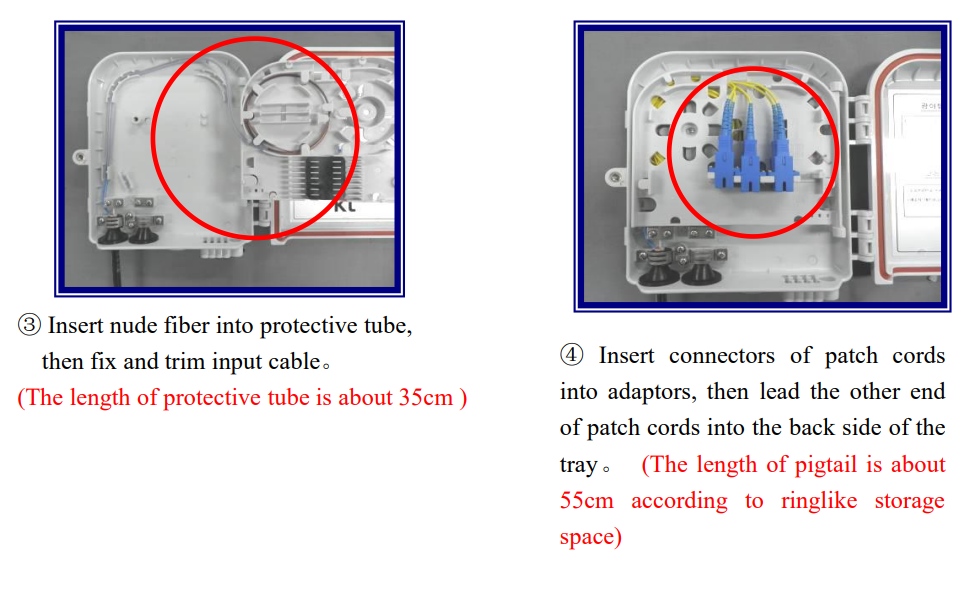

Box installation instructions

Application

Widely used in FTTH access network. u Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks

Quality Certification

Hot Tags : SDFAT-8B 4C/8C Terminal box 4C terminal box 8C terminal box 4C Fiber terminal box Optical fiber box
