FTTH IP65 24/32 Port Fiber Optic NAP Distribution Terminal Boxes With Splitters

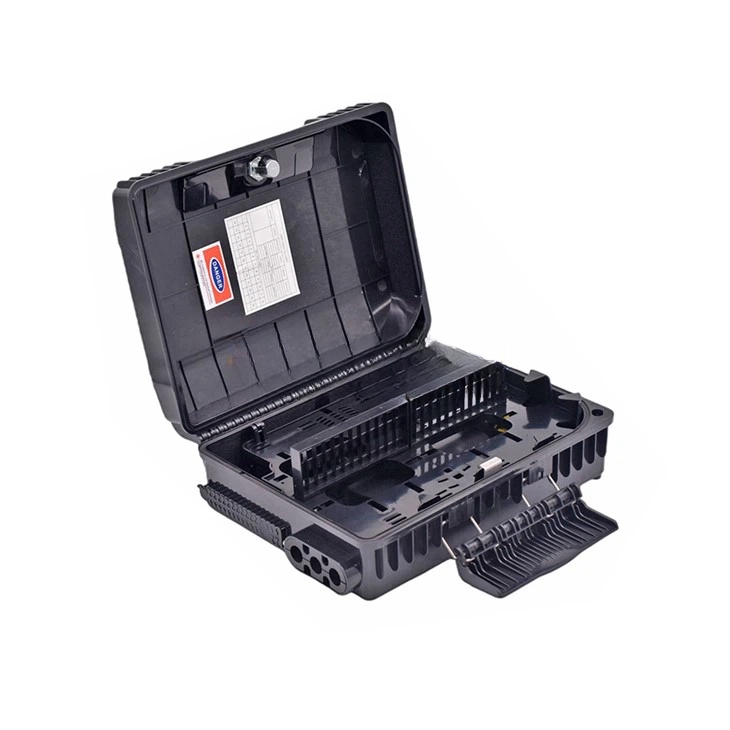

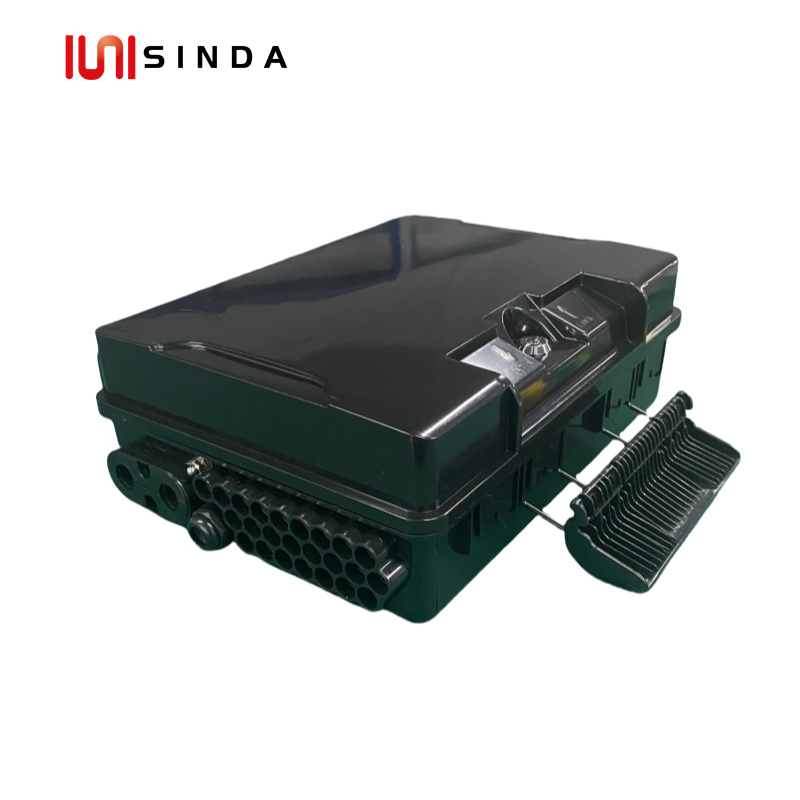

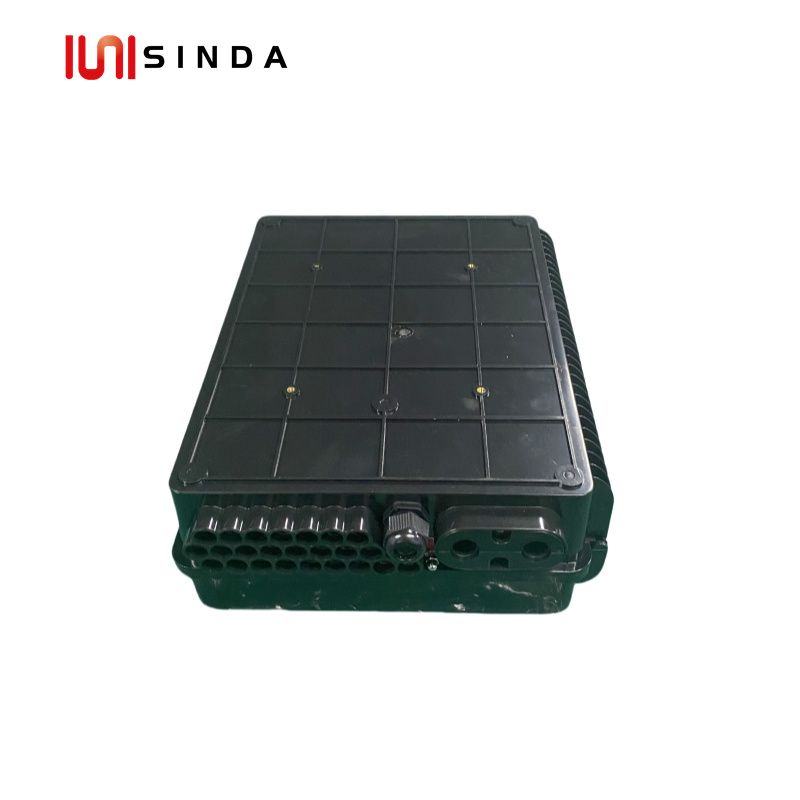

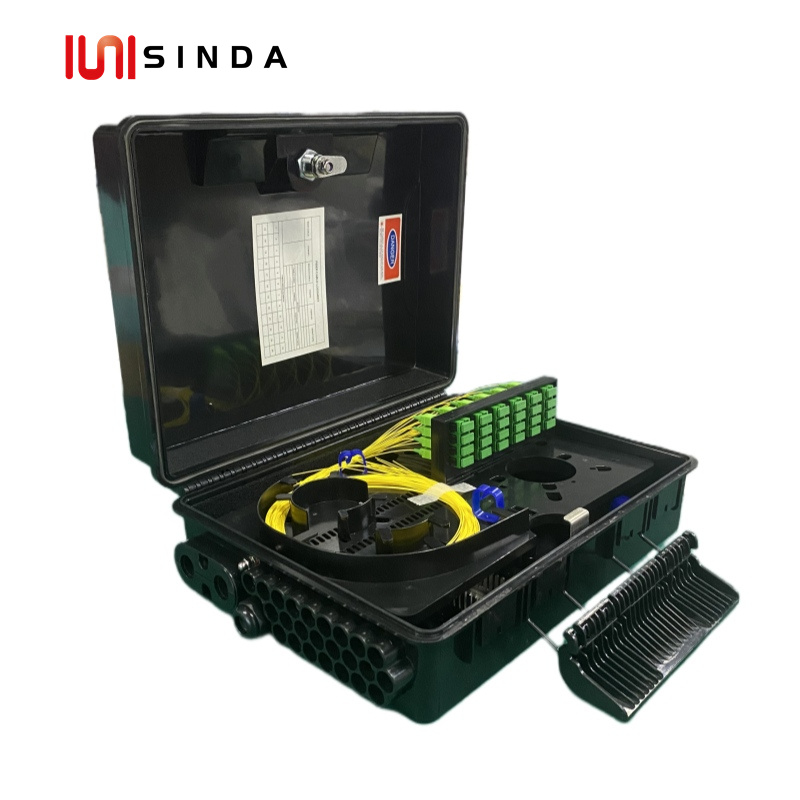

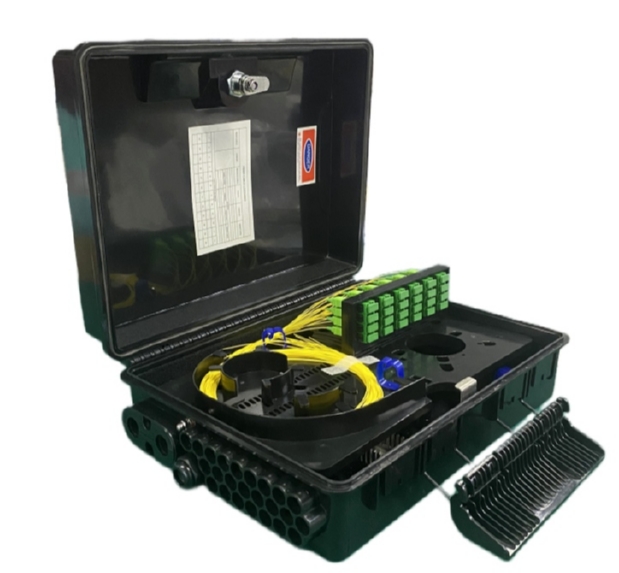

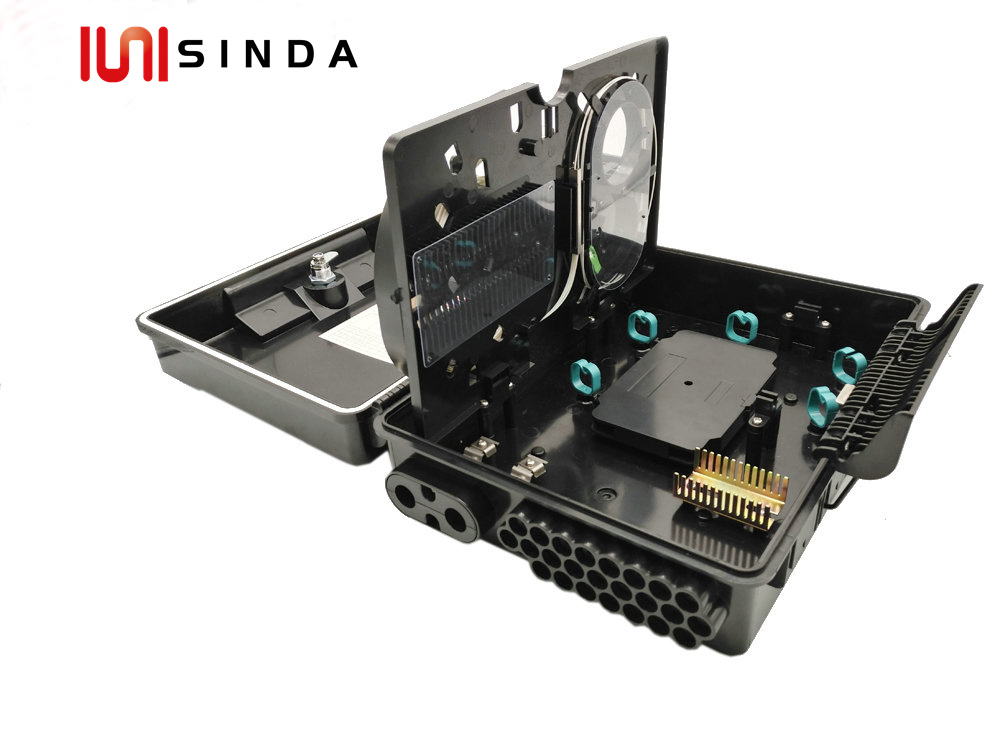

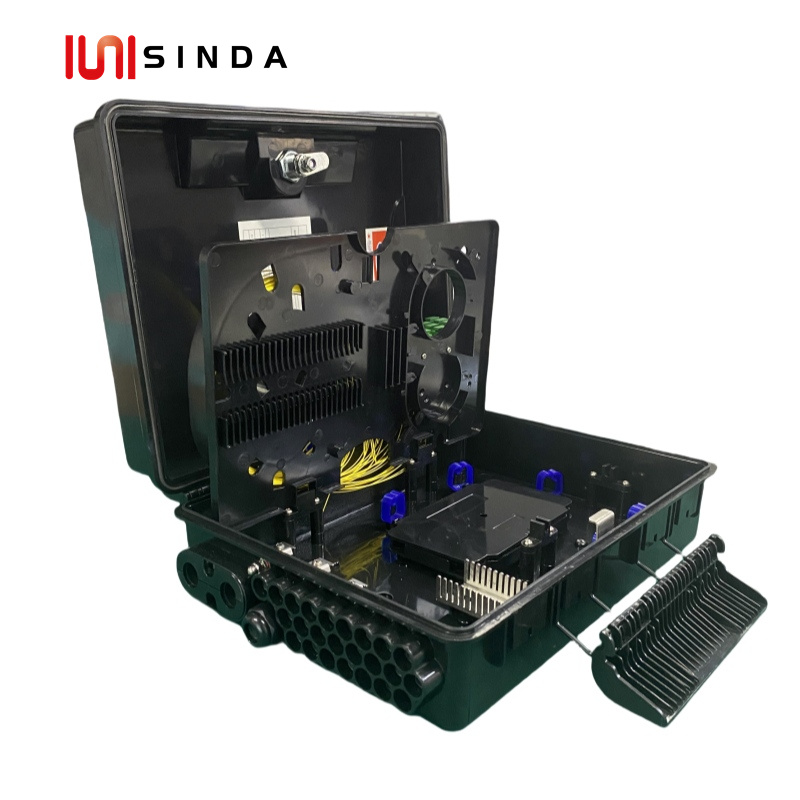

FTTH IP65 24/32 Port Fiber Optic NAP Distribution Terminal Boxes With Splitters

FTTH IP65 24/32 Port Fiber Optic NAP Distribution Terminal Boxes With Splitters.The Fiber distribution box is able to hold up to 32 subscribers. This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Chat Now

Description

FTTH IP65 24/32 Port Fiber Optic NAP Distribution Terminal Boxes With Splitters

The Fiber distribution box is able to hold up to 32 subscribers. This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Features

Total enclosed structure
Material: ABS, wet-proof, water-proof, dust proof, anti-aging
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter .installation, easy maintenance
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
Box can be installed by the way of wall-mounted or pole mounted, suitable for both indoor and outdoor uses

Specifications

Item	Model: SDFAT-32c	Model: SDFAT-24C
Size	320250125mm	340250110mm
Material	ABS	ABS
Protection Level	IP65	IP65
Capacity	32 ports	24 ports
Input Cable Ports	3	2
Output Cable Ports	32 outputs for drop cables	24 outputs for drop cables
Installation	Wall mount/ Pole mount	Wall mount/ Pole mount
Output ports cable dia.	2.03.0mm, 2.05.0mm	2.03.0mm, 2.05.0mm
Box Color	Black	Black
Adapters	32pcs SC Simplex adapters	32pcs SC Simplex adapters

24cores

32cores

Quality Certification
