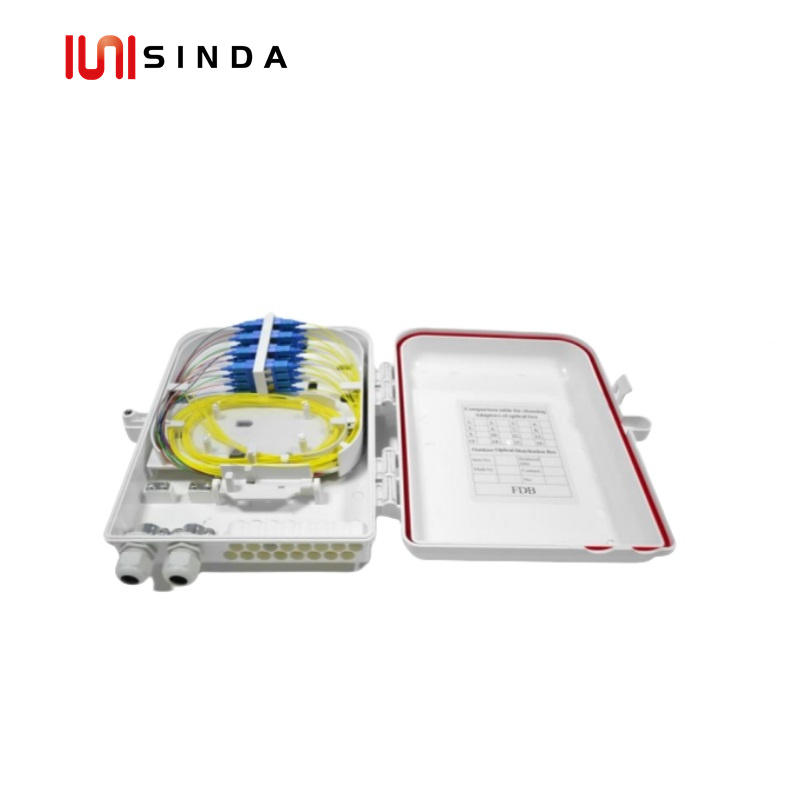

SDFAT-16C Terminal Box

SDFAT-16C Terminal Box

SDFAT-16C Terminal Box, SDFAT-16C fiber access termination box is able to hold up to 4 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Chat Now

Description

SDFAT-16C Terminal Box,

SDFAT-16C fiber access termination box is able to hold up to 4 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Industry Standard User Interface, be made of high impact plastic.

Can accommodate 1x8 & 1X16 PLC splitter.

Anti-UV, Ultra violet resistant and rainfall resistant.

Up to 16 FTTH drops.

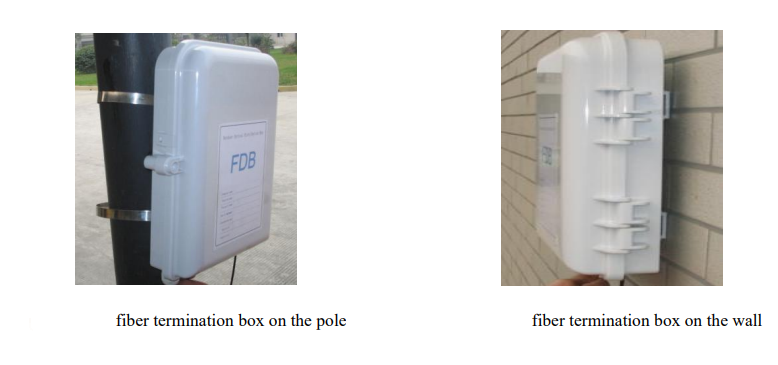

Wall and pole mountable.

2 inlet ports, 16 outlet ports.

Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.

Job stress: 70 kpa to 108 kpa;

Using the temperature:- 40 ~ + 60 ℃

Relative humidity: ≤95% (+ 40 ℃).

Protection grade: IP55.

Specifications

Material	Size	Capacity	Weight	Color
PC	ABC(mm)	SC	1.2kg	white
PC	260mm(W)x320mm(D)x90mm(D)	16 Ports	1.2kg	white

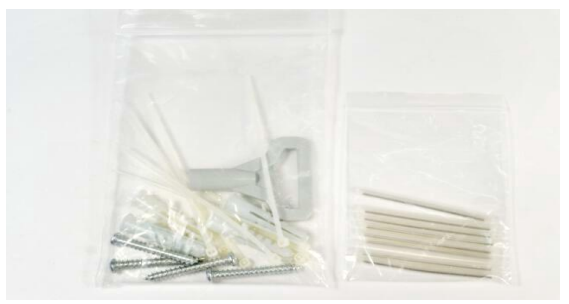

Product configuration list

Product Name	Specifications	Quantity	Note
Box	SDFAT-16C	1 PC
Optical fiber heat shrinkable casing	Ф1.2×40mm	16PCS
Nylon cable tie	3×100mm	8 PCS
Expansion bolt	M8×40mm	4 EST
Key		1 PC

Packing information

Model	N.W (kg/pcs)	Dimension of outer carton (mm)	G.W of outer Carton (kg/carton)	No of Products(pcs/carton)
SDFAT-16C	1.15	550340560	14.1	10

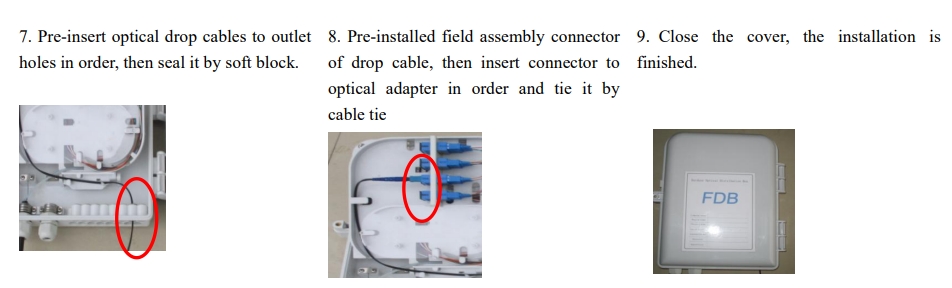

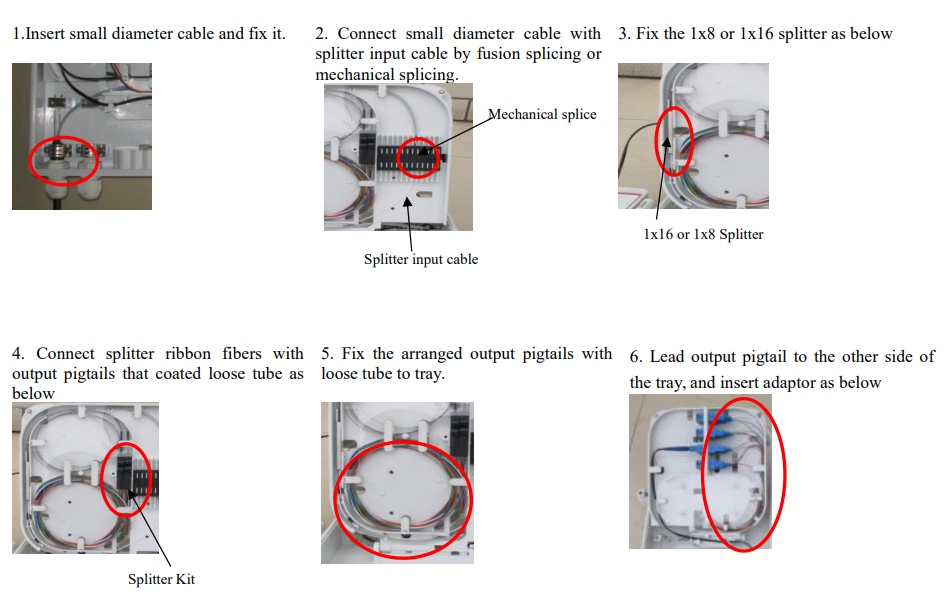

Installation

Application

Widely used in FTTH access network. u Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks

Quality Certification

Hot Tags : SDFAT-16C Terminal Box Indoor fiber terminal box Optical terminal box Outdoor terminal box Fiber terminal box 16c 16c Optical box
