16 Ports NAP CTO Fiber Access Terminal Splitter Box

16 Ports NAP CTO Fiber Access Terminal Splitter Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTx network building.

Chat Now

Description

16 Ports NAP CTO Fiber Access Terminal Splitter Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

1、 Total enclosed structure.

2、 Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65.

3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

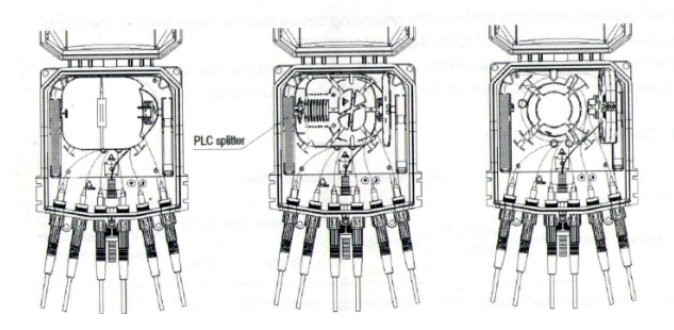

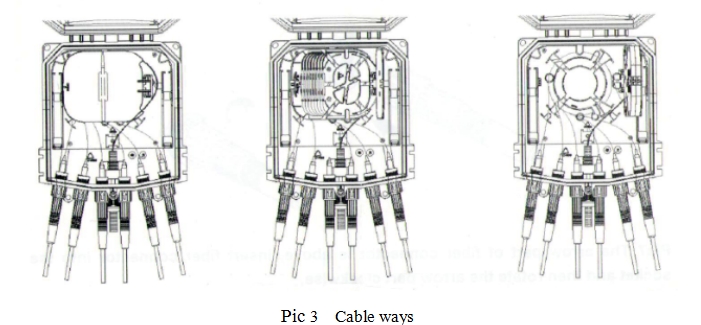

4、 Cable，pigtails，and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation,easy maintenance.

5、 Distribution panel can be flipped up, feeder cable can be placed by expression port,easy for maintenance and installation.

6、 Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use.

Specification

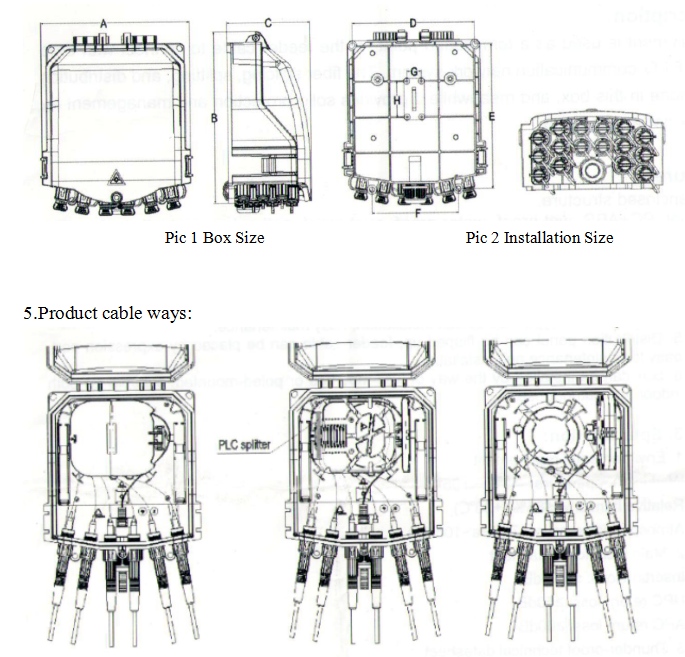

Model	Description	Size（Pic 1）	Max Capacity	Installation Size		Into the largest cable diameter(mm)
		ABC(mm)		(Pic 2)
				DEF	G*H
16 core	Spllitter Box	208241117	16(SC/APC)	179212126	21*52	18

1、Environmental requirement

Working temperature：-40℃～+85℃

Relative humidity：≤85%（+30℃）

Atmospheric pressure：70KPa～106Kpa

2、Main technical datasheet

Insertion loss：≤0.15dB

UPC return loss：≥50dB

APC return loss：≥60dB

Installation

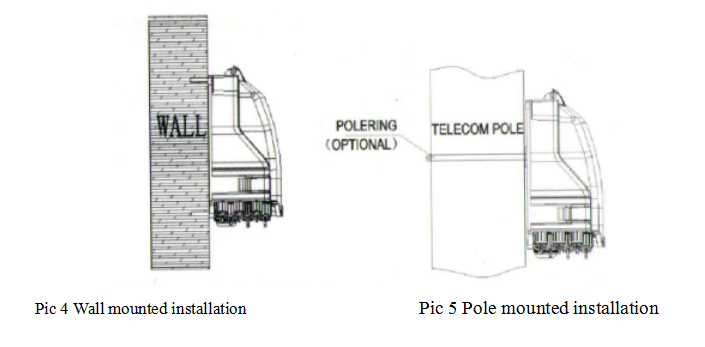

a．Wall-mounted installation

Drill 3 holes into the wall based on the size in table 1，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten.(Pic 4)

b. Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole(Pic 5)

Packing Informations

Model	Dimension of Carton(cm)	Number of boxes packed	Gross weight(kg)	NET weight of products(kg)
SDFQX 016-WMK-A	652845.5	10	14	13.5

Quality Certification
