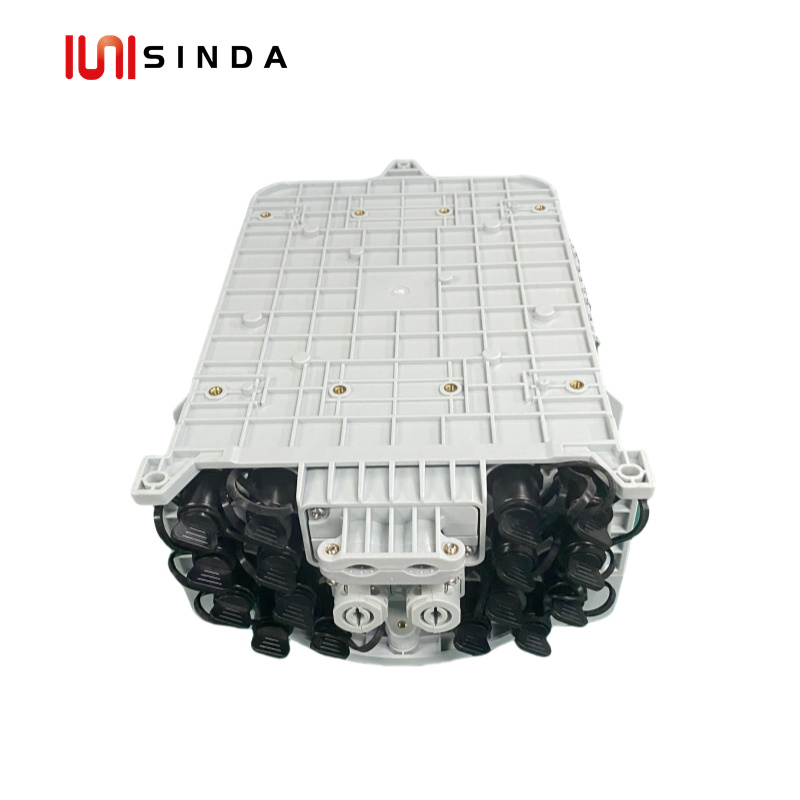

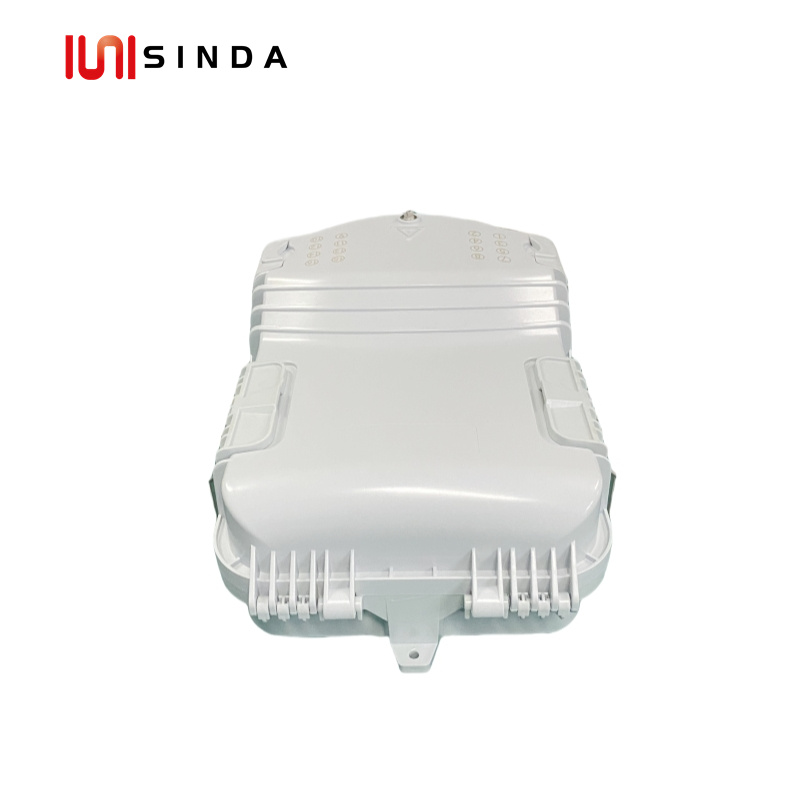

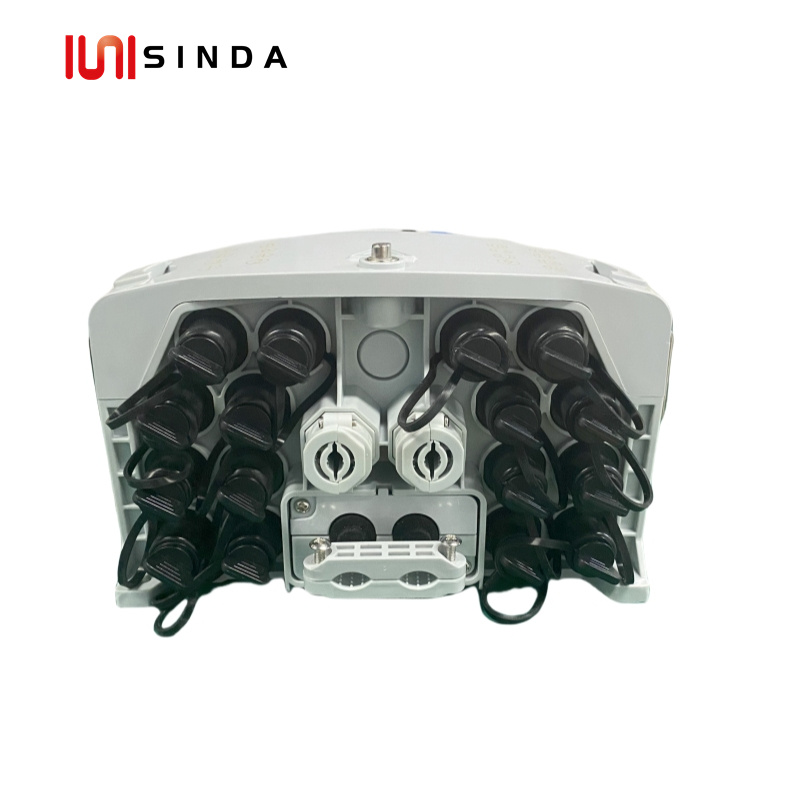

16Port FTTA Fibra Optica Cajas Nap Box CTO Box

The FTTA Fiber Optical 16 core NAP Box could be packed with Blockless Splitters. The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splitting, distribution can be done in this box, no need open the box with pre-connected connectors. It provides solid protection and management for the FTTx network building.

Features

• Total enclosed structure.

• Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.

• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

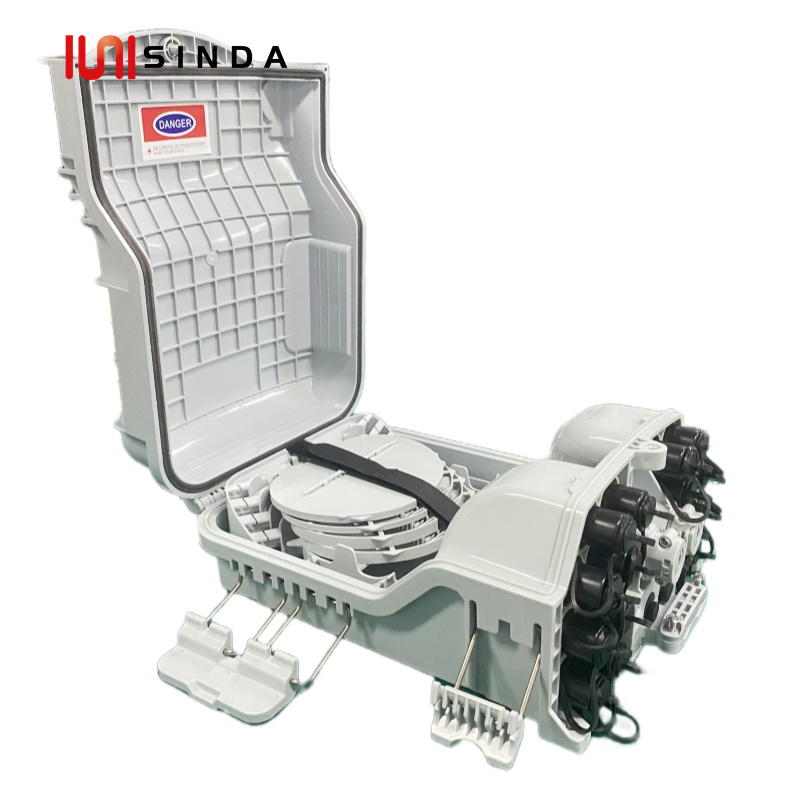

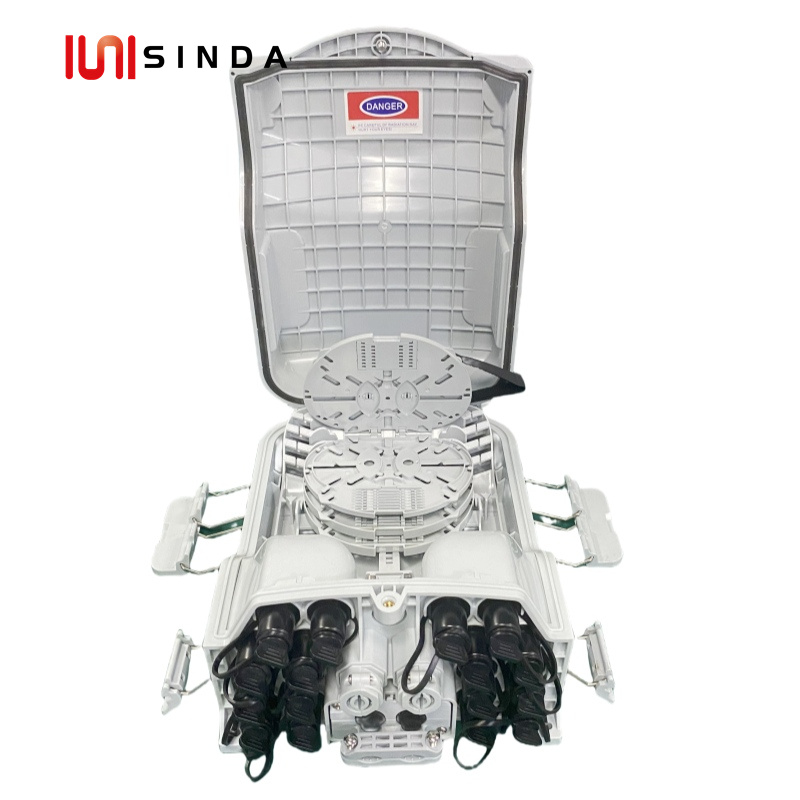

• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

• Box can be installed by the way of wall-mounted, poled-mounted, Aerial Mounted, suitable for both indoor and outdoor use.

Applications

Fiber optic communication network;

Commercial buildings;

FTTx communication network system

Specifications

 Box Sizes

Product Cable Way

Install Method

 1.Wall-Mounted Installation

       Drill 3 holes into the wall based on the installation size，place the expansion bolt Φ7.5*40，place the box to match up the      holes and use bolt to fasten.

 2.Pole-Mounted Installation

          Fix 1 set of the pole ring to the telecom pole

 3. Aerial Mounting:

          Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off.

Quality Certification
