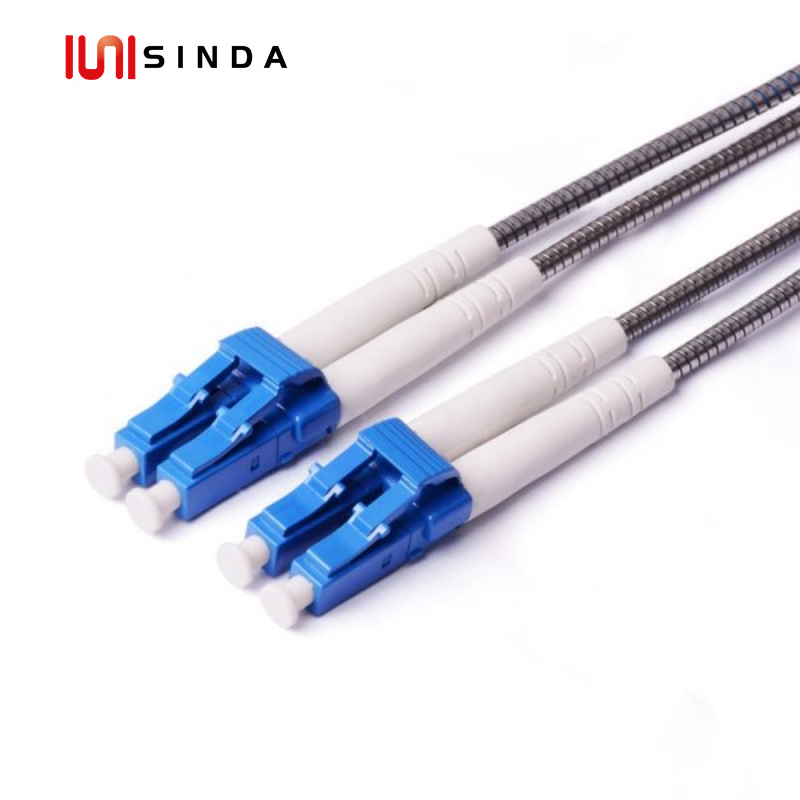

GYFJH LC to LC 7.0mm LSZH FTTA Indoor/Outdoor CPRI Fiber Patch Cable

GYFJH LC to LC 7.0mm CPRI Fiber Patch Cable

FTTA Indoor/Outdoor CPRI Fiber Patch Cable

GYFJH LC to LC 7.0mm LSZH FTTA Indoor/Outdoor CPRI Fiber Patch Cable

GYFJH LC to LC 7.0mm LSZH FTTA Indoor/Outdoor CPRI Fiber Patch Cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.

Chat Now

Description

LC to LC 2 Core GYFJH 7.0mm LSZH FTTA Indoor/Outdoor CPRI Fiber Optic Patch Cord

The cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket, which is UV stabilized, highly resistant to chemicals commonly found in industrial environments, and suitable for indoor and outdoor industrial installations.

Features

Good mechanical and temperature characteristics.

Good lateral compression and flexibility.

Anti-rodent, Bird-proof, waterproof, and environment protection.

The mini-armored layer is used to decrease the outer diameter and cable weight, also convenient for laying and splicing.

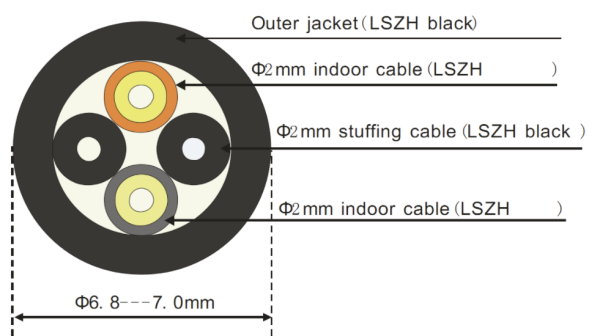

Cable Structures

Cable Outer Dia: 7.0mm
Fiber Model: G657A1/G657A2 Capacity: 2cores

Specifcations

Connector Type	LC to LC	Fiber Mode	G657A1/G657A2
Wavelength	1310/1550nm	Fiber Count	2 Core
Insertion Loss	≤0.3dB	Return Loss	≥50dB (UPC), APC≥60dB
Armored Breakout Length (End A/B)	0.03/0.34m	Cable Diameter (Outer/Inner)	7.0/2.0mm
Min. Bend Radius	20/10D (Dynamic/Static)	Tensile Strength	200/400N (Long/Short Term)
Operating Temperature	-20-70℃	Storage Temperature	-40-80℃

Applications

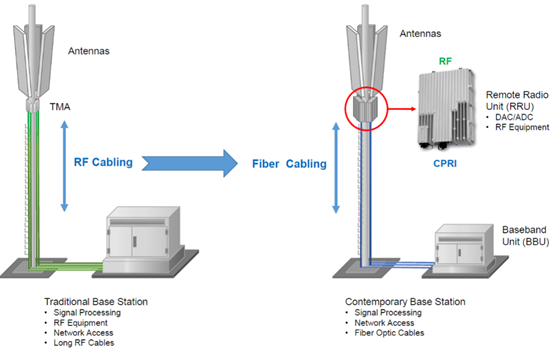

Remote base stations such as RRU or BBU.

Smart substation and CATV Outdoor application.

Emergency access to optical fiber communication.

Horizontal and Vertical Cabling for All Common LTE/4G/5G Radio Systems

Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable.

Armored Fiber to the Antenna (FTTA) Patch Cable for Outdoor Applications
