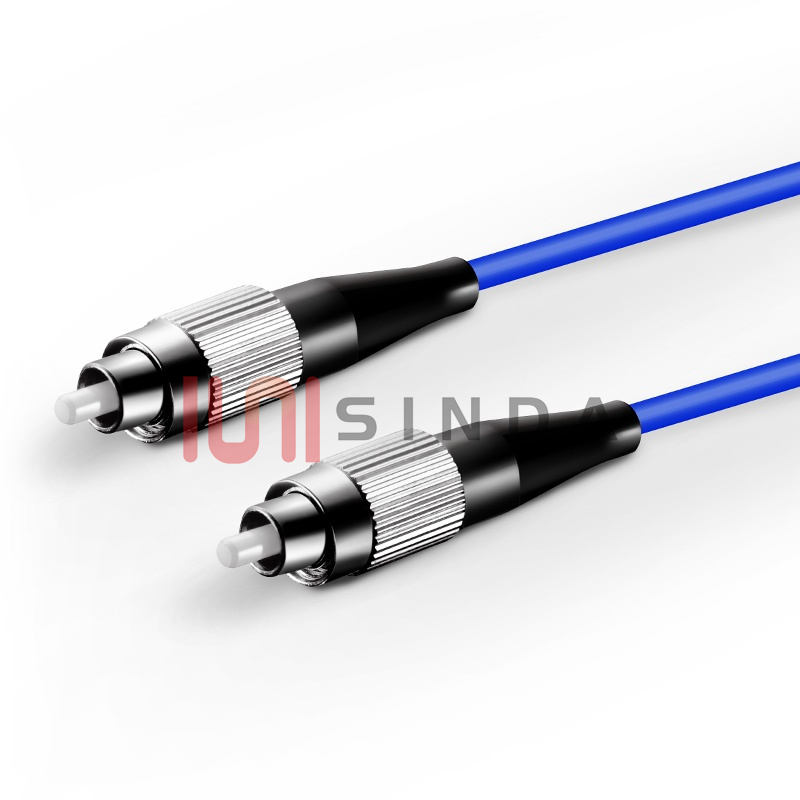

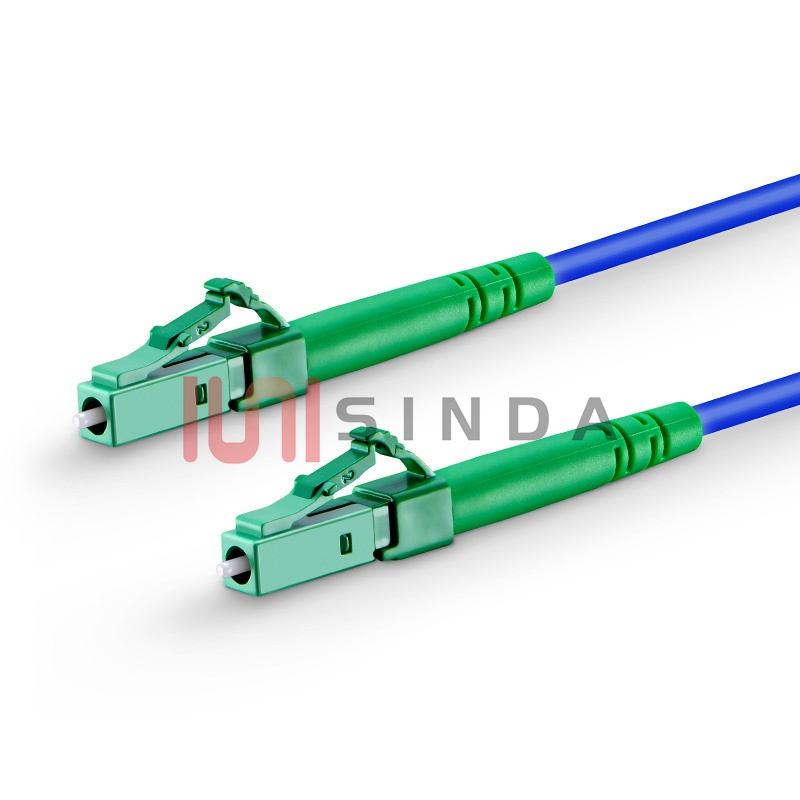

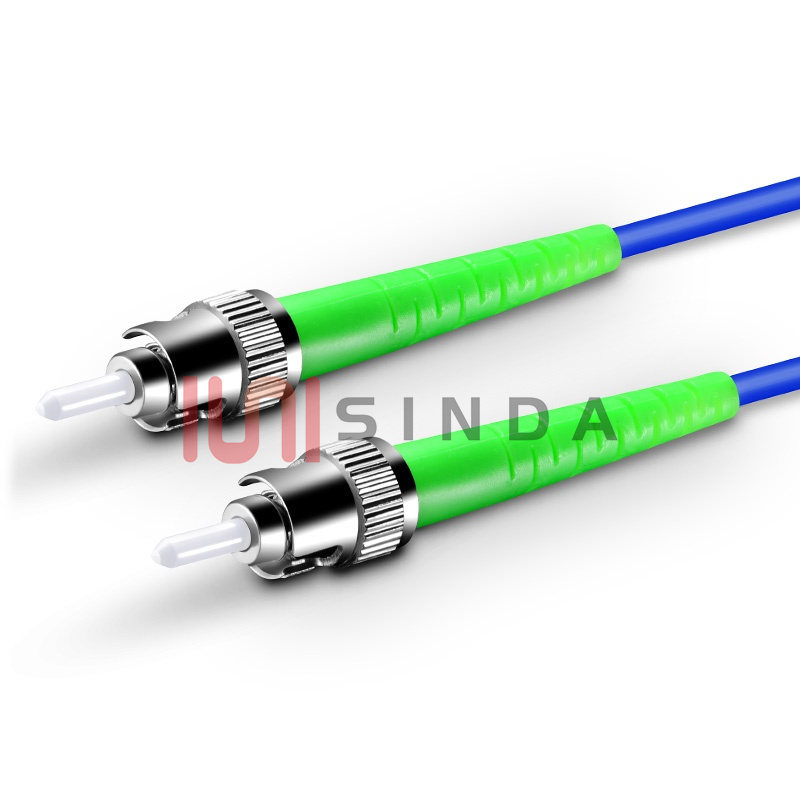

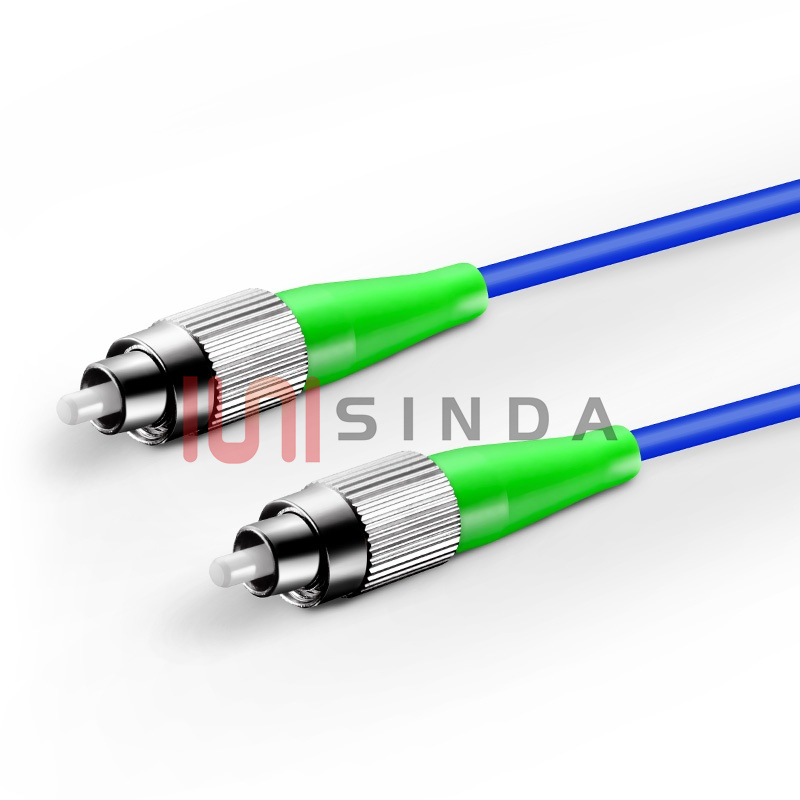

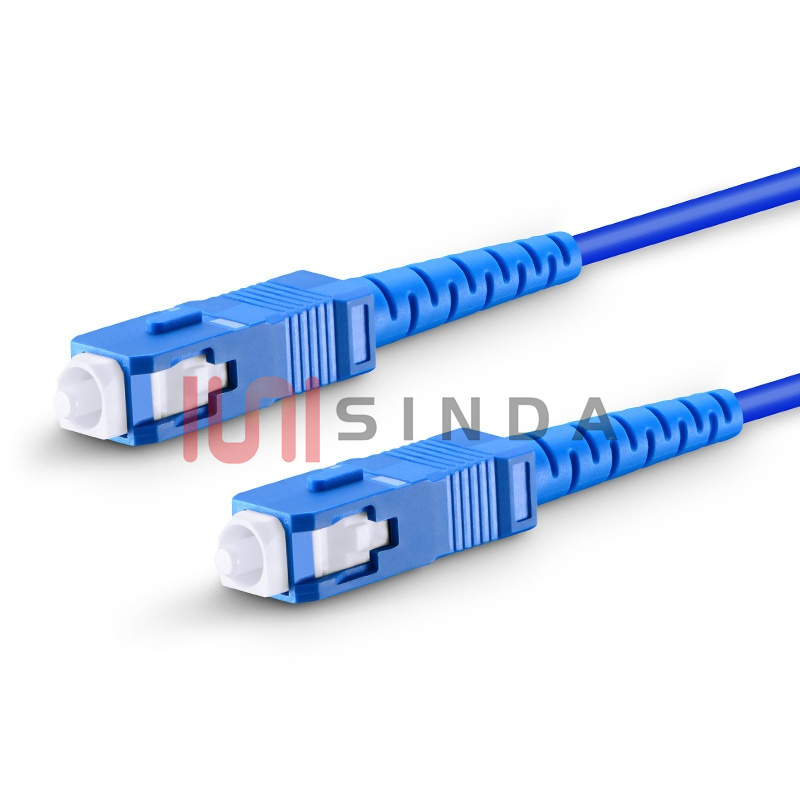

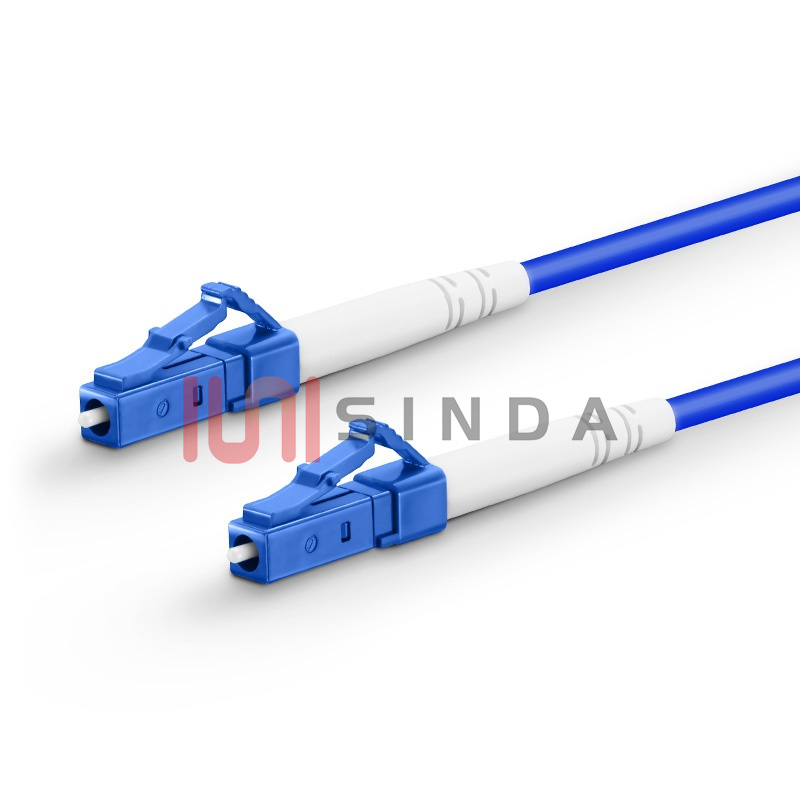

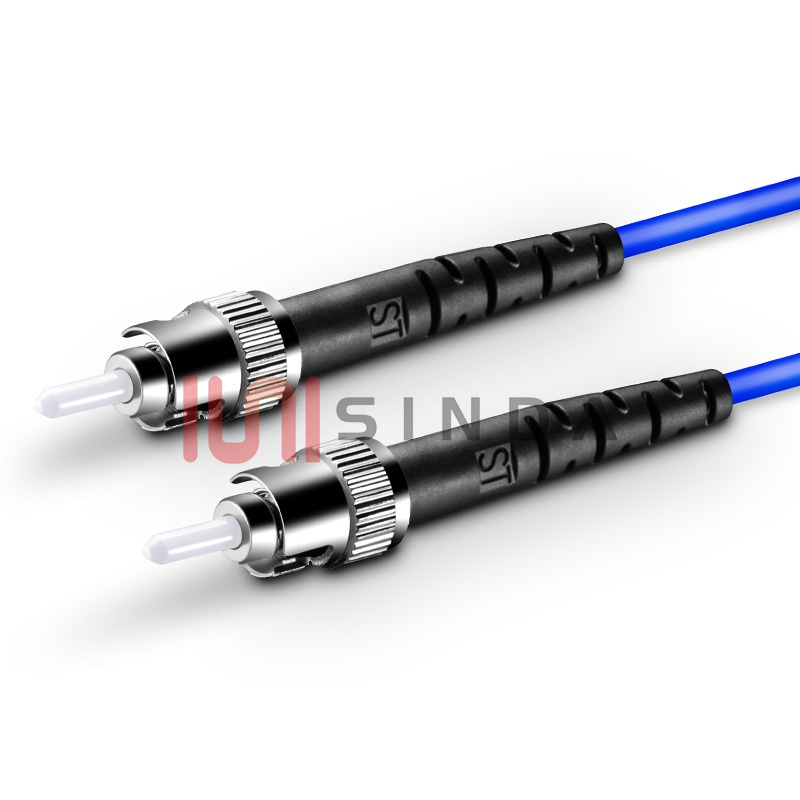

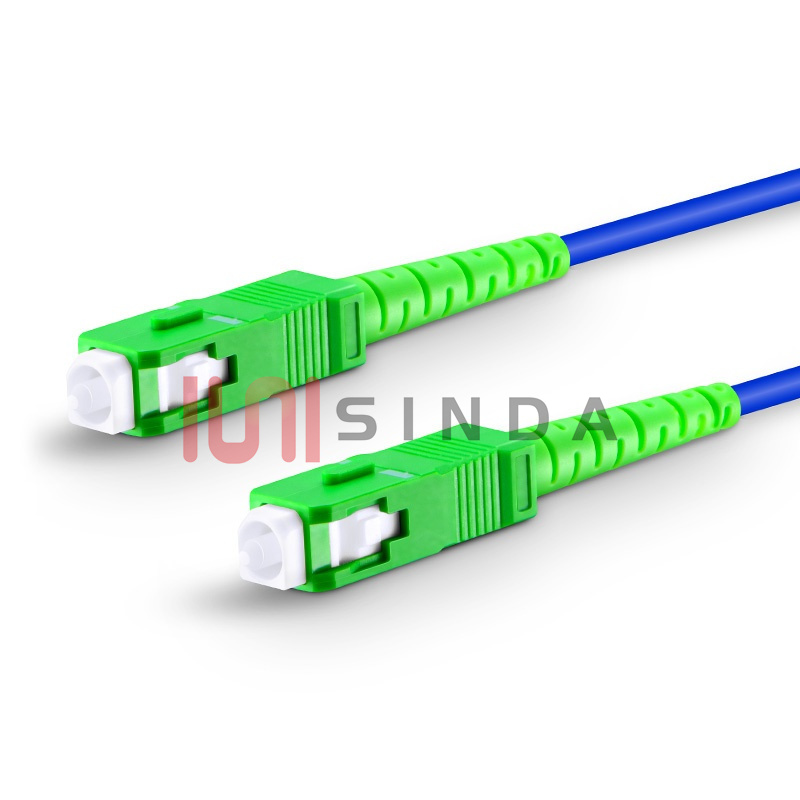

LC/SC/FC/ST/LSH Armored 3.0mm Singlemode OS2 Fiber Optic Patch Cable
Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents.

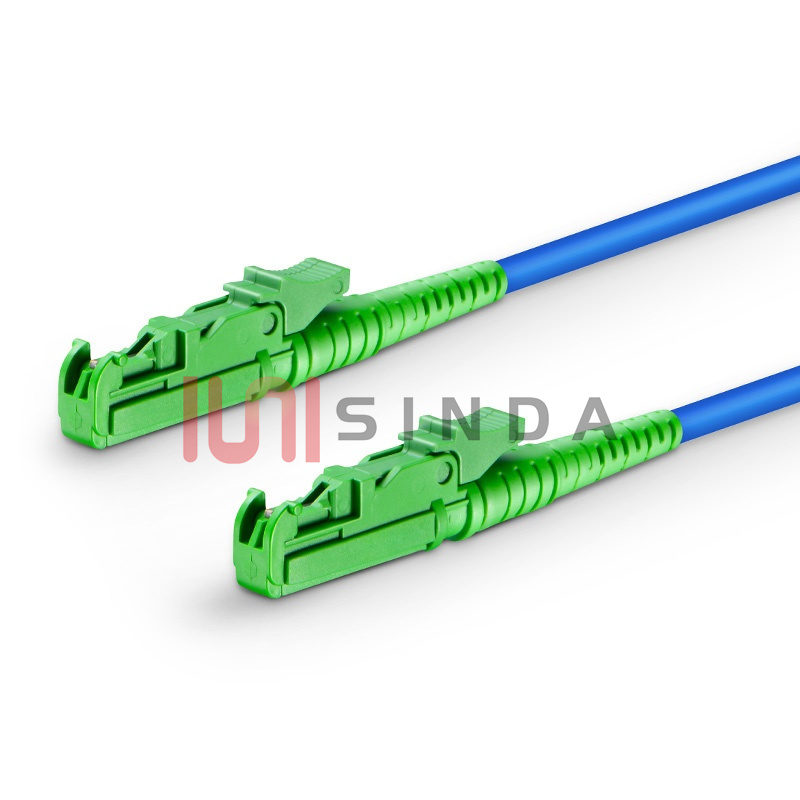

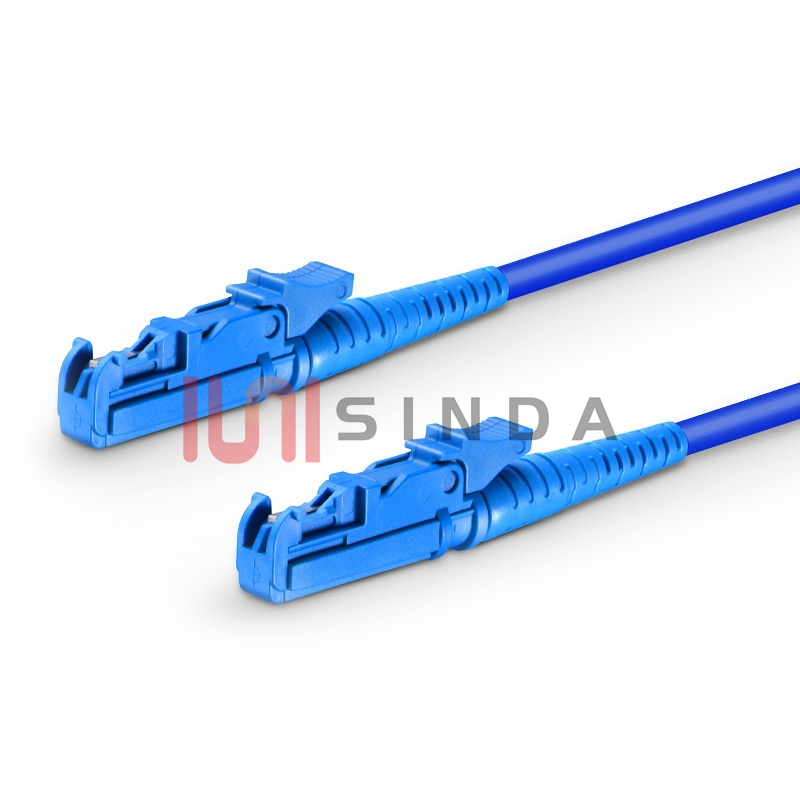

Please note: E2000 is an LSH connector with a dust-proof cover.
LC/SC/FC/ST/LSH Armored 3.0mm Singlemode OS2 Fiber Optic Patch Cable can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents.
Please note: E2000 is an LSH connector with a dust-proof cover.
FEATURE
High anti-tensility and anti-pressure
High bent Resistance
Anti-bite from rodent animals
Flexible, convenient to connect, and easy to deploy
Save space
Reduce the cost of wiring, improve the inside
Use as the normal soft cable
SPECIFICATIONS
Connector Type | SC/FC/ST/LC/E2000/DIN..... | Polish Type | APC,PC,UPC |
Fiber Mode | OS2 9/125um | Fiber Count | Simplex |
Fiber Grade | G657A1 | Min. Bend Radius | 10/5D (Dynamic/Static) |
Cable Diameter | 3.0mm | Cable Jacket | PVC |

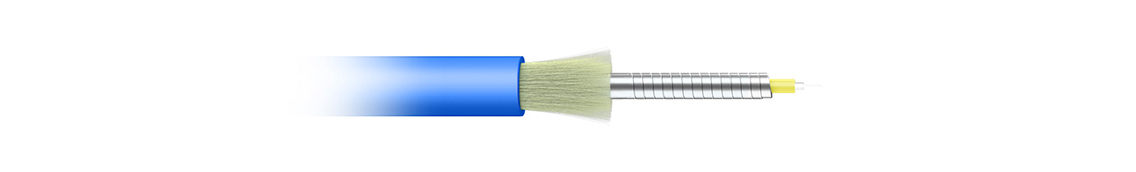

Cable Structure | Stainless-Steel Tube | Tensile Load | 120/225N (Long/Short Term) |
Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
Operating Temperature | -25 ~ 70℃ | Storage Temperature | -25~70°C |
APPLICATIONS
ODF, MODF, OCC
Fiber Cabling system, LAN, FTTH
QUALITY CERTIFICATIONS
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
