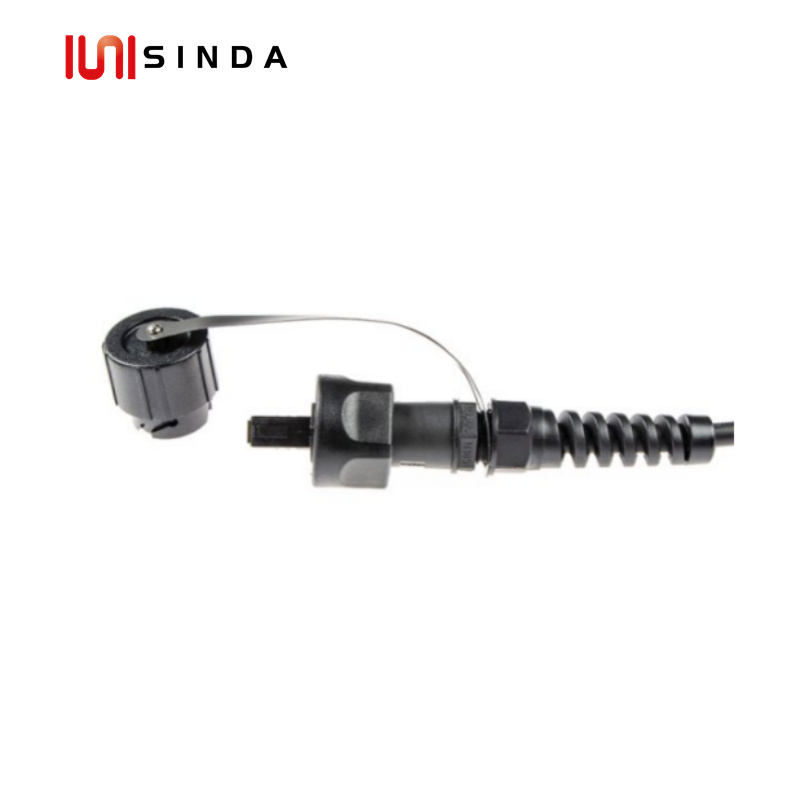

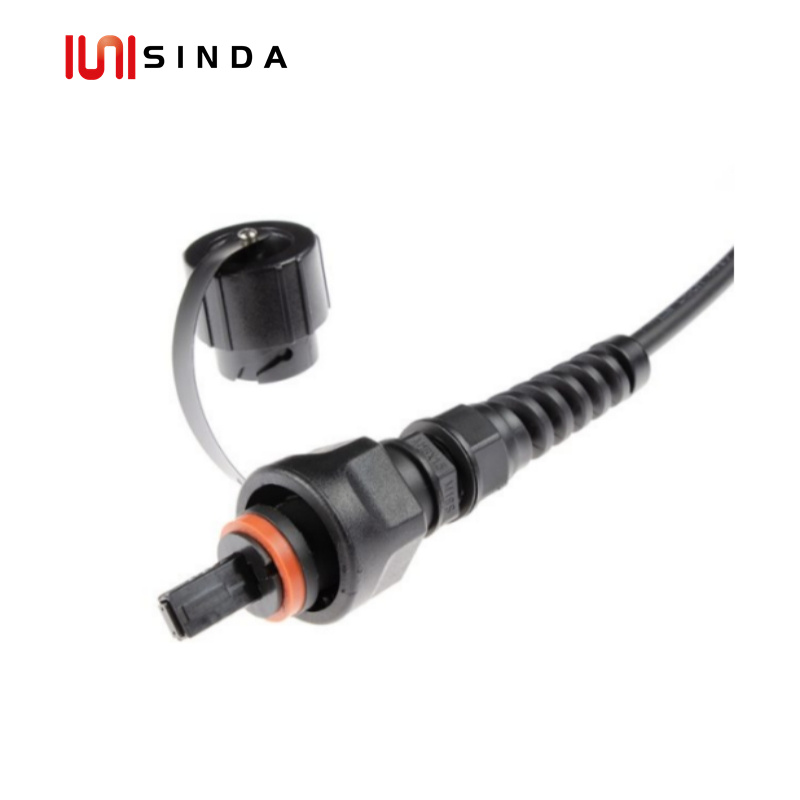

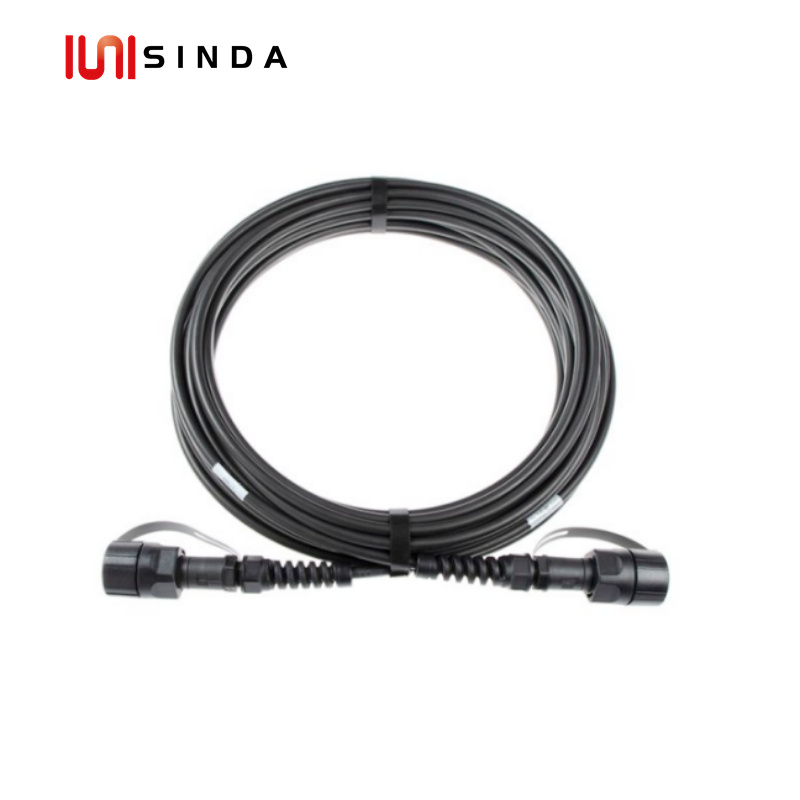

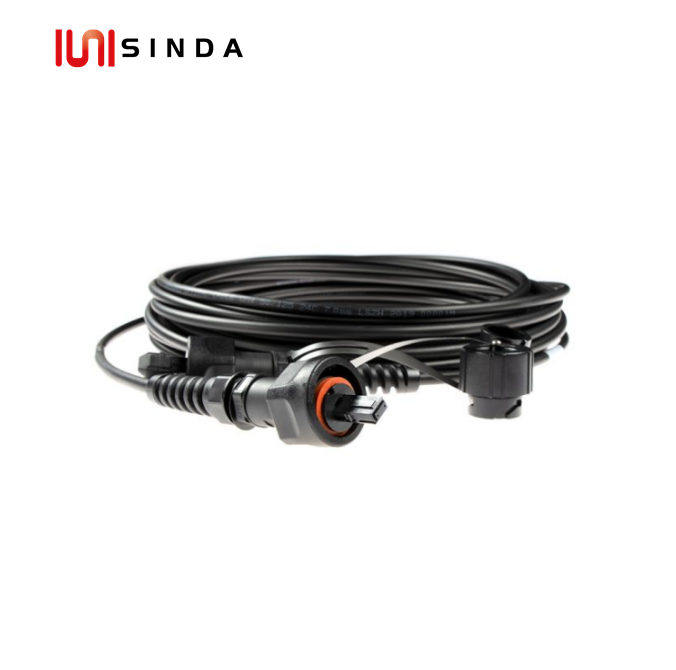

IP67 24Fibers Armoured ODVA MPO-ODVA MPO φ7.0mm Waterproof Fiber Patch Cord

IP67 waterproof ODVA-MPO fiber patch cord

IP67 waterproof ODVA fiber optical patch cord

IP67 24Fibers Armoured ODVA MPO-ODVA MPO φ7.0mm Waterproof Fiber Patch Cord

IP67 24Fibers Armoured ODVA MPO-ODVA MPO φ7.0mm Waterproof Fiber Patch Cord is an IP-67-rated compact RRH/RRU Helix cover connector with fast coupling. Sealed Circular IP67 ODVA MPO fiber optic patch cable assemblies provide the low-cost ideal solutions for CATV, RRH remote radio heads, and FTTX harsh environment connectivity. It is a typical outdoor fiber cable suitable for different temperatures and weather, especially ideal for FTTA and harsh environment use.

Chat Now

Description

IP67 Waterproof ODVA MPO to ODVA MPO 7.0mm Armoured Fiber Optic Patch Cord

ODVA Patch Cable is an IP-67-rated compact RRH/RRU Helix cover connector with fast coupling. Sealed Circular IP67 ODVA MPO fiber optic patch cable assemblies provide the low-cost ideal solutions for CATV, RRH remote radio heads, and FTTX harsh environment connectivity. It is a typical outdoor fiber cable suitable for different temperatures and weather, especially ideal for FTTA and harsh environment use.

Features

3 series are optional: LC duplex, SC simplex, and MPO/MTP

IP67 Waterproof

4Fibers, 8Fibers, 12Fibers or 24Fibers version on request

4.8mm, 5.0mm, and 7.0mm cable optional

100% optically tested to ensure quality performance assemblies

Specifications

Connector	ODVA MPO to ODVA MPO	Jacket OD	7.0mm
Fiber Mode	50/125μm OM4	Jacket Color	Black
Polish	UPC to UPC	Wavelength	850/1300nm
Fiber Type	24Fibers	Jacket Material	LSZH / PVC / OFNP
Insertion loss(MPO)	≤0.35dB	Insertion loss(LC)	≤0.2 dB
Return loss	≥30dB	Storage temperature	-45~85°C
Operating temperature	-40~75°C

Applications

FTTA feeders for all standard RRH models and systems

3G,4G,5G Base Station

Remote Radio Heads (RRH)

Horizontal and Vertical Cabling

Industrial outdoor applications

Hot Tags : IP67 waterproof ODVA-MPO fiber patch cord IP67 ODVA-MPO fiber patch cord Waterproof MPO fiber patch cords Waterproof ODVA-MPO fiber patch cord ODVA-MPO fiber optic patch cords IP67 waterproof ODVA-MPO fiber patch cord factory
