IP67 FULLAXS LC Duplex to LC SM φ5.0mm LSZH Black Outdoor Fiber Optic Cable

IP67 FULLAXS LC duplex fiber optic cable best price

IP67 FULLAXS LC Duplex to LC SM φ5.0mm Fiber Optic Cable factory

IP67 FULLAXS LC outdoor fiber optic cable factory

IP67 FULLAXS LC Duplex to LC SM φ5.0mm LSZH Black Outdoor Fiber Optic Cable

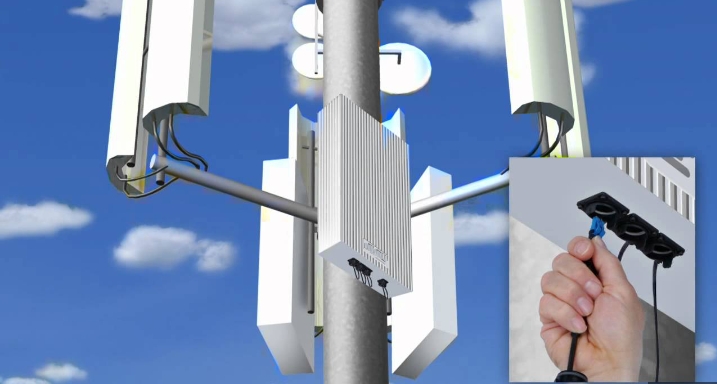

FULLAXS Outdoor Waterproof Patch Cord is Commonly used in some Ericsson Remote Radio Heads, the shell encloses duplex LC connectors. Plugs directly into SFP at a panel of RRH. FullAXS is a sealing system for optical and electrical interfaces which mates directly into the SFP modules through a bulkhead construction. Ruggedized sealing system for fiber-to-the-antenna and industrial applications.

Chat Now

Description

Description

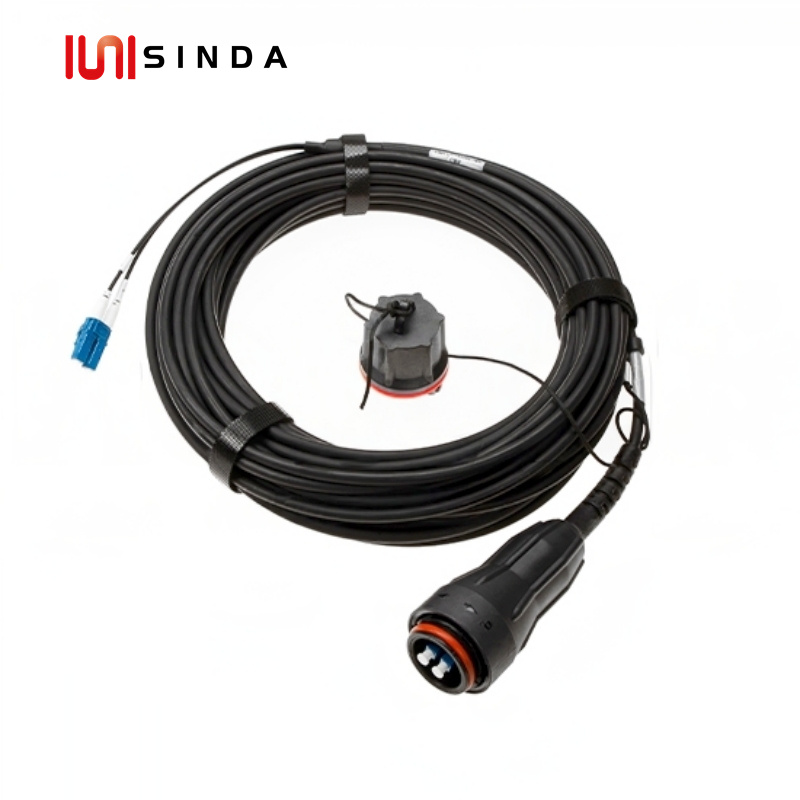

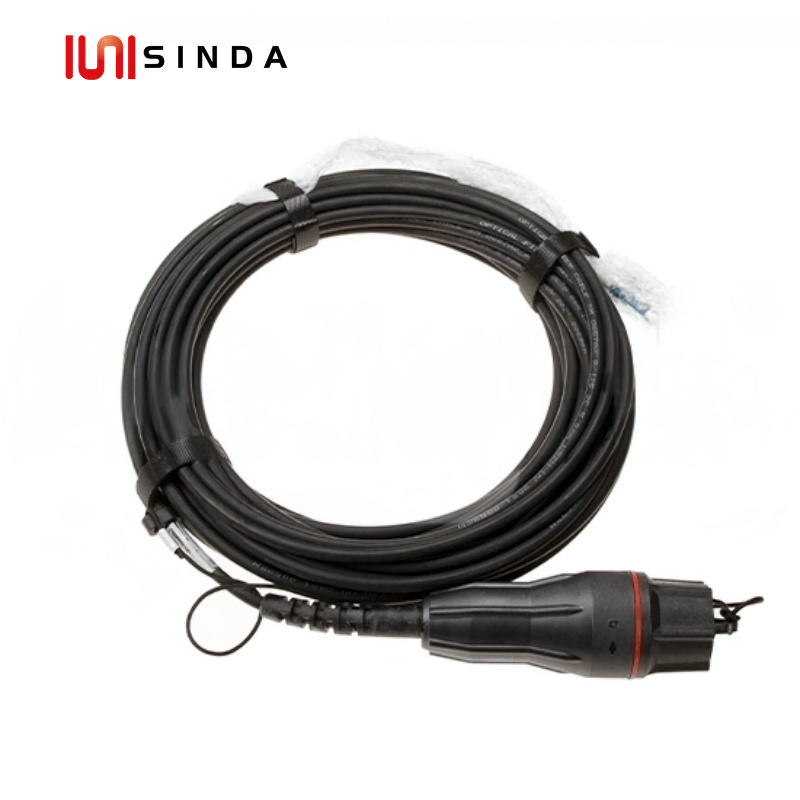

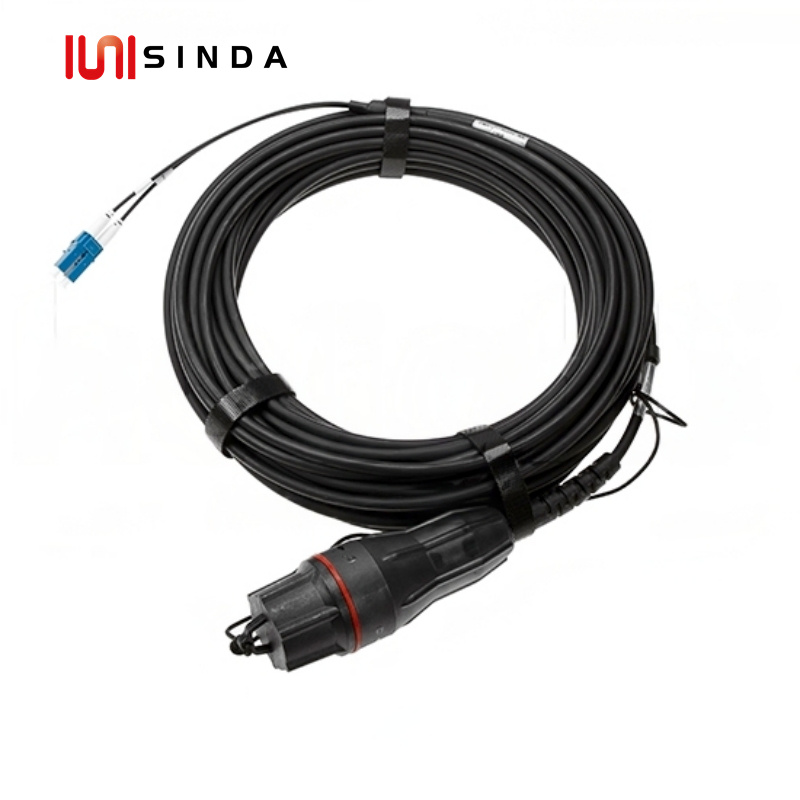

Waterproof LC Duplex to FULLAXS LC SM φ5.0mm LSZH Black Outdoor Fiber Optic Patch Cord

FullAXS Fiber-to-the-Antenna Connector next generation WIMAX technology features a Long Term Evolution fiber to antenna connection design. This allows for the usage of strong cable assemblies on the outdoors.Direct connections allow for the cable assembles through the bulkhead construction to be plugged directly into the optical transceivers. This accommodates a large Z tolerance, which allows the usage of the widest range of transceivers available on the market. End users now have the ability to choose from multiple transceivers.

Features

Open bulkhead for easy access to SFP

IP67 water and dust protection, corrosion resistance

Bulkhead cutout allows for the removal of the transceiver through the bulkhead

No need to open the remote radio head (RRH)for transceiver replacement

Waterproof, dustproof and corrosion resistant

Specifications

Type Fiber	SM(G657A1/ G657A2) ; MM(OM1/OM2/OM3/OM4)
Fiber Count	DX
Cable Diameter	5.0mm
Jacket Color	Black
Outer Jacket Material	LSZH/TPU
Connector	A: Fullaxs(LC) Connector; B: Fullaxs(LC), LC, SC
Insertion Loss	SM/UPC≤0.3db; MM/UPC≤0.3db
Return Loss	SM/APC≥60dB; SM/UPC≥55db; MM/UPC≥35db
Cable Length	1~150m or Customized
Branch Length	Customized
Cable Type	Armored or Un-armored
Mechanical Life	500 mating cycles
Working Temperature	-20°C~+70°C
Storage Temperature	-20°C~+70°C
Tensile Data	Tensile between the junction and fiber cable≥100N

Applications

4G/5G base station

Remote Radio Head (RRH)

FTTA and industrial applications

WiMAX/ LTE/ FTTA

Remote wireless base station

Quality Certification
