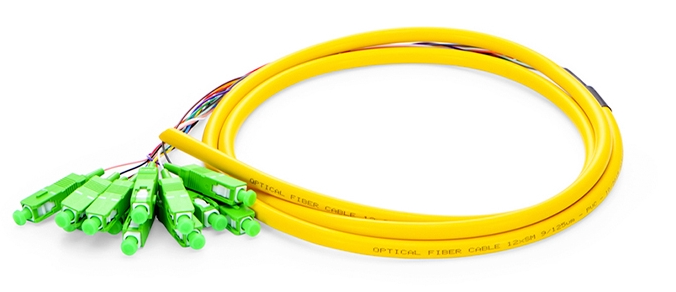

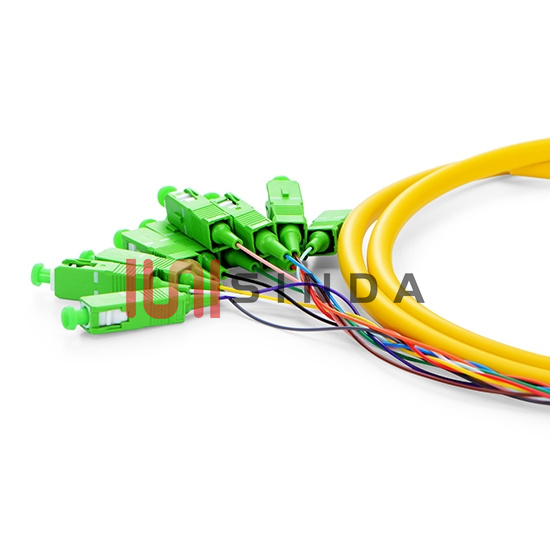

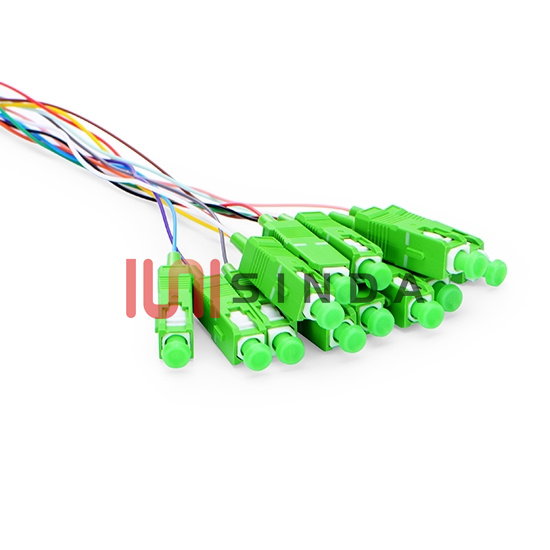

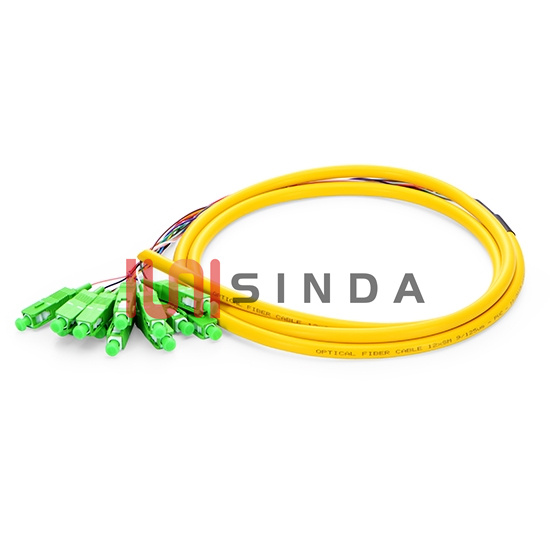

12 Fibers SC/APC OS2 Single Mode Bunch PVC /LSZH/ OFNR 0.9mm 1.5M Fiber Optic Pigtail

Bunch PVC /LSZH/ OFNR 0.9mm 1.5M fiber optic pigtail
12 Fibers SC/APC OS2 single mode pigtails
Factory for fiber pigtails
The best price for fiber pigtails

12 Fibers SC/APC OS2 Single Mode Bunch PVC /LSZH/ OFNR 0.9mm 1.5M Fiber Optic Pigtail

12 Fibers SC/APC OS2 Single Mode Bunch PVC /LSZH/ OFNR 0.9mm 1.5M Fiber Optic Pigtail provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

12 Fibers SC/APC OS2 Single Mode Bunch PVC /LSZH/ OFNR 0.9mm 1.5M Fiber Optic Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.



Features


PVC Flame-retardant Fiber Optic Cable with Tight-buffered Coating on Each Optical Fiber

Optical Testing Guarantees Insertion Loss and Returns Loss

Individually Colored to Easily Match Color-coded Fiber Cable That Will Be Spliced

Pass All IEC-61754 and TIA-613 (FOCIS) Performance Requirements

Support Both Fusion and Mechanical Splicing for Fiber Cabling System









Specifications

Connector A SC Connector B Unterminated
Fiber Mode 9/125 μm Fiber Count 12

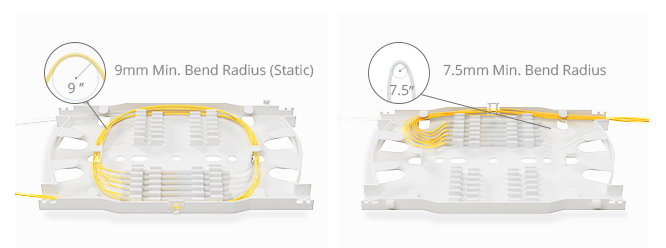

Fiber Grade G.657.A1 Minimum Bend Radius 10mm
Polish Type APC Cable Outside Diameter (OD) 0.9 mm
Cable Jacket PVC Jacket Color Yellow
Wavelength 1310 nm/1550 nm Durability 1000 Times
Insertion Loss ≤0.3 dB Interchangeability ≤0.2 dB
Return Loss ≥60 dB Vibration ≤0.2 dB
Operating Temperature -40~75°C Storage Temperature -45~85°C











Applications


Used for  pre-terminations of Fiber patch panel, ODF, terminal box etc...









High-precision Components Guarantee Reliable Transmission
The pigtail combines premium zirconia ferrules and rugged composite hardware to provide the optical performance, durability, and repeatability necessary for today's network applications.







Quality Certification
