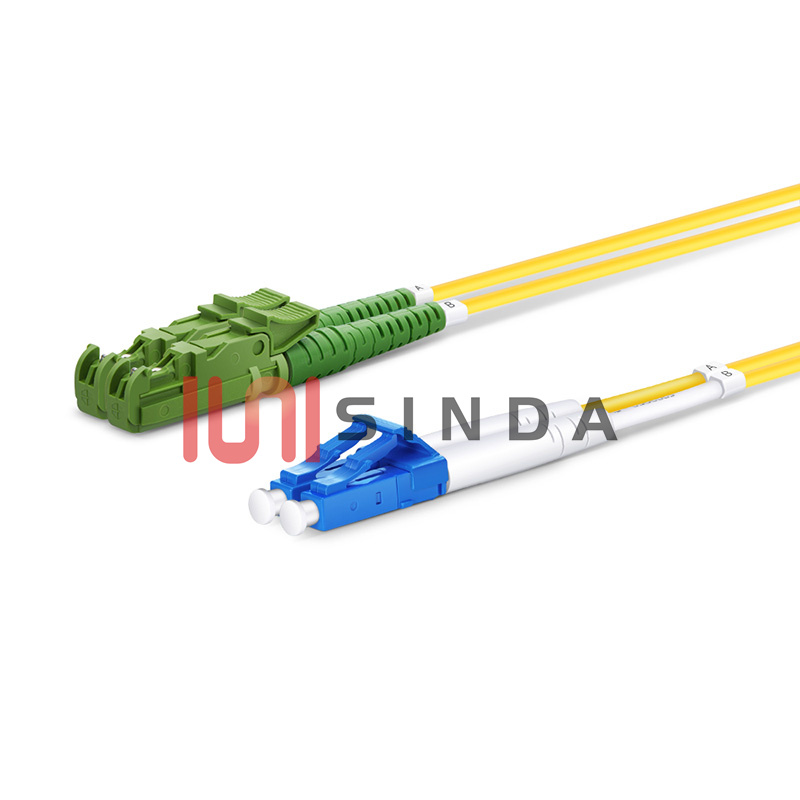

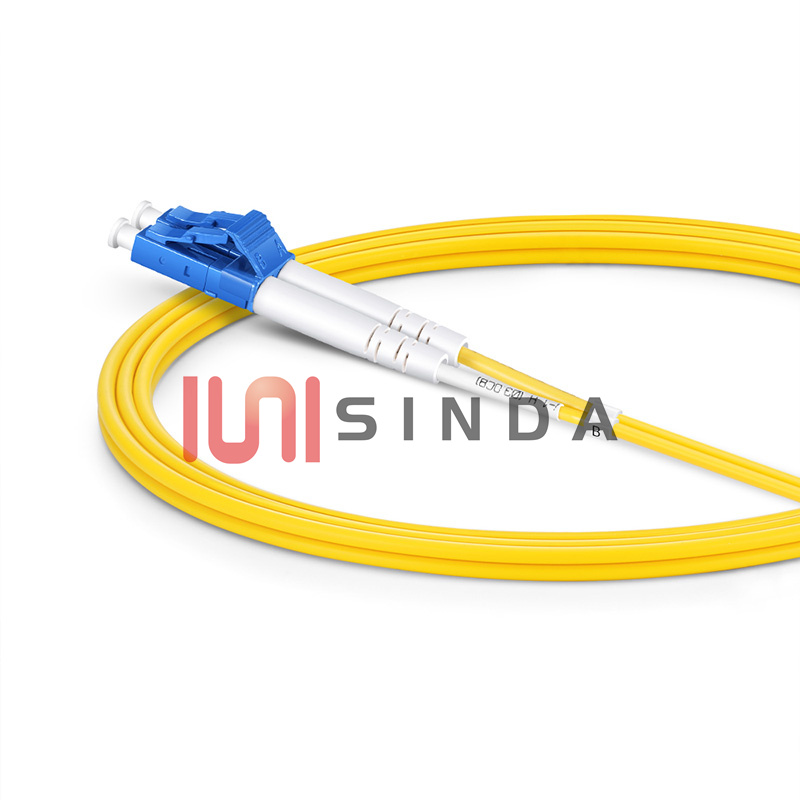

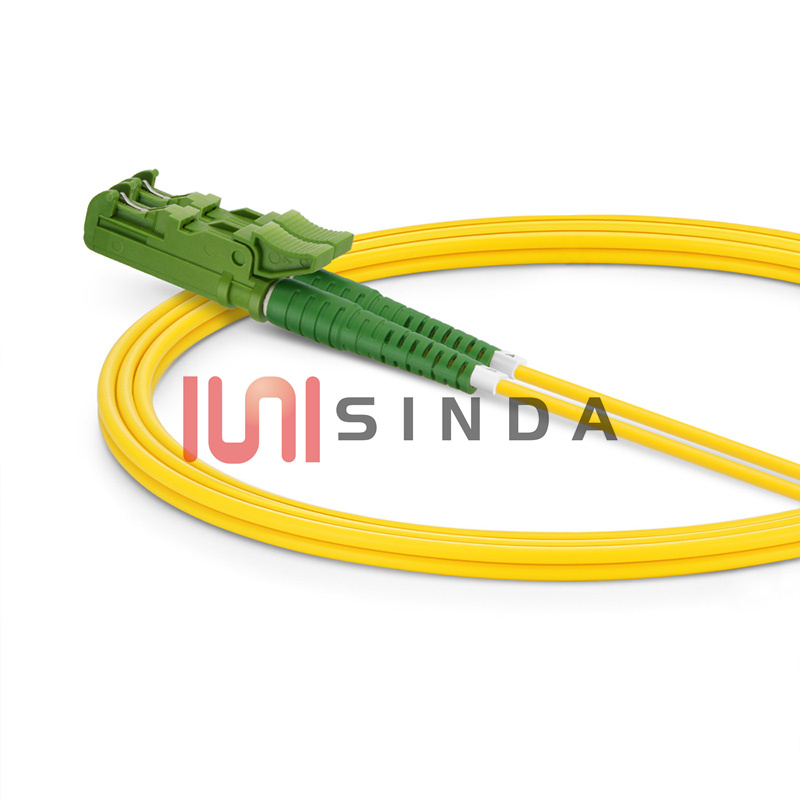

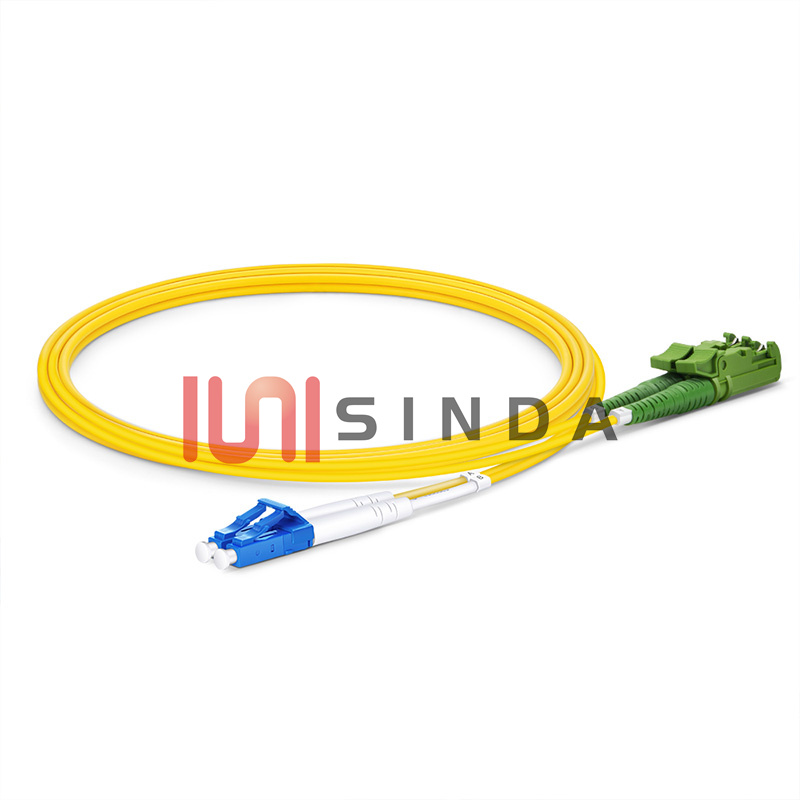

LSH APC to LC UPC Duplex OS2 Single Mode LSZH 2.0mm 1m (3ft) Tight-Buffered Fiber Optic Patch Cable
The 9/125μm OS2 single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1552nm.
LSH APC to LC UPC Duplex OS2 Single Mode LSZH 2.0mm 1m (3ft) Tight-Buffered Fiber Optic Patch Cable
The 9/125μm OS2 single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1552nm.
Features
LSZH Environmentally Friendly Jacket
Precision Zirconia Ferrule Connectors Ensure Low Loss

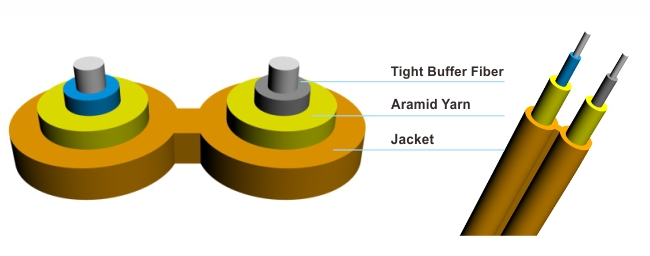

Duplex Zipcord Enhances Mechanical Performance and Reduces Crimping Risk
G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Optical Testing Ensures Network Performance
Compliant to TIA-604 (FOCIS)
Specifications
| Connector Type | LSH APC to LC UPC | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | UPC≥55dB, APC≥75dB |
| Min. Bend Radius (Fiber Core) | 10mm | Min. Bend Radius(Fiber Cable) | 10/5D (Dynamic/Static) |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Duplex | Cable Outside Diameter (OD) | 2.0mm |
| Cable Jacket | LSZH | Polarity | A (Tx) to B (Rx) |
| Operating Temperature | -20 to 70°C (-4 to 158℉) | Storage Temperature | -40 to 80°C (-40 to 176℉) |
Applications

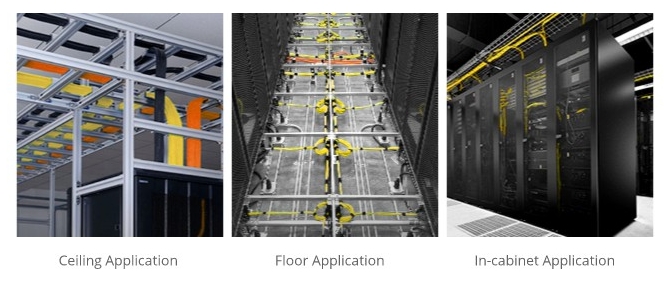

Meet the Various Indoor Installation Needs，Ideal for network cabinet connection, ceiling wiring and under-floor wiring in the data center.
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
