Plastic Terminal Box

Home Plastic Terminal Box

12/24/32 Way fiber optic junction box

12/24/32 Way fiber optic junction box

12/24/32 Way fiber optic junction box,Distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

Chat Now

Description

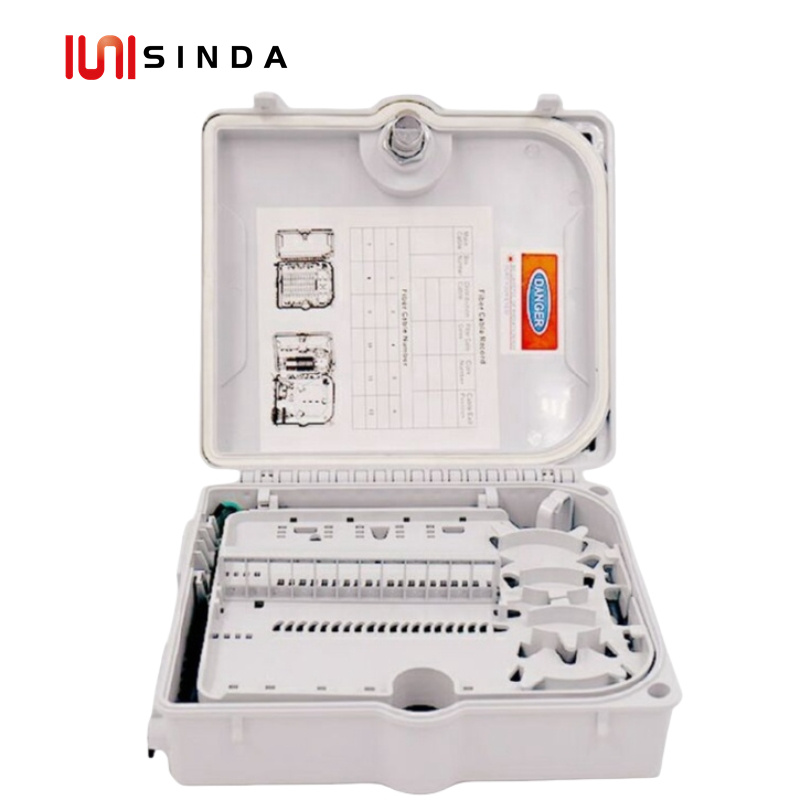

12/24/32 Way fiber optic junction box

Distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

Features

1) Be made of high impact plastic PC/ABS
2) Can accommodate PLC splitter
3) The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
4) Wall and pole mountable
5) The design of the two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.

Specifications

Model	Material	Size(mm)	Capacity(SC)	Weight(kg)	Color	Installation	Protection Level
SDFAT-12A	PC,ABS,Customized	22520065	12SC/24LC	0.92	White/Black/Gery	Wall Mounted, Holding Pole	IP55
SDFAT-24A	PC,ABS,Customized	320240100	24SC/48LC	1.61	White/Black/Gery	Wall Mounted, Holding Pole	IP55
SDFAT-32A	PC,ABS,Customized	342267127	32SC/64LC	2.01	White/Black/Gery	Wall Mounted, Holding Pole	IP55

Application

1) Widely used in FTTH access network
2) Telecommunication Networks
3) CATV Networks
4) Data communications Networks
5) Local Area Networks

Quality Certification

Hot Tags : 12 way fiber optic junction box 32C fiber terminal box 36c fiber junction box 24C fiber optic junction box 32C Fiber distribution box Fiber junction box
