24 Core Fiber Optic Distribution Box

24 Core Fiber Optic Distribution Box

24 Core Fiber Optic Distribution Box,This series is applicable to the FTTx project and provide mechanical protection for a fiber management system that includes the functions of splicing, patching, and passive component integration. It is rated IP54, suitable for indoor or outdoor applications.

Chat Now

Description

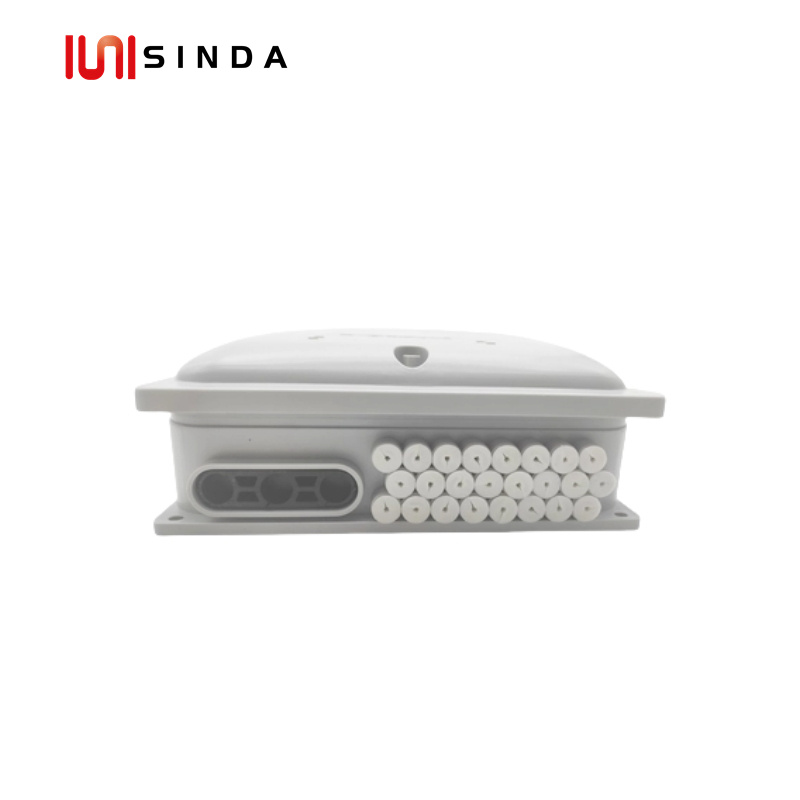

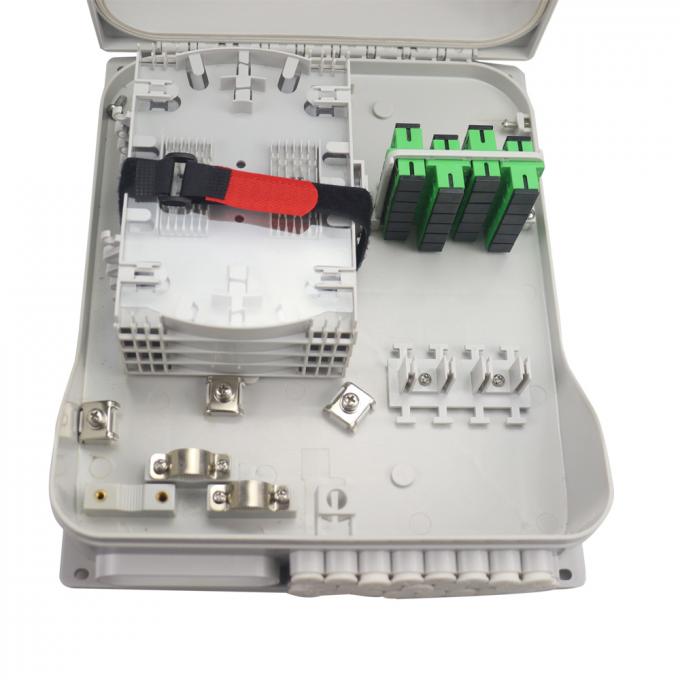

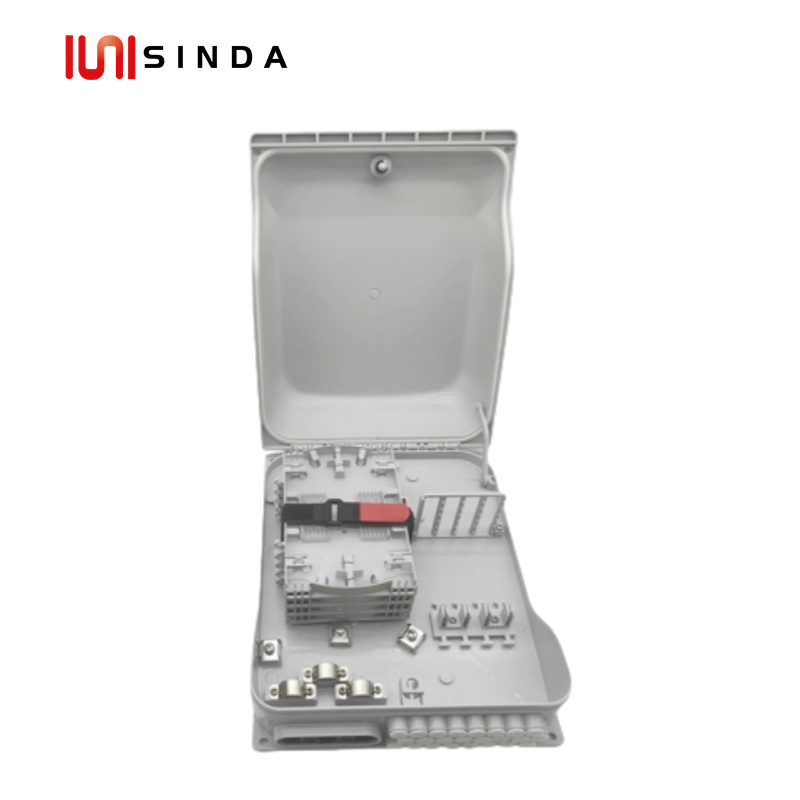

24 Core Fiber Optic Distribution Box

This series is applicable to the FTTx project and provide mechanical protection for a fiber management system that includes the functions of splicing, patching, and passive component integration. It is rated IP54, suitable for indoor or outdoor applications.

Features

It was made from Plastic for outdoor environments.

Suitable for Pole&wall-mounted.

The cable entrances: 3-port for incoming cable up to φ14mm ,24-port for outgoing cable up to φ3mm or 2X3 FTTH drop cable.

Can be as a required option the splitter holder of 1X16 or 1X8.

Specification

Item	Spe.		Remark

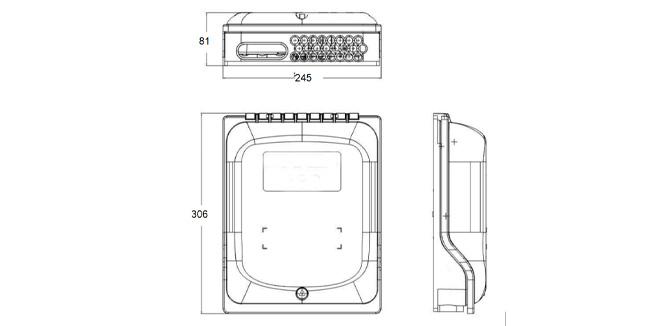

Size	30624581mm
Material	PC+ABS
Protection Level	IP54

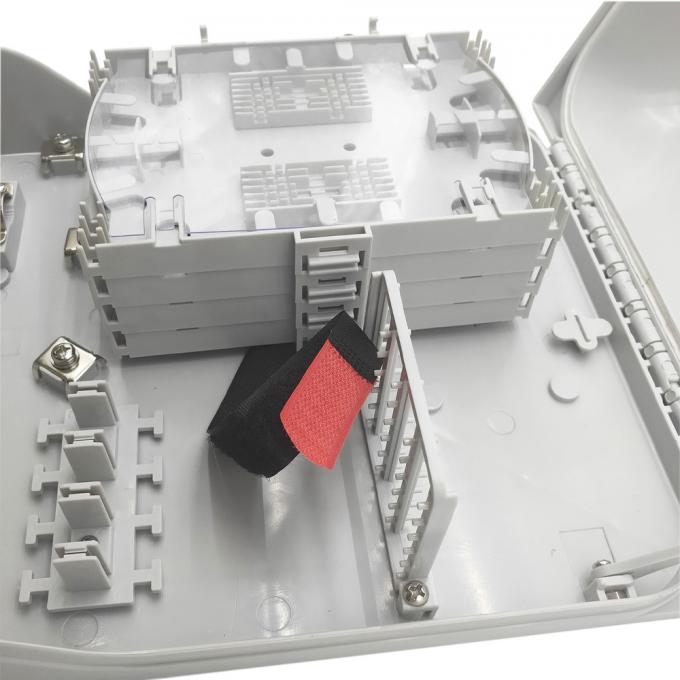

Number of Splice tray	4pcs
The capacity of splice tray	24 core
Max. Capacity(core)	Splicing	Termination

	96	24
Adapter type	SC
Box Color	White
Operating Temperature	-25～+60℃

Quality Certification
