Plastic Terminal Box

Home Plastic Terminal Box

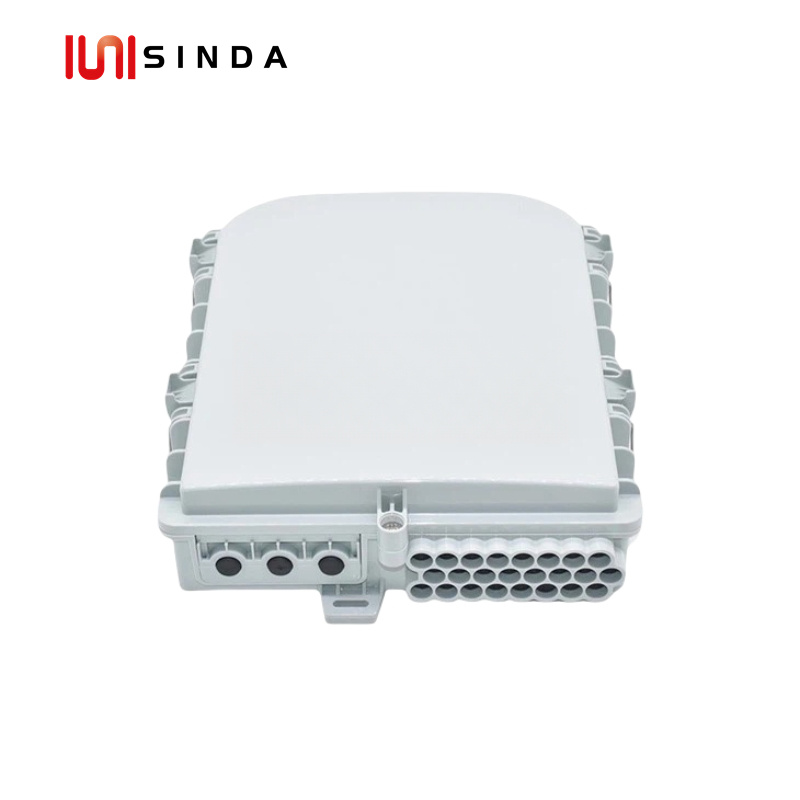

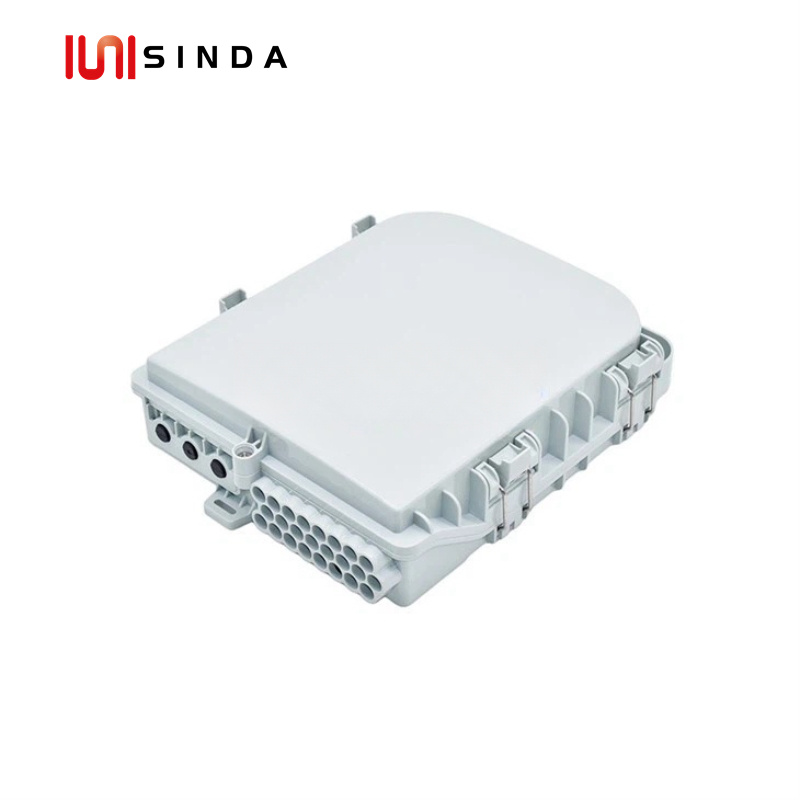

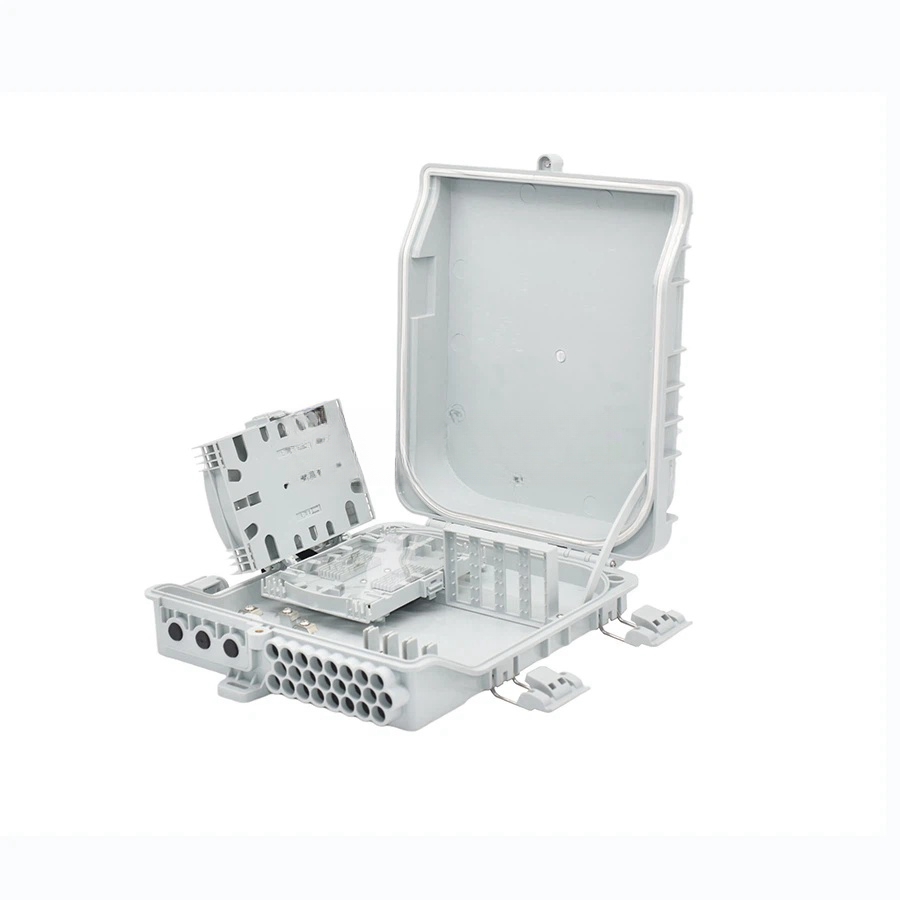

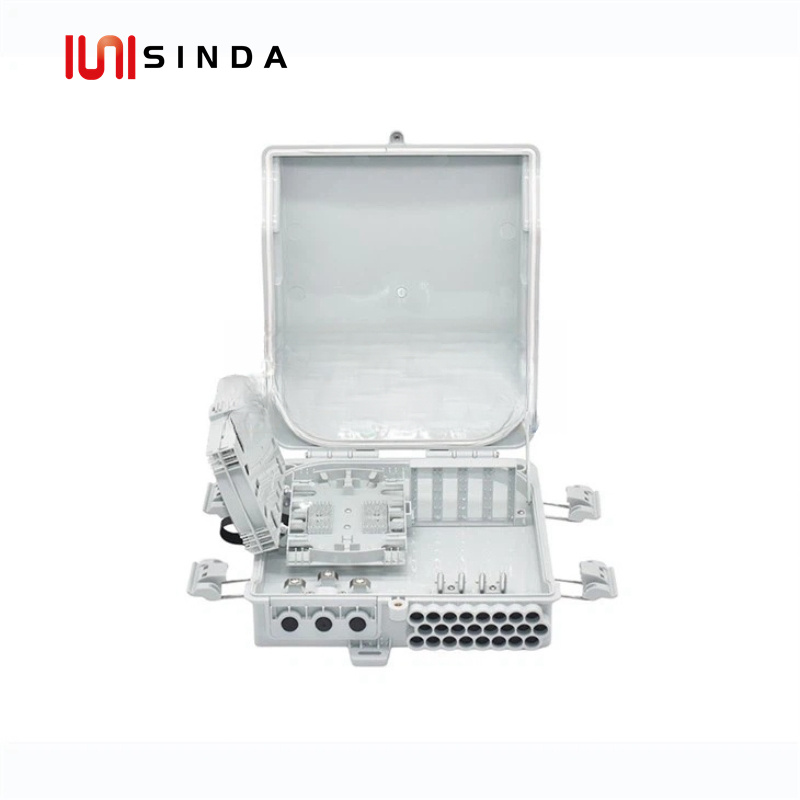

24 Port Fiber Distribution Splitter Box

24 Port Fiber Distribution Splitter Box

24 Port Fiber Distribution Splitter Box,This fiber optics distribution box terminates up to 3 fiber optic cables, allocates 24 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Chat Now

Description

24 Port Fiber Distribution Splitter Box

This fiber optics distribution box terminates up to 3 fiber optic cables, allocates 24 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Features

It is suitable for outdoor and made of high-quality plastic.
Can accommodate ABS box type PLC splitter. 1x8 2pcs,1X16 1pcs.
Rainfall-resistant, outdoor use
Can load 24 pcs SC-type adapters
Wall mounting and pole mounting application
2 pcs cable entry ports; the cable can be entered without cutting
24 pcs exit ports for FTTH drop cable
There is one entrance that can go through the fast connector directly

Specifications

Item	Specifications
Size	31026080mm
Material	PC+ABS
Protection Level	IP55
Splitter	1x8 2pcs,1X16 1pcs
Pigtail	24pcs
Bending radius	≥ 30mm
Entry ports cable dia.(max)	Up to 3 cables , Max Dia. 14mm
Output ports and cable dia.(max)	2.0*5.0mm drop cables
Box Color	Black
Operating Temperature	-40～+60℃

Quality Certification

High Quality Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!

Hot Tags : 24Port Fiber Distribution Splitter Box 24F FDB box 24c FTTX box 24Ports splitter box 24F terminal box 24c FRB box
