8 Cores Indoor/Outdoor Fiber Terminal Box for FTTH

Outdoor Fiber Terminal Box for FTTH price

8 Cores Indoor/Outdoor Fiber Terminal Box for FTTH

8 Cores Indoor/Outdoor Fiber Terminal Box for FTTH,Fiber Access Terminal (FAT) is a terminal box installed near the customer premises or multi-dwelling buildings for splitting and distribution of drop cable to the customer’s house,

Chat Now

Description

8 Cores Indoor/Outdoor Fiber Terminal Box for FTTH

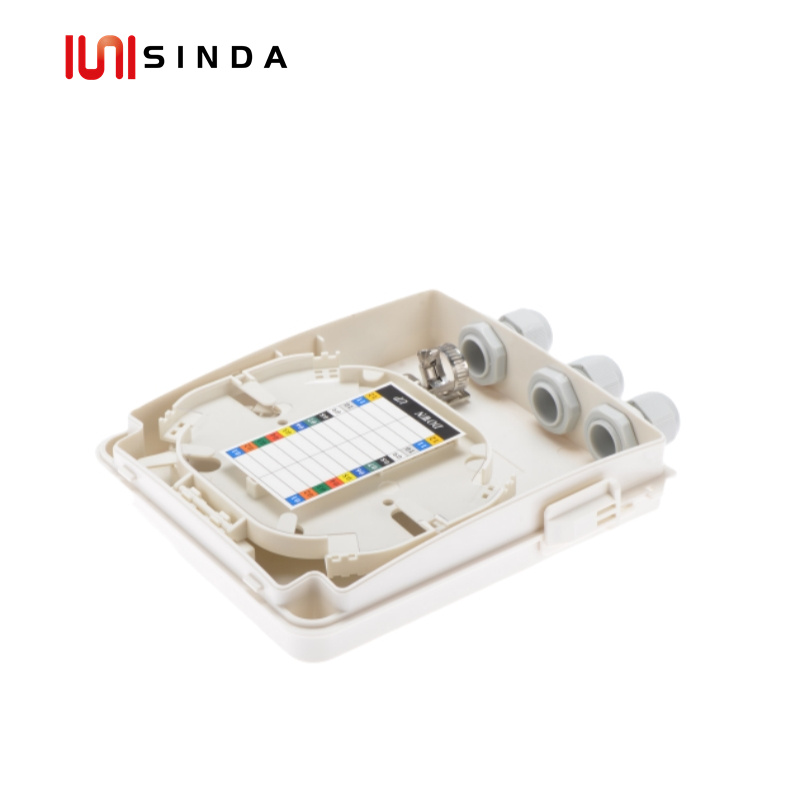

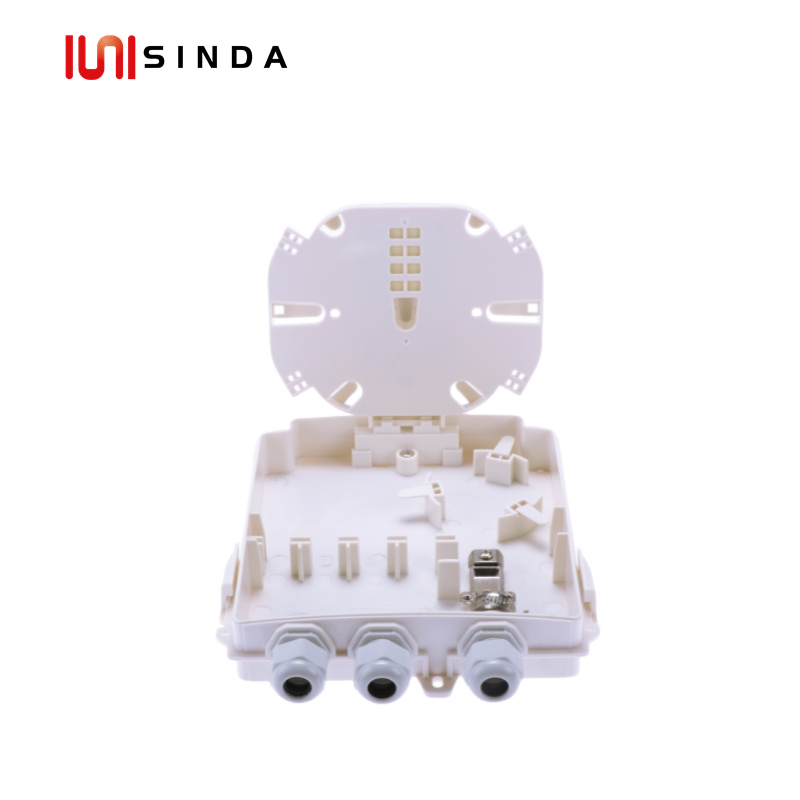

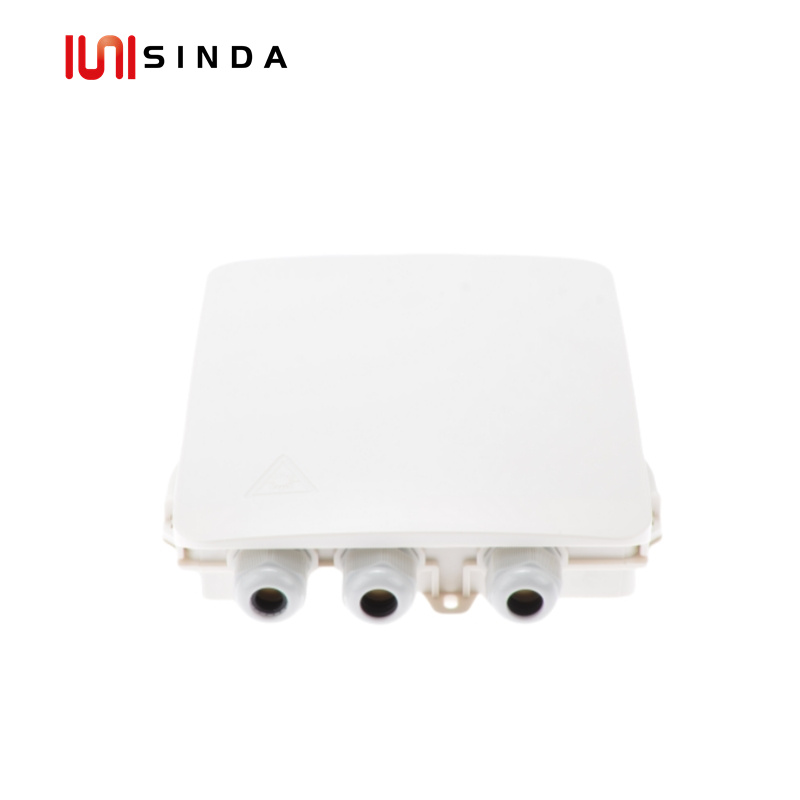

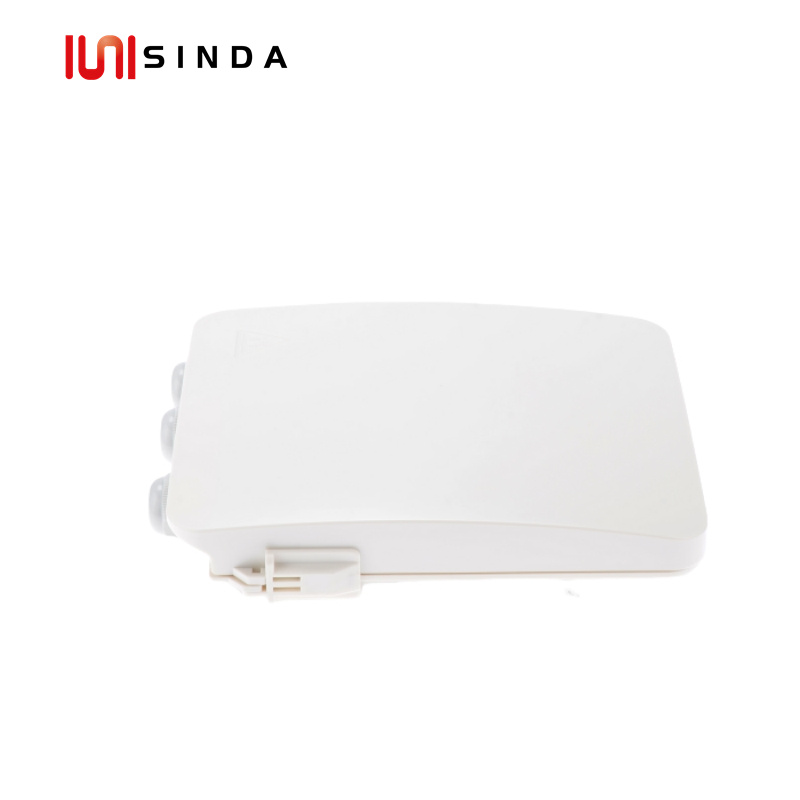

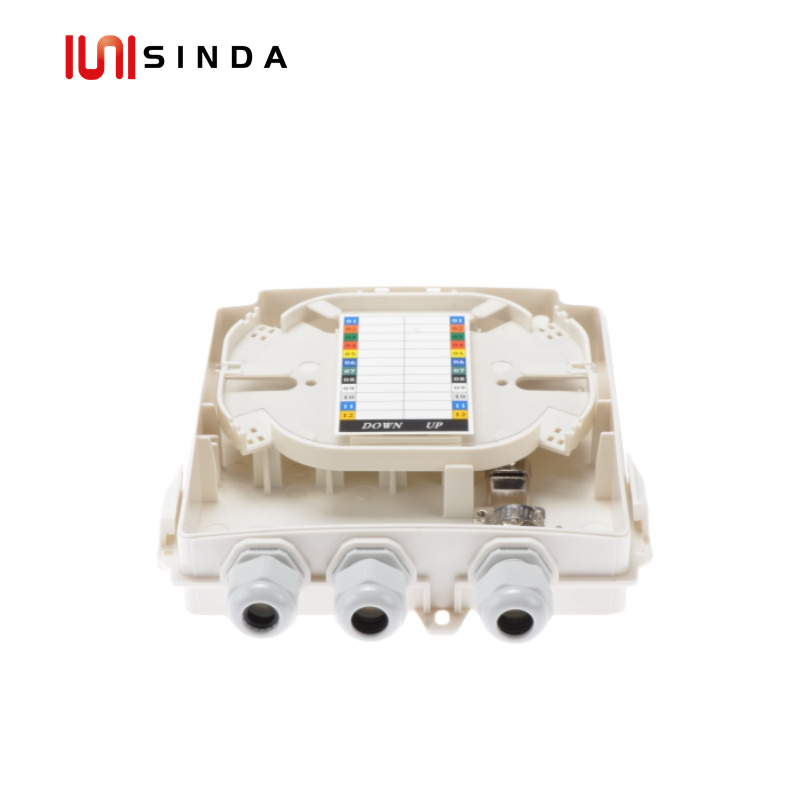

This box is generally made of plastic or SMC, with small in size, lightweight, and neat optical fiber routing. The FAT fiber access terminal box support wall mounting, and pole mounting, and is an ideal device for FTTx/FTTH project.

Feature

It is suitable for wall-mounting installation；
It is IP65；
It is suitable for SC adapters installation and usage；
It is easy to access the box by sliding the shackle；
It is applicable for outdoor cables or indoor soft cables.

Specifications

Number of splice trays	1
Maximum Cable Diameter (mm)	6~11
Max capacity	12 Fibers
End-use temperature	-40～+85℃
Adapter	SC simplex & LC Duplex
Input	1
Output	2
Inner Packing Dimensions	21518050 mm
Dimensions	21017545 mm
Installation Size	176mm

Applications

FTTH GPON/GEPON network
Telecommunication network
CATV networks
Data transmission networks
LAN

Quality Certification

Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber Box is 100% optically inspected before you receive it.

High Quality Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!

Hot Tags : 8 Cores Indoor terminal box 8cores fiber terminal box Outdoor optical terminal box Outdoor Fiber Terminal Box for FTTH FTTH box 8C 8F fiber box
