96/64/48/36/32/24/16 Core Wall Mounted Enclosure Box For FTTB

96/64/48/36/32/24/16 Core Wall Mounted Enclosure Box For FTTB

96/64/48/36/32/24/16 Core Wall Mounted Enclosure Box For FTTB,48Core fiber optica Splitter Distribution Box is widely used in the FTTH & FTTB application.. The cabinet is made of high reinforced cold-rolled steel material. The cabinet inner is designed in singal layer rolling panel inside, easy to control, space saving. This product is used for fixing the cable , welding , shunt and storage .it is an important part of FTTH & FTTB.

Chat Now

Description

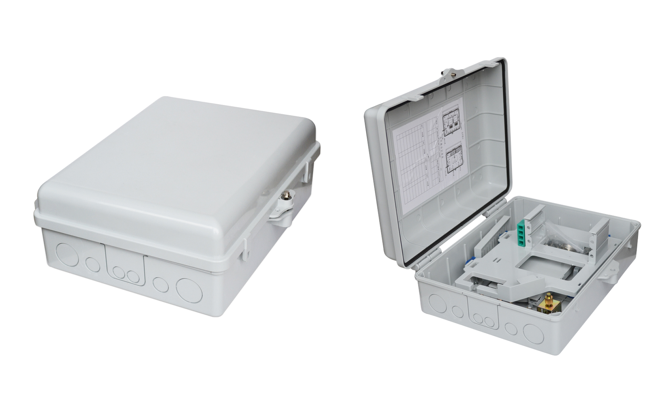

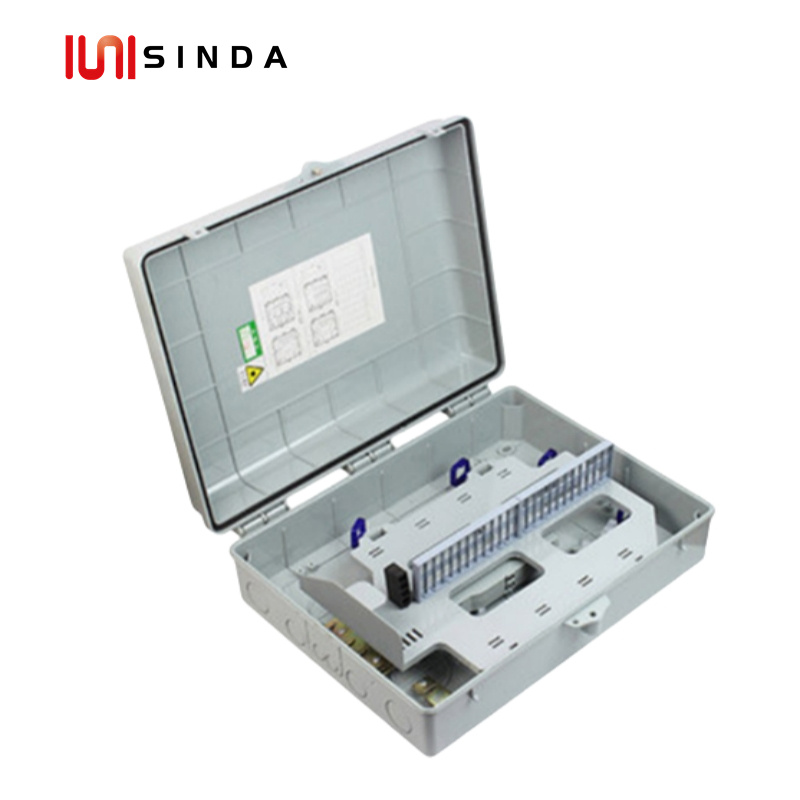

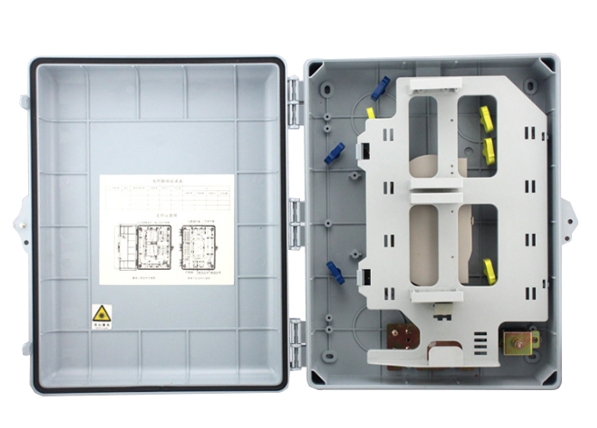

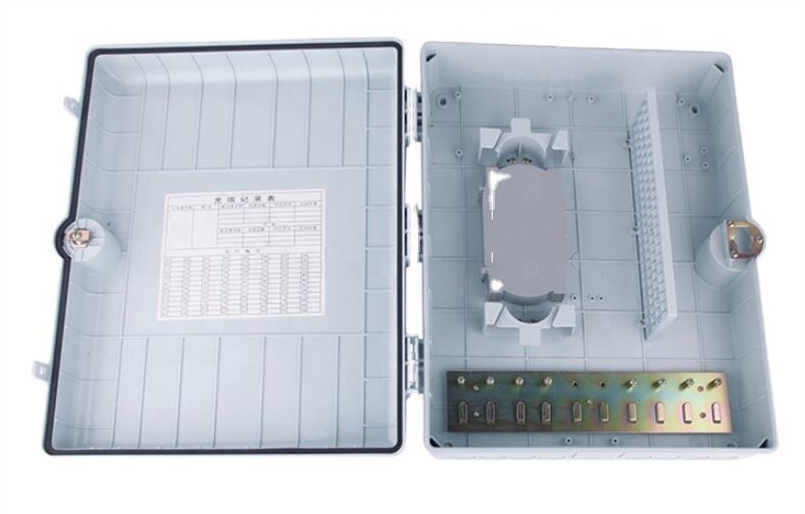

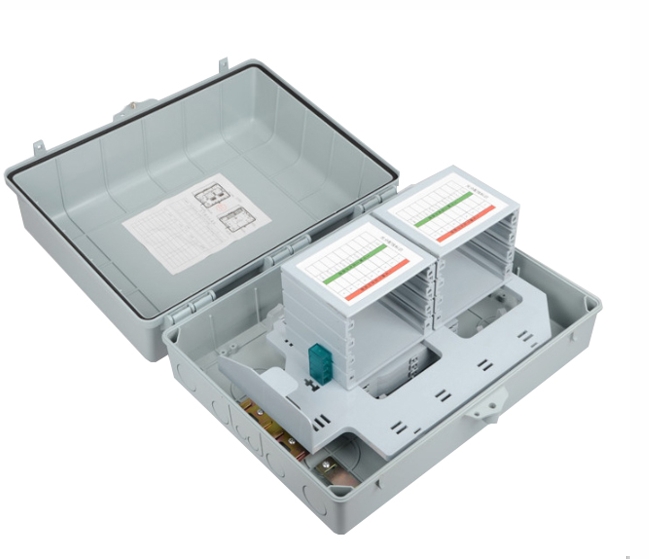

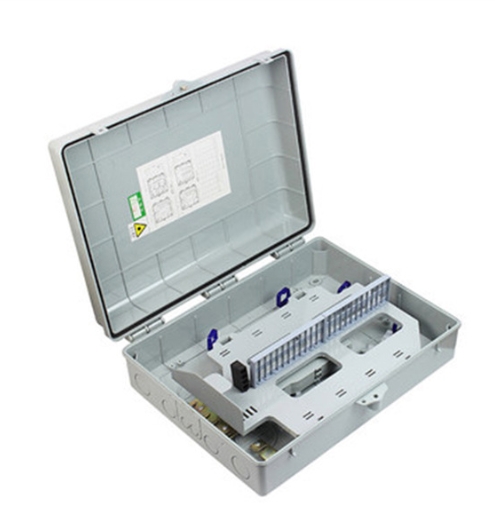

96/64/48/36/32/24/16 Core Wall Mounted Enclosure Box For FTTB

48Core fiber optica Splitter Distribution Box is widely used in the FTTH & FTTB application.. The cabinet is made of high reinforced cold-rolled steel material. The cabinet inner is designed in singal layer rolling panel inside, easy to control, space saving. This product is used for fixing the cable , welding , shunt and storage .it is an important part of FTTH & FTTB.

Features

The box is made from high reinforced cold-rolled steel material with powder coated.

Water-proof design, sealed by super quality seals, effectively prevent the water penetration.

It can be opened for 120 degree, operable sapce is large.

Can be used for two 1x24 cores plc splitter.

Support OEM or ODM service.

Specifications

Item	SDOTB-16D	SDOTB-24C	SDOTB-32B	SDOTB-48B	SDOTB-64A	SDOTB-96A
Size	310270120mm	310270120mm	320265120mm	320265120mm	490400150mm	490400150mm
Material	PC,ABS or customized
Number of Splice tray	1pcs	1pcs	2pcs	2pcs	3pcs	4pcs
The capacity of splice tray	16 core	24 core	32 core	48 core	64 core	96 core
Adapter type	SC
Box Color	White /Grey /customized
Insert Type	splitter box/adapter plate

Application

FTTH

FTTO

Fiber to the desk

The new-building,extension and rebuilding of optical fiber cable project.

Quality Certification
