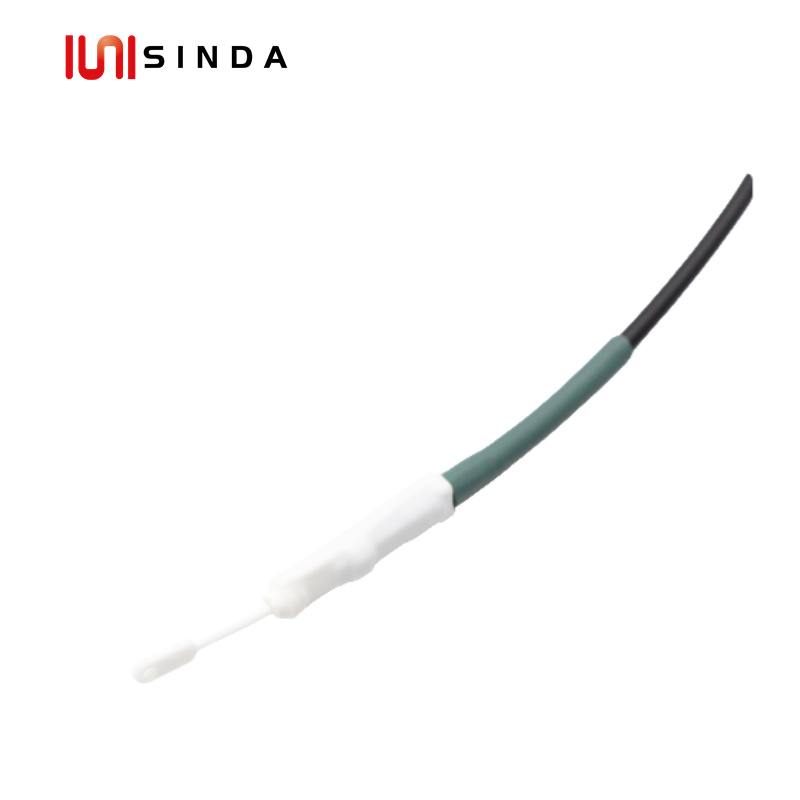

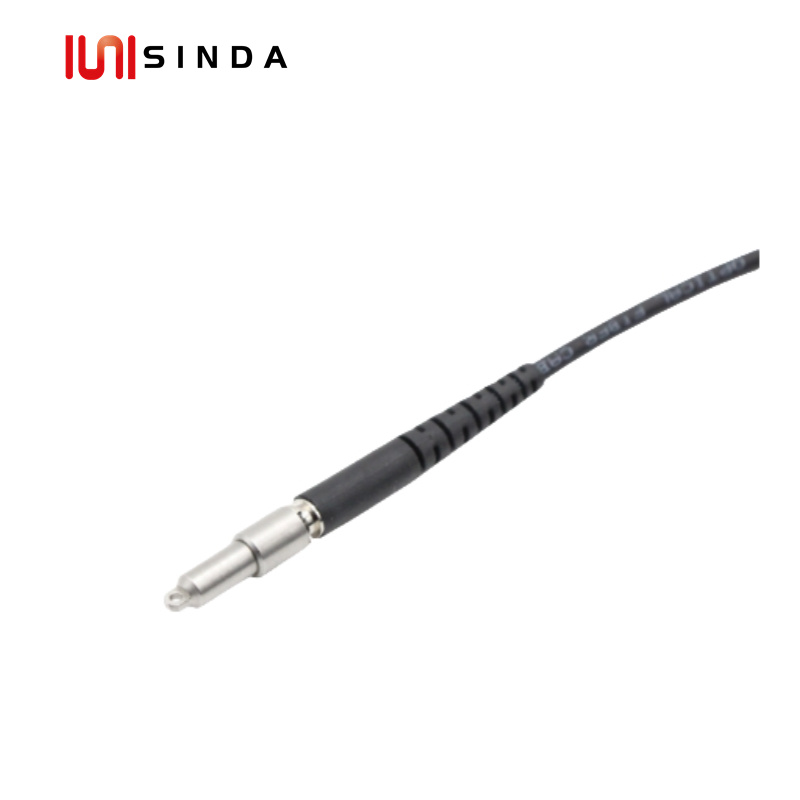

Bullet SCAPC -Mini LCAPC FTTH fiber patch cords, It’s a kind of Pro -connectorized patch cord assembly with G657B3 Simplex TPU/LSZH high tensile strength cable.One end is MINI LC APC connector, Another end is a Mini SC APC Ferrule be assembled with 3.0mm TPU/LSZHcable,
Bullet SCAPC -Mini LCAPC FTTH fiber patch cords,
SINDA ’s Own Patent Mini SCAPC Housing and MINI LC APC Housing kits can be assembled together with the ferrule after it thread though a Pipe with Inner Diameter>6mm. This is a last cable in FTTH project. Used widely between Fact plate, terminal box,ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the home.
Cable Technical Data

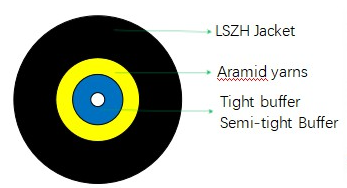

3.0mm Round FTTH Drop Cable with TPU/LSZH Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed with Aramid yarn and TPU/LSZH sheath. It’s easy to deploy and maintenance. It’ s the best choice for FTTX project.
| Items | Description | ||
| Number of fiber | 1F | ||
| Fiber type | G657A2 natural/Blue | ||
| Diameter of mode Field | 1310nm: 8.8+/-0.4um, 1550:9.8+/-0.5um | ||
| Cladding diameter | 125+/- 0.7um | ||
| Buffer | Material | LSZH Blue | |
| Diameter | 0.9±0.05mm | ||
| Strength member | Material | Aramid yarn | |
| Outer sheath | Material | TPU/LSZH With UV protection | |
| CPR LEVEL | CCA,DCA,ECA | ||
| Color | Black | ||
| Diameter | 3.0+/-0.1mm | ||
| Installation Temperature range (℃) | -10 ~ +60 | ||
| Operation and Storage temperature (℃) | -45 ~ +85 | ||
| Min Bending Radius(mm) | Long term | 10D | |
| Min Bending Radius(mm) | Short term | 20D | |
| Min allowable Tensile Strength(N) | Long term | 150 | |
| Min allowable Tensile Strength(N) | Short term | 300 | |
| Crush Load (N/100mm) | Long term | 100 | |
| Crush Load (N/100mm) | short term | 500 | |
|
Installation condition |
Span(m) | 80 | |
Specifications
| Connector | MINI LC-Bullet SC | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2/G657B3 | Jacket Color | Black |
| Cable OD | 3.0mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | TPU&LSZH |
|
Insertion loss |
≤0.3dB(IEC Grade C1) |
Crush Resistance(N/100mm) |
Long term 100;
short term:500 |
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Tensile Strength（N） | 150N | Operation&Storage temperature | -20 ~ +70°C |
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
