Pullable PRE-Connectorized Bullet SCAPC

Home Pullable PRE-Connectorized Bullet SCAPC

Pushable/Pullable Bullet Fiber Patch Cords

Pushable/Pullable Bullet Fiber Patch Cord factory

Pushable/Pullable Bullet Fiber Patch Cords

Pushable/Pullable Bullet Fiber Patch Cords, With the Pushable Fiber’s added rigidity, there’s no more cables kinking when pushing/pulling through walls or ducted pathways.

Chat Now

Description

Pushable/Pullable Bullet Fiber Patch Cords

Push or Pull – Push or pull the fiber through wall or ducted pathway

Tool-less Installation – Simply push/pull fiber through micro-duct or wall (drill 1/4 in. hole) if pushing long distance use SlimFIT Tool (drill 5/16 in. hole)

Fast Deployment – Decreased deployment times and reduced installation costs by eliminating in-field splicing

Rigorous Testing – Terminations designed and tested to Telcordia GR-326

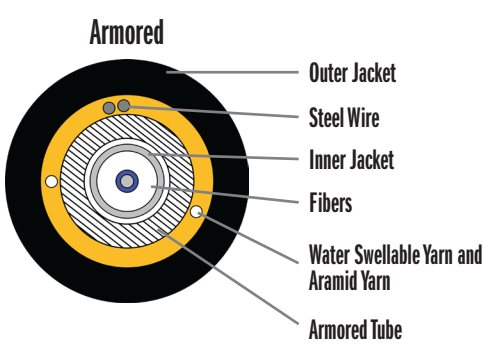

Construction

Fiber Type: 250µm colored glass (G657A2)

Fiber Count: Simplex

Inner Jacket: LSZH, 0.9mm

Flexible Armored Tube: SUS 200CU, OD 1.45mm

Strength Member: Aramid yarn, water swellable yarn, steel wire

Jacket: PBT UV resistant, black, 3mm outside diameter

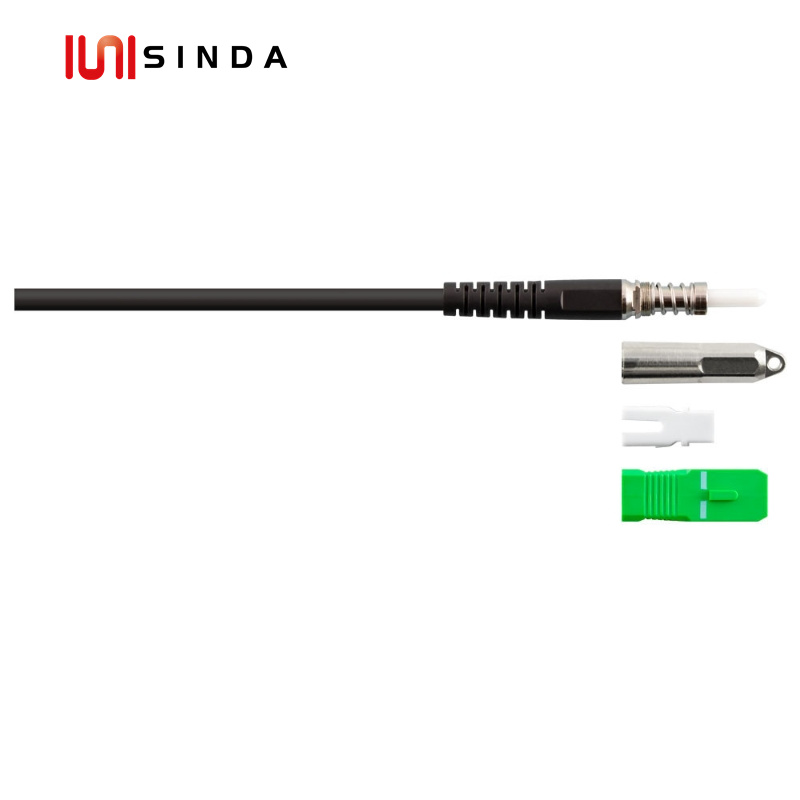

Connector Type: SC Pushable Assembly, Standard SC, and Blunt

Polish Type: APC

Approvals

TIA/EIA-598-B (armored)

Terminations designed for Telcordia GR-326

RoHS Compliant

Specifications

Connector Type	SC	Polish Type	APC,PC,UPC
Fiber Mode	OS2 9/125um	Fiber Count	Simplex
Fiber Grade	G657A1	Min. Bend Radius	10/5D (Dynamic/Static)
Cable Diameter	3.0mm	Cable Jacket	PBT UV resistant, black, 3mm outside diameter
Cable Structure	Stainless-Steel Tube	Tensile Load	120/225N (Long/Short Term)
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Operating Temperature	-25 ~ 70℃	Storage Temperature	-25~70°C

Quality Certification
