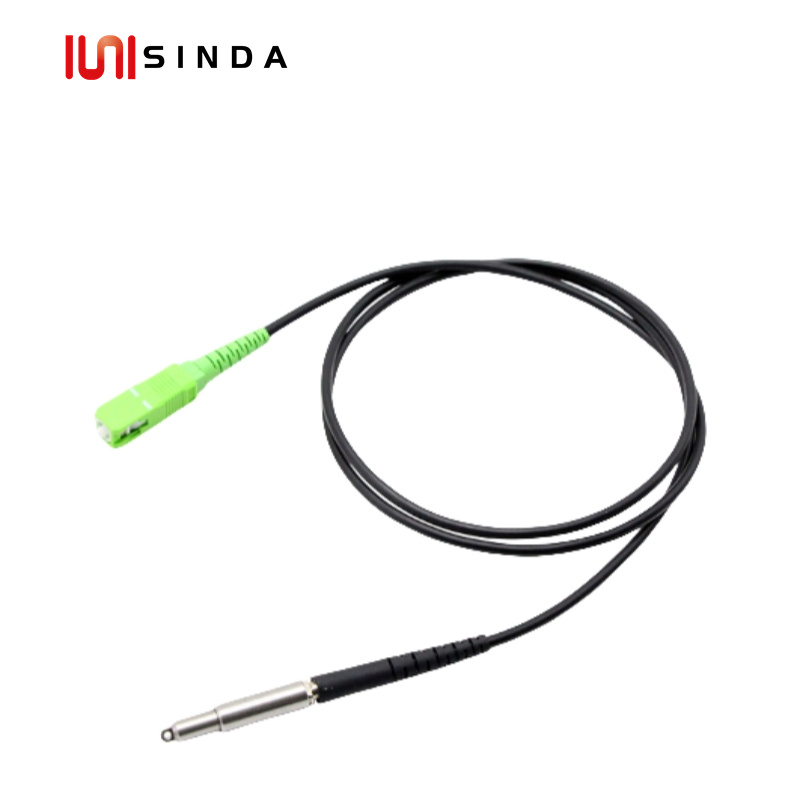

Pullable PRE-Connectorized Bullet SCAPC FTTH Drop patch cord 3.0mm LSZH
Pullable PRE-Connectorized Bullet SCAPC FTTH Drop patch cord 3.0mm LSZH,It’s a kind of Pro-connectorized patch cord assembly with G657B3 Simplex TPU/LSZH high tensile strength cable. One end is Standard SC APC connector, Another end is a Mini SC APC Ferrule be assembled with 3.0mm TPU/LSZH cable,SINDA’s Own Patent Mini SCAPC Housing kits can be assembled together with the ferrule after it thread though a Pipe with Inner Diameter>6mm. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.
Pullable PRE-Connectorized Bullet SCAPC FTTH Drop patch cord 3.0mm LSZH

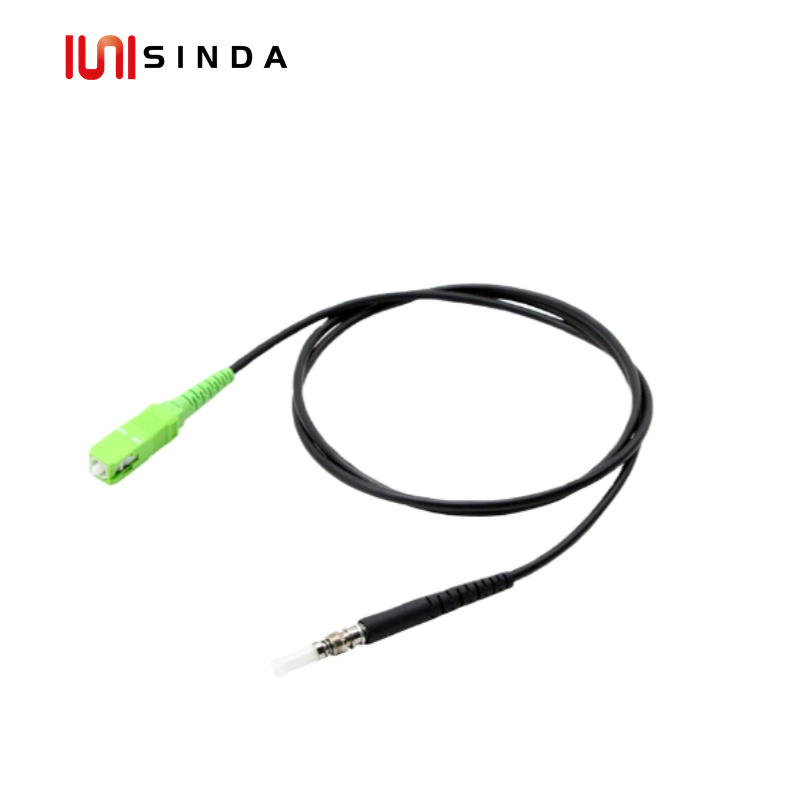

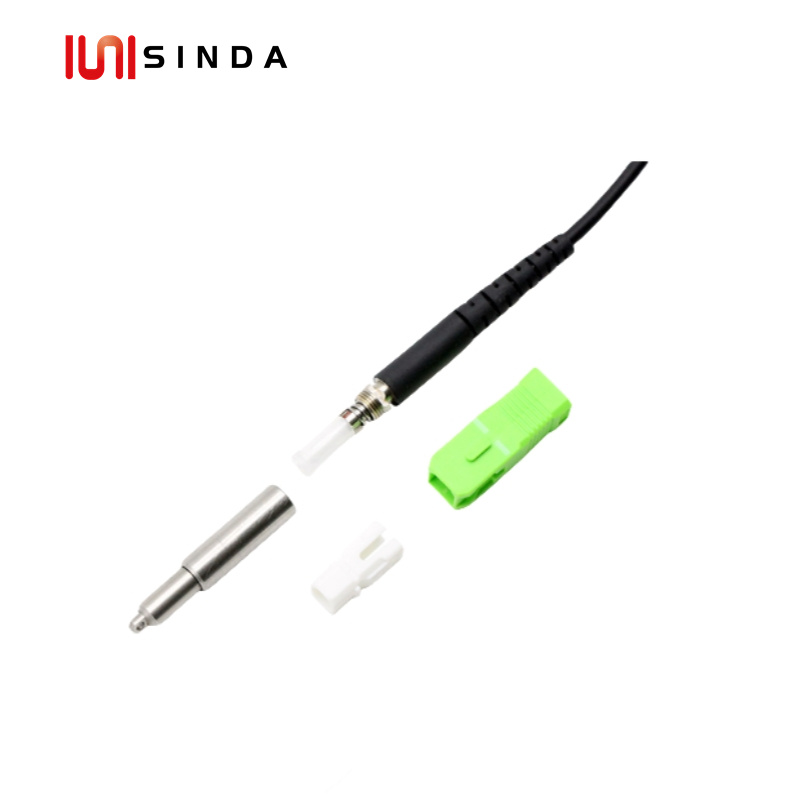

It’s a kind of Pro-connectorized patch cord assembly with G657B3 Simplex TPU/LSZH high tensile strength cable. One end is Standard SC APC connector, Another end is a Mini SC APC Ferrule be assembled with 3.0mm TPU/LSZH cable,SINDA’s Own Patent Mini SCAPC Housing kits can be assembled together with the ferrule after it thread though a Pipe with Inner Diameter>6mm. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.
Cable Technical Data
3.0mm Round FTTH Drop Cable with TPU/LSZH Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed with Aramid yarn and TPU/LSZH sheath. It’s easy to deploy and maintenance. It’s the best choice for FTTX project.
| Items | Description | ||
| Number of fiber | 1F | ||
| Fiber type | G657A2 natural/Blue | ||
| Diameter of mode Field | 1310nm: 8.8+/-0.4um, 1550:9.8+/-0.5um | ||
| Cladding diameter | 125+/- 0.7um | ||
| Buffer | Material | LSZH Blue | |
| Diameter | 0.9±0.05mm | ||
| Strength member | Material | Aramid yarn | |
| Outer sheath | Material | TPU/LSZH With UV protection | |
| CPR LEVEL | CCA,DCA,ECA | ||
| Color | Black | ||
| Diameter | 3.0+/-0.1mm | ||
| Installation Temperature range（℃） | -10 ~ +60 | ||
| Operation and Storage temperature（℃） | -45 ~ +85 | ||
| Min Bending Radius(mm) | Long term | 10D | |
| Min Bending Radius(mm) | Short term | 20D | |
| Min allowable Tensile Strength(N) | Long term | 150 | |
| Min allowable Tensile Strength(N) | Short term | 300 | |
| Crush Load (N/100mm) | Long term | 100 | |
| Crush Load (N/100mm) | short term | 500 | |
| Installation condition | Span(m) | 80 | |
Specifications
| Connector | Standard SC-Bullet SC | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2/G657B3 | Jacket Color | Black |
| Cable OD | 3.0mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | TPU&LSZH |
| Insertion loss | ≤0.3dB(IEC Grade C1) | Crush Resistance(N/100mm) | Long term 100; |
| short term:500 | |||
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Tensile Strength（N） | 150N | Operation&Storage temperature | -20 ~ +70°C |
Quality Certification
