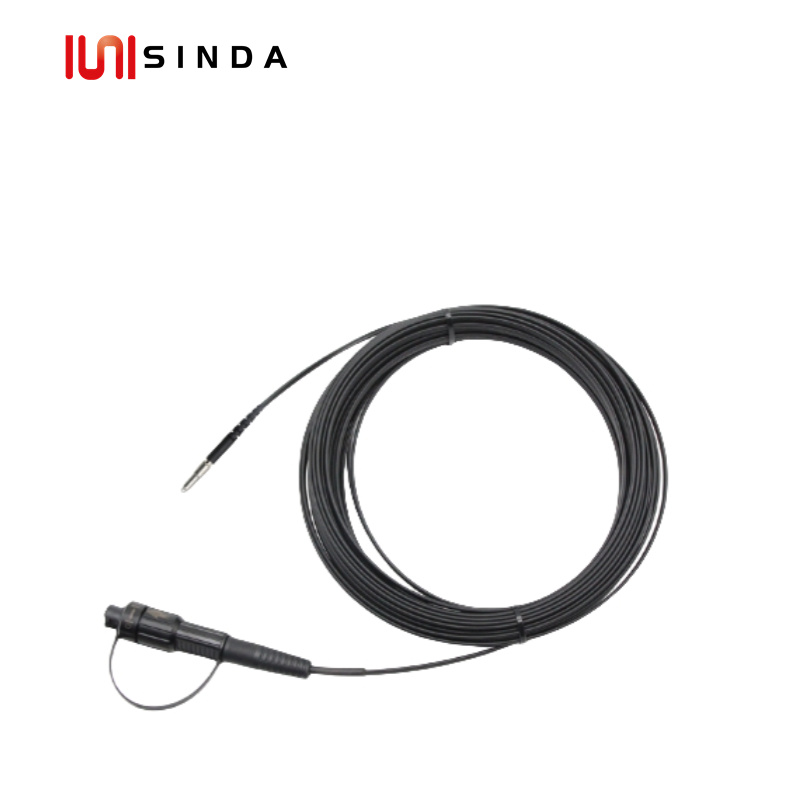

Pullable PRE-Connectorized Mini SCAPC-Bullet FTTH Drop patch cable 2×5.2mm
Pullable PRE-Connectorized Mini SCAPC-Bullet FTTH Drop patch cable 2×5.2mm,

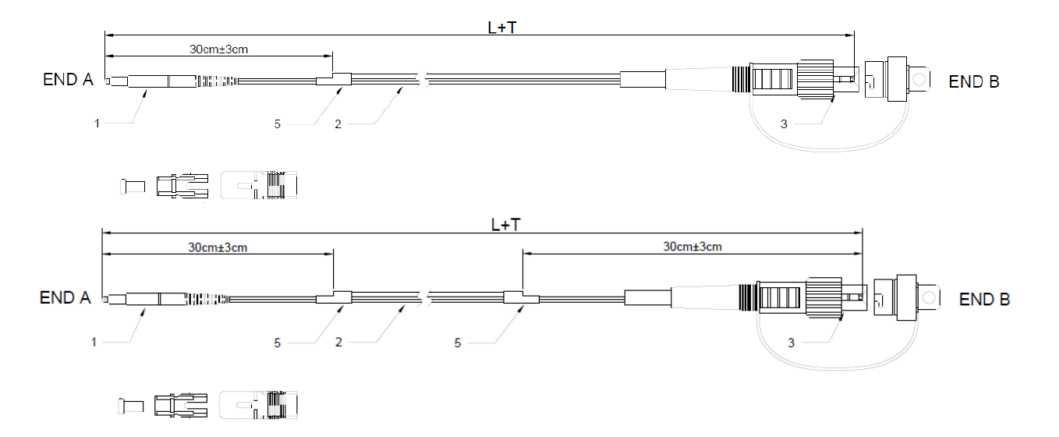

It’s a kind of FTTH patch cord assembly with Fig 8 Self-supporting Aerial FTTH Drop Cable. One end is Mini SC APC waterproof connector, Anoth-er end is a Bullet SC APC Ferrule be assembled with Metal dust cap with rotatable front section.
Pullable PRE-Connectorized Mini SCAPC-Bullet FTTH Drop patch cable 2×5.2mm
This is a SINDA’s Own Patent Mini SCAPC Housing kits can be assembled together with the ferrule after it thread though a Pipe with Inner Diameter>6mm. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU/ONT tec. With easy acces-sibility to the fiber and simple installation, FTTH cable can be directly con-nected to the homes.
Cable Technical Data

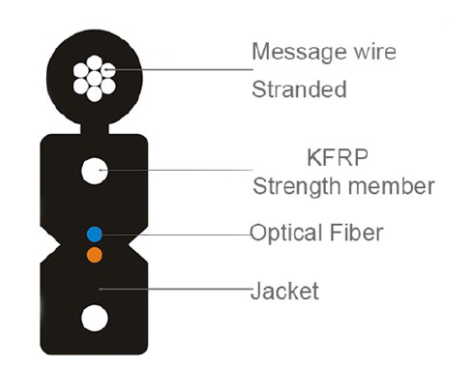

FTTH outdoor Aerial Drop Cable uses Fig 8 flat structure, whose optical fiber unit is positioned in the center. One stranded steel message wire, Two parallel KFRP strength members are placed at the two sides. Then, the cable is com-pleted with LSZH sheath. Fig 8 FTTH Drop cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it’s easy to deploy and maintenance.
| Item | Contents | Unit | Value | |
| Optical Fiber | Fiber count | / | 1C (single mode) G657A2 Blue | |
| Strength member | Material | / | KFEP | |
| Diameter | mm | 0.5 | ||
| Messenger wire | Material | / | stranded galvanized steel wire (40g/m²) | |
| Diameter | mm | (7*0.4mm)-1.2 | ||
| Outer jacket | Diameter | mm | 5.2(±0.2)*2.0(±0.1) | |
| Material | / | LZSH with UV/≥0.4mm | ||
| Color | / | Black | ||
| Tensile performance | Short term | N | 600 | |
| Long term | N | 300 | ||
| Crush | Short term | N/100mm | 2200 | |
| Long term | N/100mm | 1000 | ||
| Cable attenuation | dB/km | ≦ 0.35 at 1310nm, ≦ 0.21 at 1550nm | ||
| Cable weight (Approx.) | kg/km | 21 | ||
| Friction coefficient | / | <0.5 | ||
| Marking Interval | / | Every 1 meter | ||
| COMPLIANCE | / | ITU-T G.657 A2, IEC 60794-1-21； IEC 60794-1-22, Method, F5 | ||
| Min. bending radius (without messenger) | mm | Static: 20mm; Dynamic: 40mm | ||
| Life time | Year | 25 | ||
| Operating Wave Length | nm | 1310nm, 1550nm | ||
| Test Wave Length | nm | 1310nm, 1550nm | ||
Specifications
| Connector | Mini IP(SC)-Bullet SC | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2 | Jacket Color | Black |
| Cable OD | 5.2(±0.2)*2.0(±0.1) mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB(IEC Grade C1) | Return loss | SM APC ≥ 60dB(min) |
| Operation Temperature | -10 ~ +70°C | Install&Storage temperature | -40 ~ +70°C |
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
