FTTH Mini SCAPC -SCAPC FTTH Patch Cable,Both ends are FTTH MINI SC/APC connectors Due to the detachable in-line assembly design of the connector, the product can be more easily assembled. The design of the MINI connector allows the SC/APC connector to easily pass through the pipe with a diameter of 5mm, reducing the pipeline laying space.This is a last cable in FTTH project. Used widely between Fact plate, terminal box,ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.
FTTH Mini SCAPC -SCAPC FTTH Patch Cable

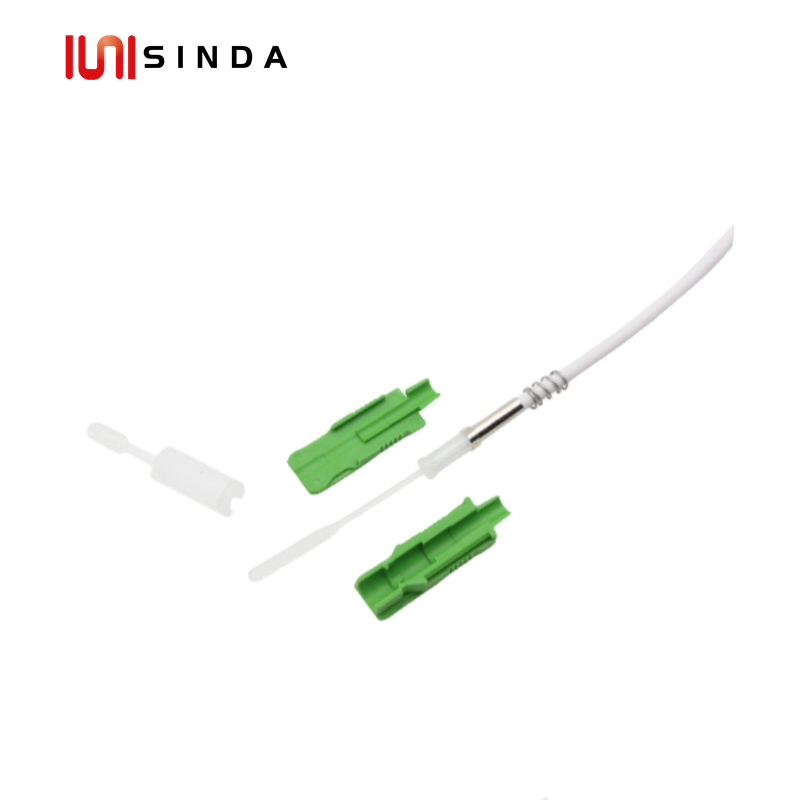

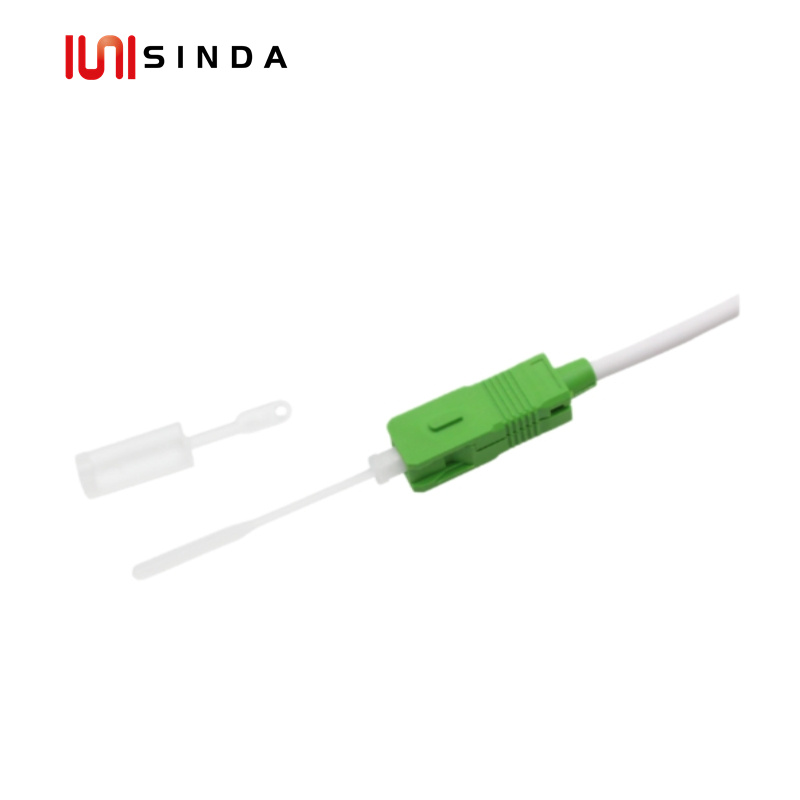

Both ends are FTTH MINI SC/APC connectors Due to the detachable in-line assembly design of the connector, the product can be more easily assembled. The design of the MINI connector allows the SC/APC connector to easily pass through the pipe with a diameter of 5mm, reducing the pipeline laying space.This is a last cable in FTTH project. Used widely between Fact plate, terminal box,ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.
Cable Technical Data

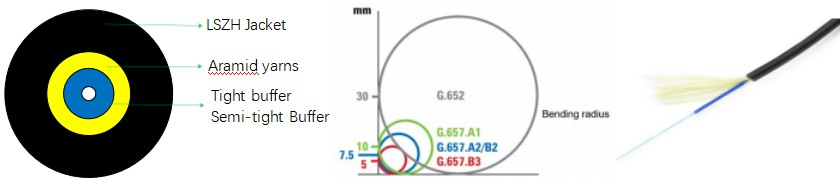

3.0mm Round FTTH Drop Cable with LSZH Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed with Aramid yarn and LSZH sheath. It’s easy to deploy and maintenance. It ’s the best choice for FTTX project.
| Items | Description | ||
| Number of fiber | 1F | ||
| Fiber type | G657A2 natural/Blue | ||
| Diameter of mode Field | 1310nm: 8.8+/-0.4um, 1550:9.8+/-0.5um | ||
| Cladding diameter | 125+/- 0.7um | ||
| Buffer | Material | LSZH Blue | |
| Diameter | 0.9±0.05mm | ||
| Strength member | Material | Aramid yarn | |
| Outer sheath | Material | LSZH With UV protection | |
| CPR LEVEL | CCA,DCA,ECA | ||
| Color | White | ||
| Diameter | 3.0+/-0.1mm | ||
| Installation Temperature range (℃) | -10 ~ +60 | ||
| Operation and Storage temperature (℃) | -45 ~ +85 | ||
| Min Bending Radius(mm) | Long term | 10D | |
| Min Bending Radius(mm) | Short term | 20D | |
| Min allowable Tensile Strength(N) | Long term | 150 | |
| Min allowable Tensile Strength(N) | Short term | 300 | |
| Crush Load (N/100mm) | Long term | 100 | |
| Crush Load (N/100mm) | short term | 500 | |
| Installation condition | Span(m) | 80 | |
Specifications
| Connector | Standard LC- MINI SC | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2/G657B3 | Jacket Color | White |
| Cable OD | 3.0mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB(IEC Grade C1) | Crush Resistance(N/100mm) | Long term 100; |
| short term:500 | |||
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Tensile Strength（N） | 150N | Operation&Storage temperature | -20 ~ +70°C |
