FTTH Mini LCAPC SM armored patch cord for FTTH project,Both ends are FTTH MINI LC/APC connectors Due to the detachable in-line assembly design of the connector, the product can be more easily assembled. The design of the MINI connector allows the LC/APC connector to easily pass through the pipe with a diameter of 6mm, reducing the pipeline laying space.This is a last cable in FTTH project. Usedwidely between Fact plate, terminal box,ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.
FTTH Mini LCAPC SM armored patch cord for FTTH project

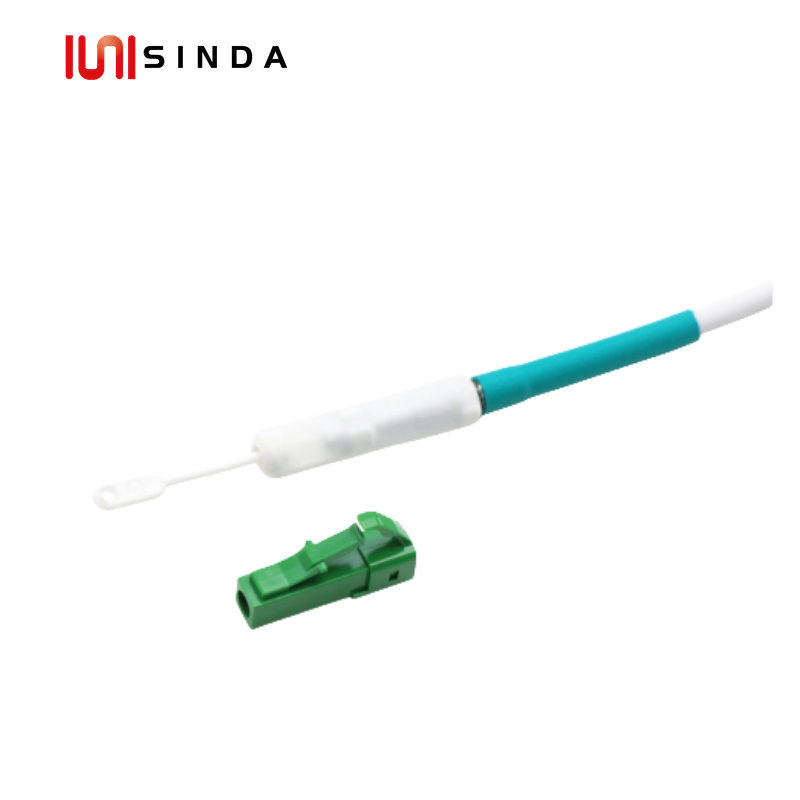

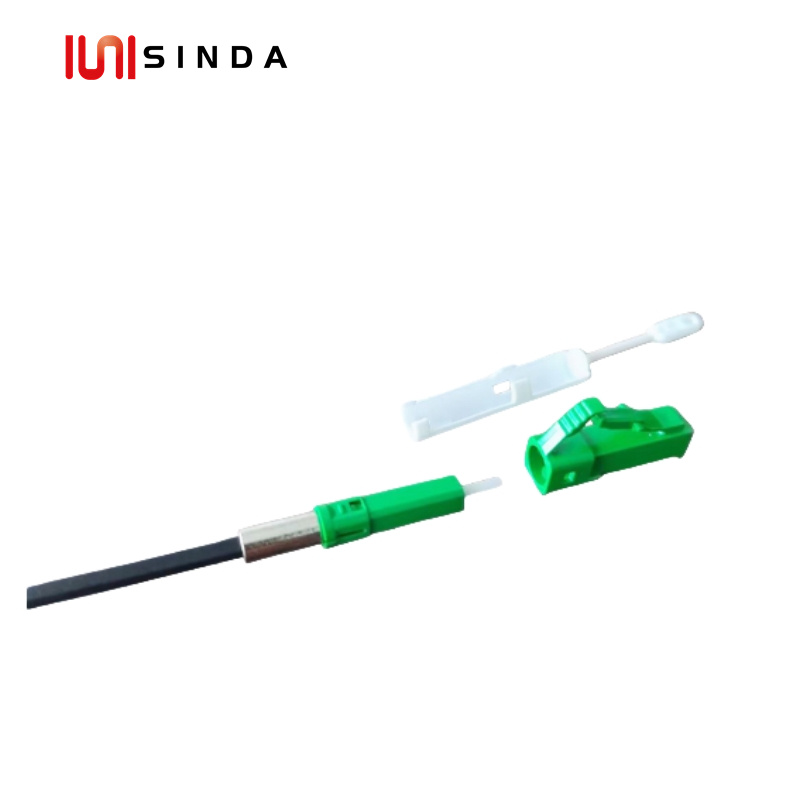

Both ends are FTTH MINI LC/APC connectors Due to the detachable in-line assembly design of the connector, the product can be more easily assembled. The design of the MINI connector allows the LC/APC connector to easily pass through the pipe with a diameter of 6mm, reducing the pipeline laying space.This is a last cable in FTTH project. Usedwidely between Fact plate, terminal box,ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.
Cable Technical Data

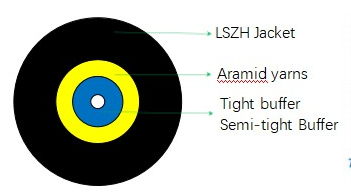

3.0mm Round FTTH Drop Cable with LSZH Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed with Aramid yarn and LSZH sheath. It’s easy to deploy and maintenance. It ’s the best choice for FTTX project.
| Items | Description | ||
| Number of fiber | 1F | ||
| Fiber type | G657A2 natural/Blue | ||
| Diameter of mode Field | 1310nm: 8.8+/-0.4um, 1550:9.8+/-0.5um | ||
| Cladding diameter | 125+/- 0.7um | ||
| Buffer | Material | LSZH Blue | |
| Diameter | 0.9±0.05mm | ||
| Strength member | Material | Aramid yarn | |
| Outer sheath | Material | LSZH With UV protection | |
| CPR LEVEL | CCA,DCA,ECA | ||
| Color | White | ||
| Diameter | 3.0+/-0.1mm | ||
| Installation Temperature range (℃) | -10 ~ +60 | ||
| Operation and Storage temperature (℃) | -45 ~ +85 | ||
| Min Bending Radius(mm) | Long term | 10D | |
| Min Bending Radius(mm) | Short term | 20D | |
| Min allowable Tensile Strength(N) | Long term | 150 | |
| Min allowable Tensile Strength(N) | Short term | 300 | |
| Crush Load (N/100mm) | Long term | 100 | |
| Crush Load (N/100mm) | short term | 500 | |
| Installation condition | Span(m) | 80 | |
Specifications
| Connector | FTTH MINI LC-FTTH MINI LC | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2/G657B3 | Jacket Color | White |
| Cable OD | 3.0mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB(IEC Grade C1) | Crush Resistance(N/100mm) | Long term 100; |
| short term:500 | |||
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Tensile Strength（N） | 150N | Operation&Storage temperature | -20 ~ +70°C |
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
