Pullable PRE-Connectorized Bullet SCAPC

Home Pullable PRE-Connectorized Bullet SCAPC

Pullable PRE-Connectorized Bullet SCAPC TPU Drop patch cord 3.0mm

Pullable PRE-Connectorized Bullet SCAPC factory

Pullable PRE-Connectorized Bullet SCAPC TPU Drop patch cord 3.0mm

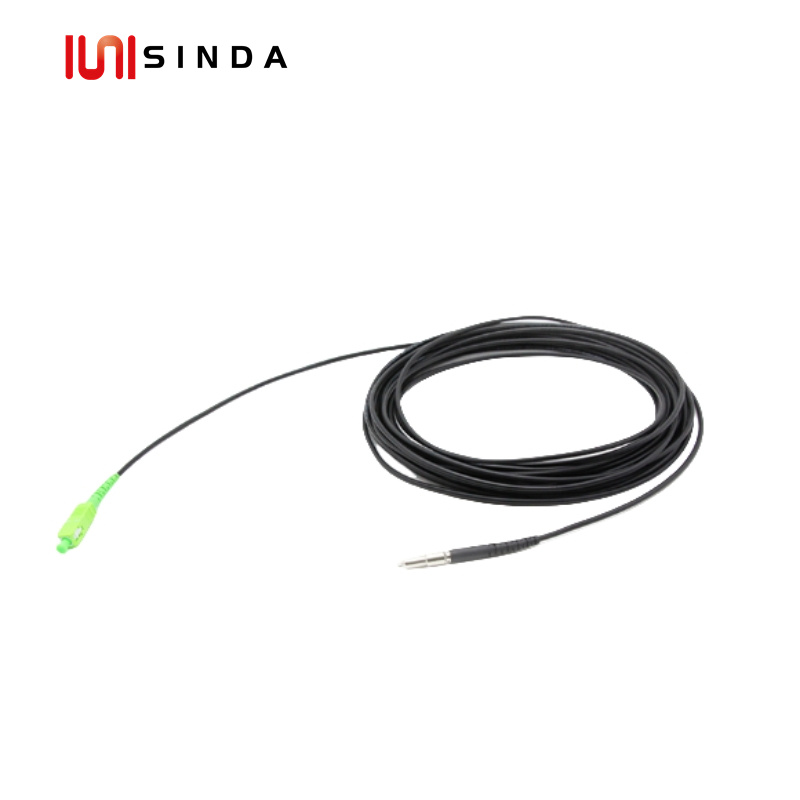

Pullable PRE-Connectorized Bullet SCAPC TPU Drop patch cord 3.0mm, It’s a kind of Pro-connectorized patch cord assembly with G657B3 Simplex TPU/LSZH high tensile strength cable. One end is Standard SC APC connector, Another end is a Mini SC APC Ferrule be assembled with 3.0mm TPU/LSZH cable,

Chat Now

Description

Pullable PRE-Connectorized Bullet SCAPC TPU Drop patch cord 3.0mm

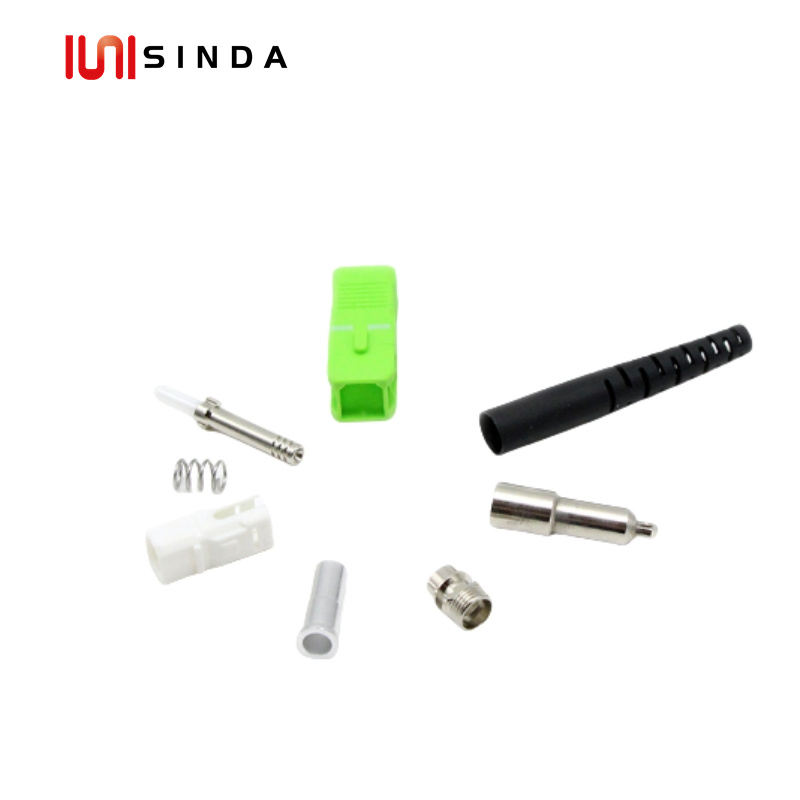

SINDA's Own Patent Mini SCAPC Housing kits can be assembled together with the ferrule after it thread though a Pipe with Inner Diameter>6mm. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU/ONT tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.

Cable Technical Data

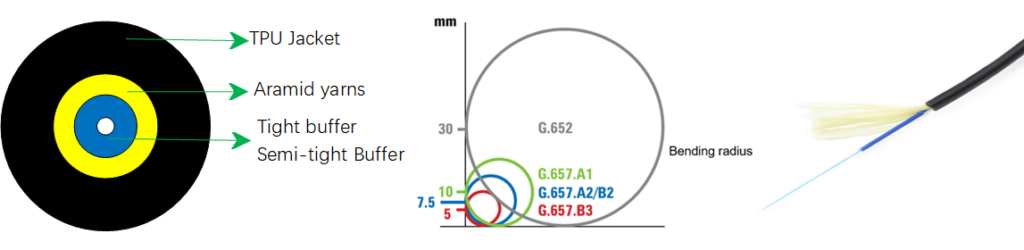

3.0mm Round FTTH Drop Cable with TPU/LSZH Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed with Aramid yarn and TPU/LSZH sheath. It’s easy to deploy and maintenance. It’s the best choice for FTTX project.

Items			Description
Number of fiber			1F
Fiber type			G657A2 natural/Blue
Diameter of mode Field			1310nm: 8.8+/-0.4um, 1550:9.8+/-0.5um
Cladding diameter			125+/- 0.7um
Buffer	Material		LSZH Blue
	Diameter		0.9±0.05mm
Strength member	Material		Aramid yarn
Outer sheath	Material		TPU/LSZH With UV protection
	CPR LEVEL		CCA,DCA,ECA
	Color		Black
	Diameter		3.0+/-0.1mm
Installation Temperature range（℃）			-10 ~ +60
Operation and Storage temperature（℃）			-45 ~ +85
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	150
Min allowable Tensile Strength(N)		Short term	300
Crush Load (N/100mm)		Long term	100
Crush Load (N/100mm)		short term	500
Installation condition		Span(m)	80

Specifications

Connector	Standard SC-Bullet SC	Polish	APC-APC
Fiber Mode	9/125μm, G657A2/G657B3	Jacket Color	Black
Cable OD	3.0mm	Wavelength	SM:1310/1550nm
Cable Structure	Simplex	Jacket Material	TPU&LSZH
Insertion loss	≤0.3dB(IEC Grade C1)	Crush Resistance(N/100mm)	Long term 100;
Insertion loss	≤0.3dB(IEC Grade C1)	Crush Resistance(N/100mm)	short term:500
Return loss	SM APC ≥ 60dB(min)	Interchangeability &Vibration	≤0.2dB
Connector	200N	Operation&Storage temperature	-20 ~ +70°C
Cable	800N	Operation&Storage temperature	-20 ~ +70°C

Quality Certification

Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.

High Quality Fiber Optic Cable Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
