DLC GYFJH 2A1a 7.0mm 2Cores Optical Cable Assembly Outdoor Fiber Optic Patch Cord
DLC GYFJH 7.0mm outdoor fiber patch cords is used for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.

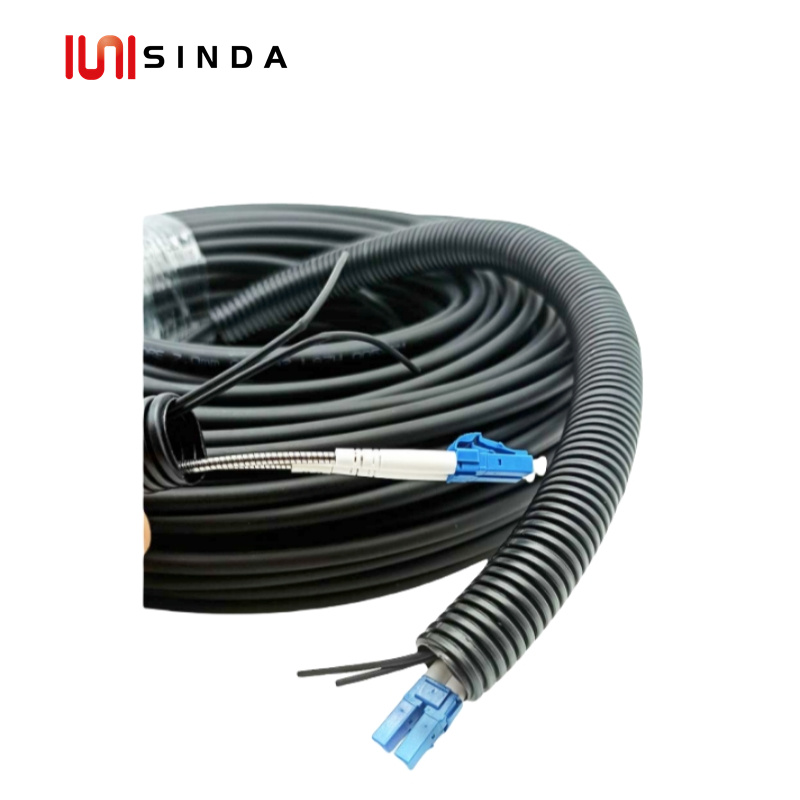

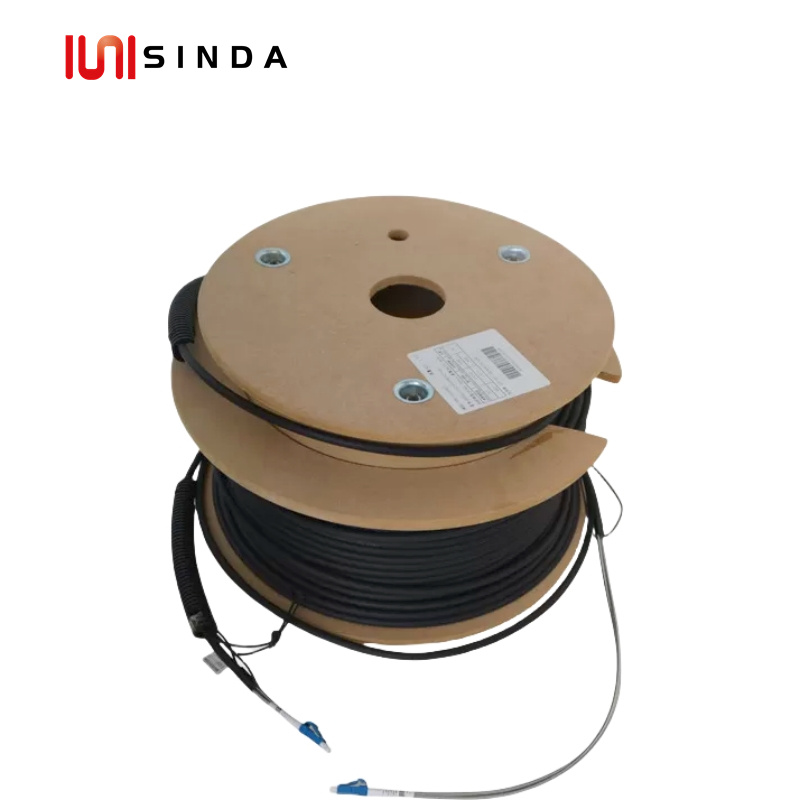

DLC 7.0mm Outdoor Fiber Patch cords
FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.
Features
IP65 protection, salt-mist proof
Easy, reliable and cost-effective installation
The connector of side-A is duplex LC, and side-B can be LC, SC or FC
Thread structure guarantees the trusted connection

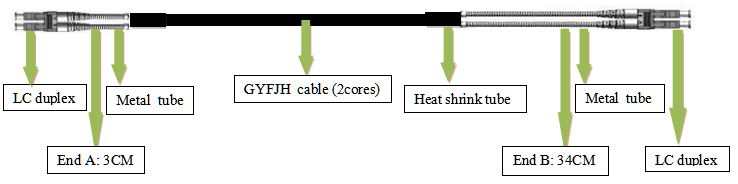

DLC Cable Assembly Patch cord structure

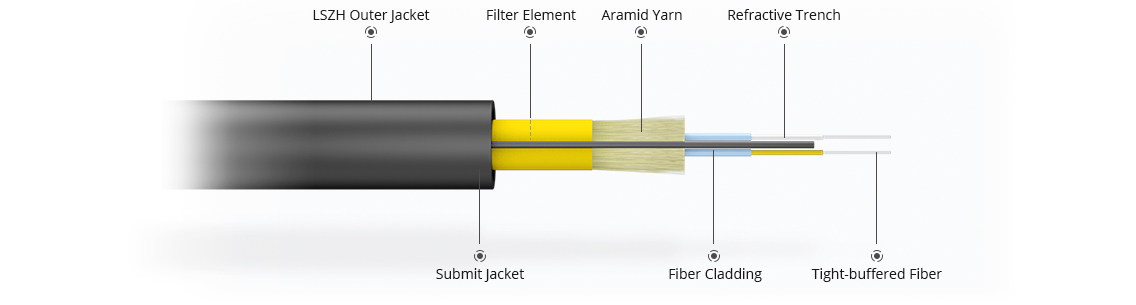

Cable structure
Specifications
| Cable Model | GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1 | |
| Number Optic-cable Core | 2 | |
| Weight Kg/km | 45 | |
| Outside Dia. mm | Φ7.0±0.2 | |
| Outer Sheath | material | LSZH |
| color | BLACK | |
| thickness | 1mm | |
| Tight buffer | material | FRP |
| Dia. mm | Φ1.0±0.1 | |
| Subunit | Quantity(pcs) | 2 |
| Sheath Dia. | Φ2±0.1mm | |
| Sheath Material & Color | LSZH & yellow | |
| Reinforced core | aramid fiber | |
| Mark Unit | Differ A,B,C and D fiber within 10mm | |
| Fiber core | Fiber Type | G.652D |
| sheath color | white | |
| Sheath material | LSZH | |
| Out-Dia fiber for Tight layer | 0.90±0.05 mm | |
| Fiber specification | 9/125(G652D) | |
| Allowable Tension | Short term ≥500N | |
| Long term ≥300N | ||
| inflaming retarding Class | Confirm to IEC60332-3C | |
| Mini Bending radius | 10D | |

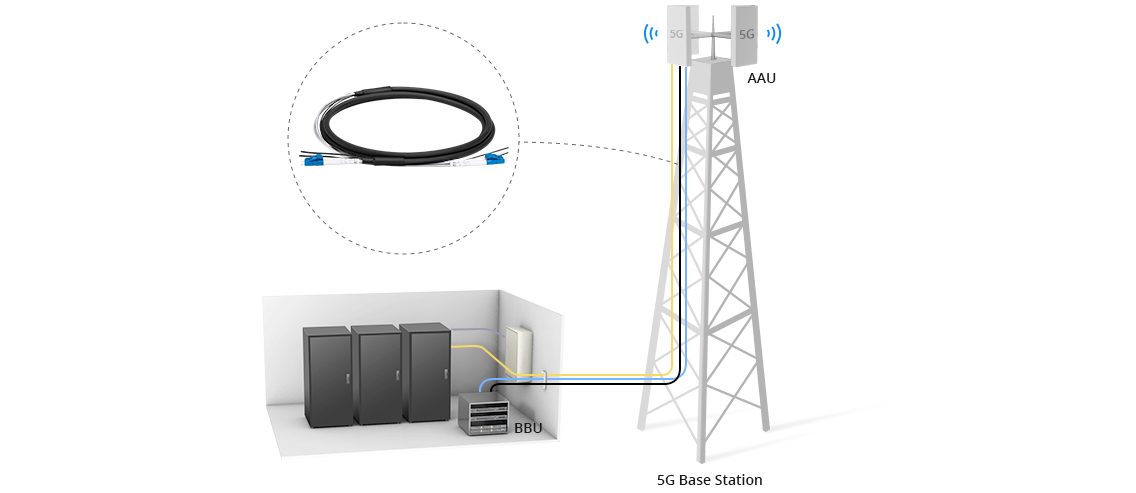

Designed for Outdoor Base Station Construction
Armor & Strength Members
20/10D Min. Bend Radius
Applications
It's suitable for harsh environments such as fiber-to-the antenna (FTTA) cabling in LTE/4G/5G networks, base stations and also meets the needs of remote traction.
* 3G 4G base station used
* Aerospace & Defence Equipment diagnosis
* FO sensor FTTA ,FTTP, FTTX,WIMAX,BBU, RRU, RRH, LTE
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
