Ericsson Compatible RPM2531610 Fullax Fiber Patch Cords

Ericsson Compatible RPM2531610 Fullax Fiber Patch Cords

Application areas of distribution cables

For connection between MU and RRU

Applicable to:

- RRU with complete AXS interface, such as RRU2219 B 1, ERS and AAS

- All types of MU.

Technical, functional and quality characteristics of the product:

Should provide easy, high-quality installation and maximize network performance.

⁻ Plug-and-play functionality

⁻ Durable cable, no conduit protection required

⁻ Insensitive to bending

⁻ Fire-resistant on the outside and inside

Cable requirements:

- Fiber optic cable for outdoor use,

- Application: Single mode FTTA (G652D)

- Flame retardancy: IEC 60332-3-24, UL 1666 OFNR

- Water penetration resistance: IEC 60794-1-2 F5B

- UV resistance according to ISO 4892-3

- Jacket material: Low smoke zero halogen - CPR compliance: DCA – s1, d0, a1

Mechanical properties:

Compression resistance

- 100 mm plate 3000N/10 cm

- Steel mandrel 25 mm 4000N

-Tensile strength:

Long service life: at least 25 years

Operating temperature range: -40°C to +75°C

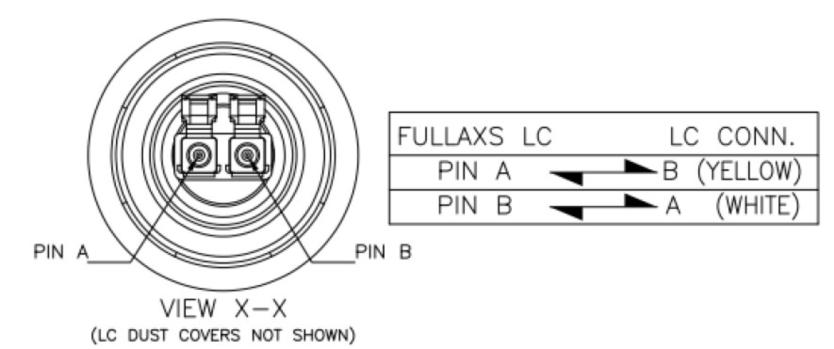

Connection:

Connector A LC Duplex FullAXS

Connector B LC Duplex

Gender Connector A Male

Gender Connector B Male

Environment:

Fire performance VW-1

Installation area Indoor and outdoor

Temperature range, normal operation -40°C to +75°C

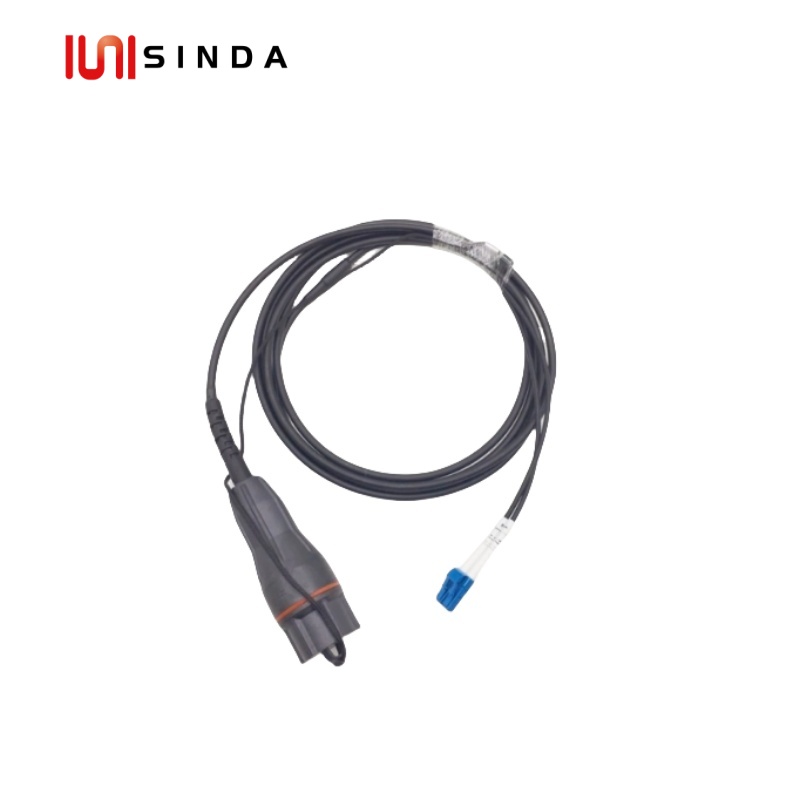

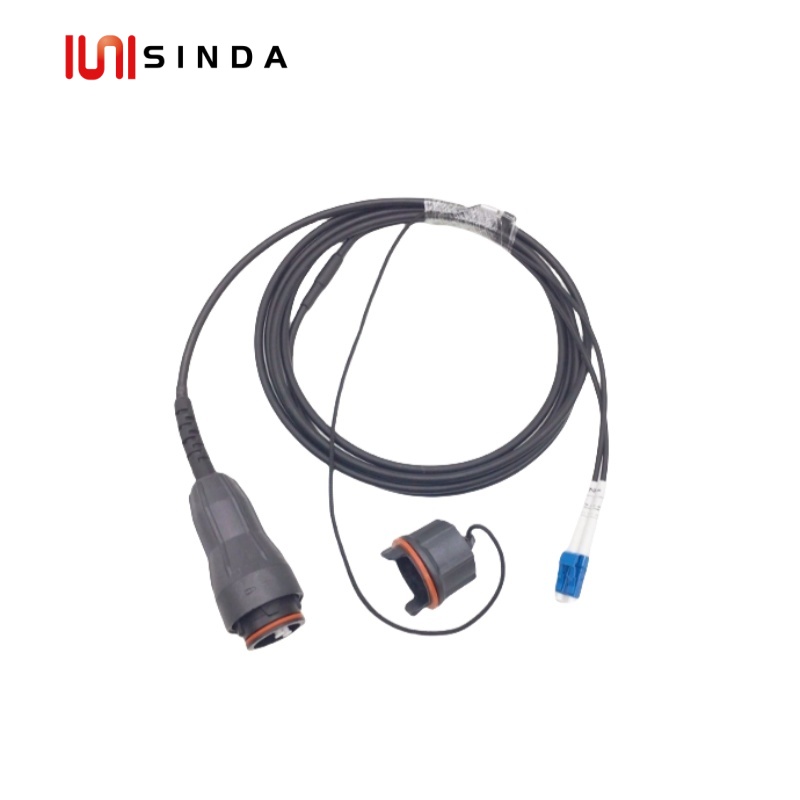

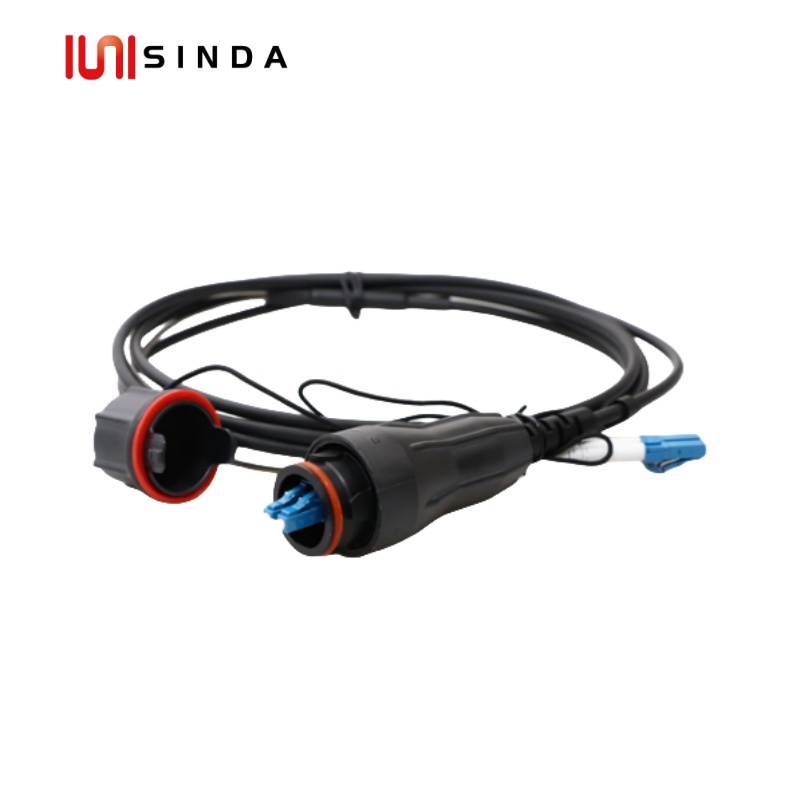

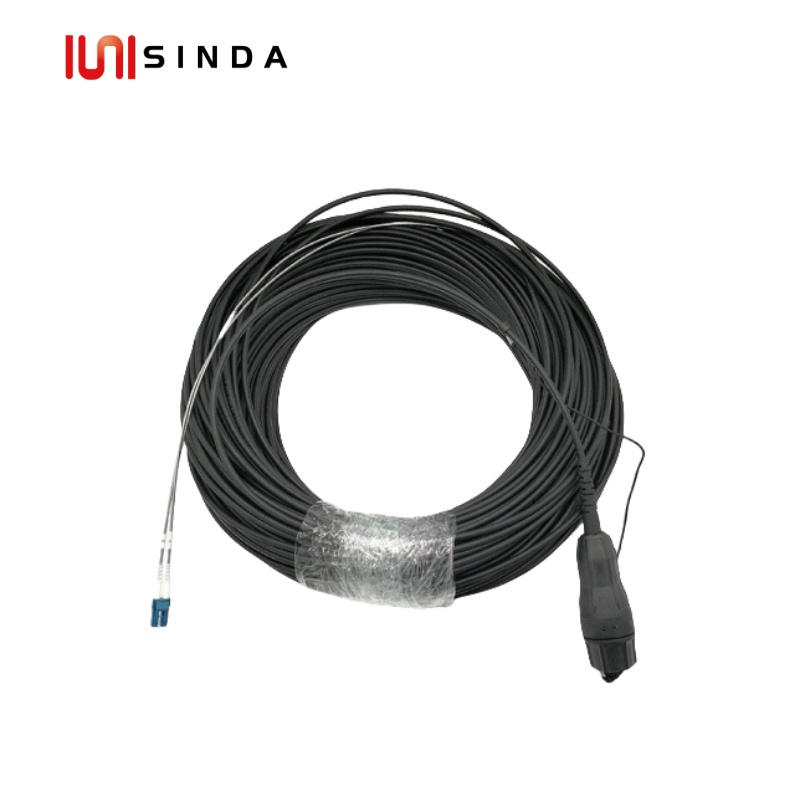

Fullax Fiber Patch Cord with LC end Armored.
