Ericsson Compatible RPM2533512 Fiber Patch Cords

Ericsson Compatible RPM2533512  Fiber Patch Cords

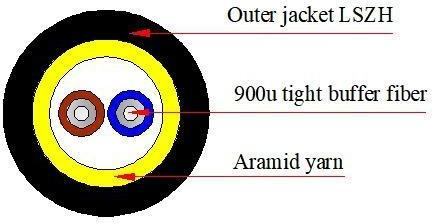

Ericsson Compatible RPM2533512  Fiber Patch Cords, The cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket, which is UV stabilized, highly resistant to chemicals commonly found in industrial environments, and suitable for indoor and outdoor industrial installations.

Technical requirements for fiber optic cables

Cable requirements:

- Outdoor cable,

- Connector polish type, UPC

- Fiber type: Multimode duplex (OM2)

- Connector type: LC

- Flame retardant: IEC 60332-3-24, UL 1666 OFNR

- Water penetration resistant: IEC 60794-1-2 F5B

- UV resistance according to ISO 4892-3

- Jacket material: Low smoke zero halogen - CPR compliance: DCA – s1, d0, a1

Mechanical properties:

Torsion resistance 15 N (for cables from 2 to 3 mm)

Static side load 1 N to 1h

Strength of the connection mechanism 80 N (for cables 2 to 3 mm)

Operating temperature range: -40°C to +75°C

Connection:

Connector A LC duplex

Connector B LC duplex

Environment:

Installation area Indoors and outdoors

Temperature range, normal operation -40°C to +75°C
