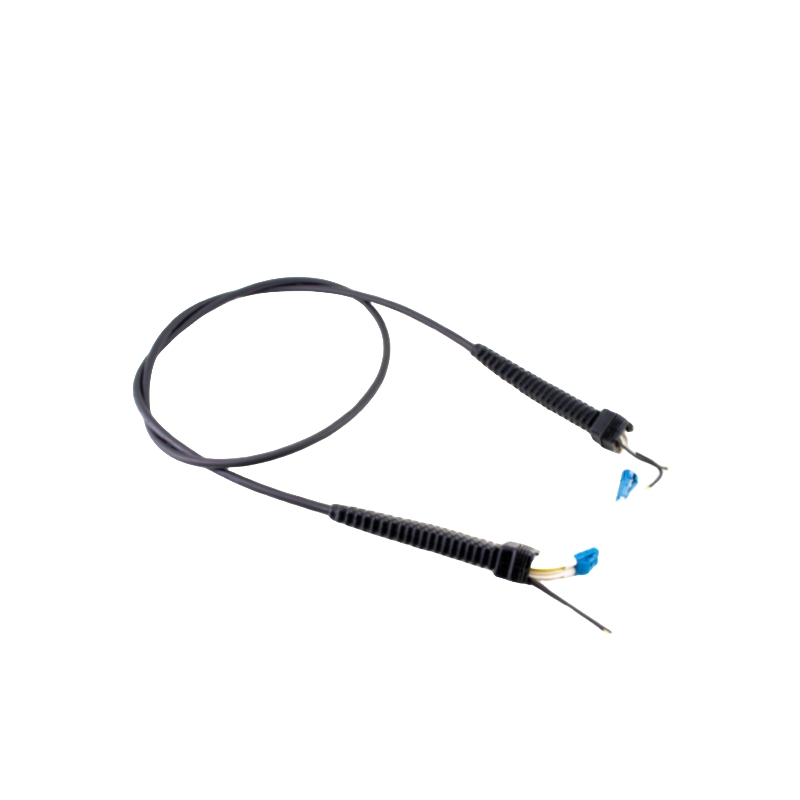

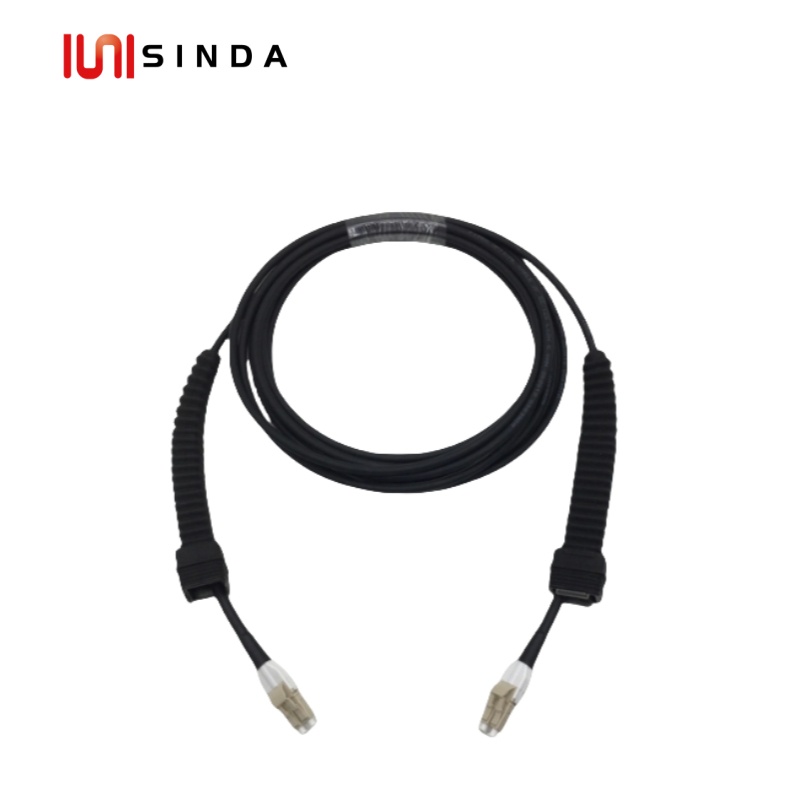

FUFBA ODC/2C/Plug-NSN/DLC patch cord MM OD Fiber LC OD - LC OD Dual 30M

FUFBA ODC/2C/Plug-NSN/DLC patch cord MM OD Fiber LC OD - LC OD Dual 30M

FUFDF MM OD Fiber LC OD - LC OD Dual 40M

FUFBB MM OD Fiber LC OD - LC OD Dual 50M

FUFDG MM OD Fiber LC OD - LC OD Dual 60M

FUFDD MM OD Fiber LC OD - LC OD Dual 80M

Section 1. Application areas of distribution cables

For connection between MU and RRU

Section 2. Technical requirements for fiber optic cables

Subsection 2.1 Technical, functional and quality characteristics of the product

Should provide simple, high-quality installation and maximize network performance.

⁻ Plug & Play functionality

⁻ Durable cable, no conduit protection required

⁻ Insensitive to bending

⁻ Fire resistant on the outside and inside

⁻ Designed to prevent water penetration

⁻ Flexible due to small bend radius and modular design

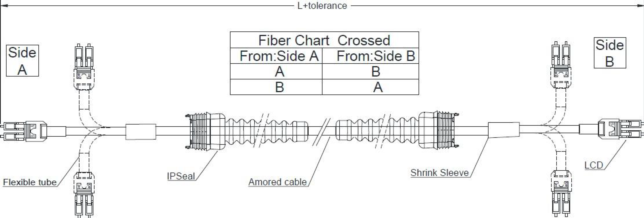

Connection fiber paths in the assembly:

Cable requirements:

- Outdoor cable,

- Connector polish type, UPC

- Fiber type: Multimode duplex (OM2)

- Connector type: LC

- Flame retardant: IEC 60332-3-24, UL 1666 OFNR

- Water penetration resistant: IEC 60794-1-2 F5B

- UV resistance according to ISO 4892-3

- Jacket material: Low smoke zero halogen - CPR compliance: DCA – s1, d0, a1

Mechanical properties:

Torsion resistance 15 N (for cables from 2 to 3 mm)

Static side load 1 N to 1h

Strength of the connection mechanism 80 N (for cables 2 to 3 mm)

Operating temperature range: -40°C to +75°C

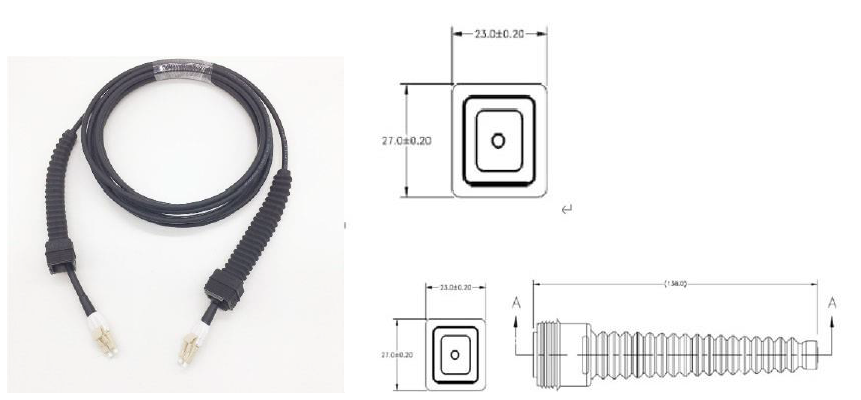

Connection:

Connector A LC duplex

Connector B LC duplex

Environment:

Installation area Indoors and outdoors

Temperature range, normal operation -40°C to +75°C

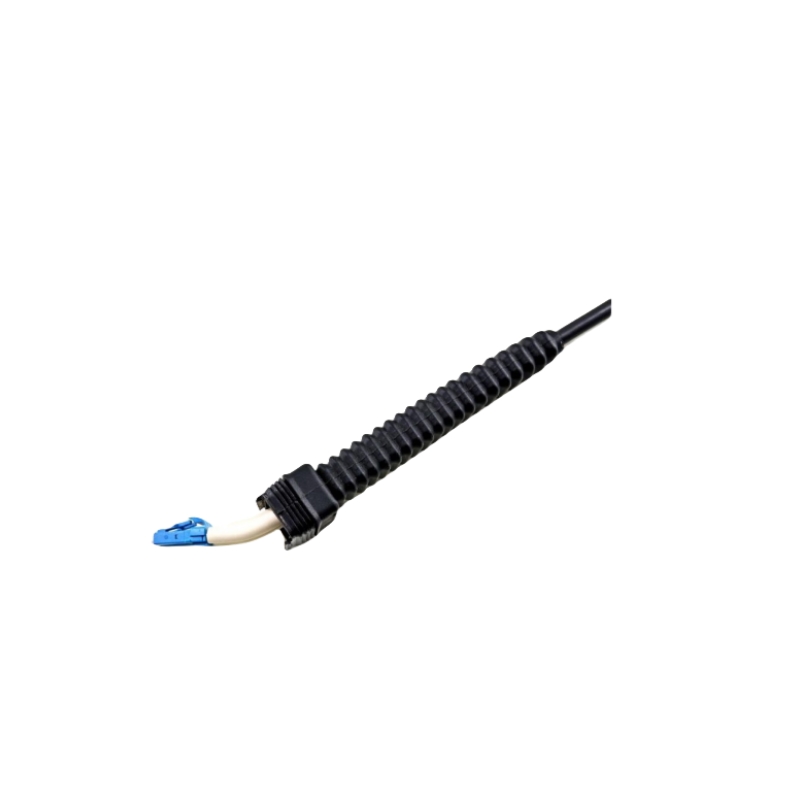

FUFBA ODC/2C/Plug-NSN/DLC patch cord
