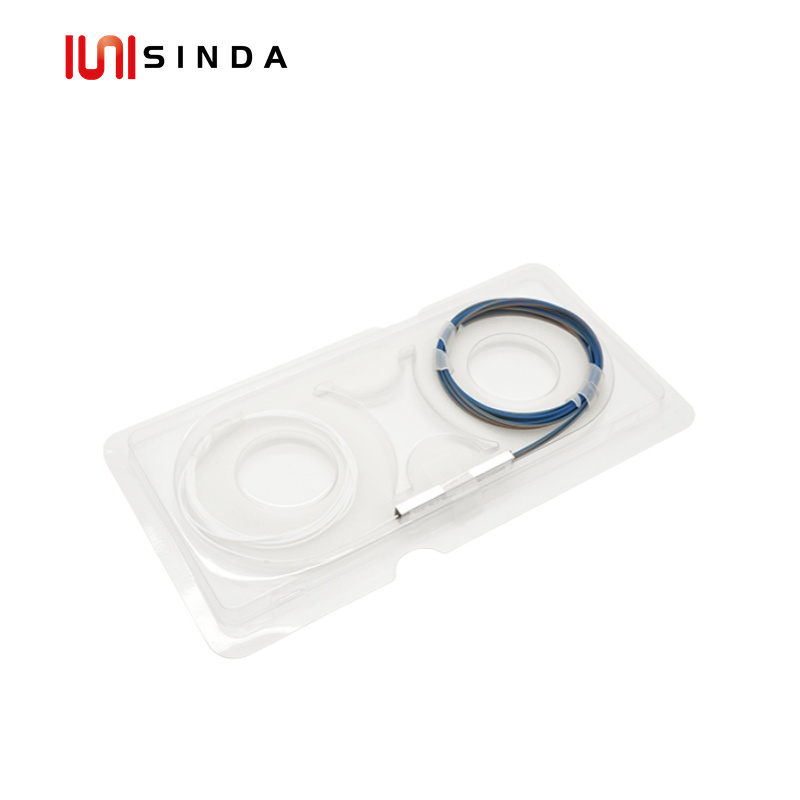

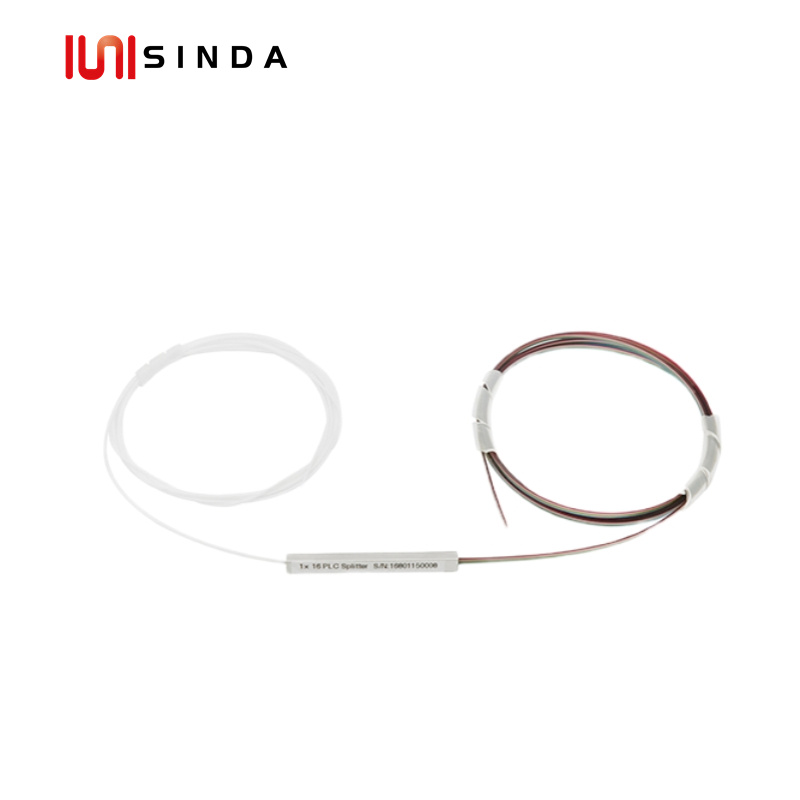

Micro 1xN PLC Splitter 250um

Micro 1xN PLC Splitter 250um,The single-mode Planar Light wave Circuit Splitter (PLC) is developed based on unique quartz glass waveguide and processes with reliable precision aligned fiber pigtail in a miniature package. It provides a low cost light distribution solution with small form factor and high reliability.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

Micro 1xN PLC Splitter 250um

The PLC has the high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40ºC to +85ºC. Our’s PLC has standard configurations of 1×2, 1×4, 1×8, 1×16 and 1×32 configurations, as well as customized structures of 2×16, 2×32 and so on









Feature


Low insertion loss and low PDL
Wide operating wavelength range
Compact design
High reliability
High channel counts
Wide operating temperature range
Customized packaging and configuration









Applications


FTTX Systems
LAN, WAN and Metro Networks
CATV Networks
Analog/Digital Passive Optical Networks
Other applications in fiber optic systems









Specifications


Parameter 1×2 1×3 1×4 1×6 1×8 1×12 1×16 1×24 1×32 1×48 1×64 1×128
Insertion loss(dB) 3.9 6.1 7.2 9 10.2 12.5 13.5 15.5 16.8 18.4 20.1 23.8
Uniformity(dB) ≤0.4 ≤0.5 ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤1.5 1.8 ≤1.8 ≤2.5
Polarization-dependent ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.35 ≤0.35
loss (dB)
