ODVA IP67 LC Duplex Protection Waterproof Fiber Patch Cable provides low cost ideal solution for CATV, RRH remote radio heads, FTTX harsh environment connectivity. This ODVA-LCDX, ODVA-SC and ODVA-MPO is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use.
Sealed Circular IP 67 ODVA Duplex LC fiber patch cable assemblies are available in both single mode and multimode version, this ODVA LC is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use. our IP 67 ODVA LC duplex cables are designed as per IEC 61076-3-106 interfaces standard, integrated with our quality LC fiber connectors with loss optical loss; and we designed a rugged and armored PE jacketed optical cable body.
Features
3 series are optional: LC duplex, SC simplex, and MPO/MTP
IP67 Waterproof
Low insertion and high return loss
4.8mm, 5.0mm, and 7.0mm cable optional
100% optically tested to ensure quality performance assemblies
Superior quality standard /UPC/APC polishing

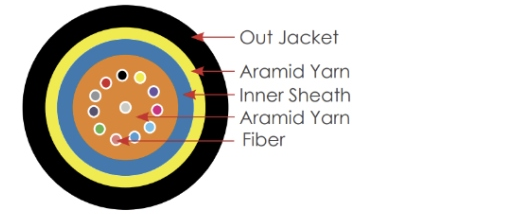

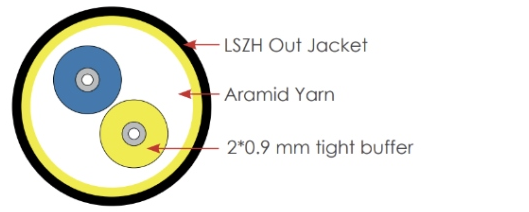

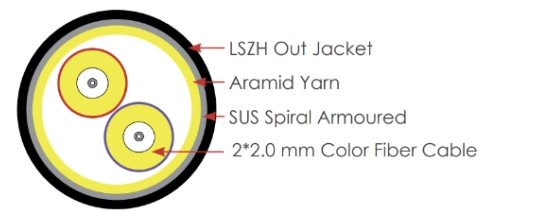

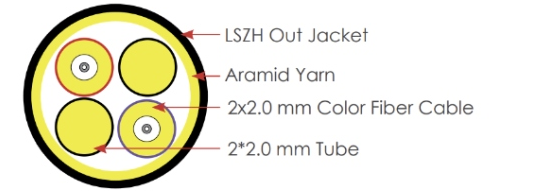

Cable Structures
Applications
| Connector | LC to LC | Jacket OD | 7.0 or 5.0mm |
| Fiber Mode | G657A2 | Jacket Color | Black |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Duplex | Jacket Material | LSZH / PE |
| Insertion loss(MPO) | ≤0.35dB | Insertion loss(LC) | ≤0.2 dB |
| Return loss | ≥30dB | Storage temperature | -45~85°C |
| Operating temperature | -40~75°C | ||

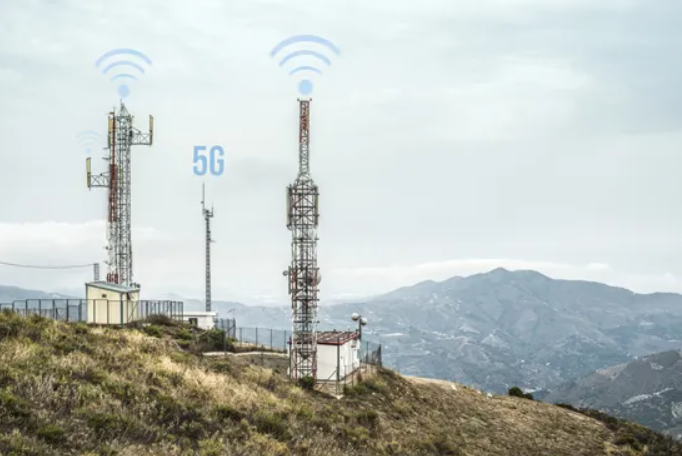

Applications
FTTA feeders for all standard RRH models and systems
3G,4G,5G Base Station
Remote Radio Heads (RRH)
Horizontal and Vertical Cabling
Industrial outdoor applications
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
Our Test Assurance Program
In addition to regular standard testing, check out our other test program to see what really makes us different.
