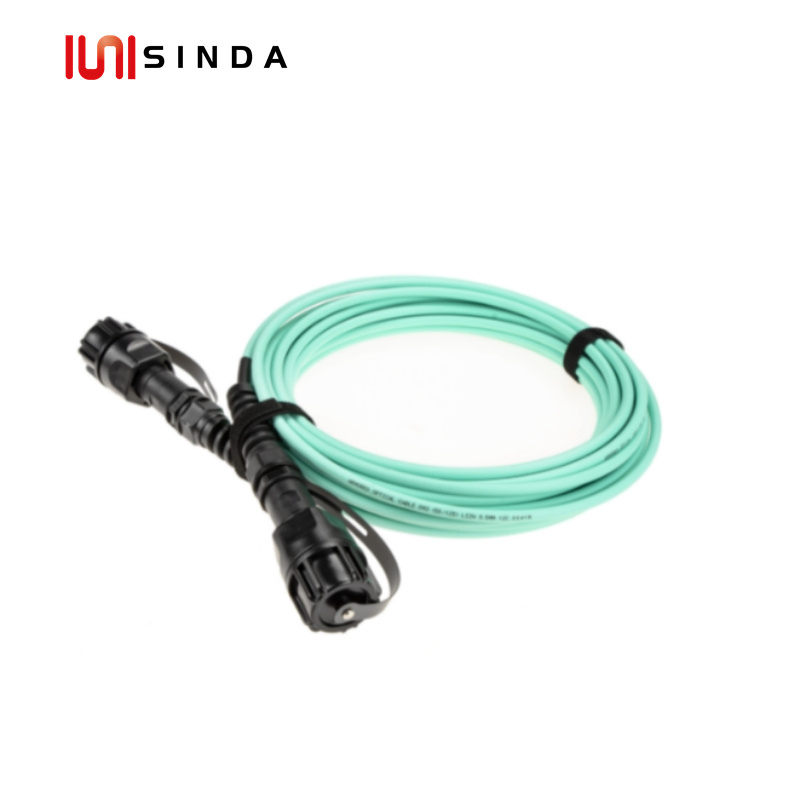

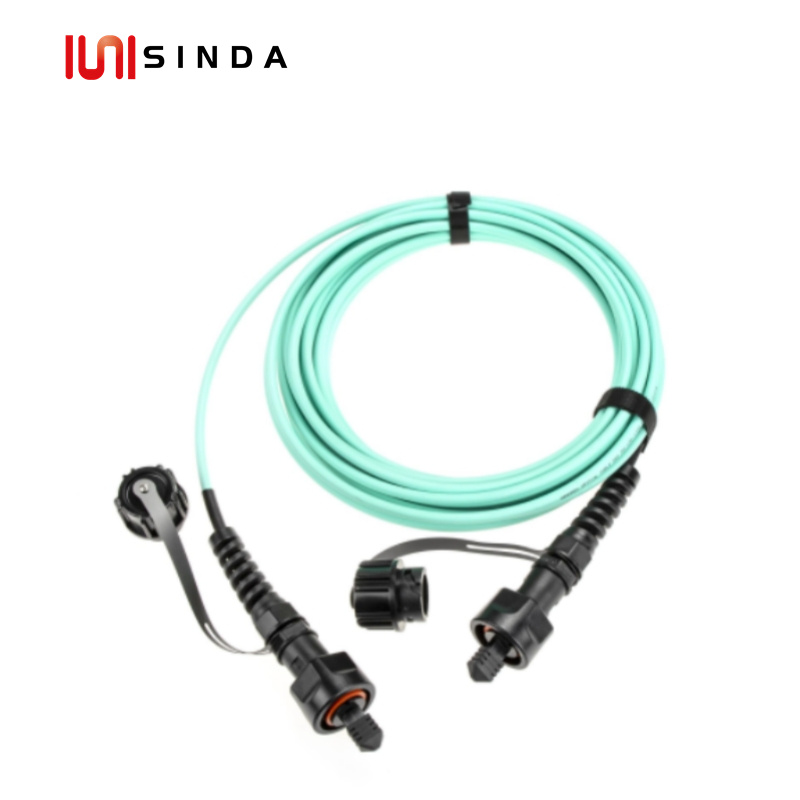

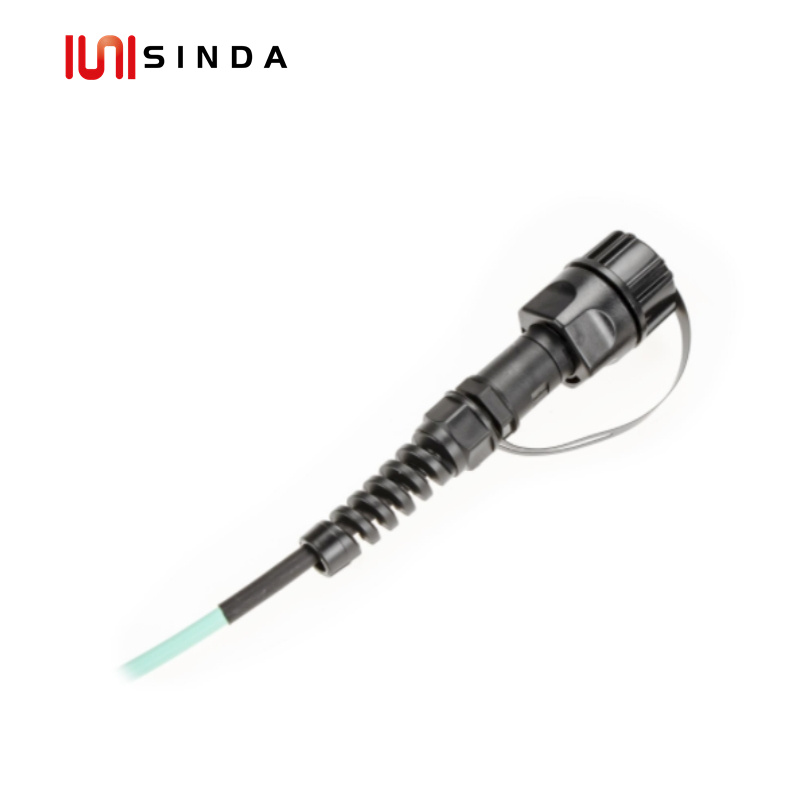

ODVA MPO/MTP IP67 Duplex OM3 5.5mm Waterproof Fiber Patch Cable

ODVA MPO/MTP IP67 Duplex OM3 5.5mm Waterproof Fiber Patch Cable

ODVA MPO/MTP IP67 Duplex OM3 5.5mm Waterproof Fiber Patch Cable provide the low-cost ideal solutions for CATV, RRH remote radio heads, and FTTX harsh environment connectivity. The ODVA-MPO/MTP is a typical outdoor fiber cable suitable for different temperatures and weather, especially ideal for FTTA and harsh environment use.

Chat Now

Description

IP67 MPO/MTP Female OM3 Waterproof Fibers Optic Patch Cords

Features

3 series are optional: LC duplex, SC simplex, and MPO/MTP

IP67 Waterproof

Low insertion and high return loss

4.8mm, 5.0mm, 5.5mm, and 7.0mm cable optional

100% optically tested to ensure quality performance assemblies

Superior quality standard /UPC/APC polishing

Specifications

Connector	MPO/MTP	Jacket OD	5.5mm
Fiber Mode	OM3	Jacket Color	Aqua
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Duplex	Jacket Material	LSZH
Insertion loss(MPO/MTP)	≤0.6dB	Insertion loss (Elite MPO/MTP)	≤0.35 dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C

Applications

FTTA feeders for all standard RRH models and systems

3G,4G,5G Base Station

Remote Radio Heads (RRH)

Horizontal and Vertical Cabling

Industrial outdoor applications

Hot Tags : ODVA MPO/MTP Waterproof fiber patch cable factory ODVA MPO/MTP IP67 Duplex fiber patch cable ODVA MPO/MTP IP67 fiber optical patch cables ODVA MPO/MTP IP67 Waterproof fiber patch cable ODVA MPO/MTP IP67 fiber optical patch cords ODVA MPO/MTP waterproof fiber optical patch cables
