Plastic Terminal Box

Home Plastic Terminal Box

Outdoor Compact Fiber Optic NID box

Outdoor Compact Fiber Optic NID box

Outdoor Compact Fiber Optic NID box,The Hammer Series Fiber Optic NID is a compact, outdoor wall mount fiber termination and distribution enclosure. Designed for FTTx deployments, our outdoor fiber optic distribution box can accommodate select PLC splitters or loaded fiber pigtails using fusion splicing (up to 6 SC or 8 LC patch or splice fibers, or 12 patch-only LC fibers) The unit is designed to be mounted directly to the wall.

Chat Now

Description

Outdoor Compact Fiber Optic NID box

The Hammer Series Fiber Optic NID is a compact, outdoor wall mount fiber termination and distribution enclosure. Designed for FTTx deployments, our outdoor fiber optic distribution box can accommodate select PLC splitters or loaded fiber pigtails using fusion splicing (up to 6 SC or 8 LC patch or splice fibers, or 12 patch-only LC fibers) The unit is designed to be mounted directly to the wall.

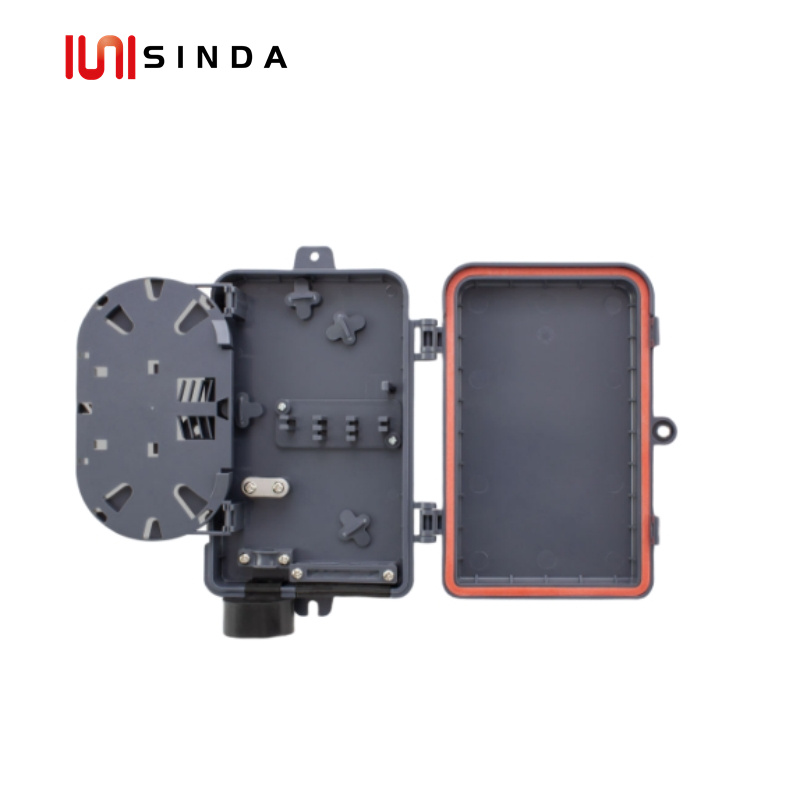

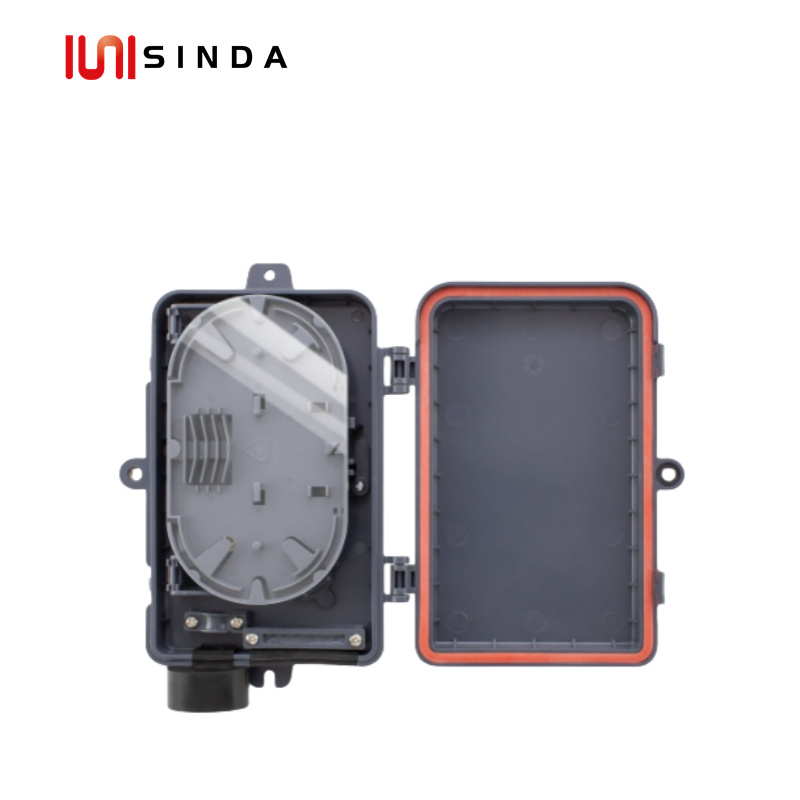

Includes area for storage, integrated splice tray, and separate area for fiber management with non-interfering door.

Enclosure provides a secure location for slack storage and fiber connections
Includes 2 wall anchors and screws to install directly on the wall
Constructed of durable industrial plastic designed to withstand the harshest outdoor elements

Aesthetic appearance includes a glossy finish suitable for wall mounting on an office building or residence. Optional company logo silk screening available

Specifications

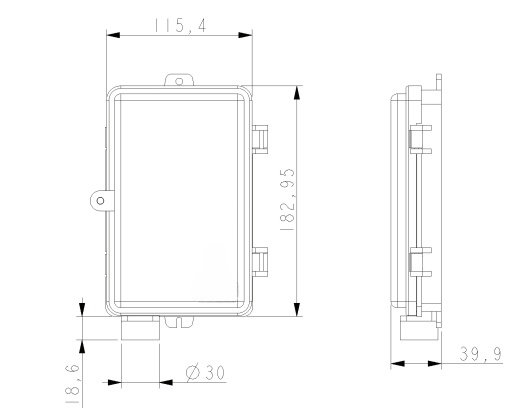

Dimensions: 8.3 x 5.5 x 1.6 in.(designed to mount directly to wall)
Material: Durable Industrial Grade Plastic
Finish: High-end gloss
Color: Grey
Adapter options: None, SC/APC, SC/UPC, LC/APC, LC/UPC
Pigtail option: Corning Clearcurve Simplex 900µm tight buffer white jacket OFNR, 1 meter

Includes

(6) 40 mm splice sleeves, (2) wall anchors and screws

Quality Certification

Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber products is 100% optically inspected and tested for insertion loss before you receive it.

High Quality Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!

Hot Tags : Outdoor compact fiber optic NID box Fiber nid box Optical NID box NID network Fiber optic NID box
