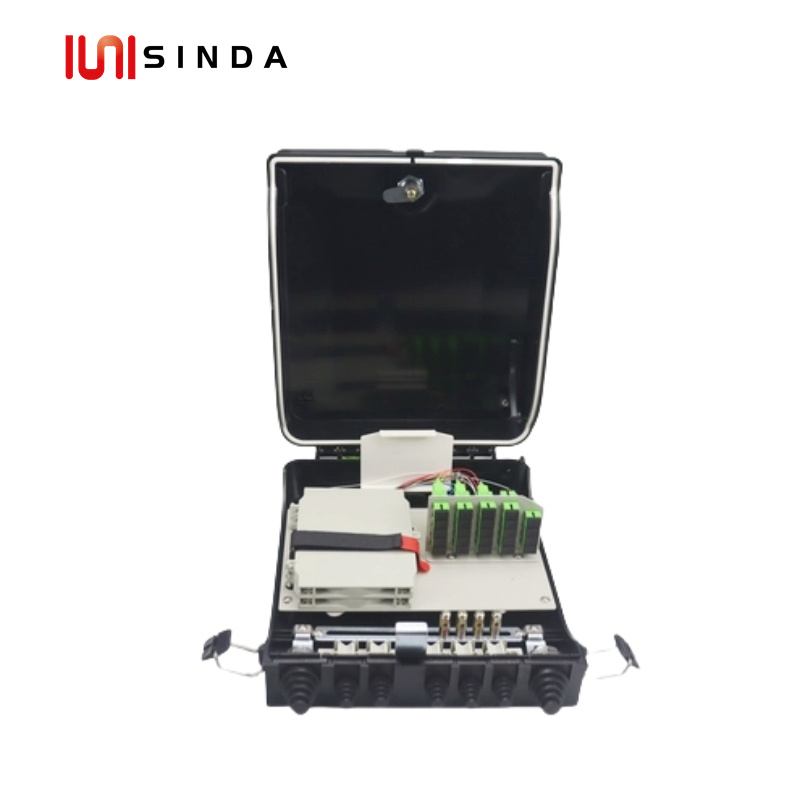

Outdoor FTTX Fiber Optic Terminal Box 24 Core Model:SDFDB-0205

Outdoor FTTX Fiber Optic Terminal Box 24 Core Model:SDFDB-0205

Outdoor FTTX Fiber Optic Terminal Box 24 Core Model:SDFDB-0205, This product integrates splicing,light splitting,and wiring. It's suitable for terminal access on the user side and connected with optical communication equipment. Through adapters, optical jumpers are used to lead out optical signals to achieve optical distribution. It is also suitable for the protective connection of the optical cable and pigtail. In addition,it can also be spliced with home cable to realize the straight-through connection of the optical cable.

Chat Now

Description

Outdoor FTTX Fiber Optic Terminal Box 24 Core Model:SDFDB-0205,

This product integrates splicing,light splitting,and wiring. It's suitable for terminal access on the user side and connected with optical communication equipment. Through adapters, optical jumpers are used to lead out optical signals to achieve optical distribution. It is also suitable for the protective connection of the optical cable and pigtail. In addition,it can also be spliced with home cable to realize the straight-through connection of the optical cable.

Features

It is suitable for outdoor and made of high-quality plastic.
Can accommodate ABS box type PLC splitter. 1x8 2pcs,1X16 1pcs.
Rainfall-resistant, outdoor use.
Can load 24 pcs SC-type adapters.
Wall mounting and pole mounting application.
2 pcs cable entry ports; the cable can be entered without cutting.
24 pcs exit ports for FTTH drop cable.
There is one entrance that can go through the fast connector directly.

Specifications

Item		Spe.	Remark
Size		25032098mm
Material		PC+ABS
Protection Level		IP54
	Splitter	1x8 2pcs,1X16 1pcs
Max Capacity	Pigtail	24pcs
Bending radius		≥ 30mm
Entry ports cable dia.(max)		2*φ25mm
Output ports and cable dia.(max)		5*φ15mm
Box Color		Black
Operating Temperature		-25～+60℃

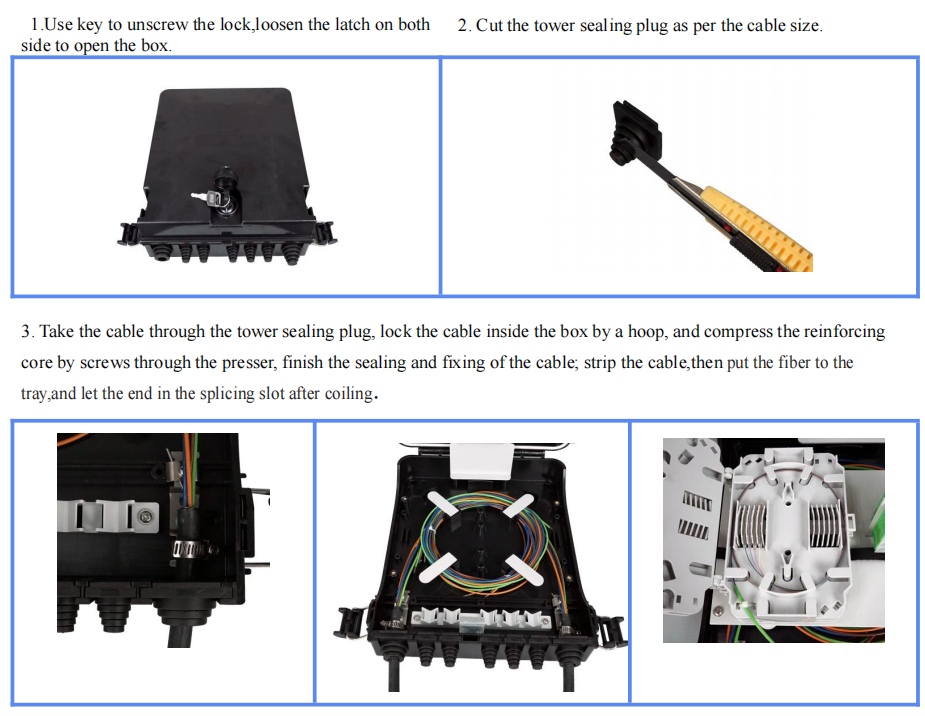

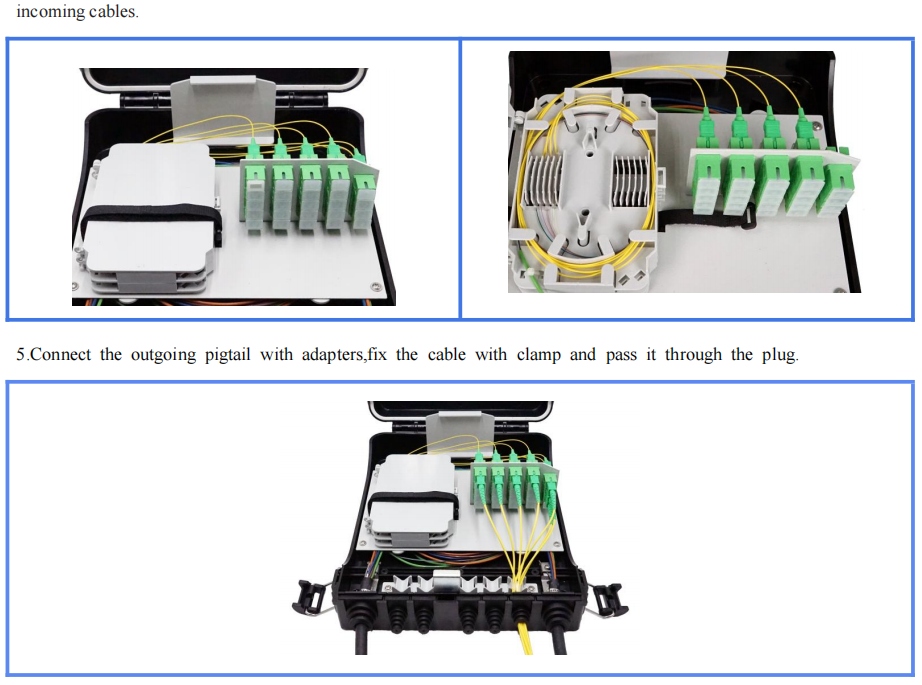

Installation

Box installation

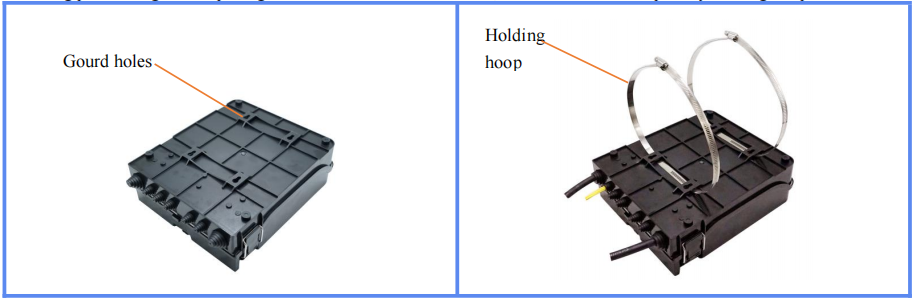

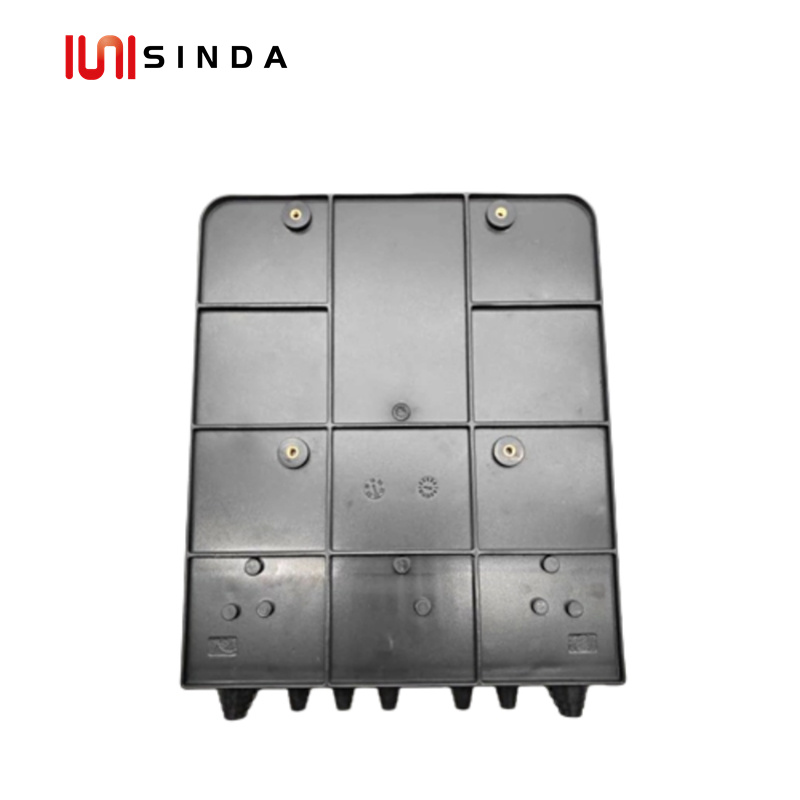

a) Wall mount:through the 4 gourd holes at the bottom of the box, the installation hole distance is:100mmX145mm；

b) Holding pole: though two square grooves at the bottom of the box,it is connected to the pole by holding hoop.

Quality Certification
