Plastic Terminal Box

Home Plastic Terminal Box

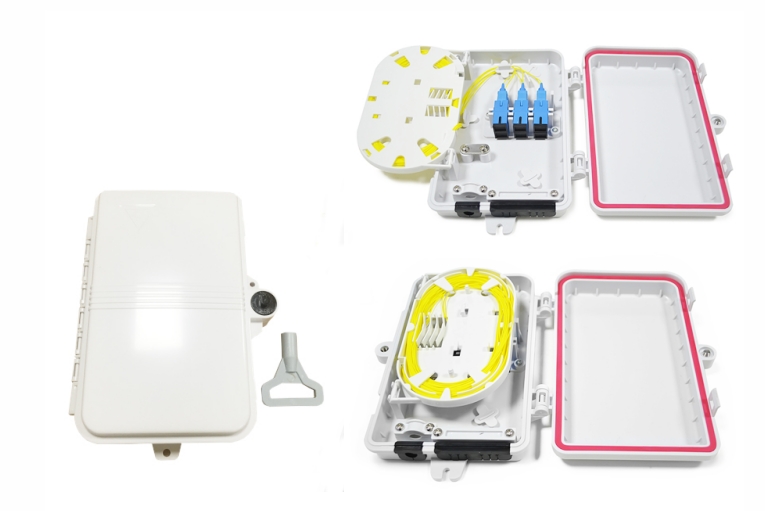

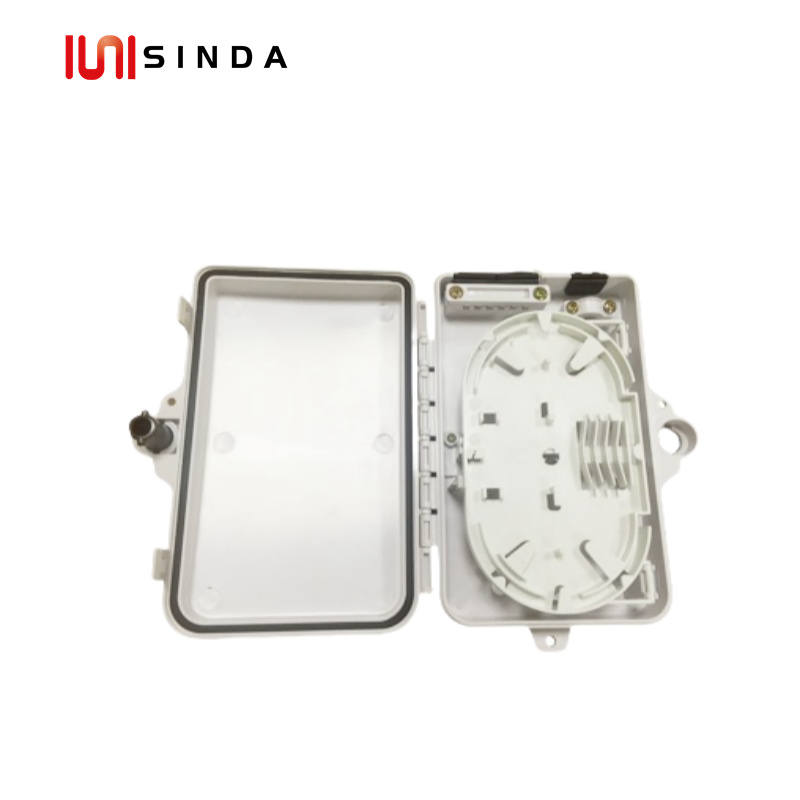

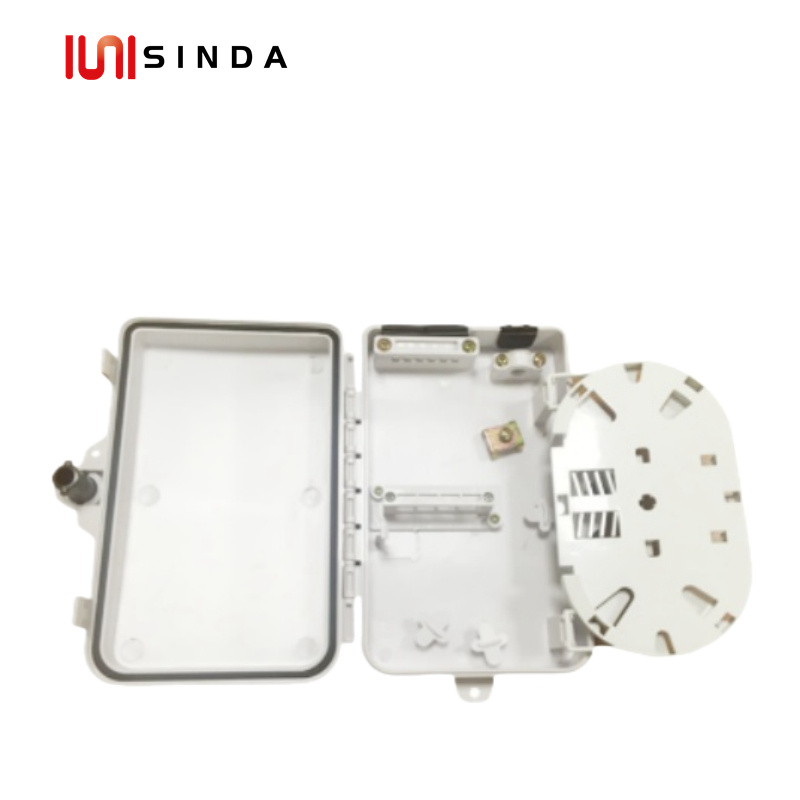

Terminal box 2c/4c/6c

Terminal box 2c/4c/6c

Terminal box 2c/4c/6c, This terminal is used in the end termination of residental buildings and villas,and other outdoor area,waterproof and uvprotection;it fix and splice with pigtails,can be installed on the wall,optical fiber can be managed effectively

Chat Now

Description

Terminal box 2c/4c/6c

This terminal is used in the end termination of residental buildings and villas,and other outdoor area,waterproof and uvprotection;it fix and splice with pigtails,can be installed on the wall,optical fiber can be managed effectively

Features

Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.

Job stress: 70 kpa to 106 kpa;

Using the temperature:- 40 ~ + 75 ℃

Relative humidity: ≤95% (+ 40 ℃).

Protection grade: IP55.

Insulation resistance: grounding device and the insulation resistance between the body machining parts not less than2 x104m Ω/500V(DC);

Withstand voltage: grounding device and the case between the metalworking withstand voltage of not less than 3000V(DC)/1min.

The door is open Angle: 180 ° 3-7 or higher.

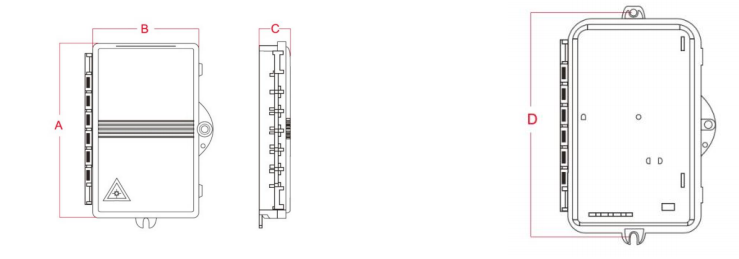

Specifications

Model	Material	Size(mm)	Capacity(SC)	Weight(kg)	Color	Installation	Protection Level
SDFAT-2A	PC,ABS,Customized	16710231	2SC/4LC	0.25	White/Black/Gery	Wall Mounted, Holding Pole	IP55
SDFAT-4A	PC,ABS,Customized	18611641	4SC/8LC	0.33	White/Black/Gery	Wall Mounted, Holding Pole	IP55
SDFAT-6A	PC,ABS,Customized	18611641	6SC/12LC	0.35	White/Black/Gery	Wall Mounted, Holding Pole	IP55

Packing Informations

Model	Dimension of Carton(cm)	Number of boxes packed（PCS)	Gross weight(kg)	NET weight of products(kg)
SDFAT-2A	4032.537	50	12.3	0.25
SDFAT-4A	43.536.545	50	16.5	0.33
SDFAT-6A	43.536.545	50	17.3	0.35

Quality Certification

Hot Tags : Terminal box 2c/4c/6c 4C terminal box 2F/4F/6F fiber terminal box 2c terminal box 6C terminal box Optical fiber terminal box

Send Inquiry

Drop us a line through the form below and We do our best to respond within 1 business day.

RELATED PRODUCTS

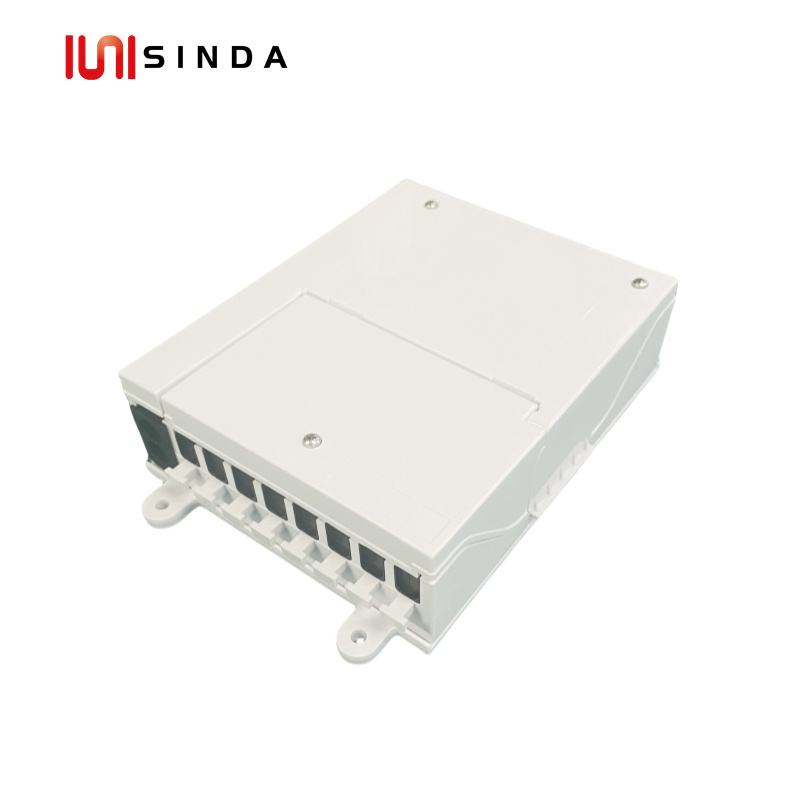

8cores Fiber Optic Splitter Terminal Box

8cores Fiber Optic Splitter Terminal Box,Fiber optic FTTH terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

16Port FTTA Fibra Optica Cajas Nap Box CTO Box

The FTTA Fiber Optical 16 core NAP Box could be packed with Blockless Splitters. The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splitting, distribution can be done in this box, no need open the box with pre-connected connectors. It provides solid protection and management for the FTTx network building.

16C Fiber Access Terminal Closure

16C Fiber Access Terminal Closure,SDFATM-0416L fiber access termination closure is able to hold up to 16subscribers and 96splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

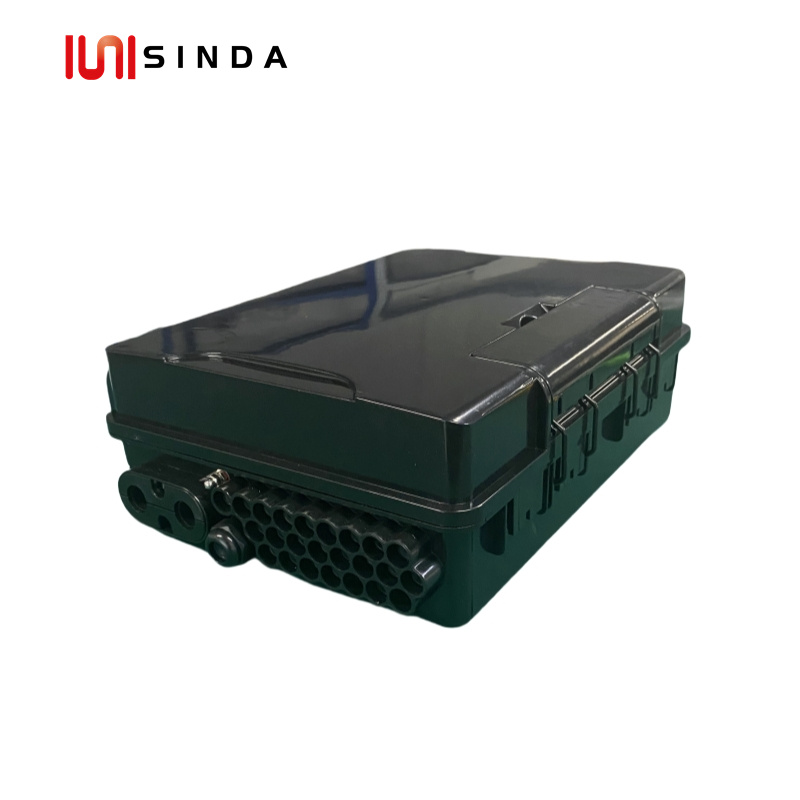

FTTH IP65 24/32 Port Fiber Optic NAP Distribution Terminal Boxes With Splitters
