Industrial Armored TPU 1-24 Fibers OM4 Multimode LC/SC/ST/FC/MTP/IP67/ODC/YZC Fiber Optic Patch Cable

Industrial Armored TPU 1-24 Fibers OM4 Multimode LC/SC/ST/FC/MTP/IP67/ODC/YZC Fiber Optic Patch Cable is ideal for both indoor and outdoor applications, such as connecting the networks of two buildings through the use of an underground conduit or direct buried.

Chat Now

Description

Features

Industrial cable connectors can provide good protection for the connection when be used in a water, dust, and corrosion environment.

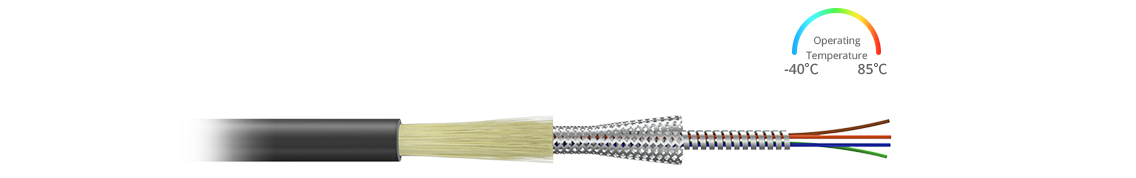

Convenient Direct Burial & Durable Conduits Applications,There are two main outdoor applications for industrial cables. One is to directly bury them underground to reduce wiring costs, and the other is to put them in conduits for more durable.

20/10D Min. Bend Radius,The BIF allows tighter cable bends for slack storage and routing.

200-600N Tensile Strength,The pull-resistant cable prevents breaking and prolongs the life.

3000N Crush Strength,The pressure resistance can reduce destruction by external forces.

Specifications

Connector Type	LC/SC/ST/FC/ODC/YZC/IP67	Polish Type	UPC to UPC
Fiber Count	1~24 Fibers	Fiber Grade	Bend Insensitive
Fiber Mode	OM4 50/125μm	Wavelength	850/1300nm
Trunk Outside Diameter (OD)	3.0-7.0mm	Breakout Outside Diameter (OD)	3.0mm (1~4 Fibers),2.5mm (6~24 Fibers)
Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)	Cable Jacket	TPU (Thermoplastic Polyurethane)
Crush Resistance	2000/3000 N/100mm (Long/Short Term)	Tensile Load	500/800N (Long/Short Term)
Connector Durablity	500 times	Flex Resistance	2000 Cycles
Insertion Loss	LC/SC/ST/FC≤0.3dB, MTP/IP67 MTP≤0.35dB, ODC/YZC≤1.0dB, IP67 LC/SC≤0.5dB	Return Loss	≥20dB
Attenuation at 850nm	3.0 dB/km	Attenuation at 1300nm	1.0 dB/km
Tension of Pulling Eye	245N	Operating & Storage Temperature	-40 to 80°C (-40 to 176℉)

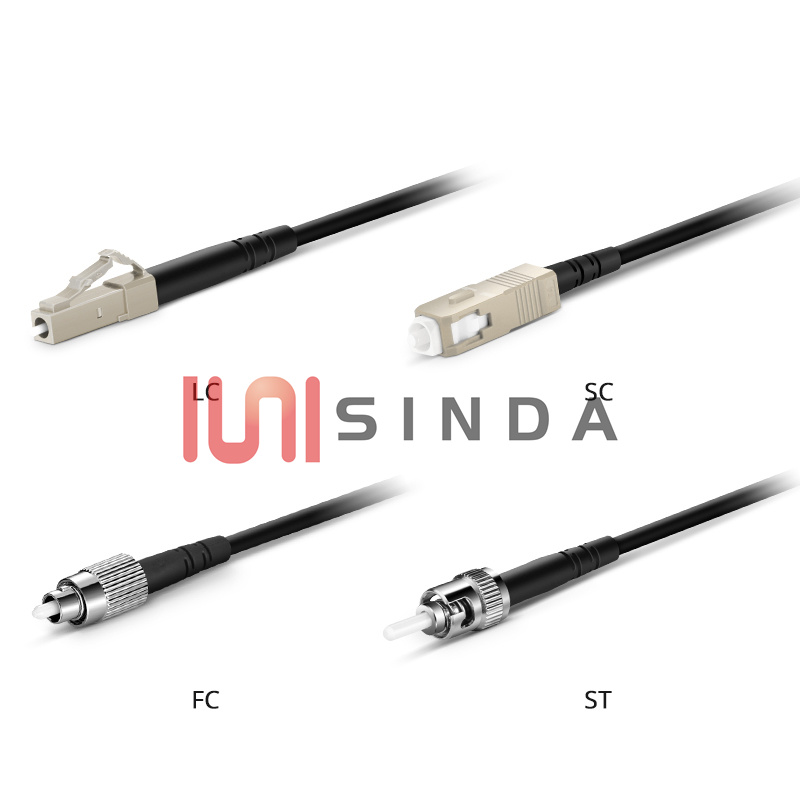

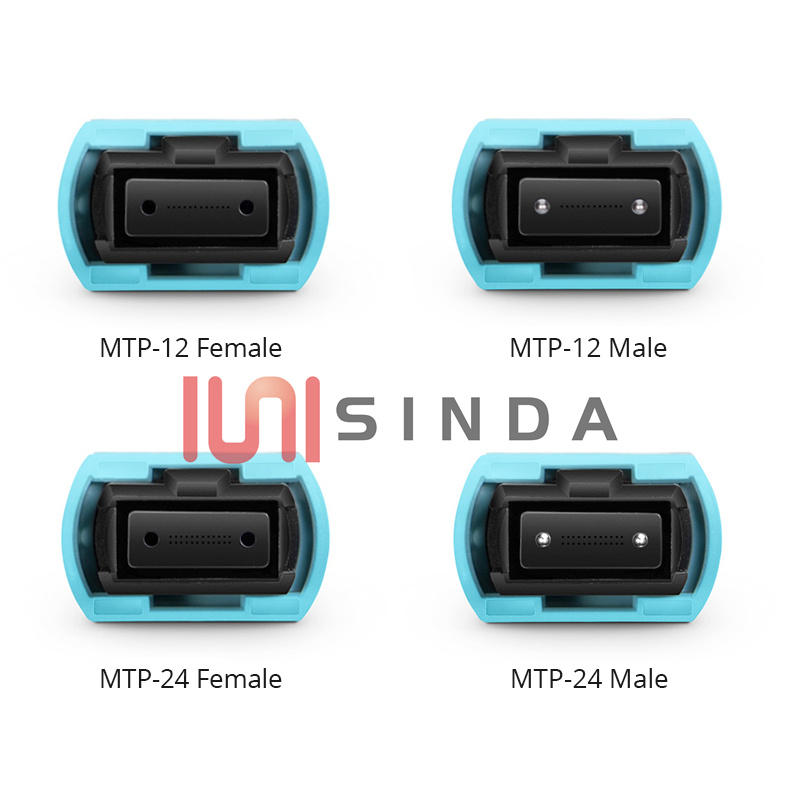

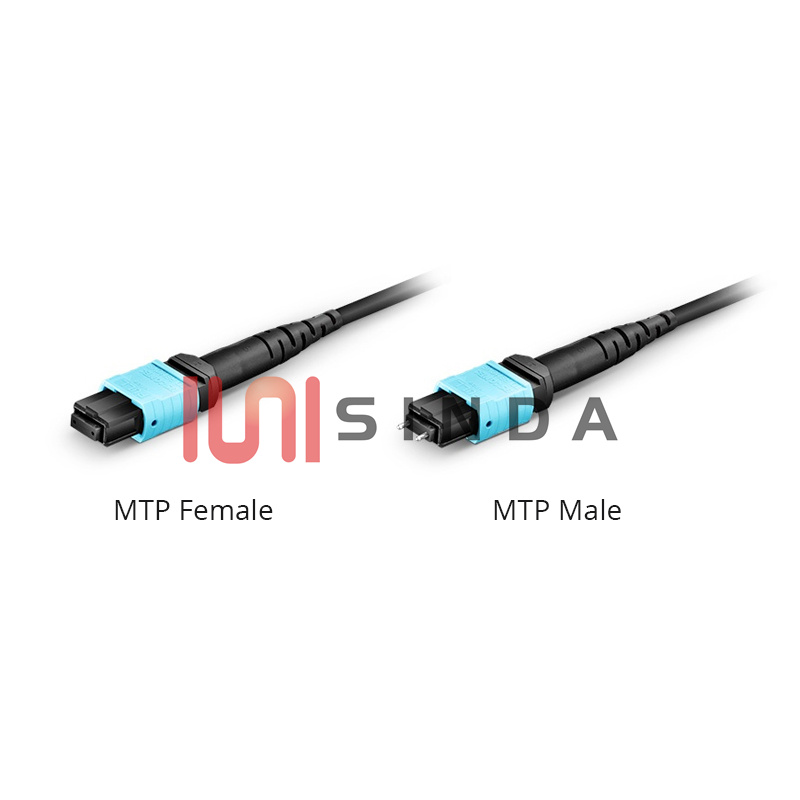

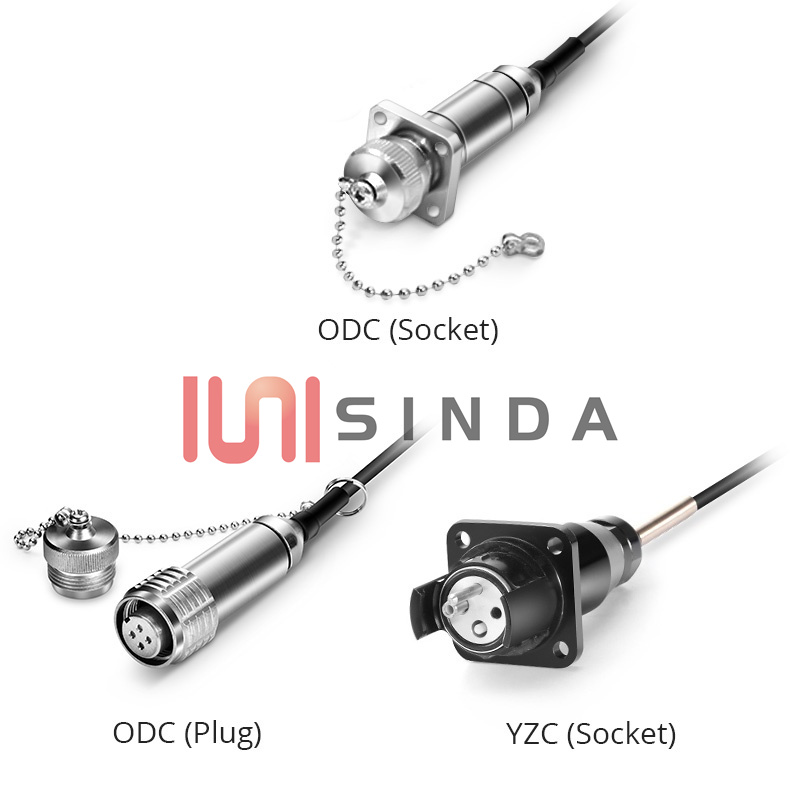

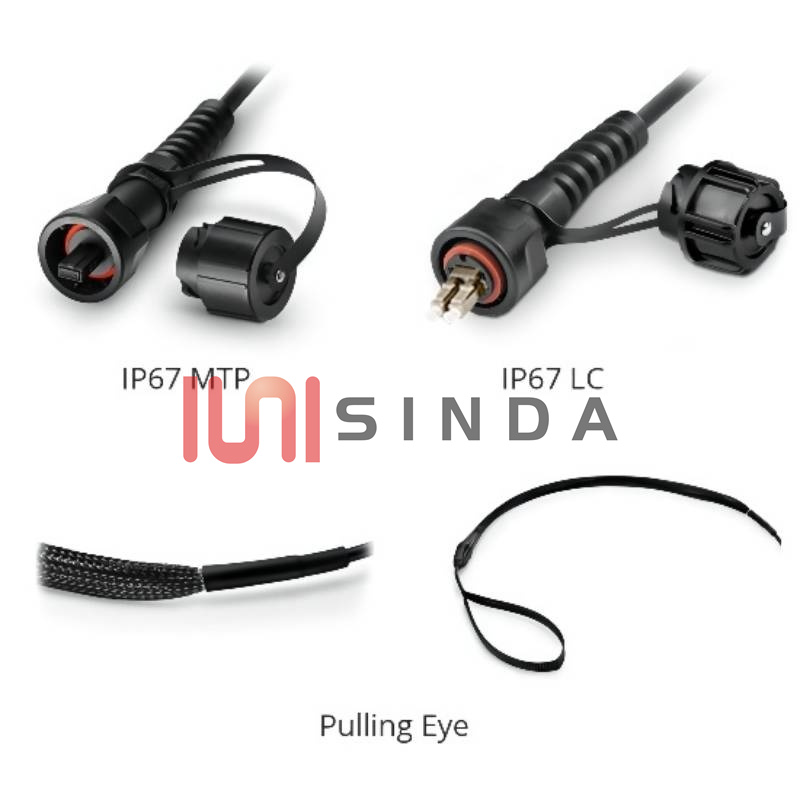

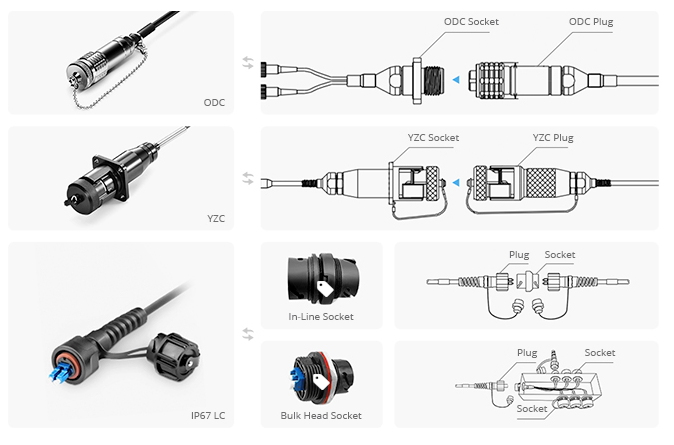

Industrial Cable Connectors for Outdoor Application

Industrial cable connectors can provide good protection for the connection when be used in a water, dust, and corrosion environment.

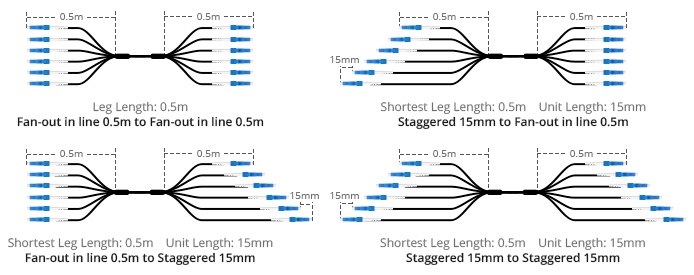

Breakout Types for Optimizing Cable Routing

Four different breakout configurations meet your various needs. Please note that the breakout length is 0.3m by default instead of 0.5m when the total cable length is not more than 3m.

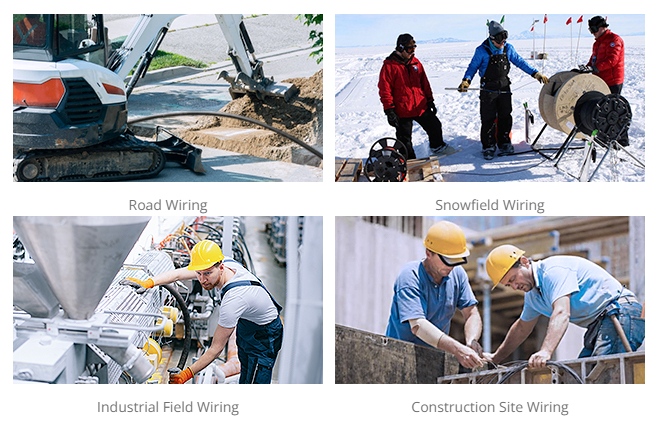

Applications

Ideal for Various Harsh Installation Environments

Quality Certification
