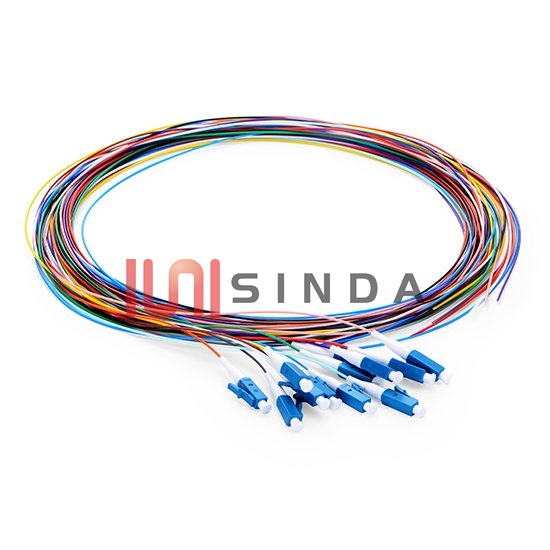

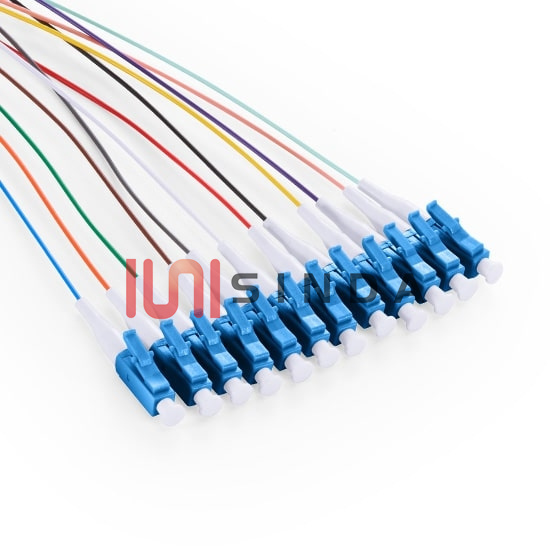

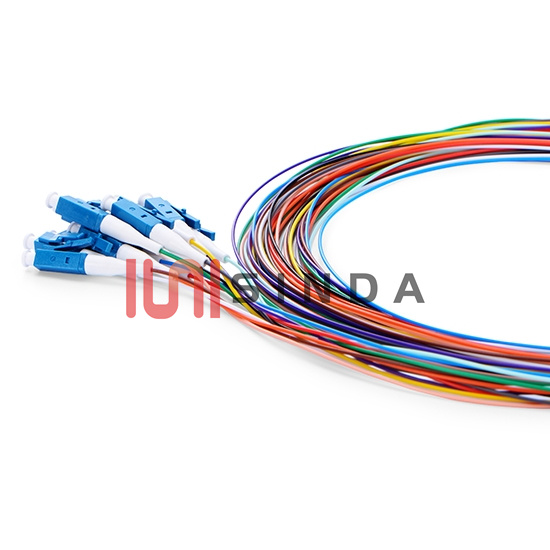

LC UPC 12 Fibers OS2 Single Mode Color-Coded PVC /OFNP/LSZH 0.9mm Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
LC UPC 12 Fibers OS2 Single Mode Color-Coded PVC /OFNP/LSZH 0.9mm Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features
PVC Flame-retardant Fiber Optic Cable with Tight-buffered Coating on Each Optical Fiber
Optical Testing Guarantees Insertion Loss and Returns Loss
Individually Colored to Easily Match Color-coded Fiber Cable That Will Be Spliced
Pass All IEC-61754 and TIA-604 (FOCIS) Performance Requirements
Support Both Fusion and Mechanical Splicing for Fiber Cabling Solutions
Specifications
Connector A | LC | Connector B | Unterminated |
Fiber Mode | 9/125 μm | Fiber Count | 12 |

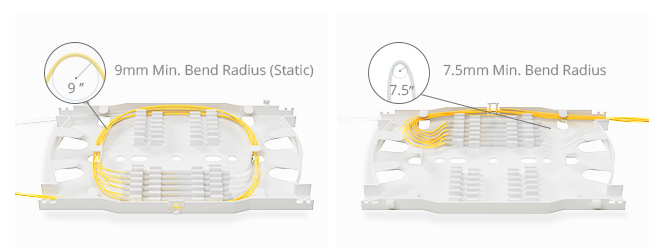

Fiber Grade | G.657.A1 | Minimum Bend Radius | 10 mm |
Polish Type | UPC | Cable Outside Diameter (OD) | 0.9 mm |
Wavelength | 1310 nm/1550 nm | Pigtail Color | 12-Color |
Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
Return Loss | ≥50 dB | Vibration | ≤0.2 dB |
Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Applications
It could be used for all kinds of Fiber Patch panel ,Terminal box, splice closure box etc...
Quality Certification
