Customized 24 Fibers Indoor/Outdoor OS2 Single Mode Assembly LC/SC/FC/ST, 2.0mm Breakout Cable

LC/SC/FC/ST, 2.0mm Breakout Cable best price
Fiber optic 24c breakout Cable factory price
LC 24cores fiber patch cords factory
24c LC/SC/FC/ST fiber patch cable manufacturer
24 Fibers Indoor/Outdoor OS2 Single Mode Assembly LC/SC/FC/ST

Customized 24 Fibers Indoor/Outdoor OS2 Single Mode Assembly LC/SC/FC/ST, 2.0mm Breakout Cable

Customized 24 Fibers Indoor/Outdoor OS2 Single Mode Assembly LC/SC/FC/ST, 2.0mm Breakout Cable is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description

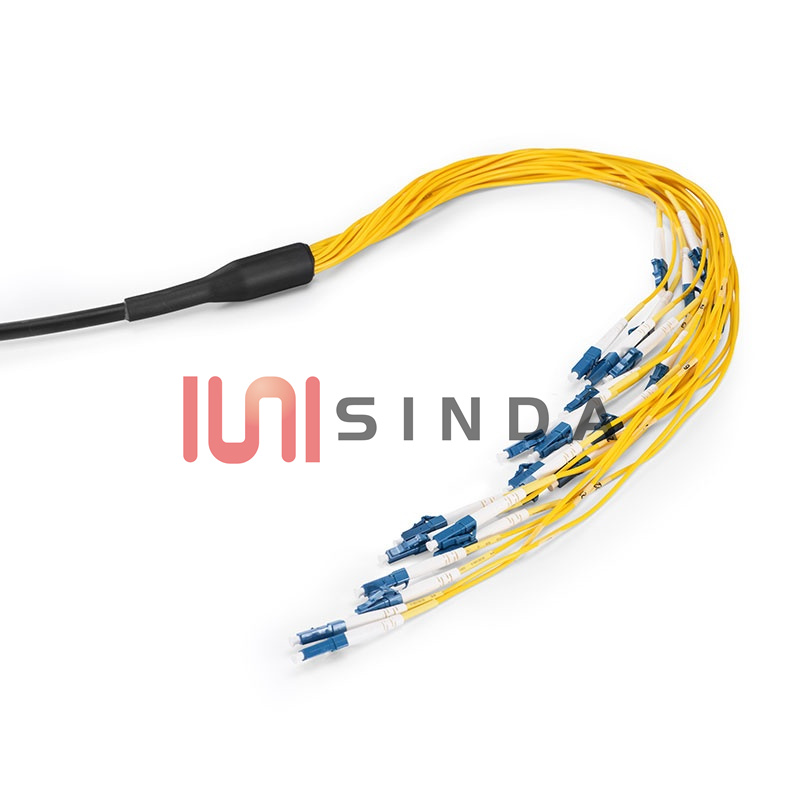

Customized 24 Fibers Indoor/Outdoor OS2 Single Mode Assembly LC/SC/FC/ST, 2.0mm Breakout Cable

Pre-terminated indoor/outdoor fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.





Features


Feature a UV Stabilized and Moisture Resistant Outer Jacket

Available from 1-24 Fibers with Variable Length

Custom Cable with Pre-terminated Connectors, Breakout Types and Pulling Eye

Optical Performance Test for Normal Network Connections

Meet the IEC 60794-1 and IEC 60794-2-20 Standard

Used for Outdoor Conduits and Corridor Cabling









Specifications


Connector Type LC/SC/ST/FC Polish Type UPC/APC
Fiber Mode OS2 9/125μm Fiber Count 2 Fibers
Jacket Material LSZH Minimum Bend Radius 20/10D (Dynamic/Static)
Breakout OD 2.0mm Trunk OD 5.0mm
Insertion Loss ≤0.3dB Return Loss UPC≥50dB, APC≥60dB
Cable Type Tight Buffered Maximum Tension of Pulling Eye 245N
Fiber Grade G.657.A1 Operating Temperature -20~60°C









Applications

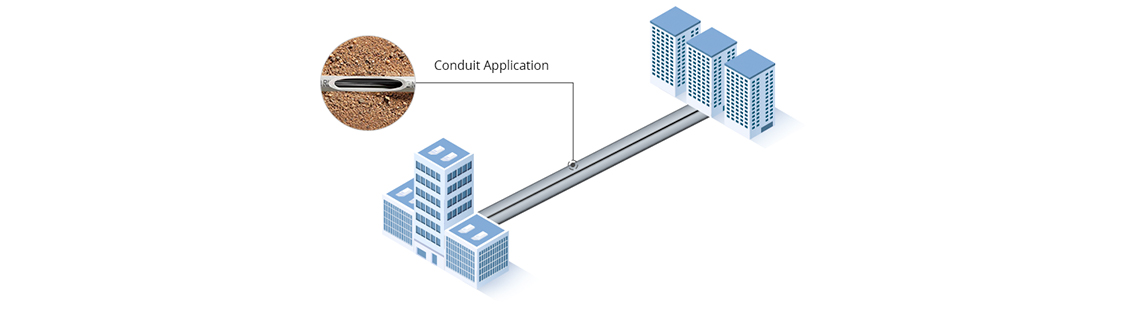

Ideal for Indoor and Outdoor Cabling,Black UV-resistant LSZH outer jacket and tight-buffered construction enable the cable to be used indoors or outdoors in underground dry/damp conduit (if not prone to flooding).









Quality Certification
