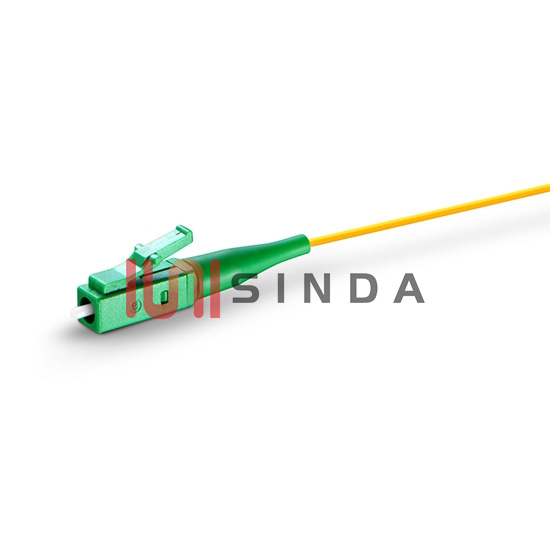

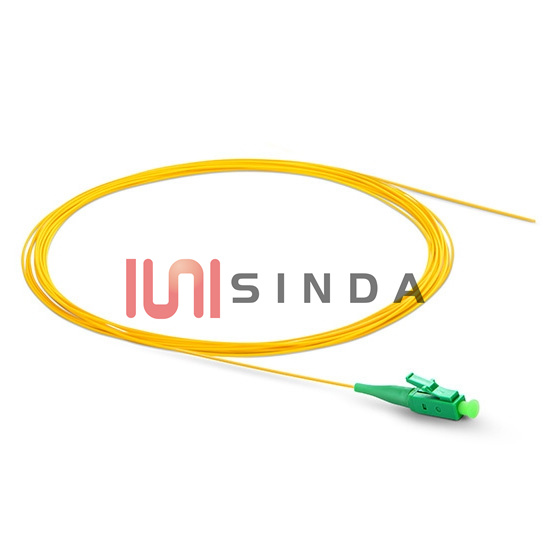

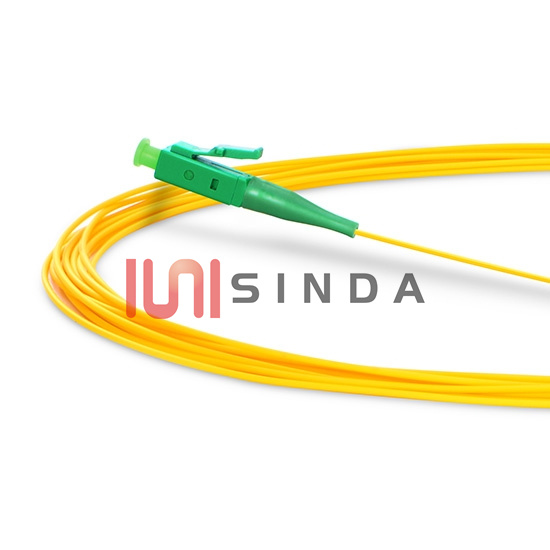

LC APC Simplex OS2 Single Mode PVC (OFNR) 0.9mm 1M Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
LC APC Simplex OS2 Single Mode PVC (OFNR) 0.9mm 1M Fiber Optic Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

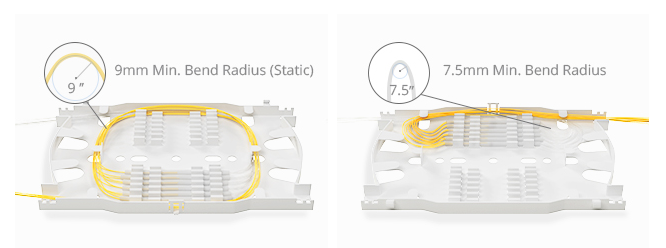

Perfect for High Density Splicing Applications
G.657.A1 Low Loss Fiber & 10mm Min. Bend Radius, provide improved flexibility for limited space setups.
Features
Simplex ,Duplex and Multi-core accessories for standard or customized structure
Fully compliant with the standards of YD-T826/1996 With PC,UPC,APC 3 types
Fiber diameter: Φ0.9, Φ2.0, Φ3.0, both SM G.657A, G.657B, G.655, G.652D and MM OM1/OM2/OM3/OM4/OM5 Ceramic ferrules, Protection of metal tube with small caliber
More convenient to deploy and ensure safty Avoid damage from torsion
High tensile and stress coefficient
Convenient for application and highly secure
Application without damage to cable
Manufacture without damage to cable
Cost cutting for maintenance
Fit all kinds of connectors:FC,SC,ST,LC,MU,E2000,D4,SMA and DIN
Specifications
| Parameter | Unit | Fiber patch cord | ST, MU | MT-RJ | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Applications
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Quality Certification
Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
Our Test Assurance Program
In addition to regular standard testing, check out our other test program to see what really makes us different。
