FTTA used LC UPC to LC UPC Duplex OS2 Single Mode 7.0mm LSZH Outdoor Fiber Patch Cable for Base Station

FTTA patch cable factory price
Outdoor Fiber Patch Cable best price
FTTA used LC UPC to LC UPC Duplex factory
Patch cords fiber outdoor factory
Outdoor fiber patch cords factory

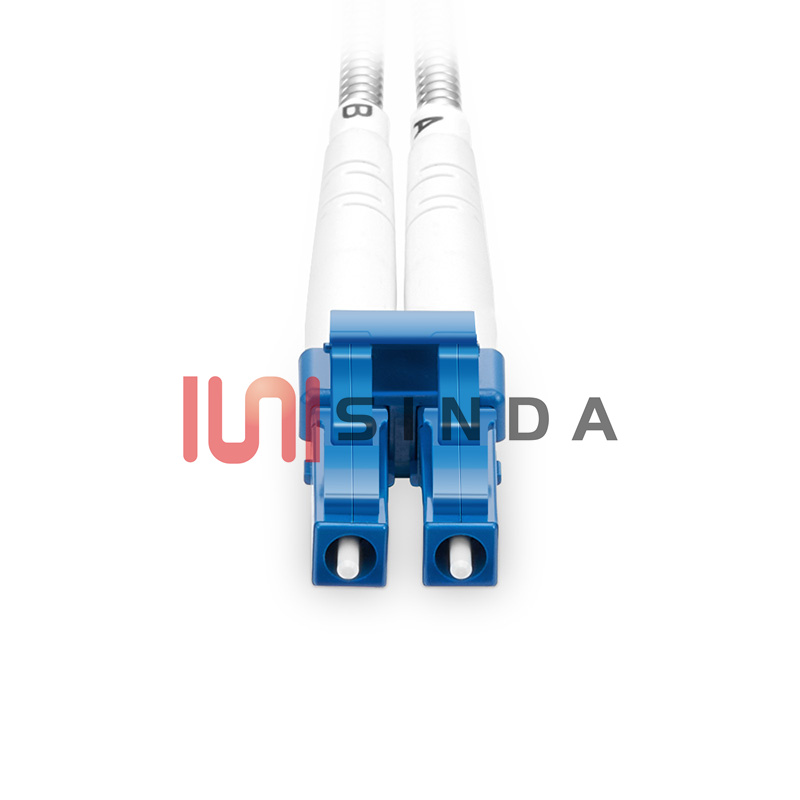

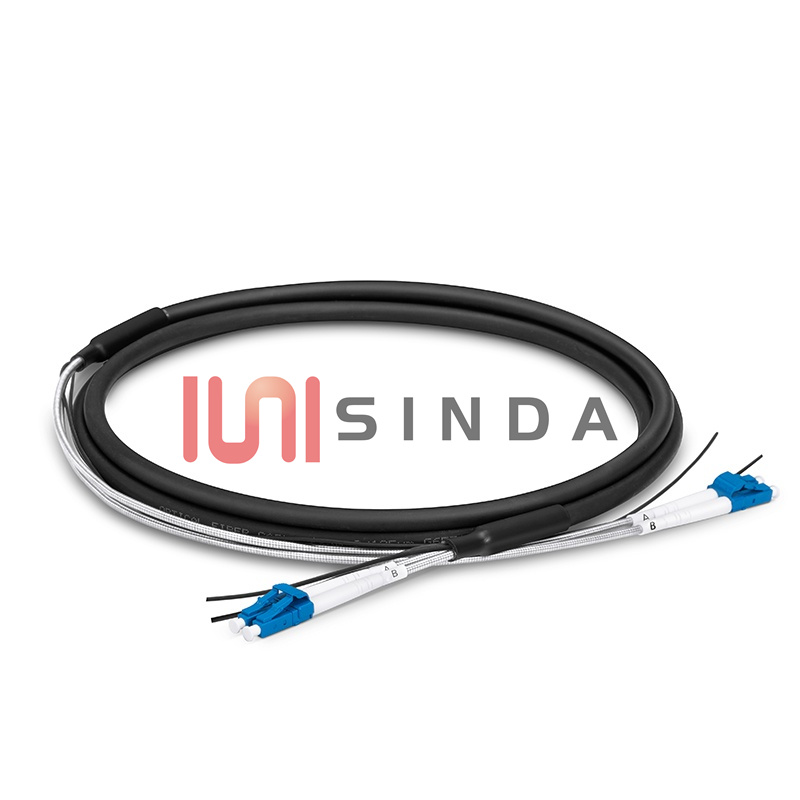

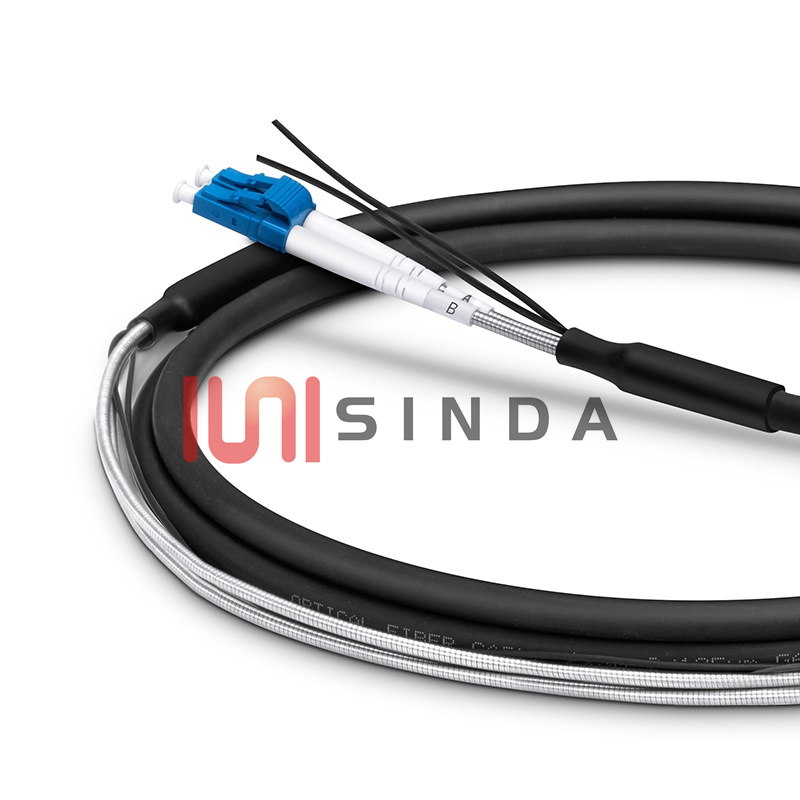

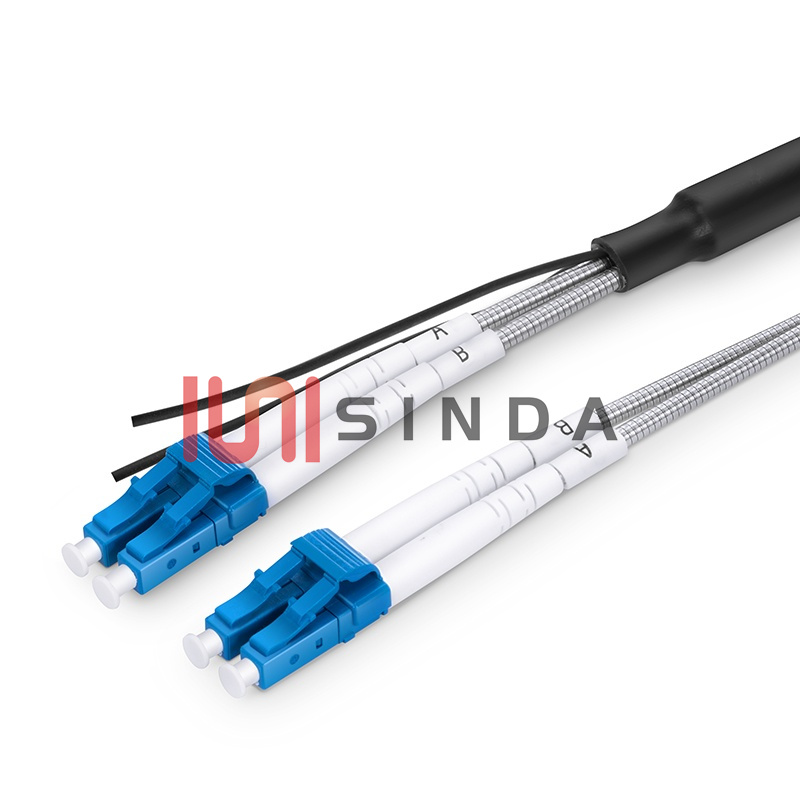

FTTA used LC UPC to LC UPC Duplex OS2 Single Mode 7.0mm LSZH Outdoor Fiber Patch Cable for Base Station

FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.

facebook twitter Linkedin YOUTUBE WHATSAPP EMAIL
  • Description





FEATURES

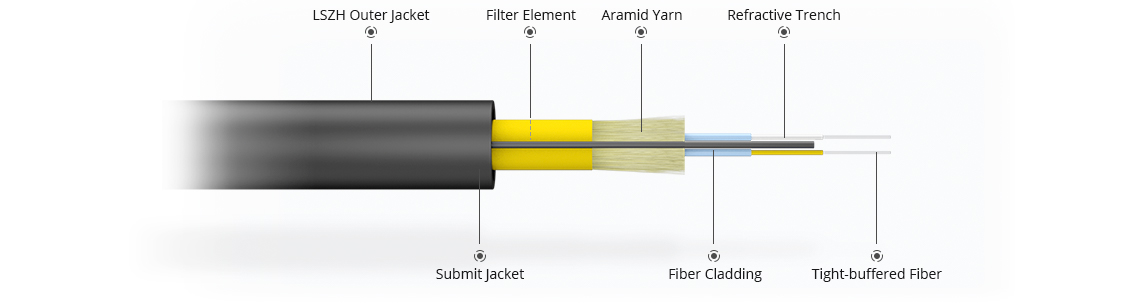

Armor & Strength Members,They firm the cable and make it more convenient for pulling when installing.

20/10D Min. Bend Radius,The Corning G.657.A1 fiber allows tighter cable bends for slack storage and routing.

200-400N Tensile Strength,The pull-resistant cable prevents breaking and prolongs the service life.



APPLICATIONS

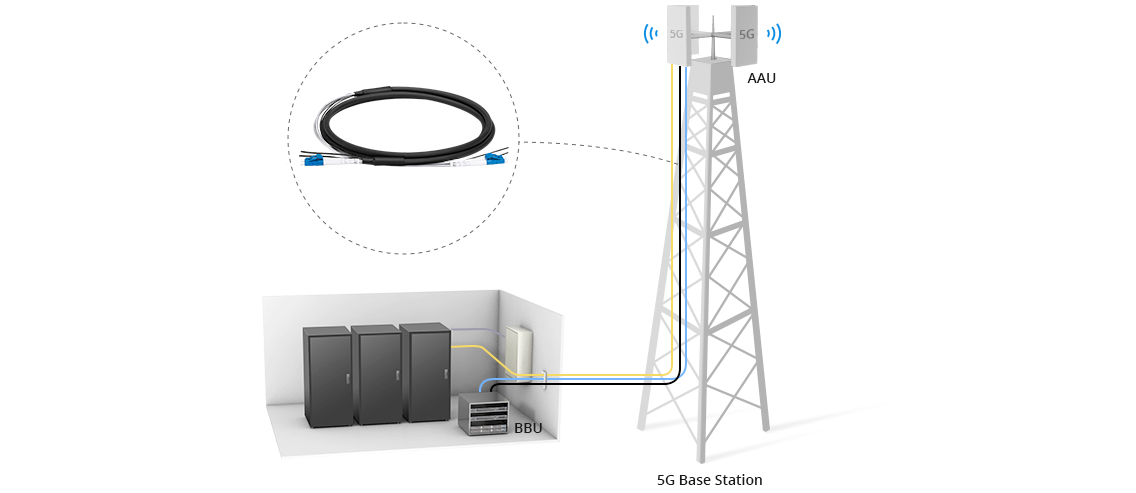

Designed for Outdoor Base Station Construction,It's suitable for harsh environments such as fiber-to-the antenna (FTTA) cabling in LTE/4G/5G networks, base stations and also meets the needs of remote traction.



Specifications




Parameter Unit FC,SC,LC fiber patch cord ST, MU MT-RJ E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85





Quality Certification


Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.



Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.



High Quality Fiber Optic Cable Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!







Our Test Assurance Program


In addition to regular standard testing, check out our other test program to see what really makes us different。
